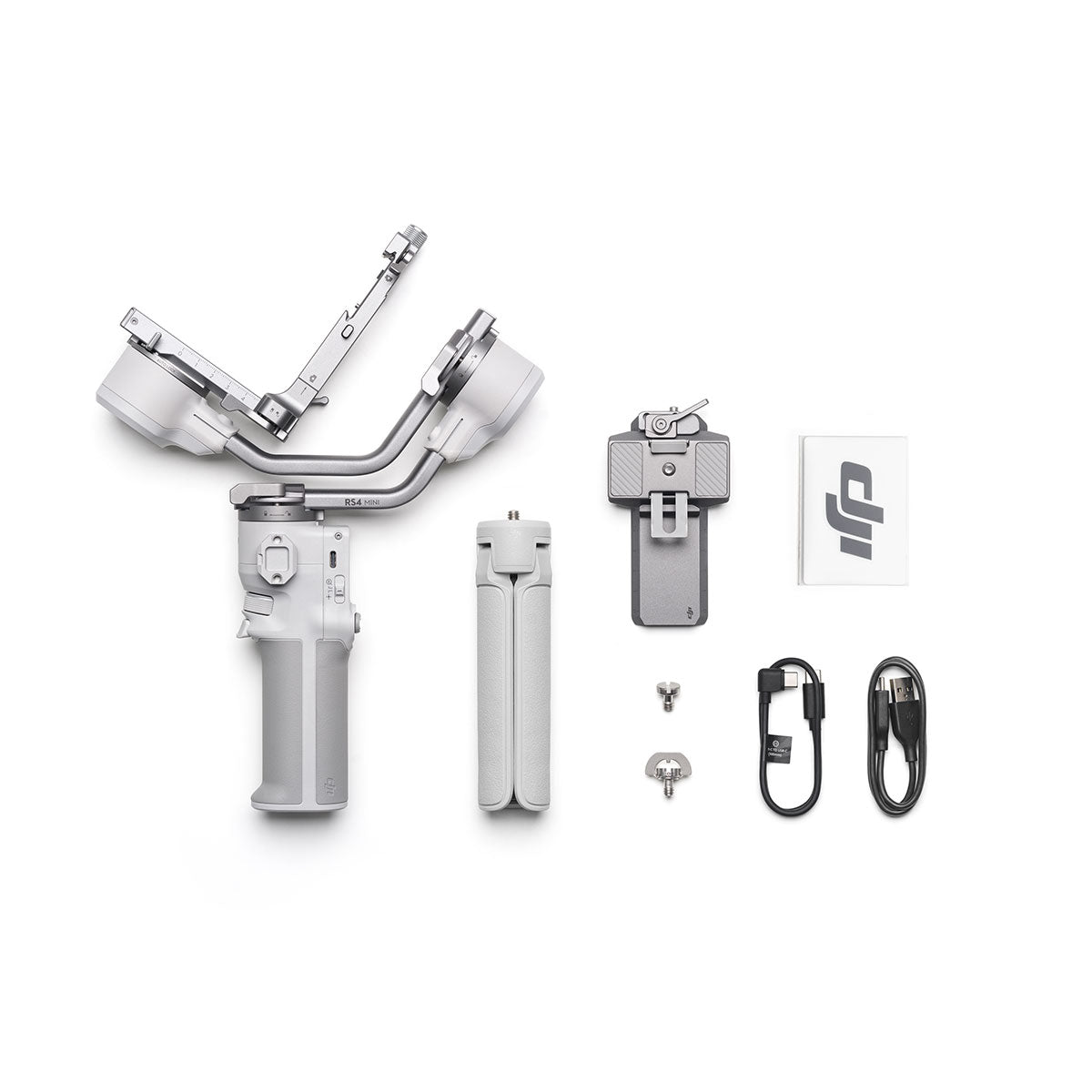

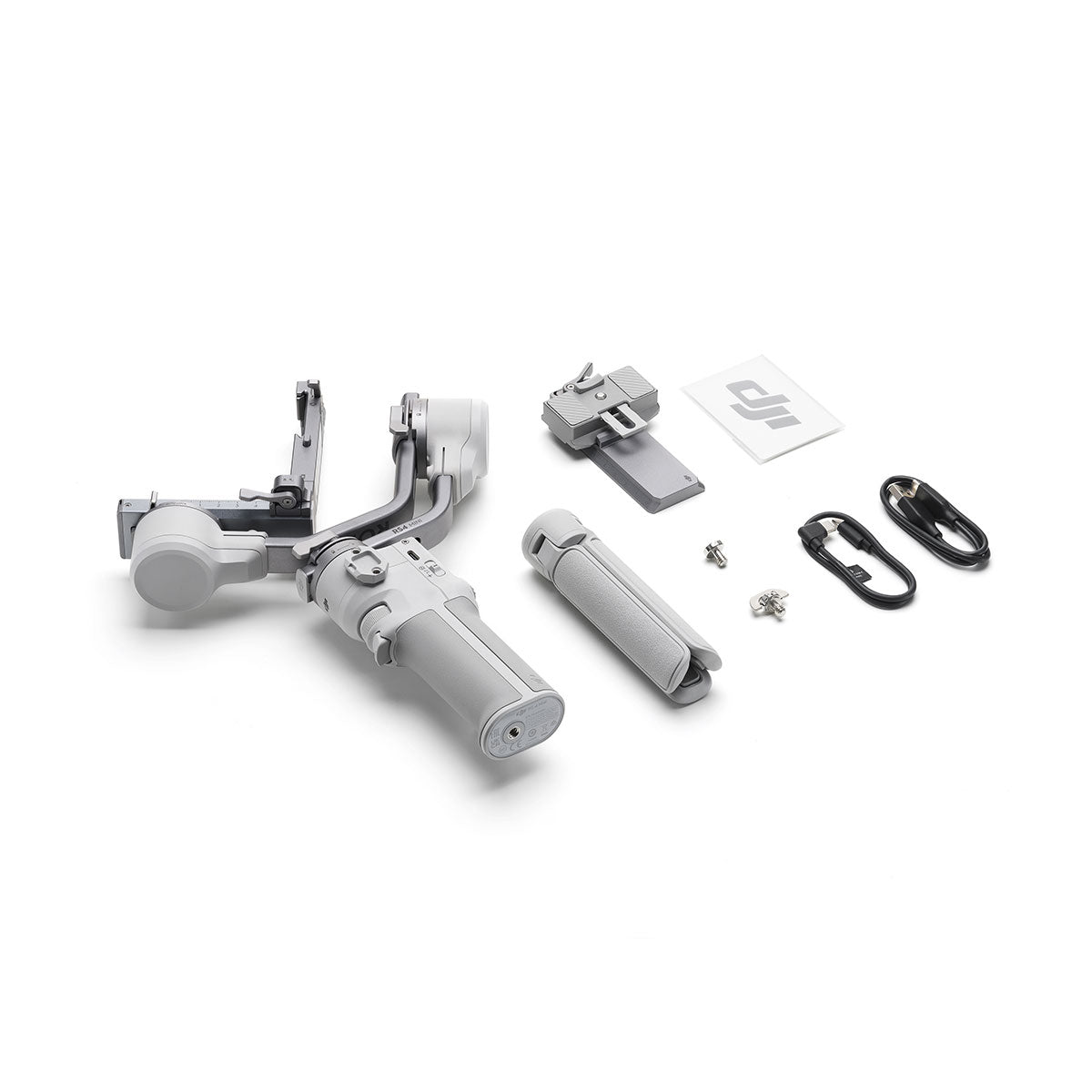

Product Information
-

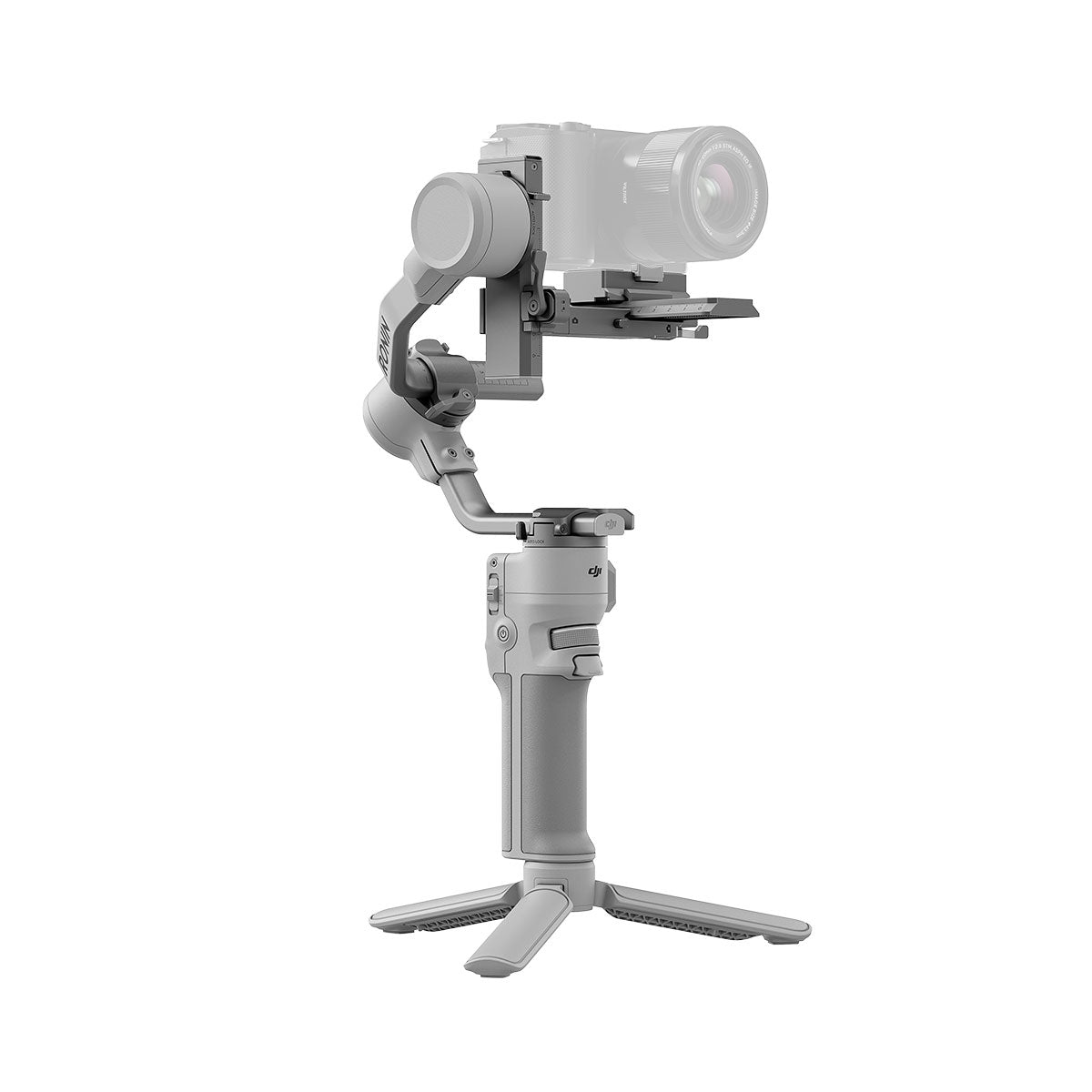

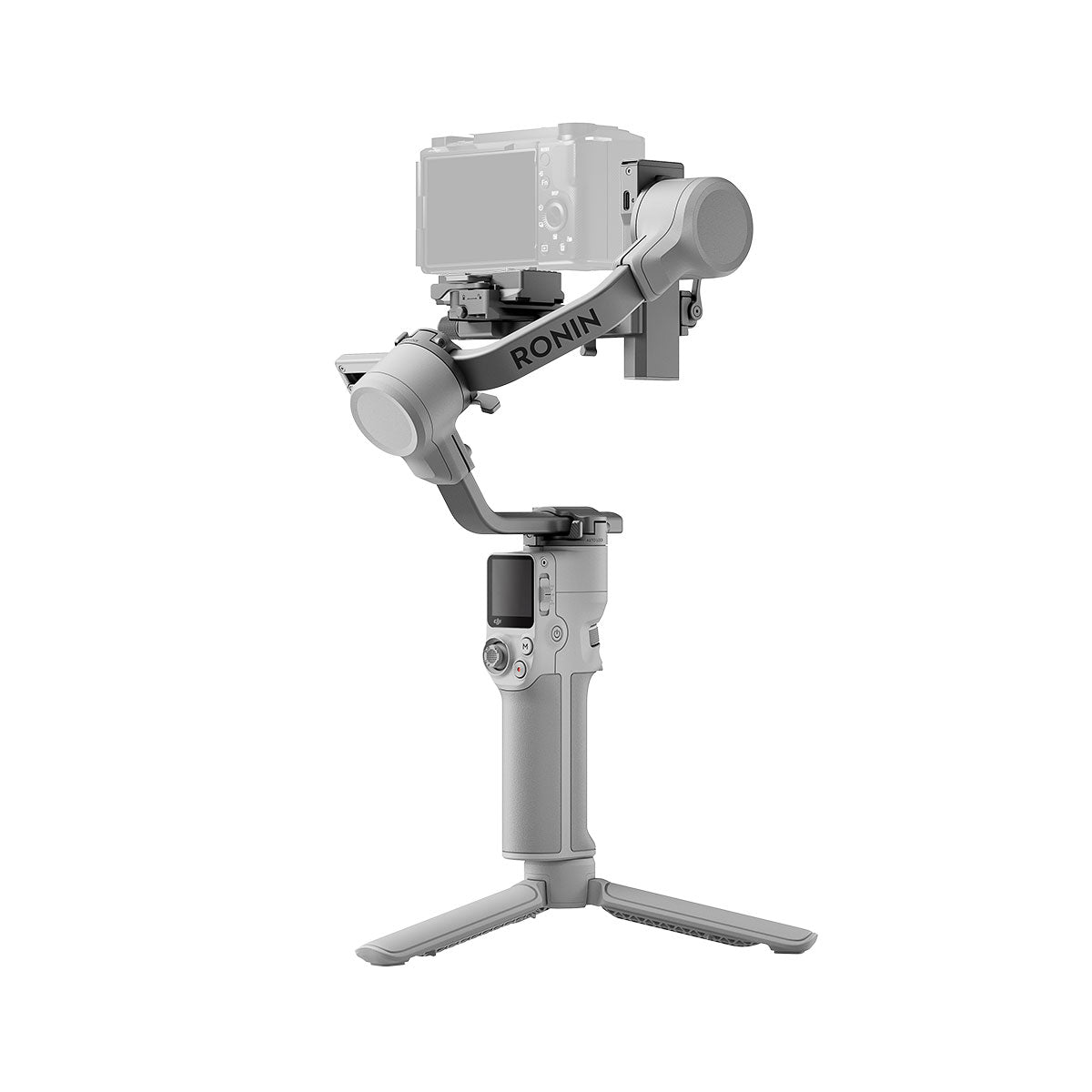

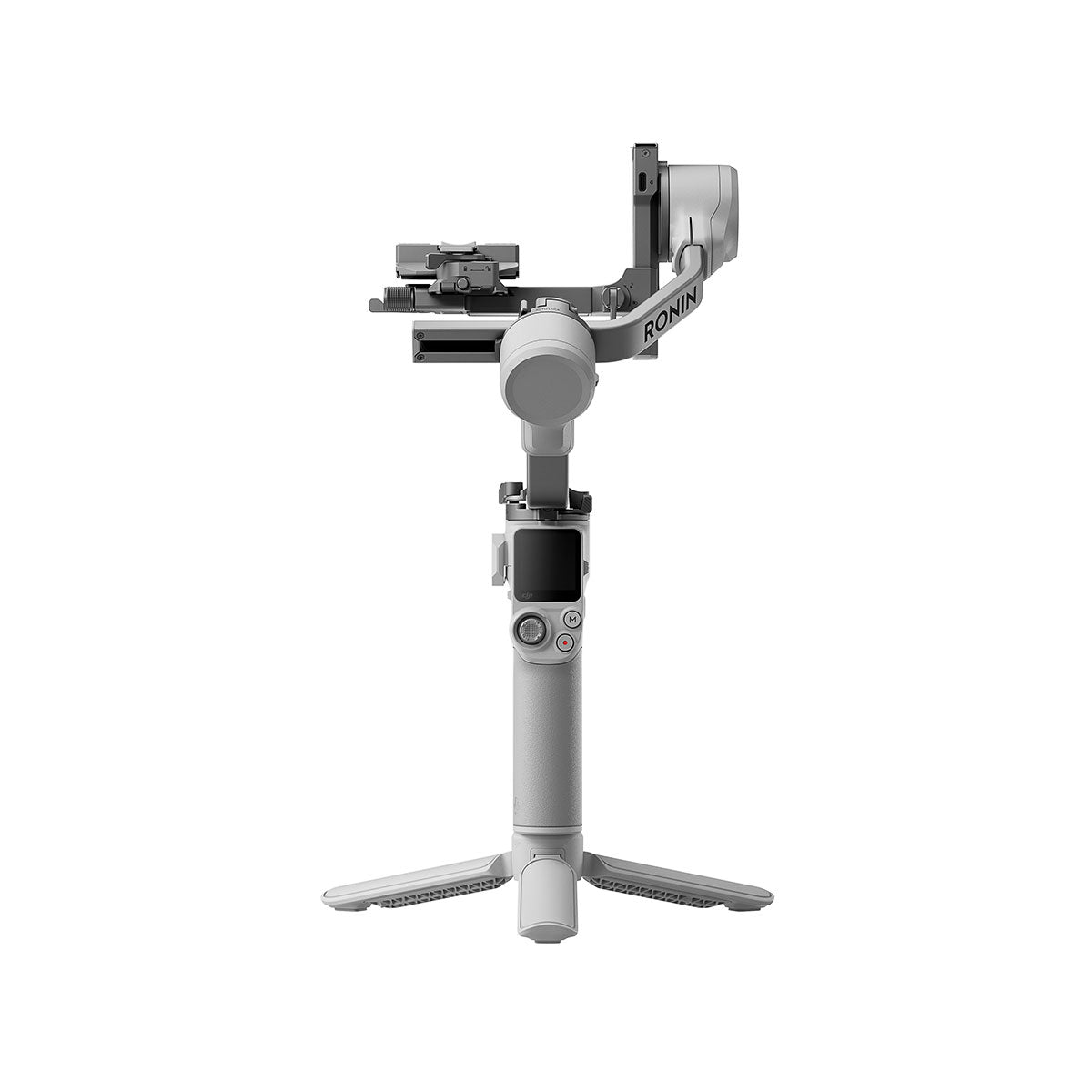

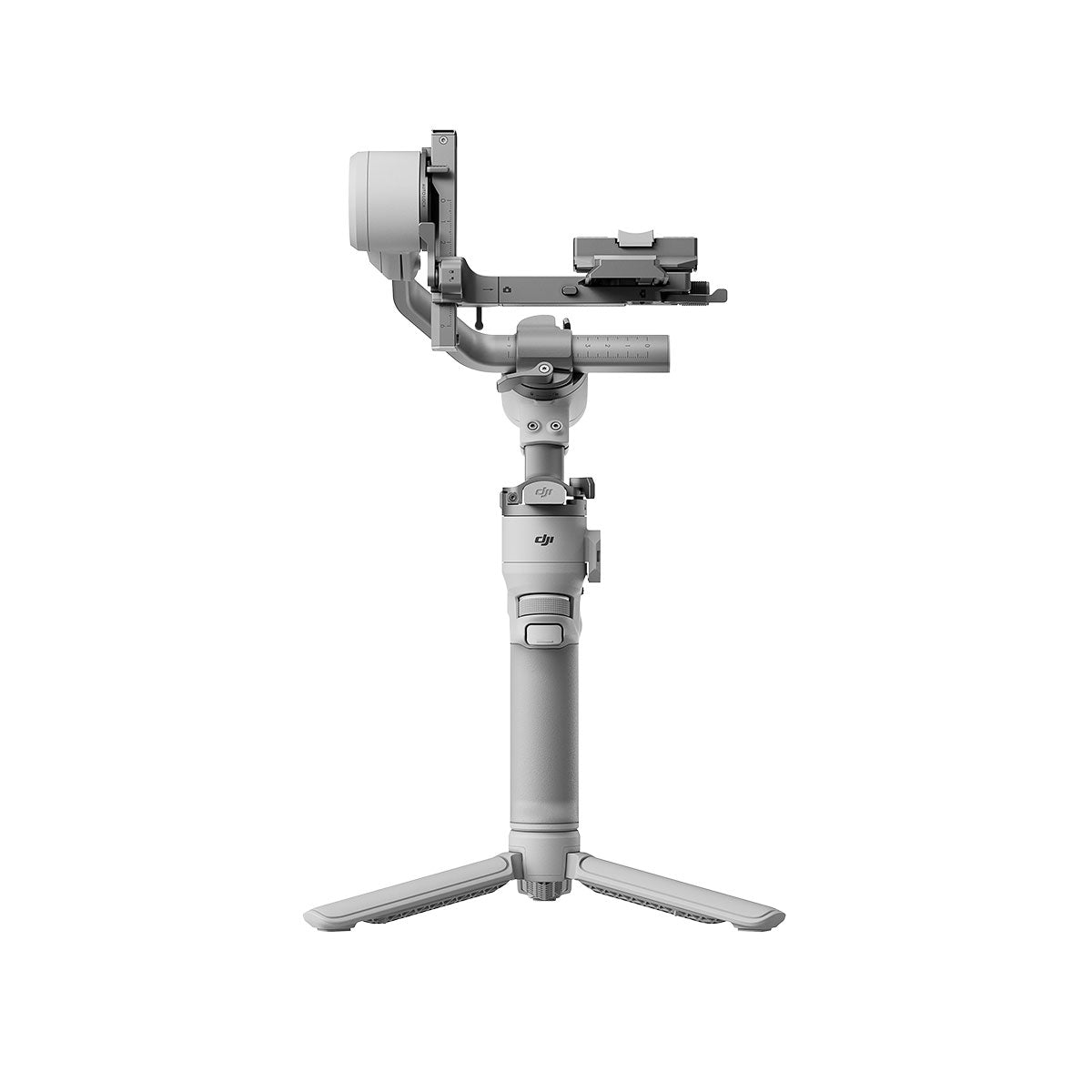

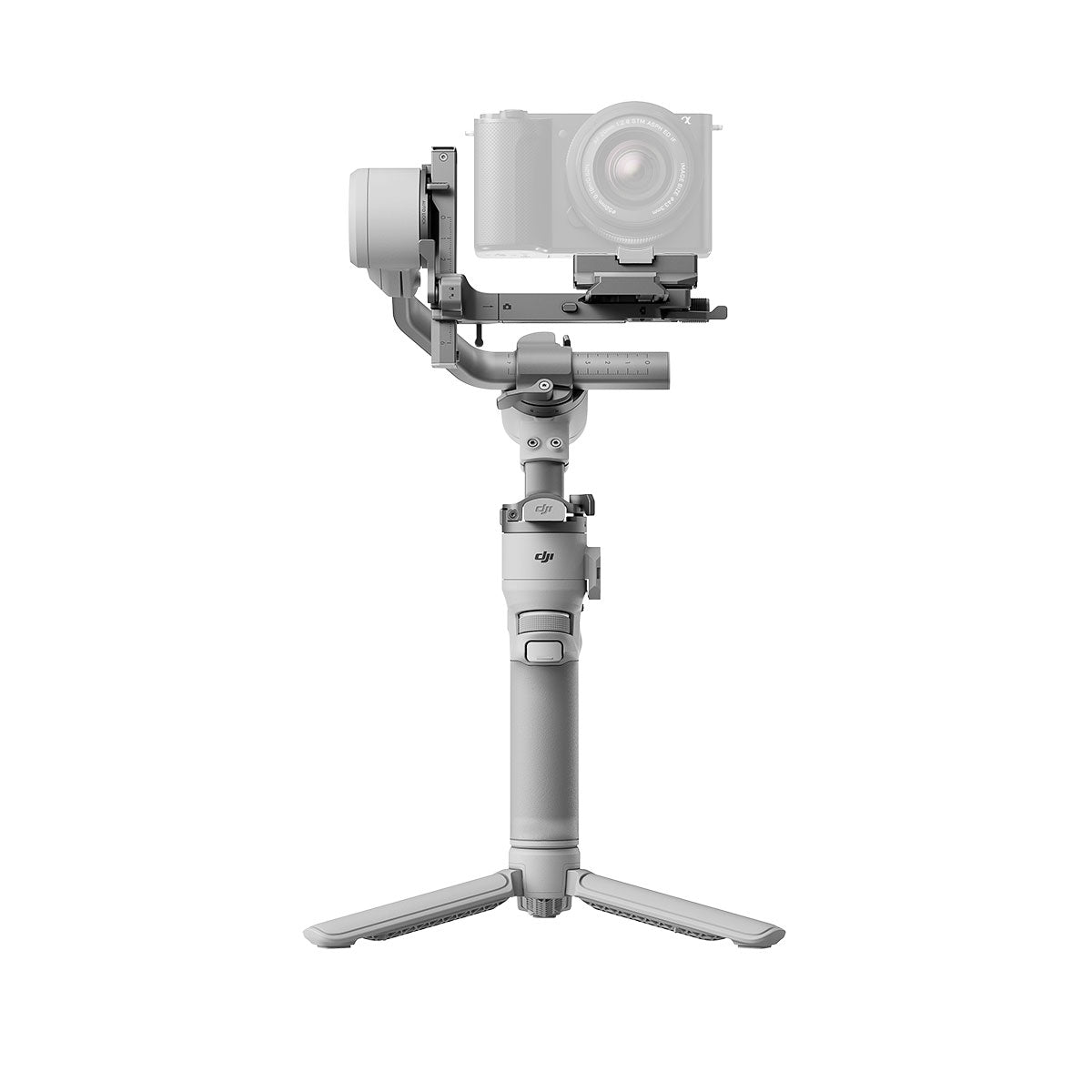

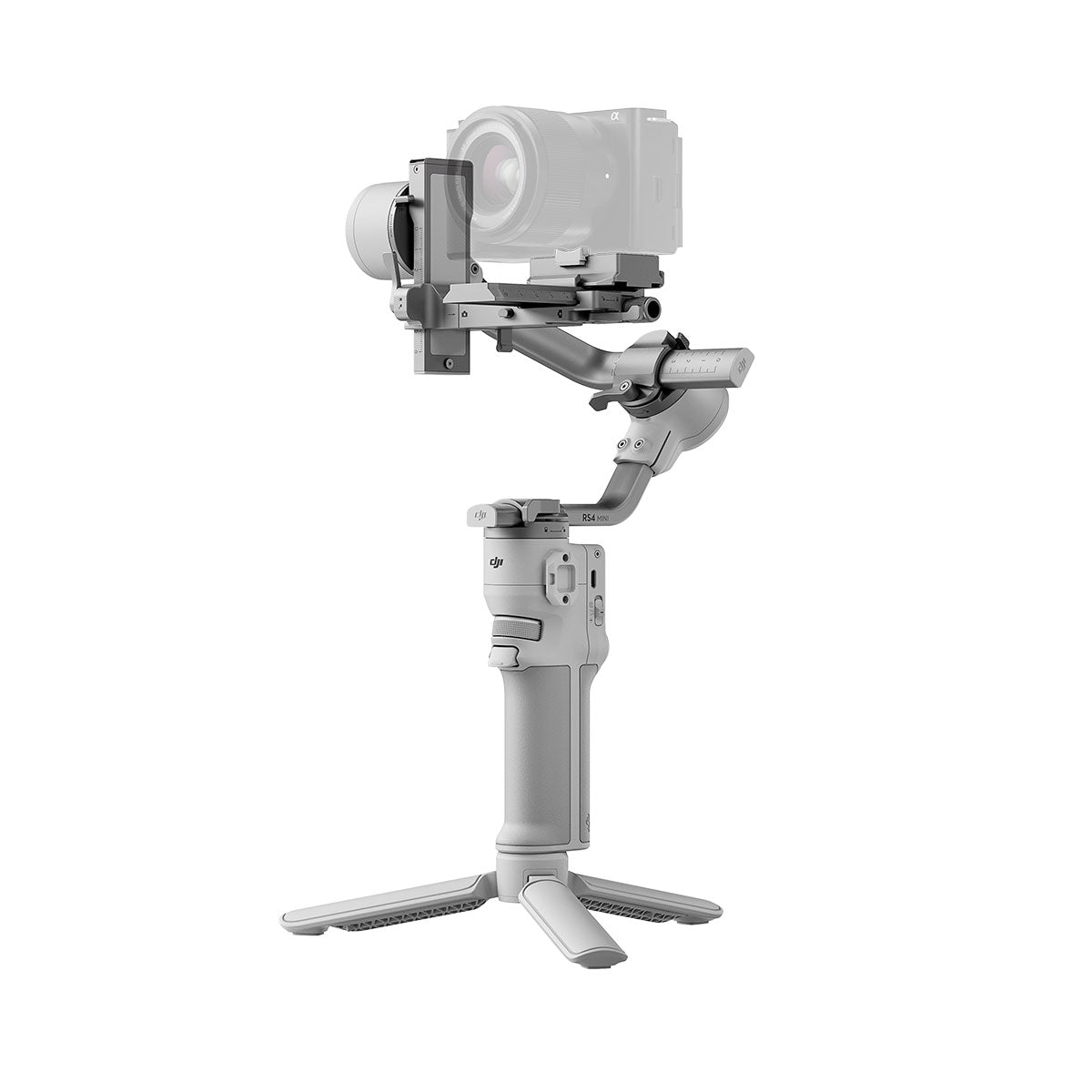

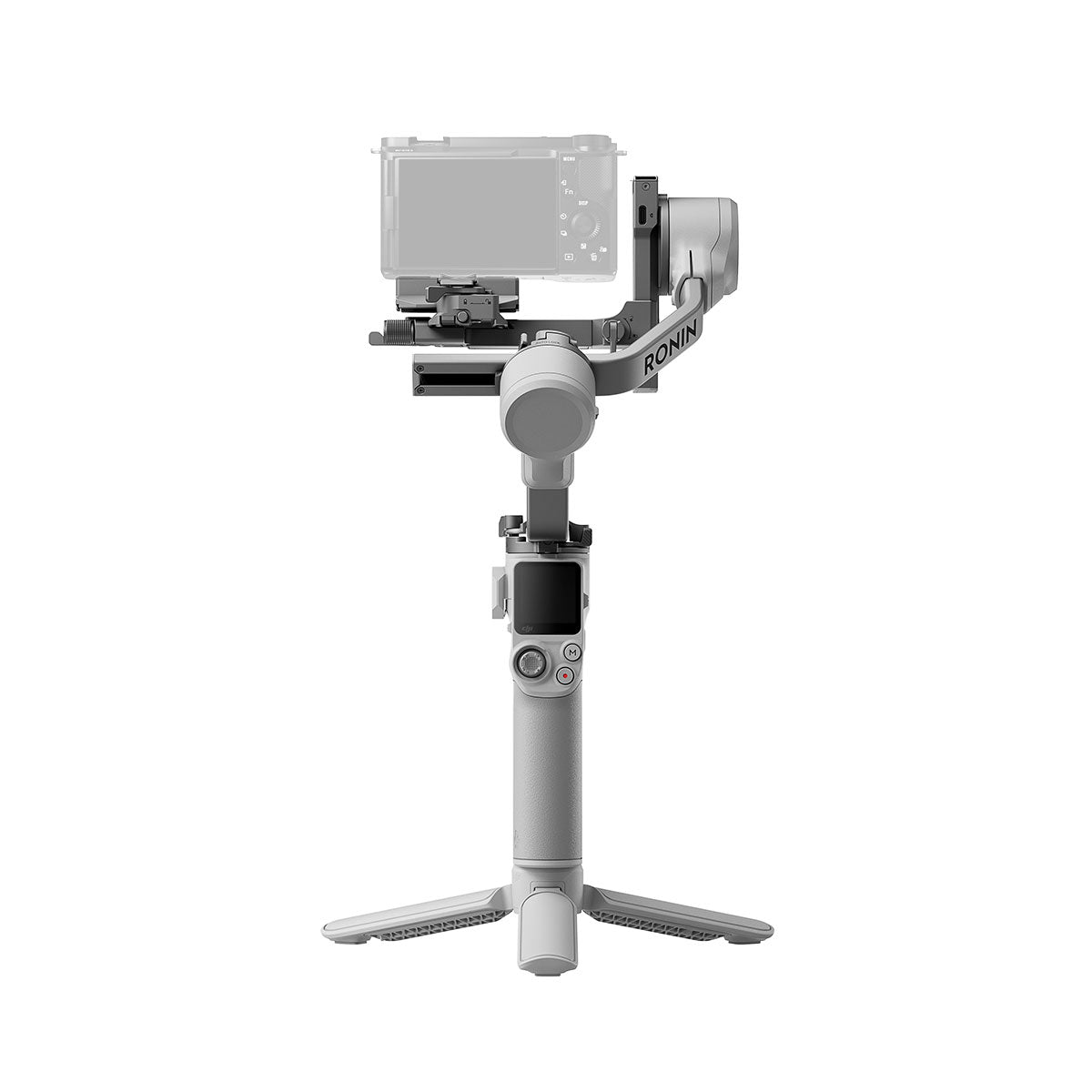

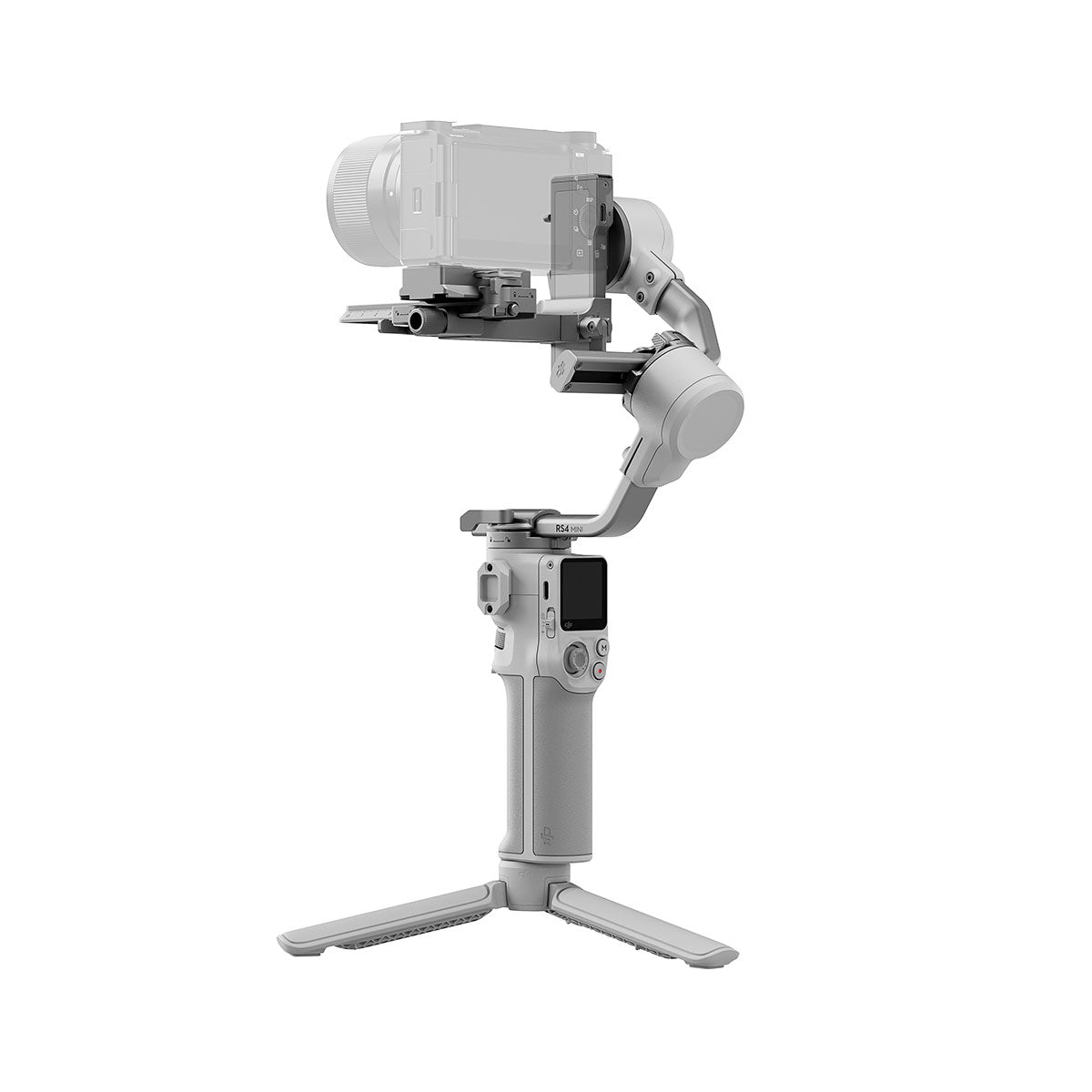

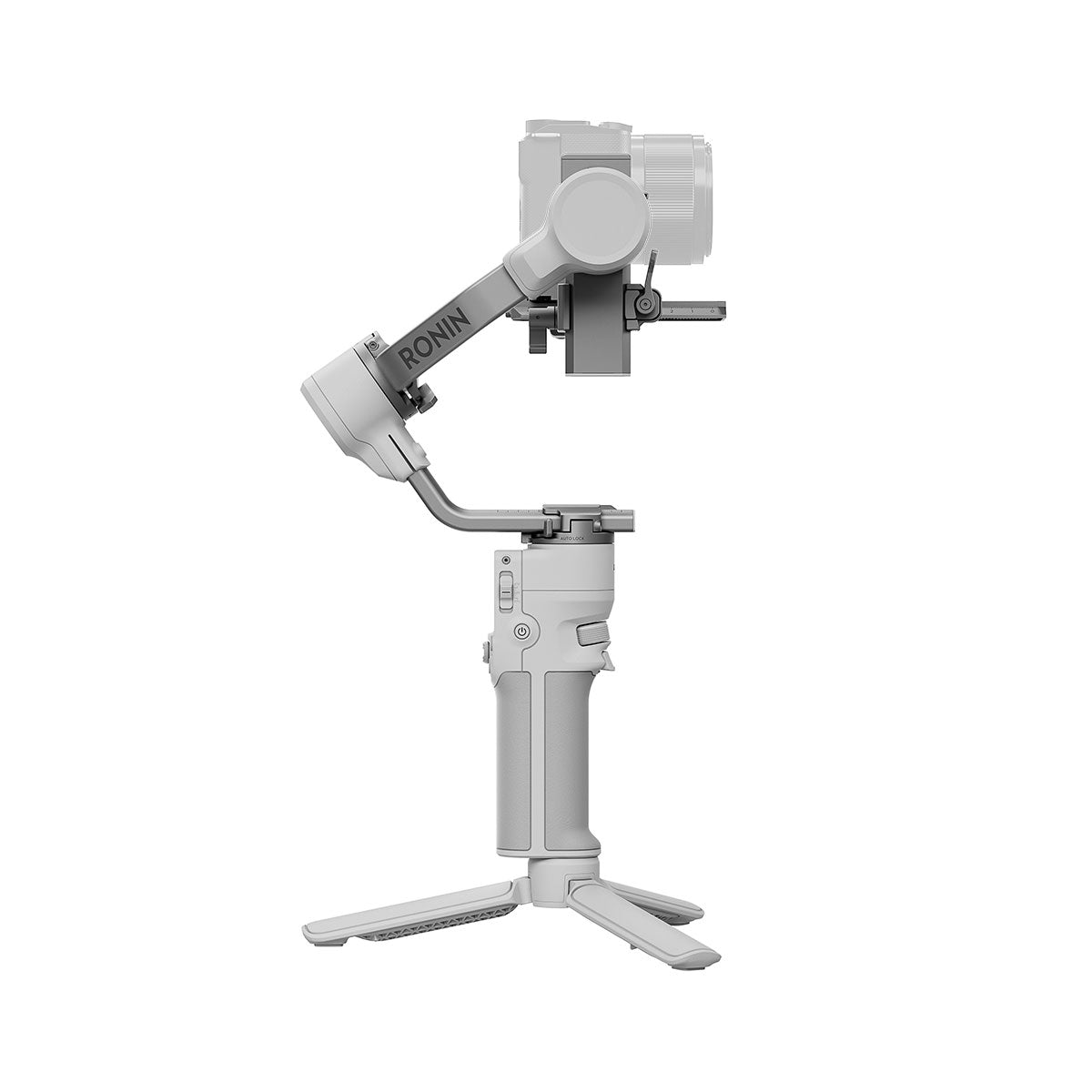

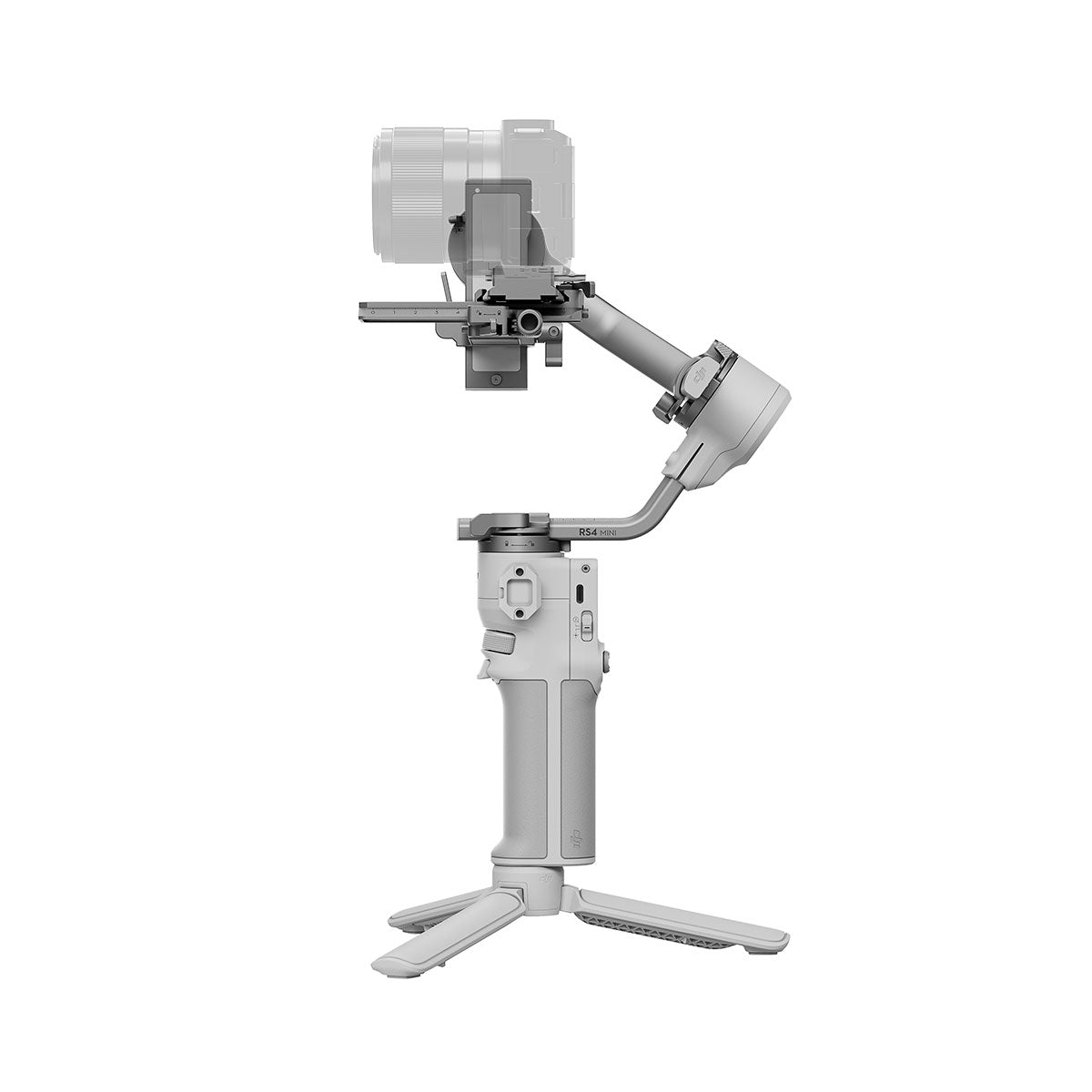

RS 4 Mini Gimbal Stabilizer
-
RS 4 Mini Quick-Release Plate
-
RS 4 Mini Tripod
-
L-Shaped Multi-Camera Control Cable (USB-C, 30 cm)
-
USB-C Charging Cable (40 cm)
-
Screw Kit
-
Limited 1-Year Warranty
Gimbal | |
---|---|
Load Capacity | 0.88 to 4.4 lb / 0.4 to 2 kg |
Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
Rotation Range | Yaw (Pan): 360° Pitch (Tilt): 330º (-95 to 235°) Roll: 320º (-110 to 210°) |
Follow Speed | Pan/Tilt/Roll: 360°/s |
Grip Design | Single Handgrip |
Native Vertical Shooting | Supported |
Axis Locks | Auto |
Compatibility | |
---|---|
Camera Control | On Compatible Models |
Camera Mounting Screw | 1 x 1/4"-20 Male |
Accessory Ports | NATO Port 1/4"-20 Mounting Hole RSS Camera Control Port (USB-C) Pogo Pin (compatible with the DJI RS Intelligent Tracking Module) |
Connectivity | |
---|---|
Inputs/Outputs | 1 x USB-C (Charging Port: 9 V /2.5 A) |
Wireless Frequency | 2.4 GHz (2.4 - 2.4835) |
Wireless Protocol | Bluetooth 5.1 |
Battery | |
---|---|
Battery Type | 1 x Detachable |
Battery Capacity | 3100 mAh / 22.32 Wh |
Battery Runtime | 13 hours (stationary) |
Battery Charging Time | Approx. 1 hour and 50 minutes |
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Voltage | 9 VDC |
General | |
---|---|
Display Type | Fixed Touchscreen OLED |
Materials | Aluminium alloy and Plastic |
Mounting | 1 x 1/4"-20 Female |
Dimensions(L × W × H) | Folded: 9.29 x 2.52 x 12.44" / 236 × 64 × 316mm (excluding the tripod and the Quick-Release Plate) Unfolded: 6.89 x 7.17 x 13.31" / 175 × 182 × 338mm (excluding camera, tripod, and the Quick-Release Plate) |
Weight | Gimbal: Approx. 1.96 lbs / 890g (including the Quick-Release Plate and excluding the tripod) Extended Grip/Tripod: Approx. 0.3 lbs / 140g |
Operating Temperature | 14 to 113°F / -10 to 45°C |
