Product Information
-

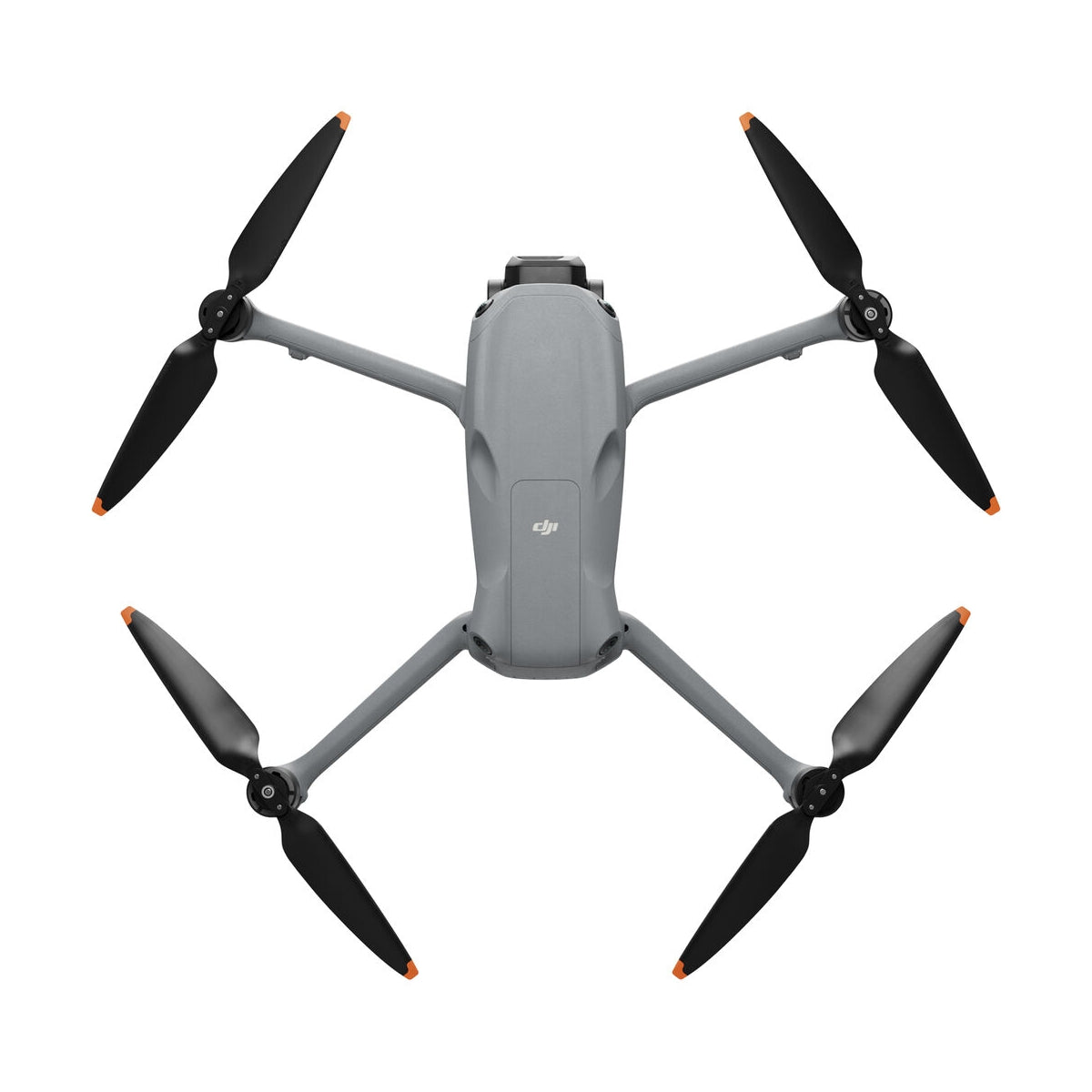

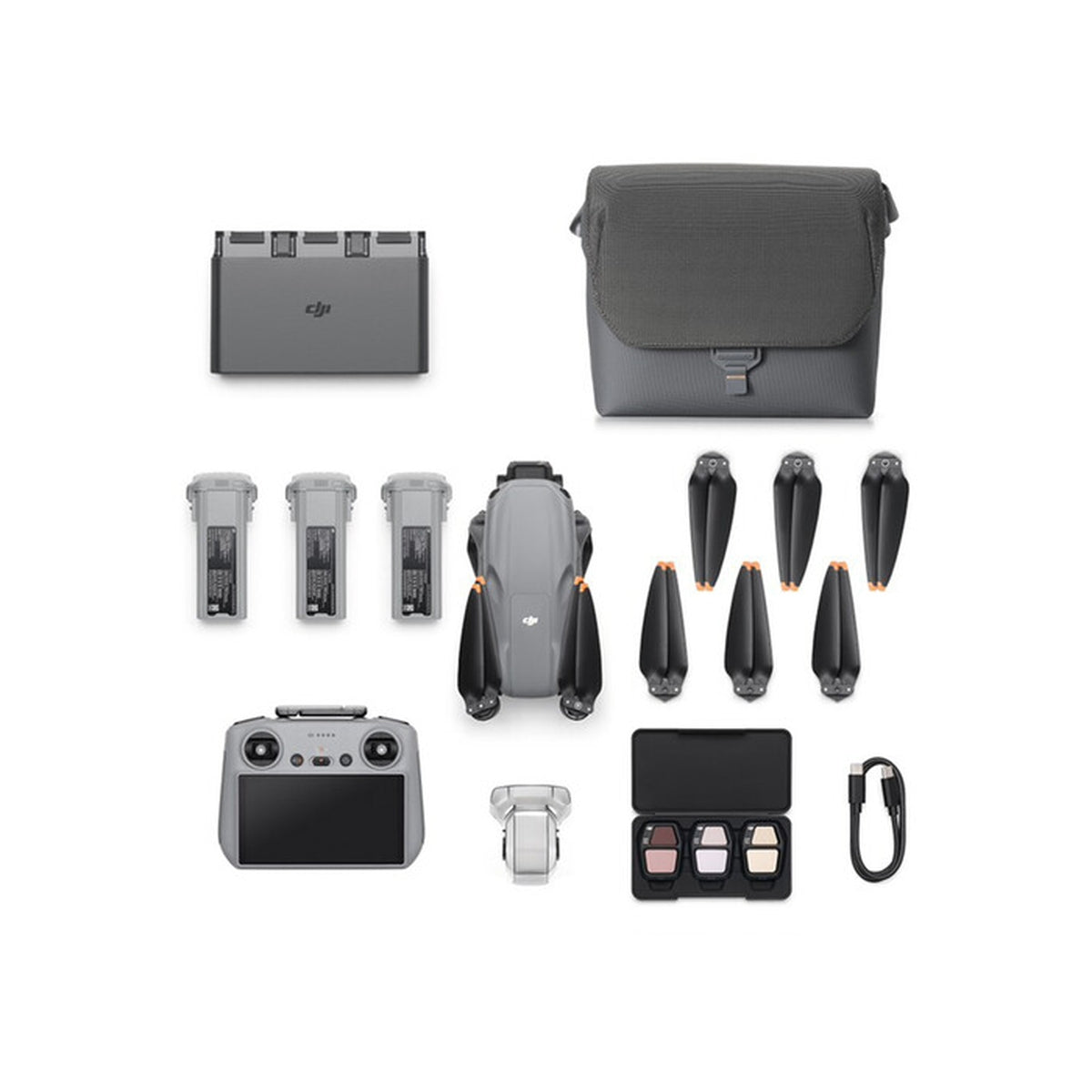

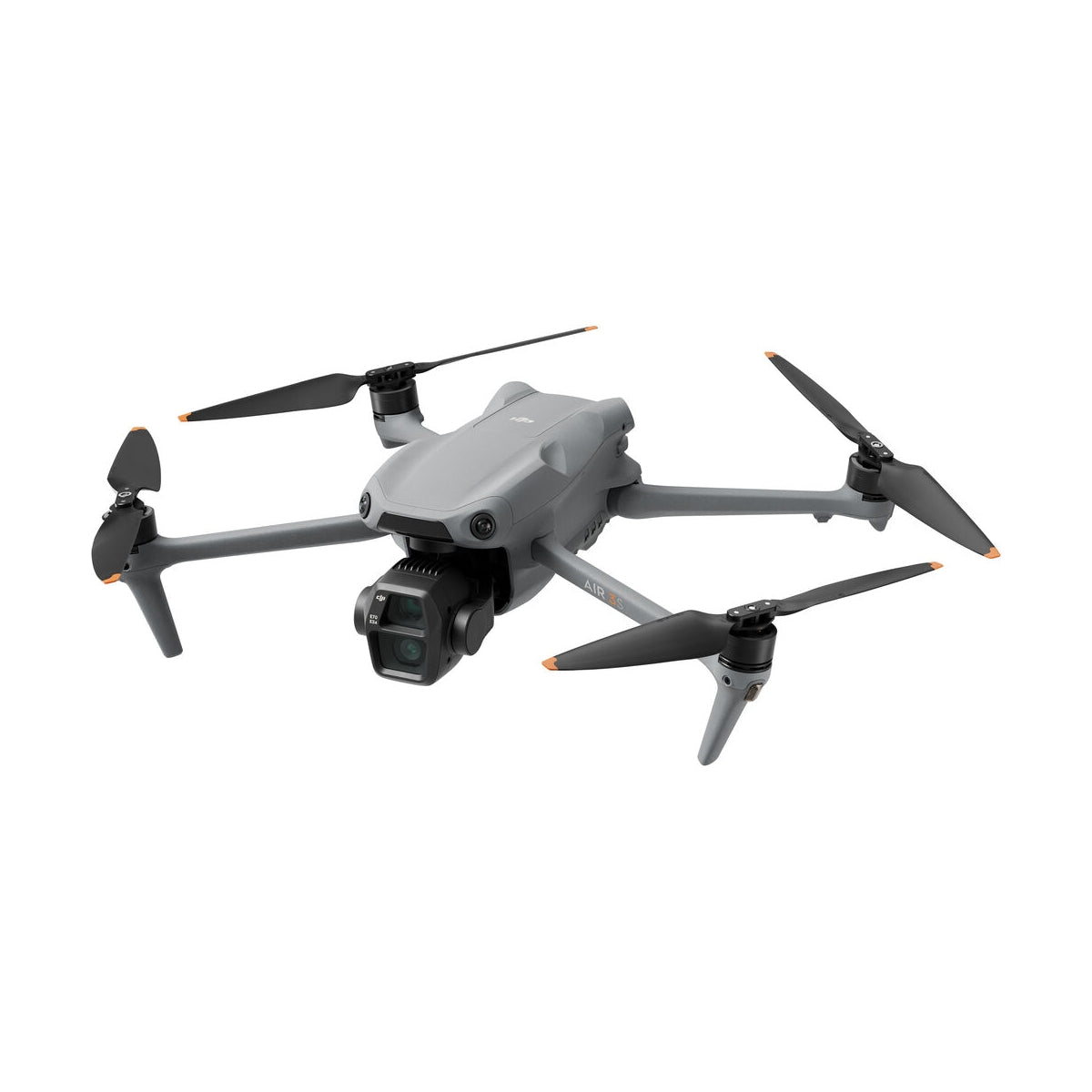

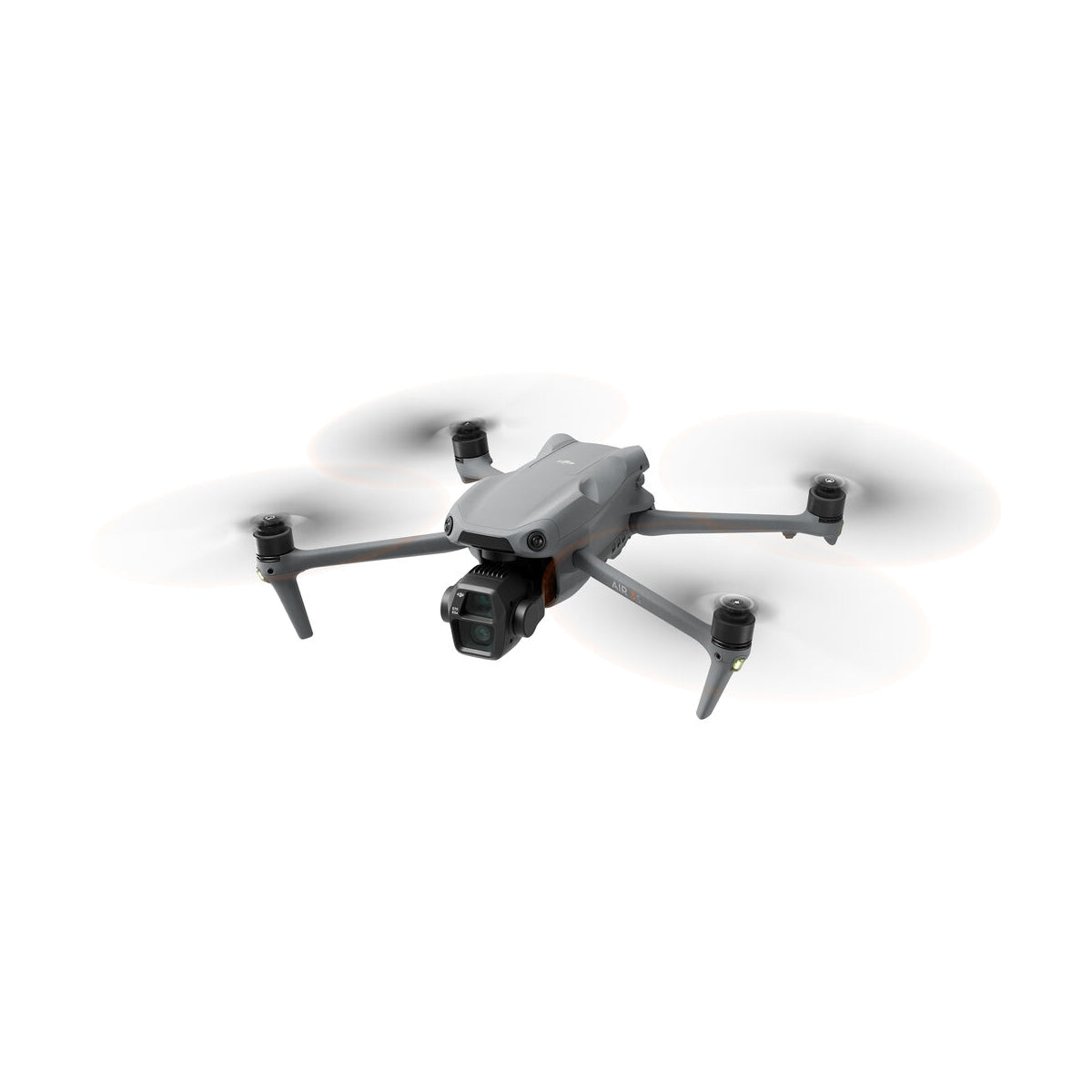

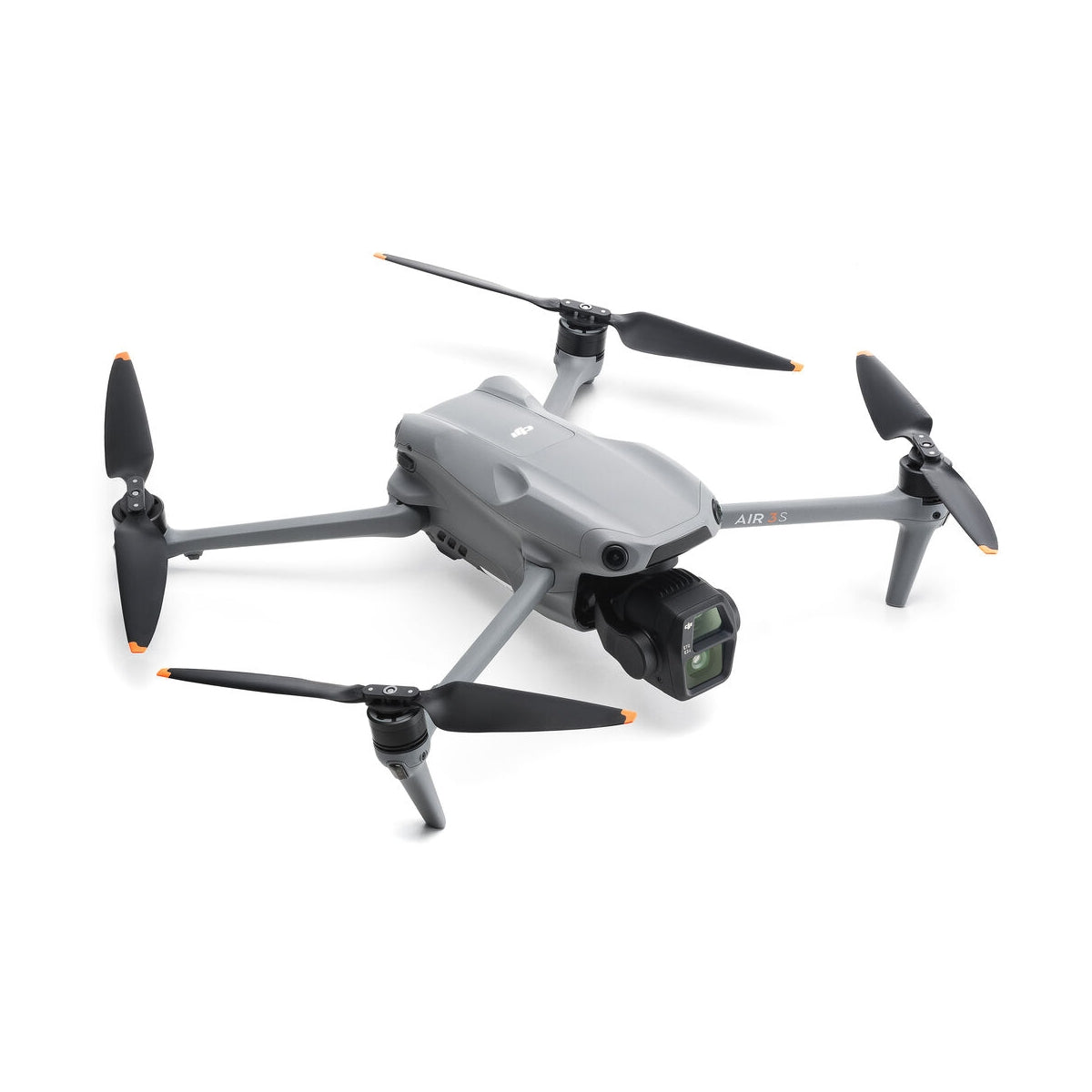

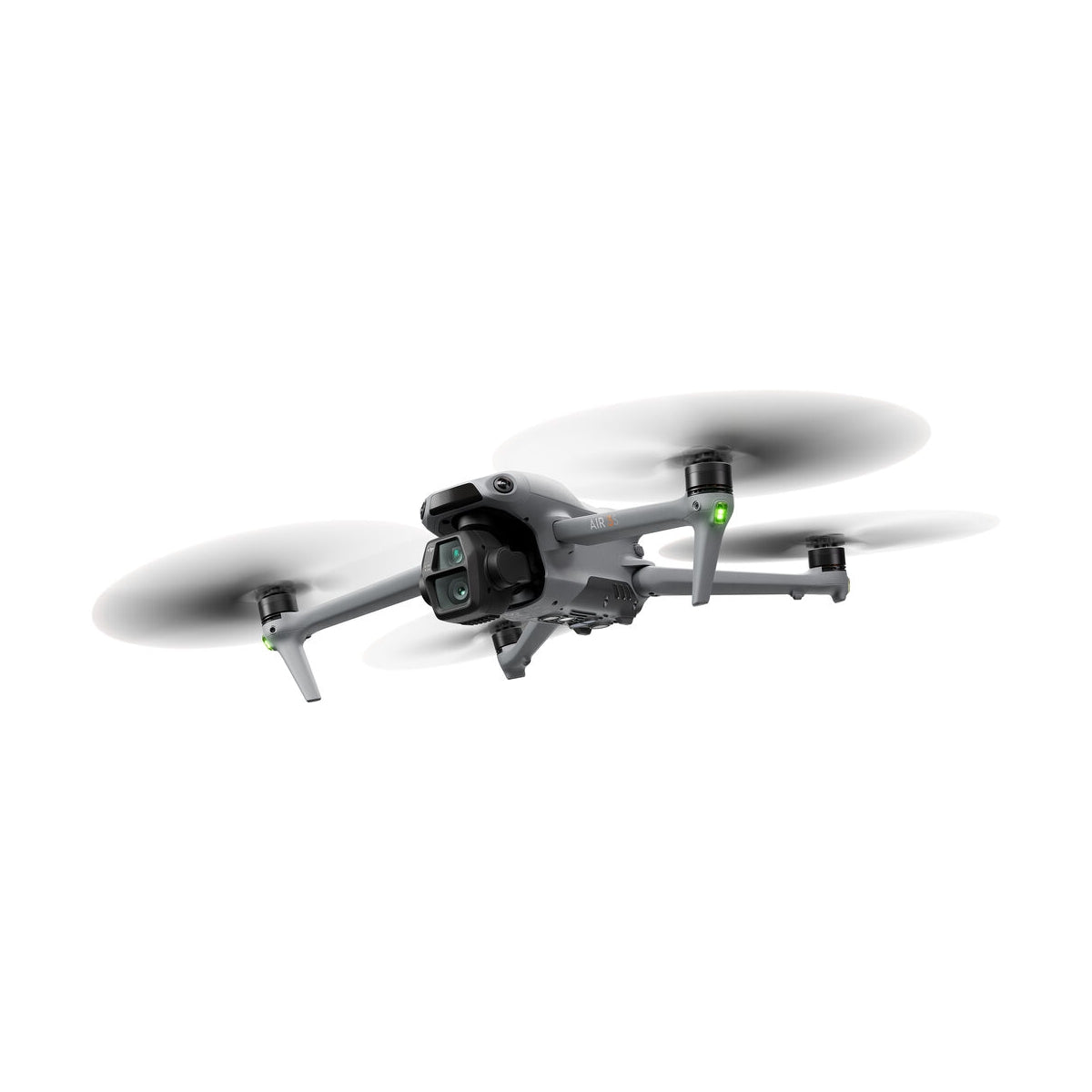

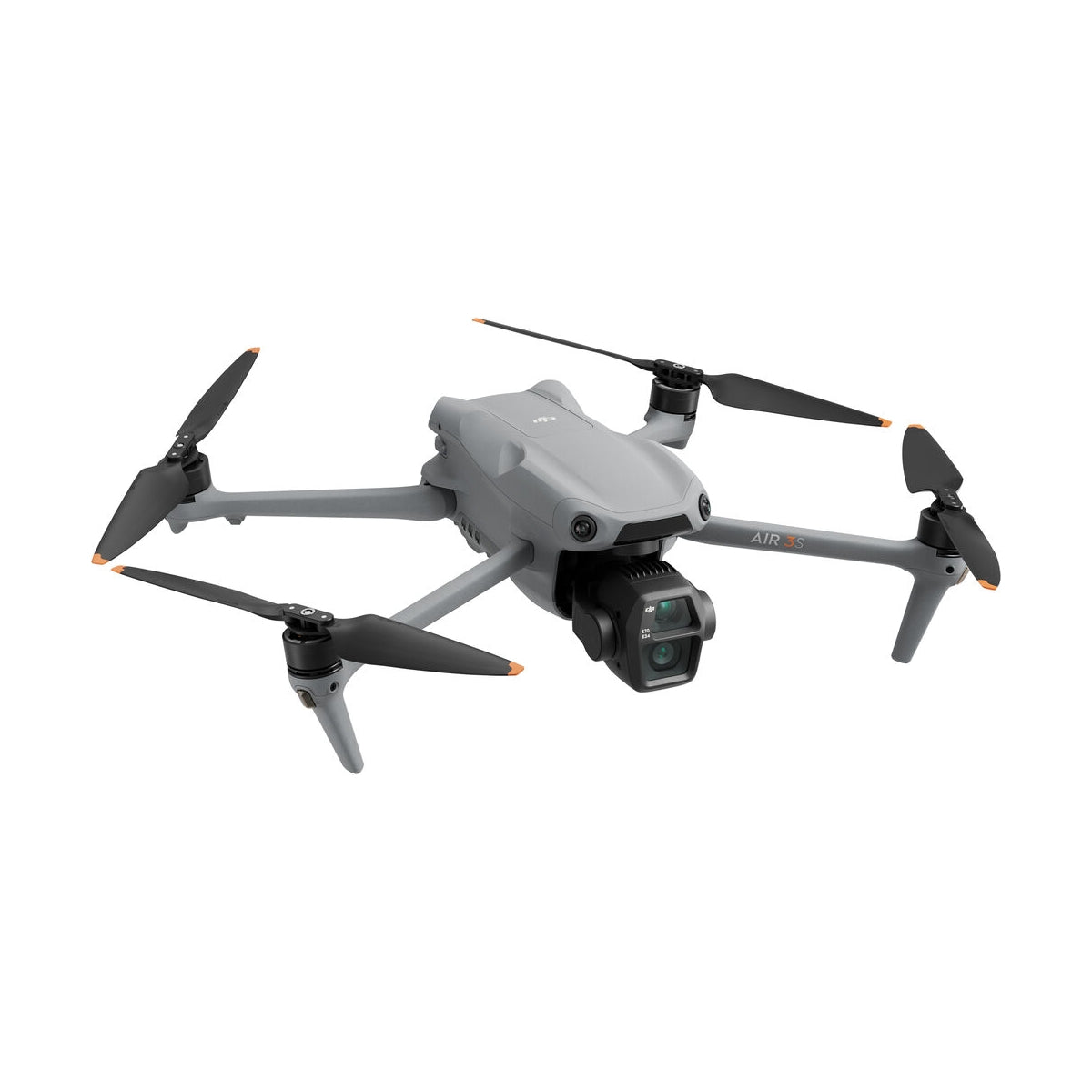

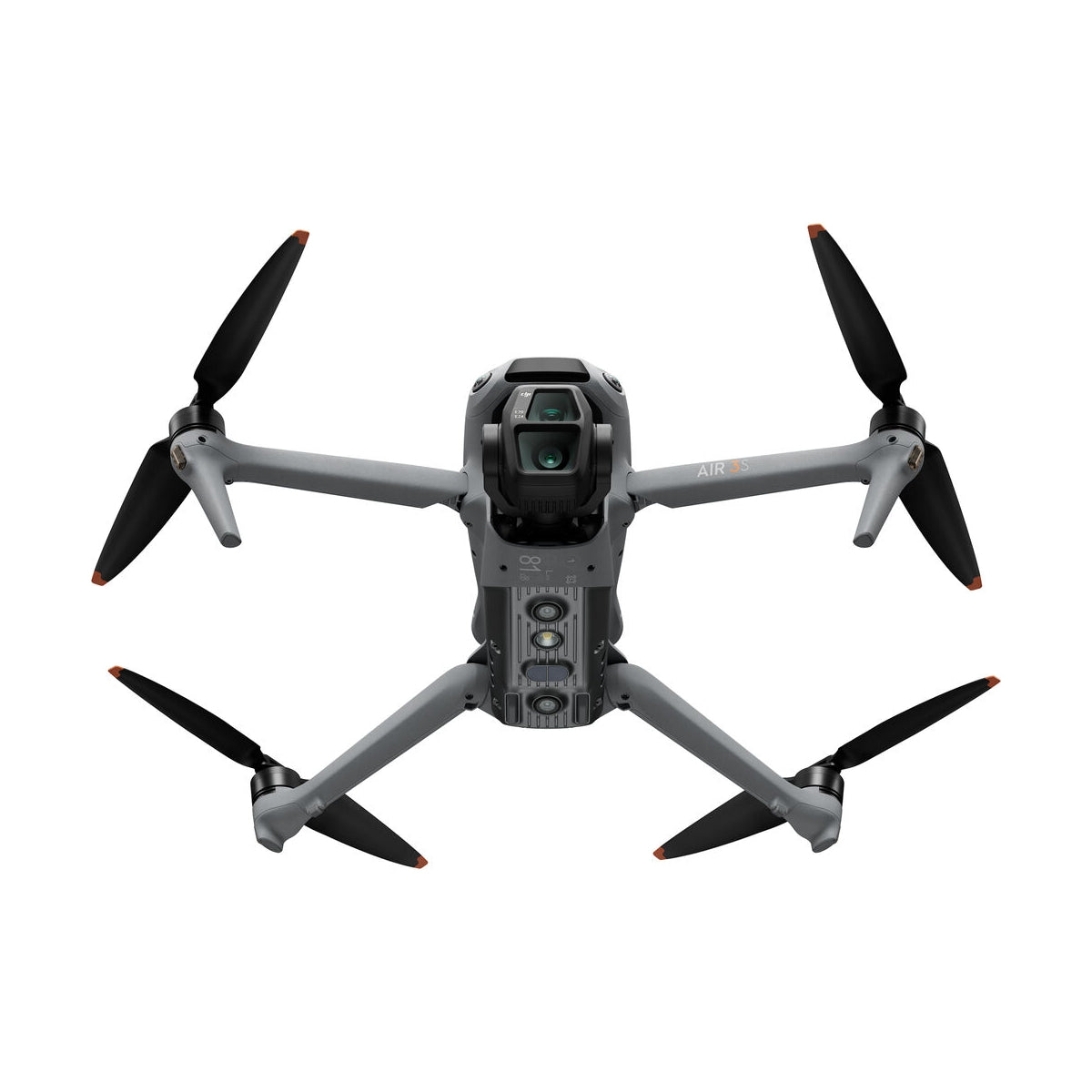

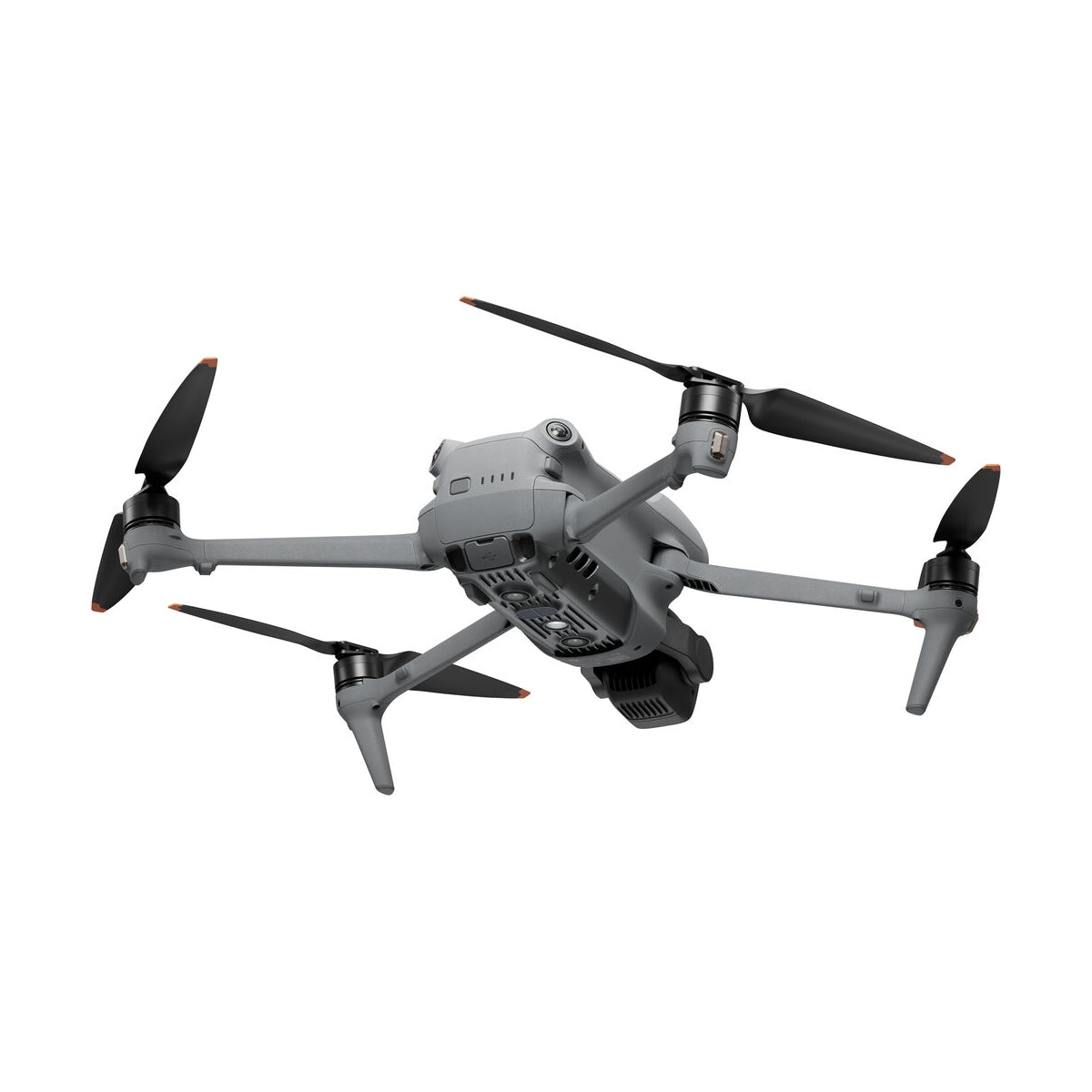

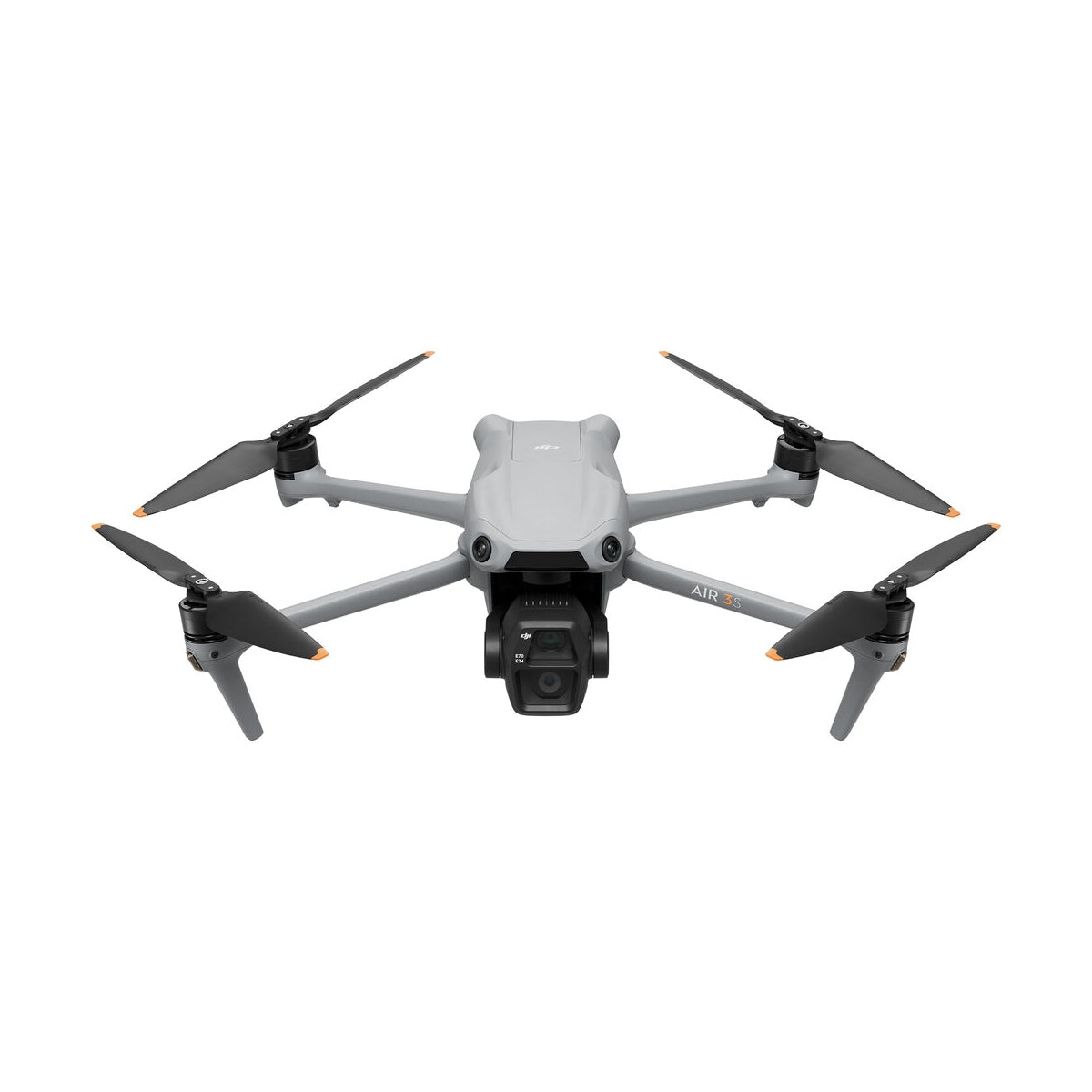

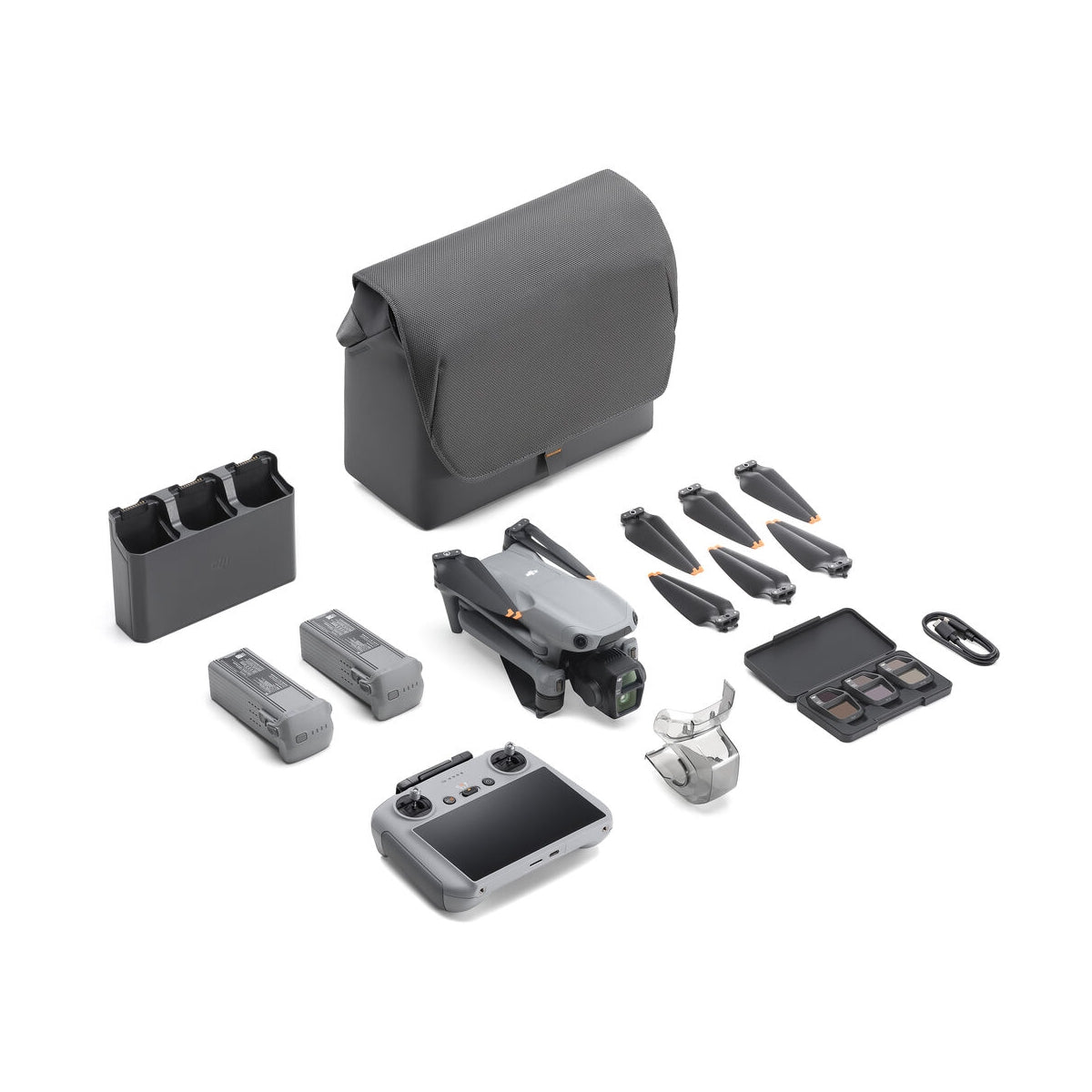

Air 3S Drone Fly More with RC 2 Controller
-

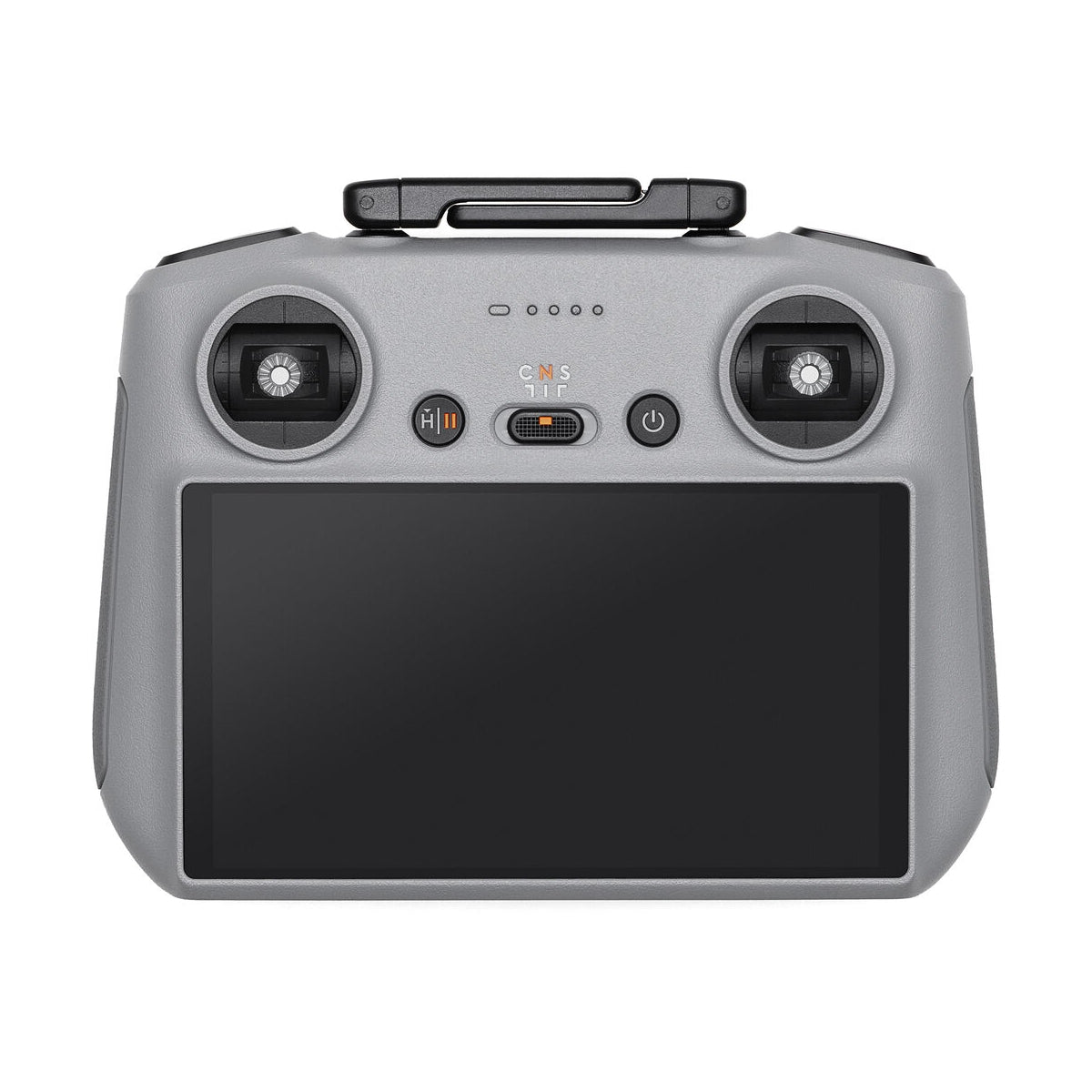

RC 2 Controller
-
Air 3S Intelligent Flight Battery x 3
-
Battery Charging Hub × 1
-
ND Filter Set (ND8, ND32, and ND128)
-
Low-Noise Spare Propellers (Pair) × 3
-
Type-C to Type-C PD Cable
-
Gimbal Protector
-
Shoulder Bag
-
Limited 1-Year Warranty
Aircraft Performance | |
---|---|
Maximum Horizontal Speed | 47 mph / 21 m/s |
Maximum Ascent Speed | 22.4 mph / 10 m/s |
Maximum Descent Speed | 22.4 mph / 10 m/s |
Maximum Take-Off Altitude | 3.7 Miles / 6 km |
Maximum Flight Time (no wind) | 45 Minutes |
Maximum Hover Time (no wind) | 41 Minutes |
Max Flight Distance (no wind) | 19.88 mi / 32 km |
Maximum Tilt Angle | 36° |
Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1.0' / 0.3 m GNSS Vertical: ±1.6' / 0.5 m Horizontal: ±1.6' / 0.5 m |
Max Wind Speed Resistance | 26.84 mph / 12 m/s |
Flight Control System | |
---|---|
GNSS Support | GPS + Galileo + BeiDou |
Cameras | |
---|---|
Sensors | Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels |
Lens | Wide-Angle Camera FOV: 84° Format Equivalent: 24 mm Aperture: f/1.8 Focus: 0.5 m to ∞ Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.8 Focus: 3 m to ∞ |
ISO Range | Video Normal: 100-12800 (Normal) 100-3200 (D-Log M) 100-3200 (HLG) Slow Motion: 100-6400 (Normal) 100-3200 (D-Log M) 100-3200 (HLG) Photo 100-6400 (12 MP) 100-3200 (48 MP and 50 MP) |
Shutter Speed | Wide-Angle Camera 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure) 50MP Photo: 1/8000-2 s Medium Tele Camera 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2 s |
Max Image Size | Wide-Angle Camera: 8192×6144 Medium Tele Camera: 8064×6048 |
Still Photography Modes | Wide-Angle Camera Single Shot: 12 MP and 50 MP Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s Medium Tele Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s |
Photo Format | JPEG, DNG (RAW) |
Video Resolution | Wide-Angle Camera/Medium Tele Camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/120*fps FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps * Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding. |
Video Formats | MP4 (MPEG-4 AVC/H.264, HEVC/H.265) |
Max Video Bitrate | H.264/H.265: 130 Mbps |
Supported File Formats | exFAT |
Color Mode and Sampling Method | Wide-Angle/Medium Tele Camera Normal (FHD/2.7K): 8-bit 4:2:0 (H.264) Normal (FHD/2.7K): 10-bit 4:2:0 (H.265) HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265) Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265) |
Digital Zoom | Wide-Angle Camera: 1-2.9x Medium Tele Camera: 3-9x |
Gimbal | |
---|---|
Stabilization | 3-Axis (tilt, roll, pan) |
Mechanical Range | Tilt: -135° to 70° Roll: -50° to 50° Pan: -27° to 27° |
Controllable Range | Tilt: -90° to 60° Pan: -5° to 5° |
Max Controllable Speed (tilt) | 100°/s |
Angular Vibration Range | ±0.0037° |
Sensing System | |
---|---|
Sensing System | Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft |
Forward | Measurement Range: 0.5-18 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 72° |
Backward | Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72° |
Lateral | Measurement Range: 0.5-30 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72° |
Upward | Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 72°, Left and Right 90° |
Downward | Measurement Range: 0.3-14 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 106°, Left and Right 90° |
Operating Environment | Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 1) Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1) |
3D Infrared Sensor | Forward-Facing LiDAR Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%) FOV: Up and Down 60°, Left and Right 60° Downward-Facing Infrared Sensor Measurement Range: 0.3-8 m (reflectivity > 10%) FOV: Front and Back 60°, Left and Right 60° |
Video Transmission | |
---|---|
Video Transmission System | O4 |
Live View Quality | Remote Controller: 1080p/30fps, 1080p/60fps |
Operating Frequency | 2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz |
Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE) |
Max Transmission Distance (unobstructed, free of interference) | FCC: 20 km CE: 10 km SRRC: 10 km MIC: 10 km |
Max Transmission Distance (unobstructed, with interference) | Strong Interference: Urban landscape, approx. 1.5-4 km Medium Interference: Suburban landscape, approx. 4-10 km Low Interference: Suburb/Seaside, approx. 10-20 km |
Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-3 km |
Max Download Speed | O4: 10 MB/s (with DJI RC-N3) 10 MB/s (with DJI RC 2) Wi-Fi 5: 30 MB/s |
Latency (depending on environmental conditions and mobile device) | Aircraft + Remote Controller: Approx. 120 ms |
Antennas | 6 antennas, 2T4R |
Flight Battery | |
---|---|
Capacity | 4276 mAh |
Voltage | 14.6 V |
Charging Voltage Limit | 17.2 V |
Battery Type | LiPo 4S |
Energy | 62.5 Wh |
Charging Temperature | 41 to 104°F / 5 to 40°C |
Weight | 8.7 oz / 247 g |
Charging Time | Approx. 80 minutes (with DJI 65W Portable Charger) Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub) |
Battery Charger | |
---|---|
Input | DJI 65W Portable Charger: 100-240 V (AC), 50-60 Hz, 2 A DJI 100W USB-C Power Adapter: 100-240 V (AC), 50-60 Hz, 2.5 A |
Output | DJI 65W Portable Charger: USB-C 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 A USB-A 5 V, 2 A DJI 100W USB-C Power Adapter: Max 100 W (total) |
Rated Power | DJI 65W Portable Charger: 65 W DJI 100W USB-C Power Adapter: 100 W |
Charging Hub | |
---|---|
Input | USB-C: 5-20 V⎓5.0 A max |
Output (power accumulation) | Battery Port: 12-17.2 V, 3.5 A |
Output (charging) | Battery Port: 12-17.2 V, max 5 A |
Output (USB) | USB-C: 5 V, 3 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 4.1 A |
Rated Power | DJI 65W Portable Charger: 65 W DJI 100W USB-C Power Adapter: 100 W |
Charging Type | Three batteries charged in sequence. |
Compatibility | DJI Air 3 Intelligent Flight Battery DJI Air 3S Intelligent Flight Battery |
Charging Temperature Range | 41° to 104° F / 5° to 40° C |
Aircraft General | |
---|---|
Number of Rotors | 4 |
Operating Temperature | 14 to 104°F / -10 to 40°C |

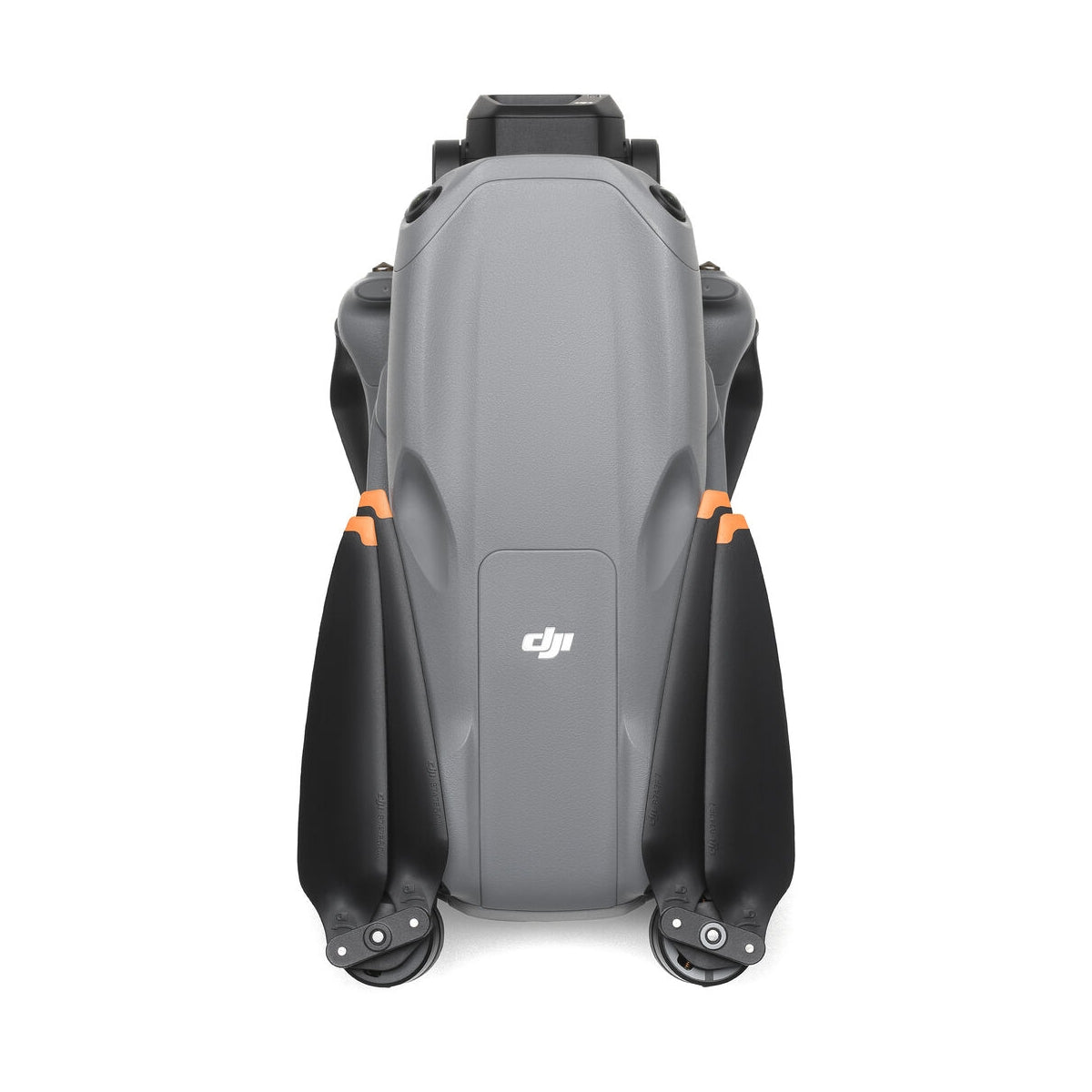

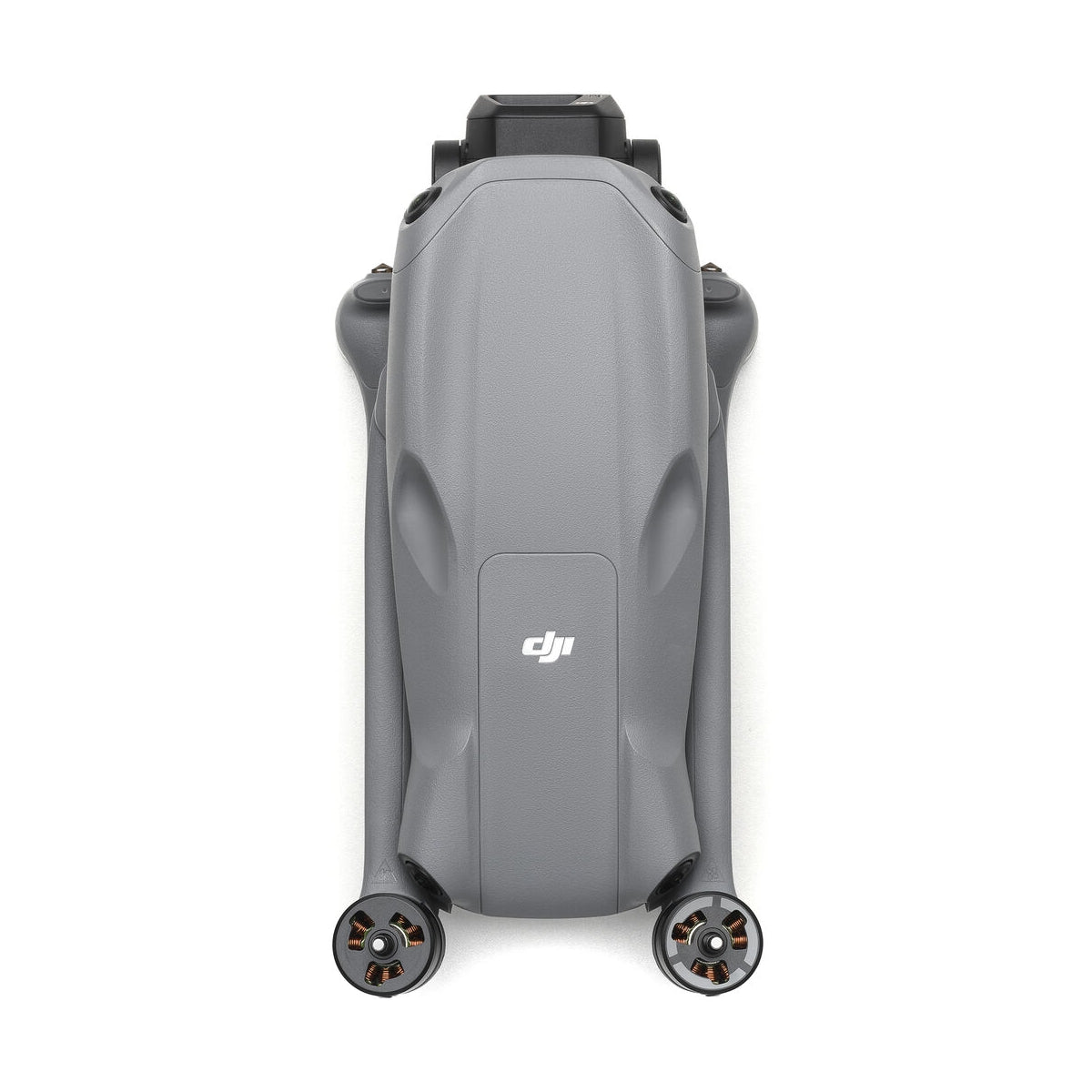

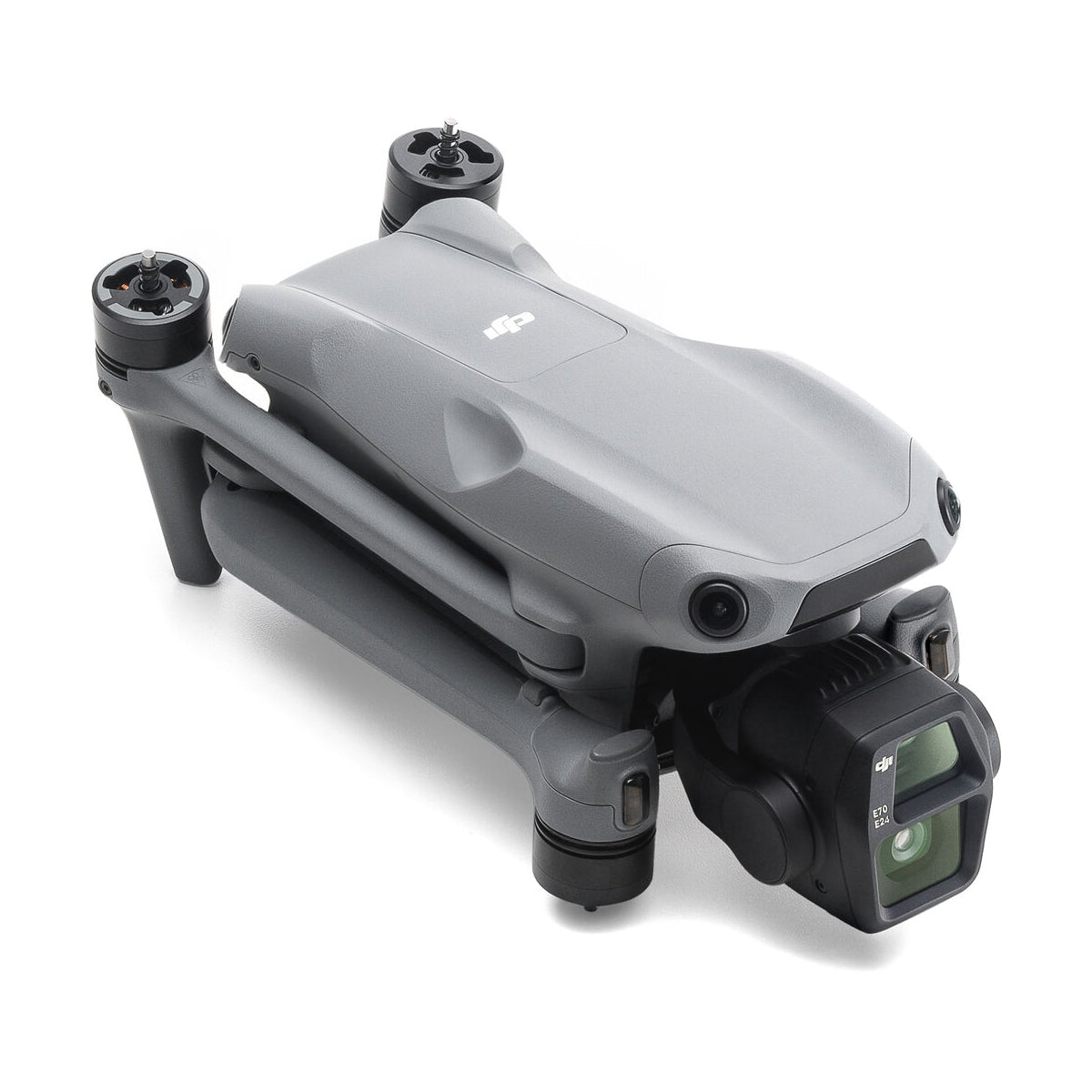

Overall Dimensions | 4.0 x 3.5 x 8.4" / 100.6 x 89.2 x 214.2 mm (Folded) 12.8 x 4.2 x 10.5" / 325.5 x 106.0 x 266.1 mm (Unfolded) |
Takeoff Weight | 1.6 lb / 724 g |
Internal Storage | 42 GB |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
