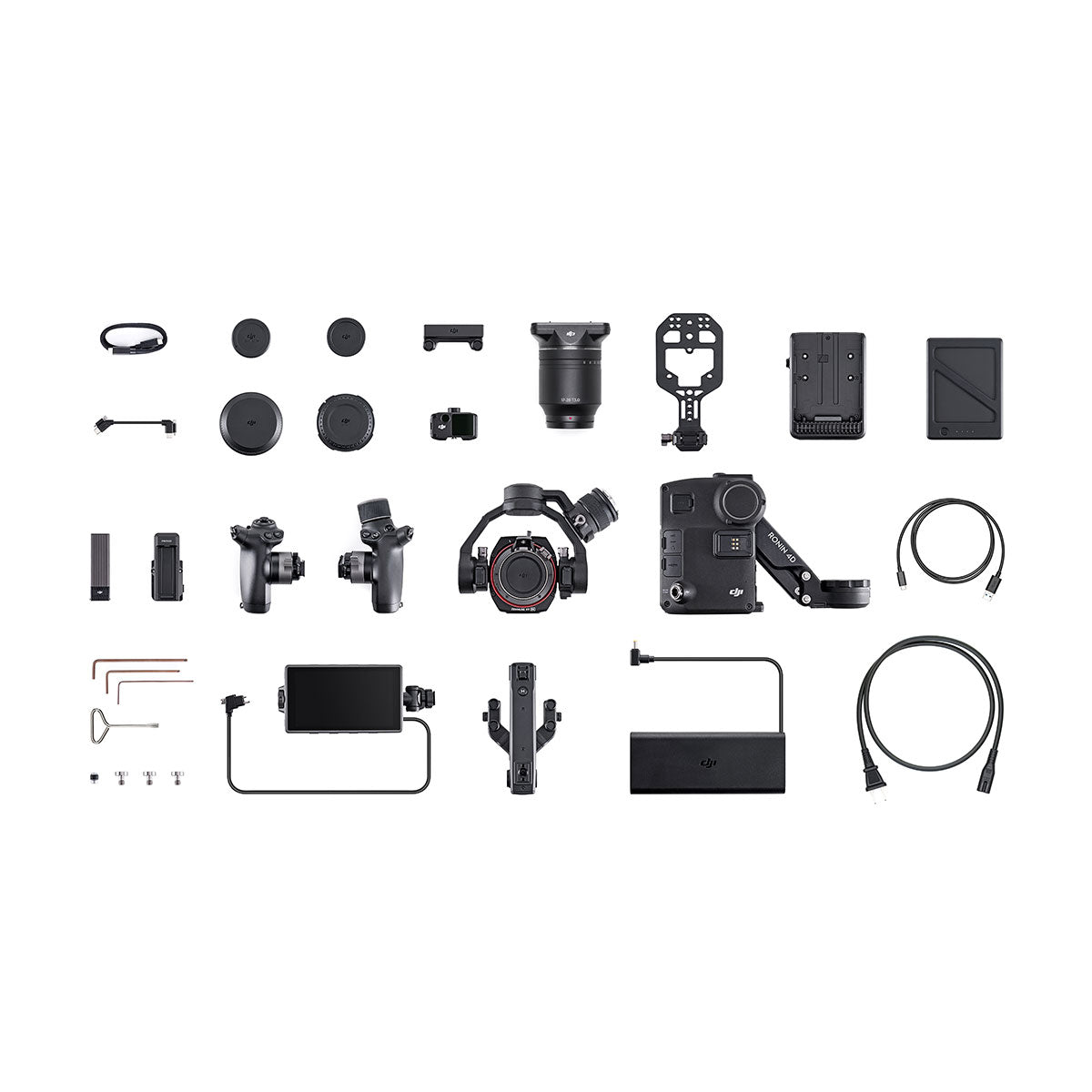

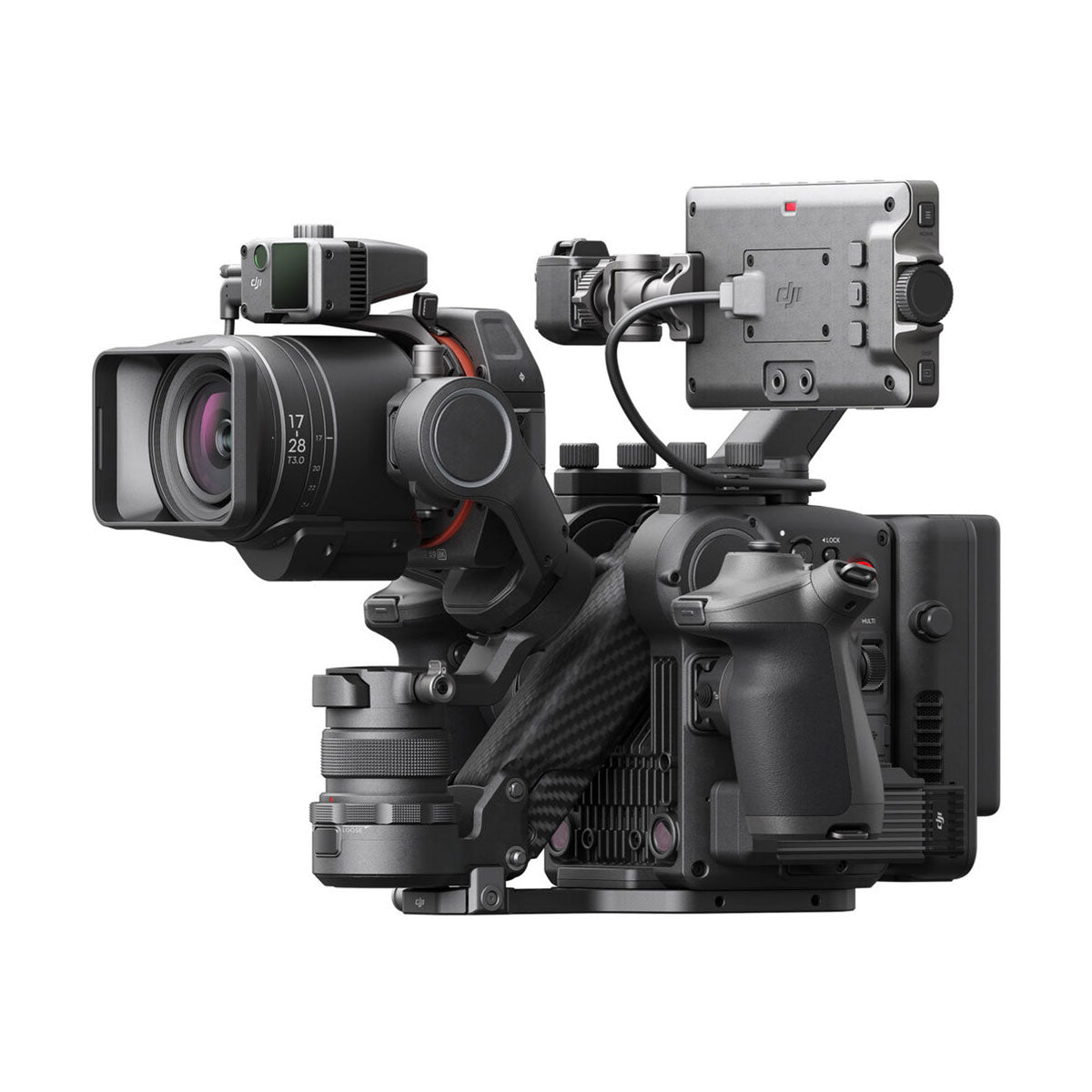

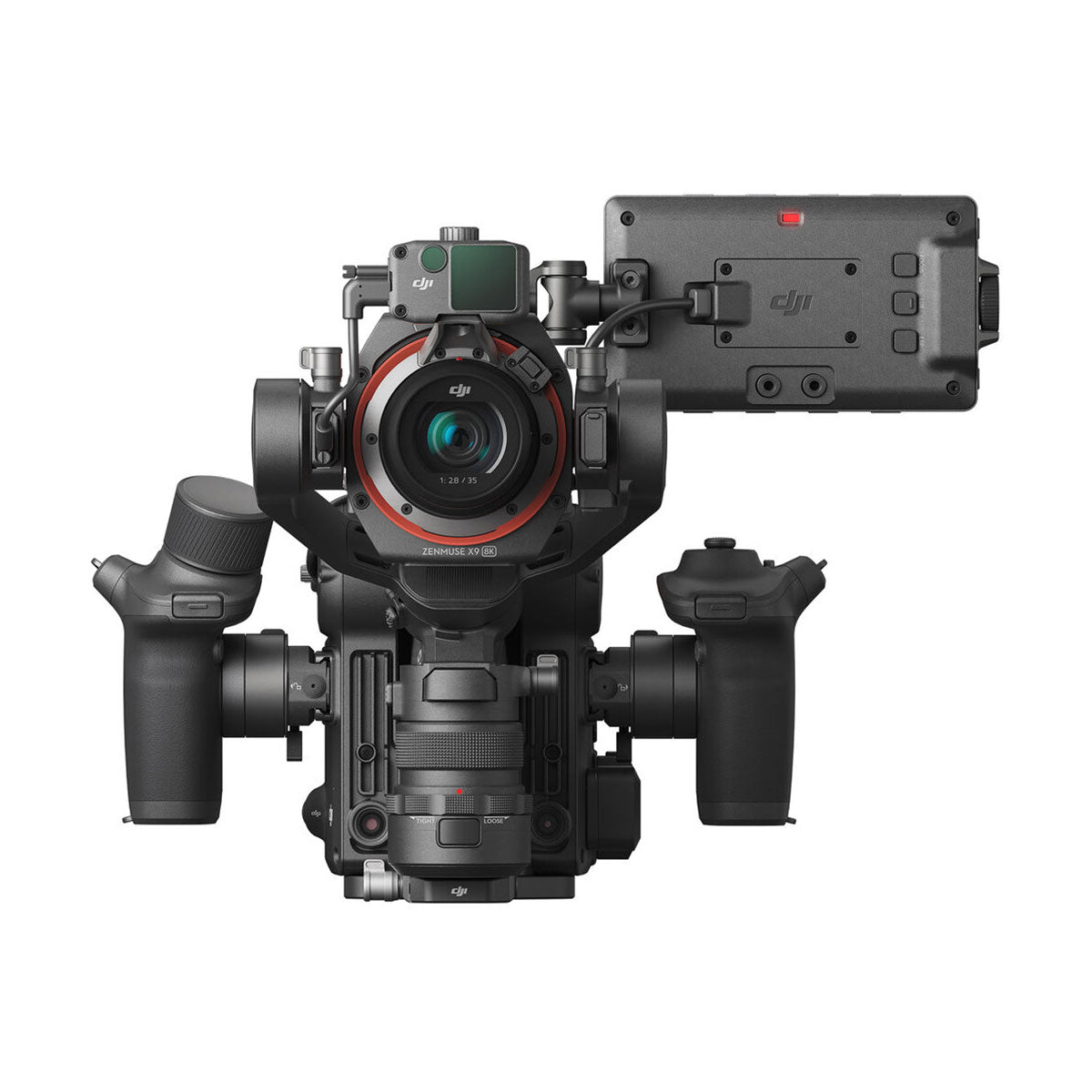

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit with DL PZ 17-28mm T3.0 ASPH Lens

Experience the future of filmmaking with the DJI Ronin 4D, a cutting-edge 4-axis cinema camera that seamlessly integrates advanced technologies into a comprehensive cinematography solution. Designed for solo cinematographers, it opens up unlimited possibilities for coordinated shooting.

Integrated and Modular: Both Realized in One Camera

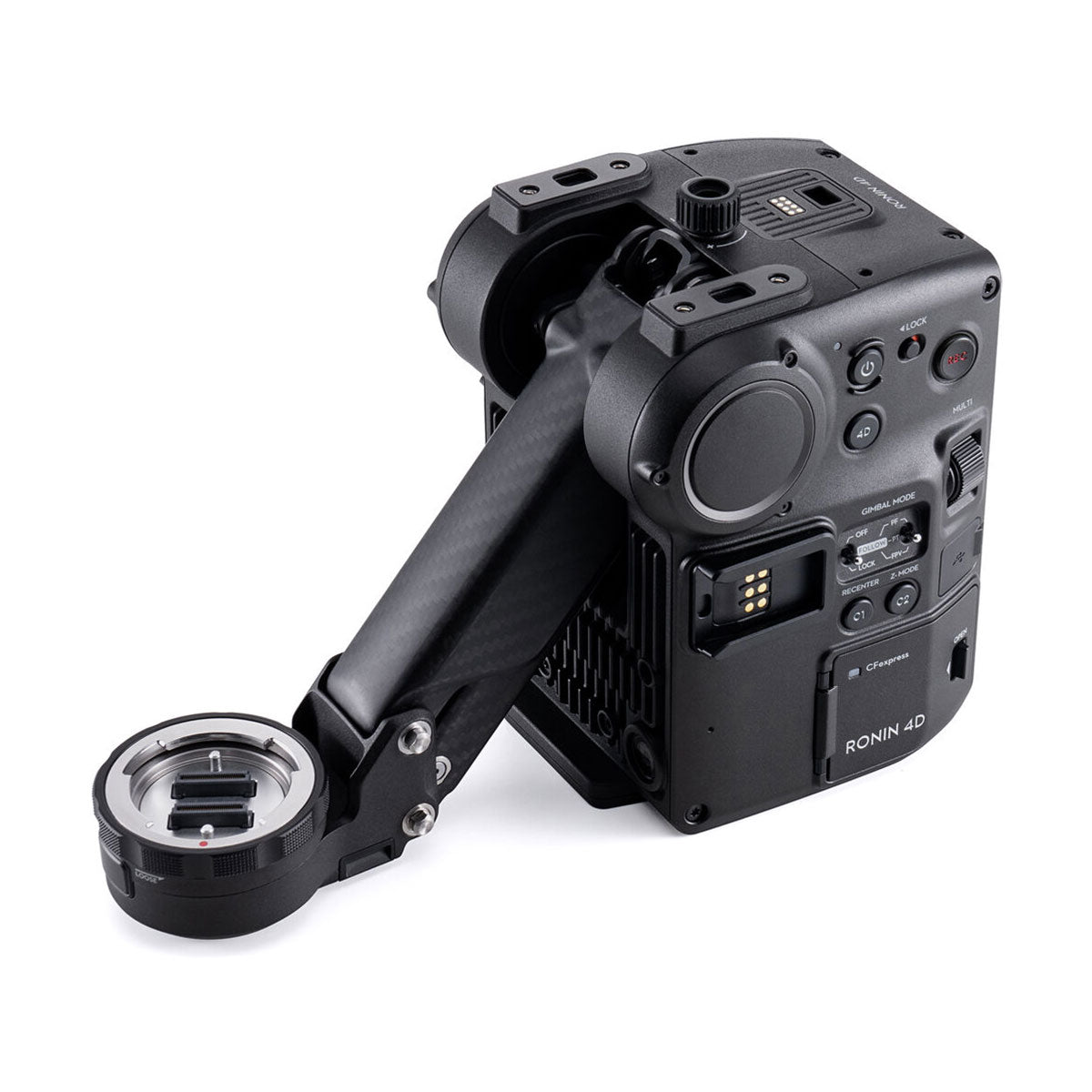

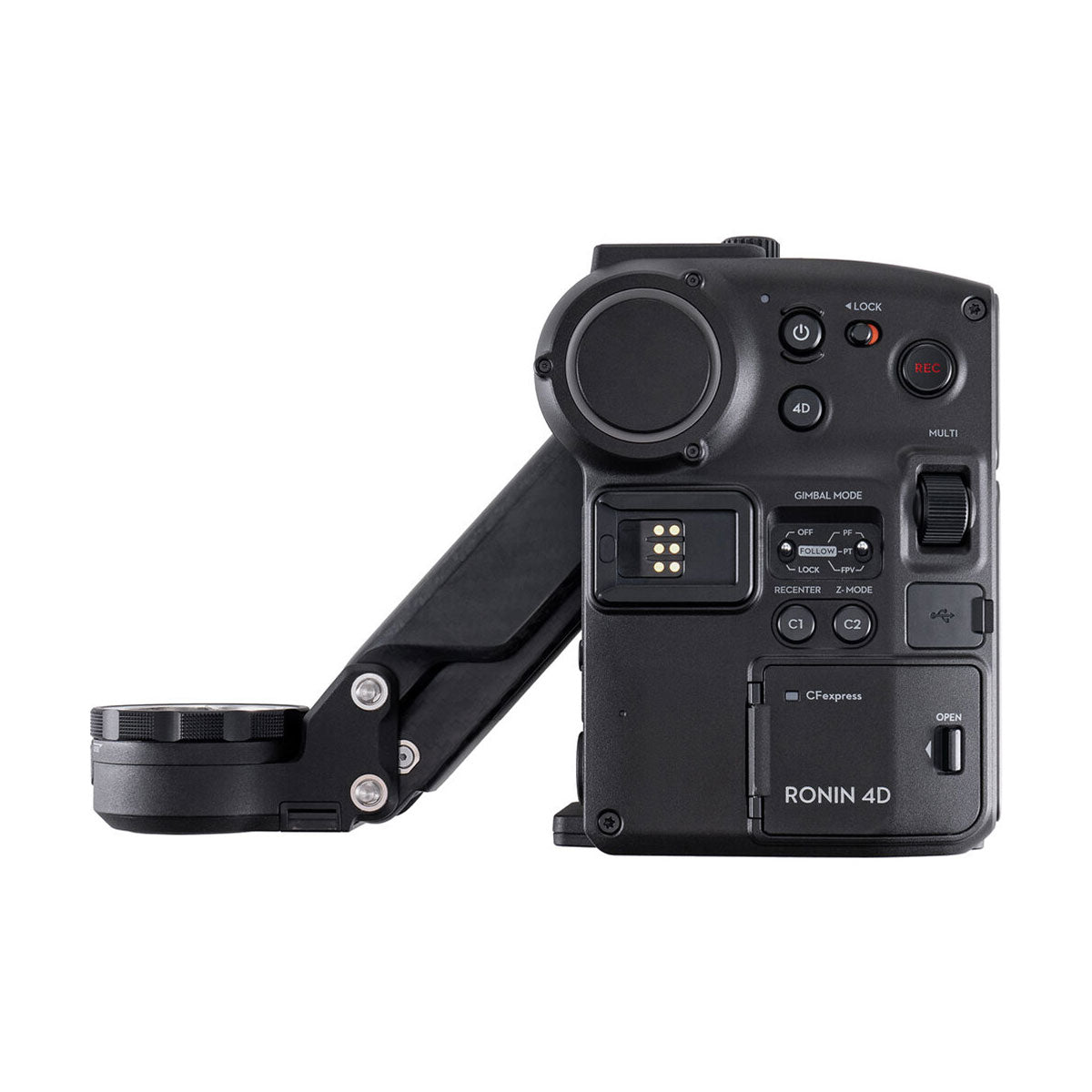

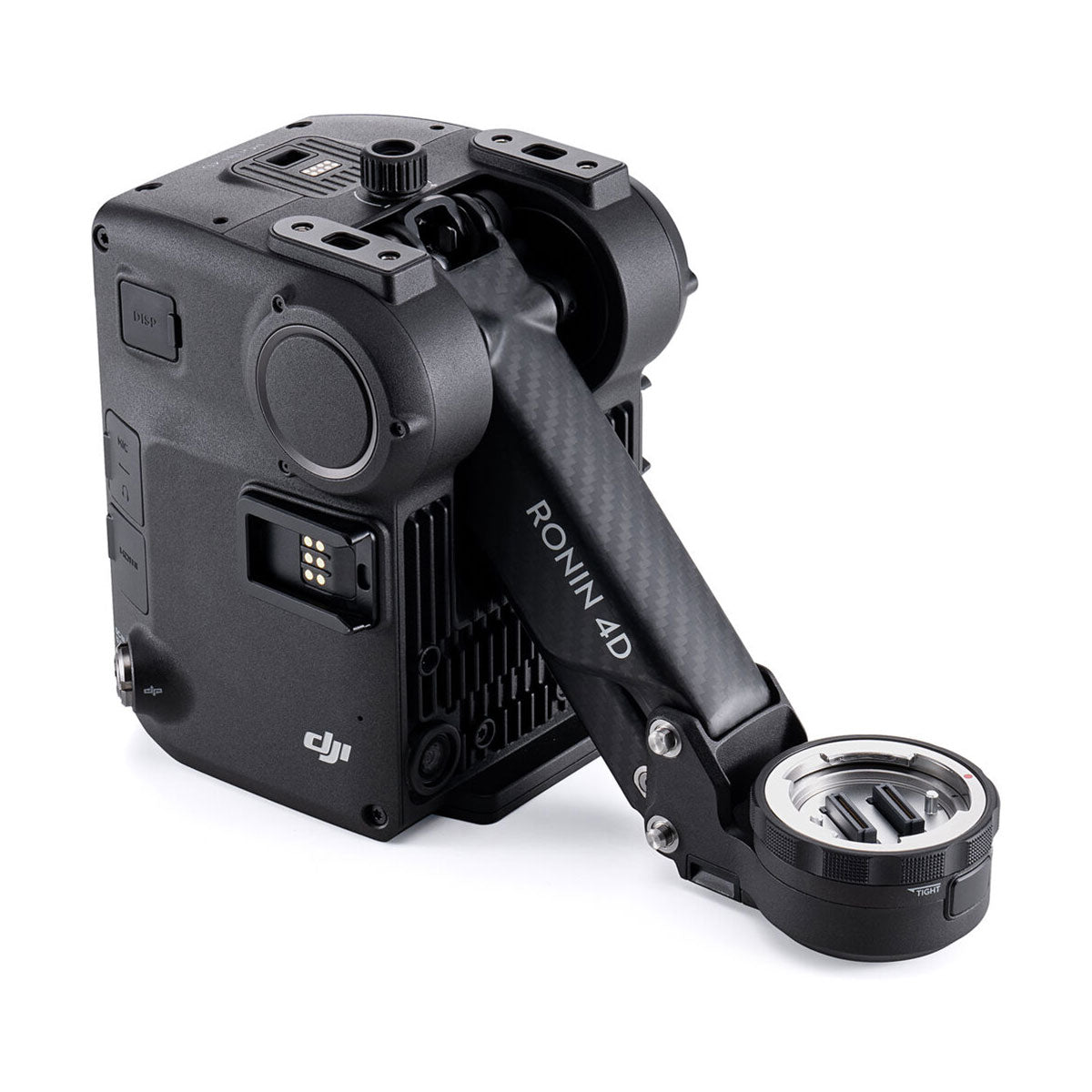

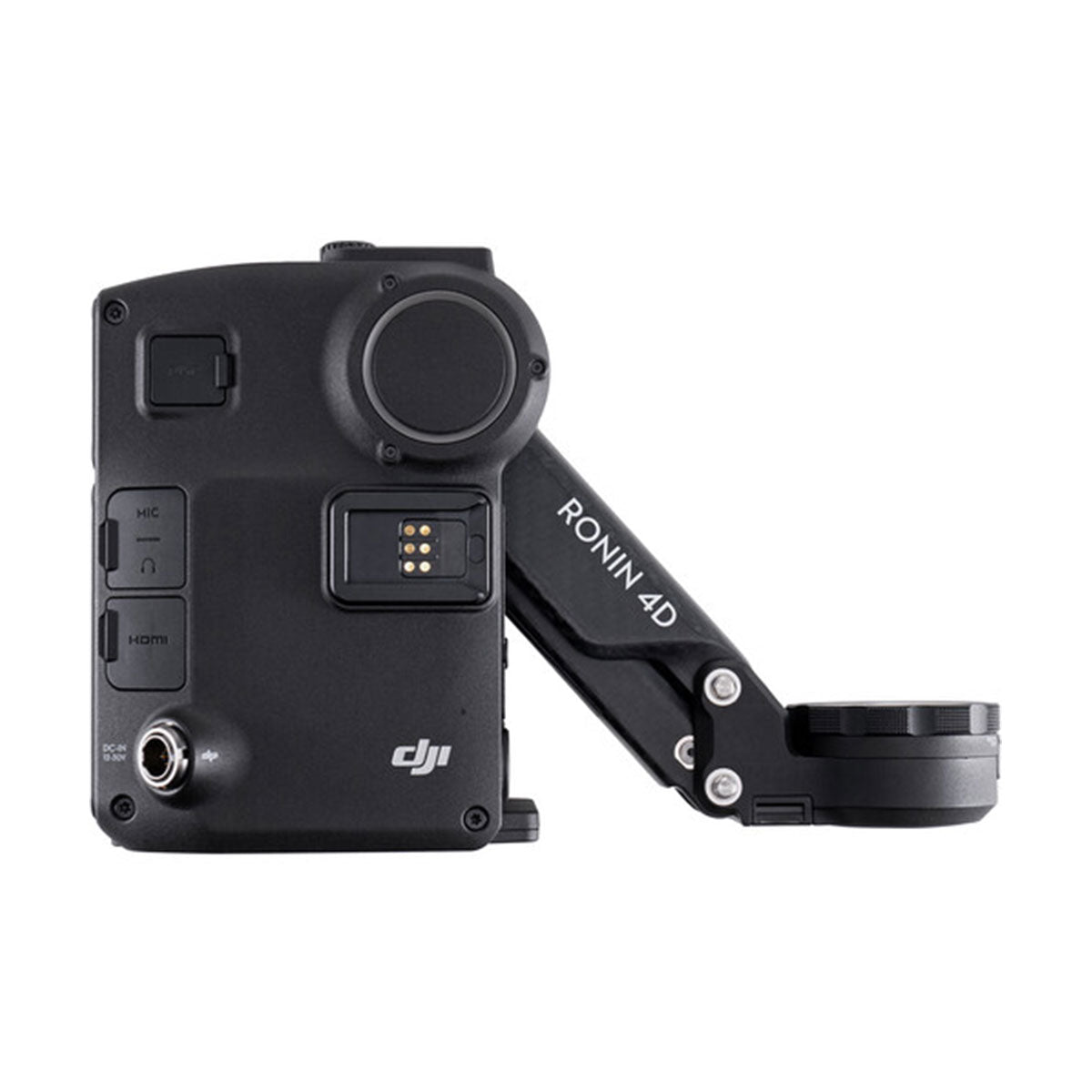

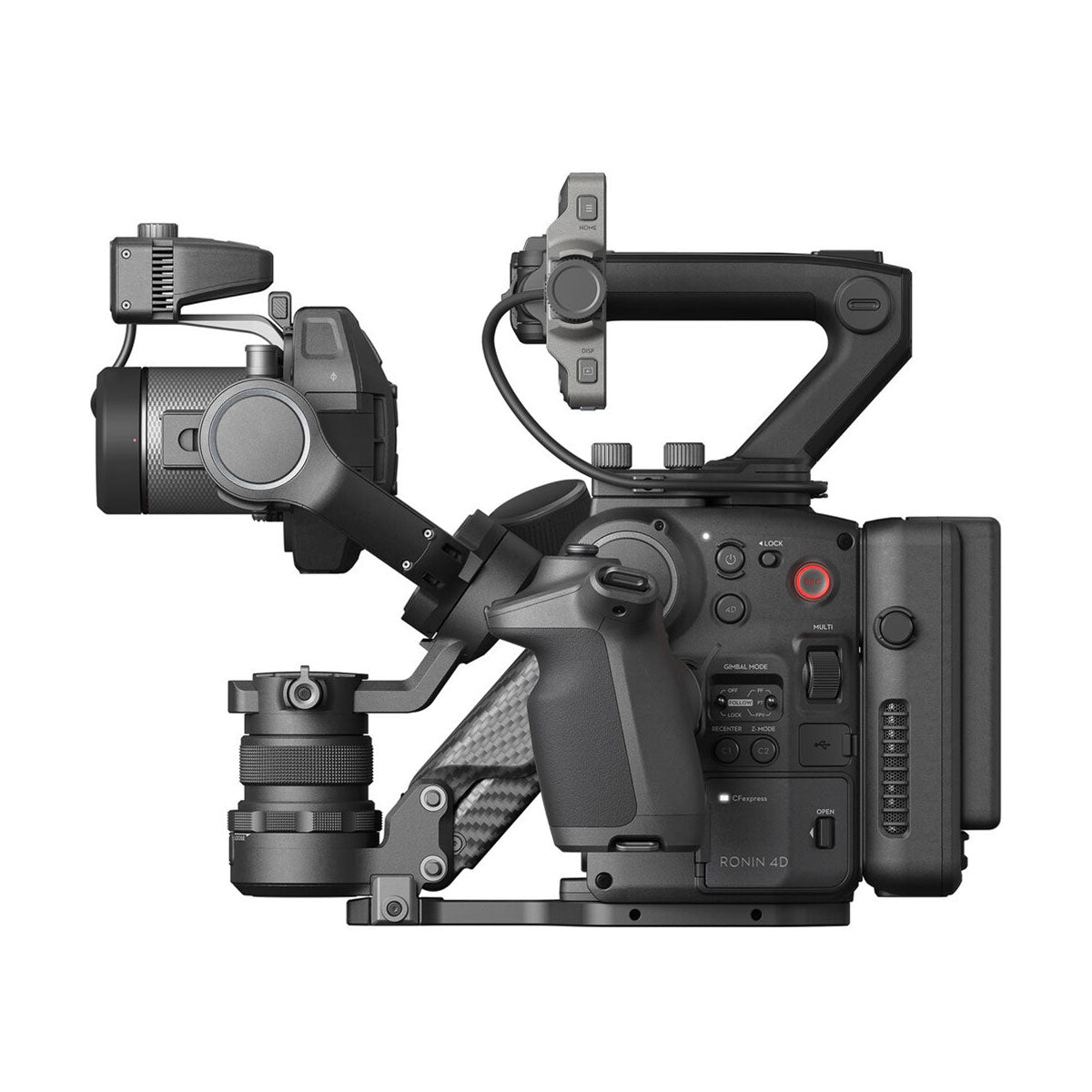

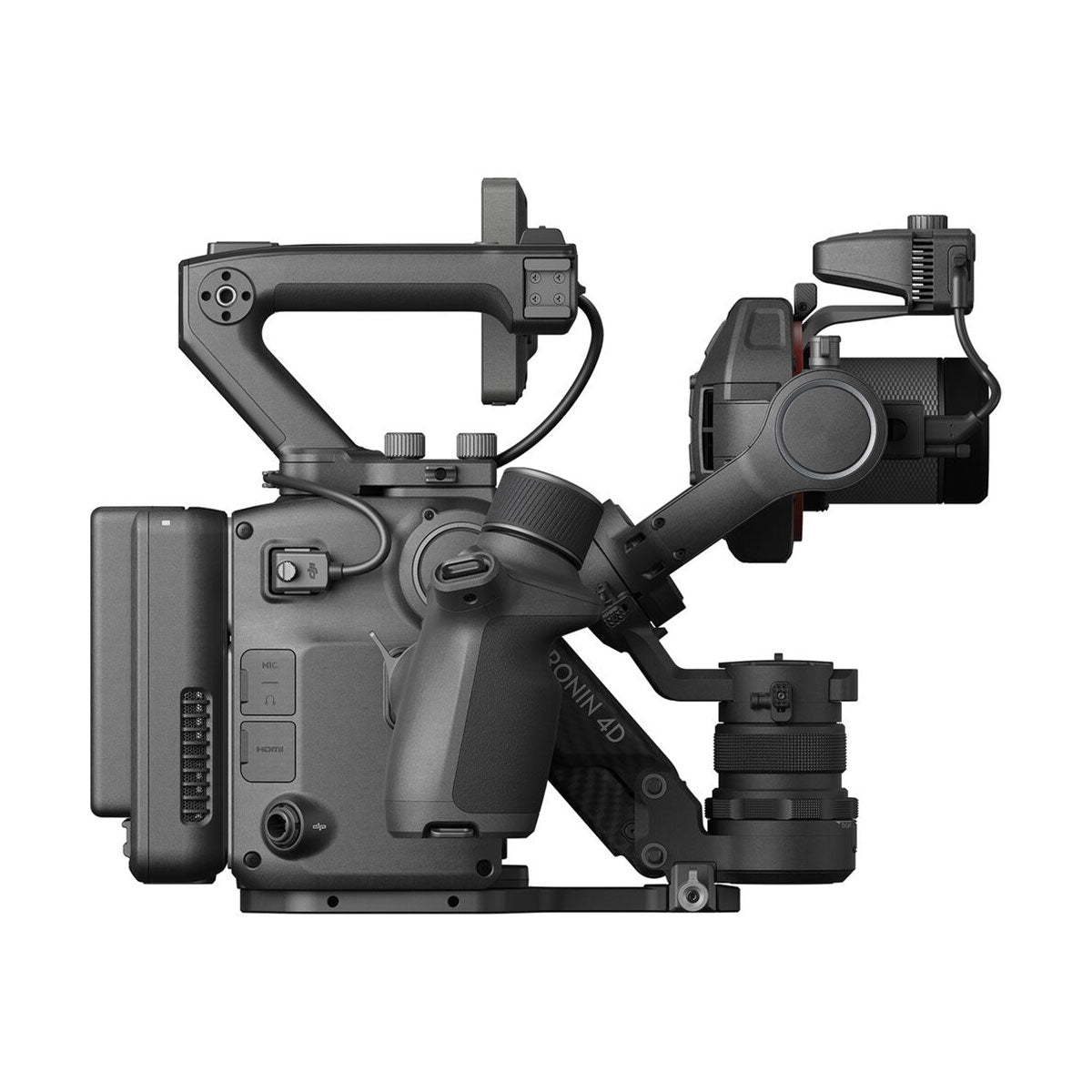

The DJI Ronin 4D boasts a unique design, crafted with carbon fiber and aluminum magnesium. Its solid body seamlessly integrates imaging, stabilization, focusing systems, wireless transmission, and control. This eliminates time-consuming setups, enabling quicker shooting. Enjoy compact convenience and explore expansive possibilities with modular accessories.

Cinematic Imaging System: Designed for Pros

Processing Power

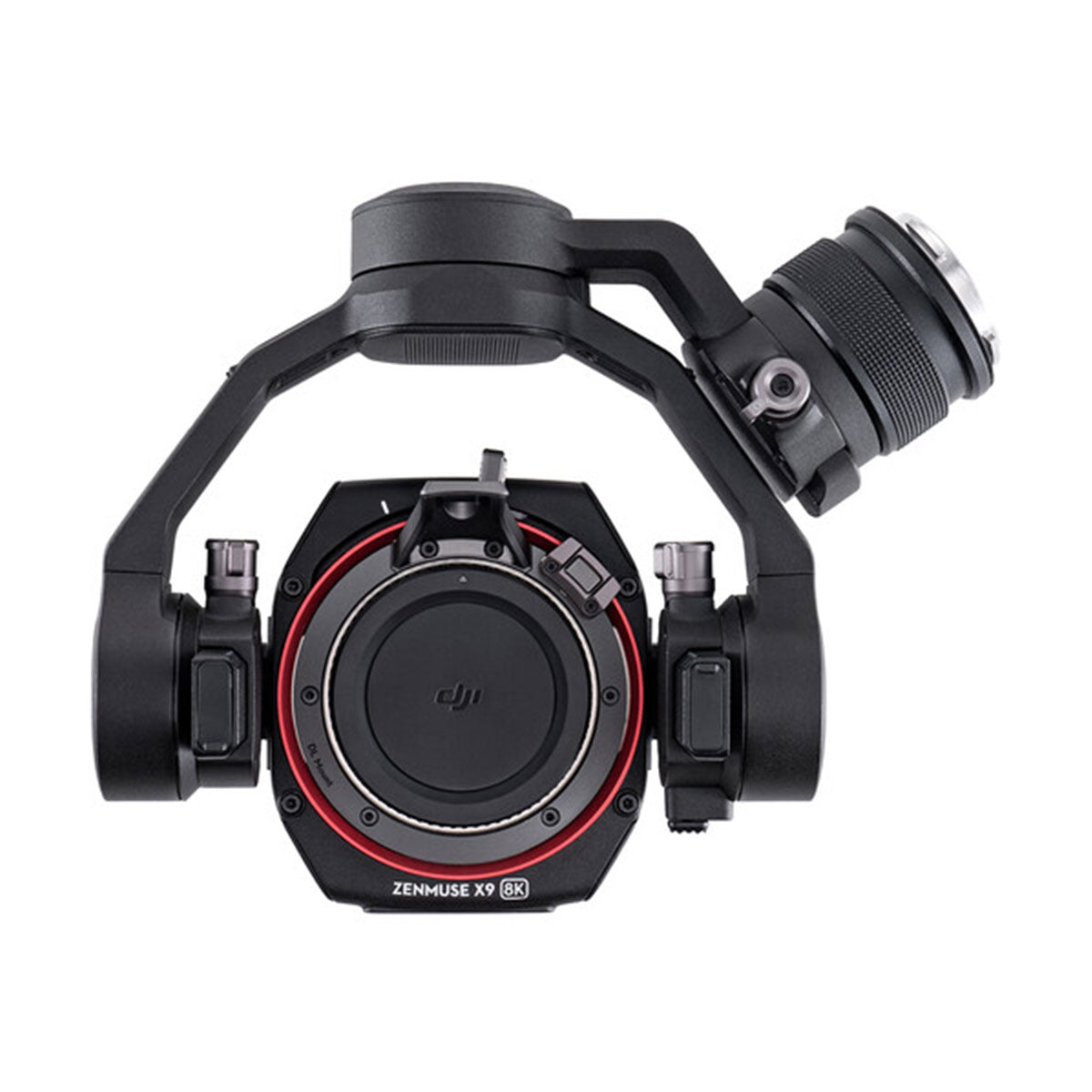

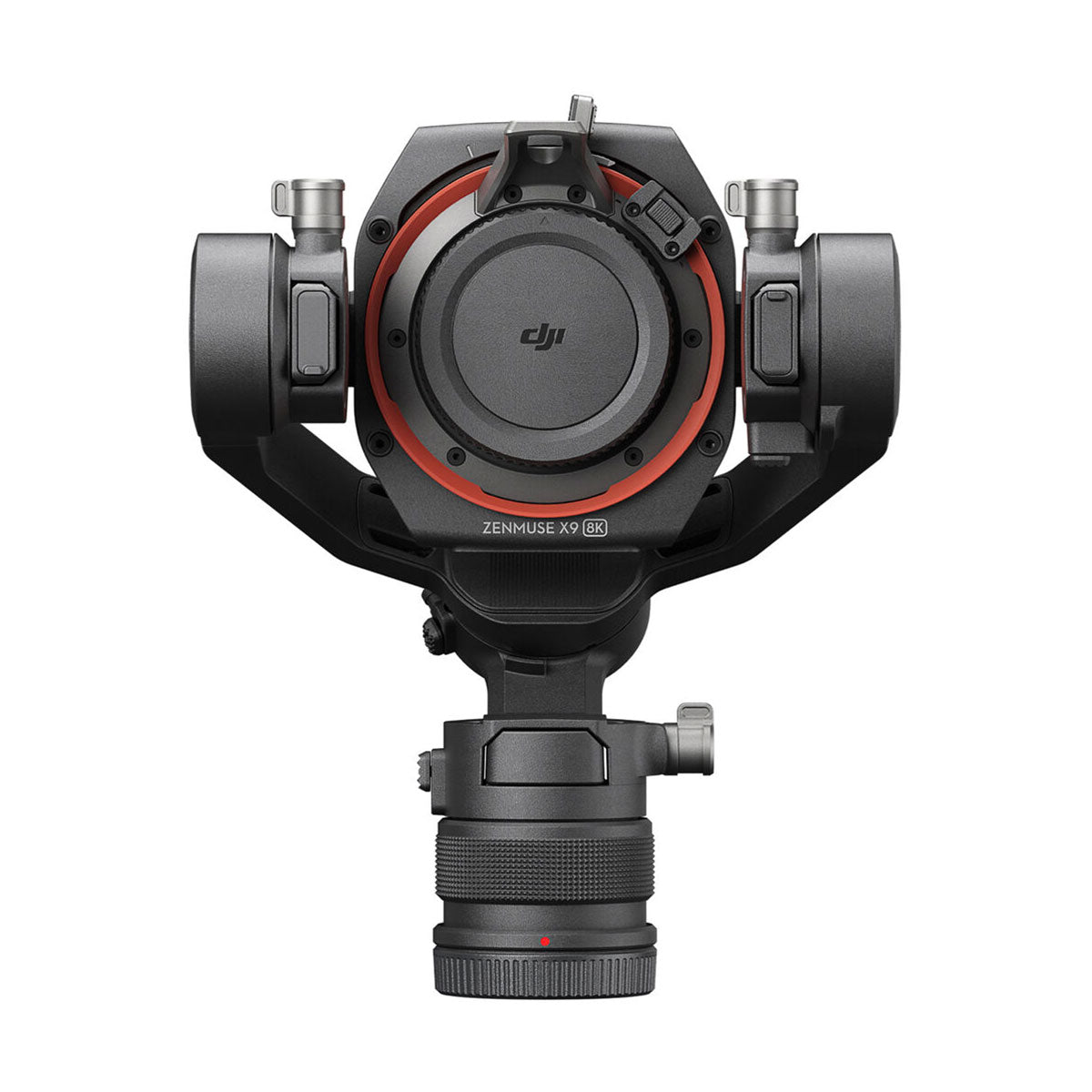

The Ronin 4D features the Zenmuse X9, DJI’s flagship full-frame camera, and the latest image processing system, CineCore 3.0. This system utilizes DJI’s proprietary chip, delivering high-performance computing power for internal recording of Apple ProRes RAW, ProRes 422 HQ, and H.264 video. With support for up to 8K/75fps and 4K/120fps video recording, it provides versatile options for professional-level creation.

Resolution

DCI 8K (8192×4320)/60fps video captures every detail, offering unprecedented creative options for post-production in 4K.

High ISO

Zenmuse X9 supports dual native ISO (X9-8K: 800/4000; X9-6K: 800/5000), recording images with exquisite detail and minimal noise in low-light conditions.

Dynamic Range

With 14+ stops of dynamic range, Zenmuse X9 captures natural transitions in complex lighting conditions, allowing easy capture of traditionally difficult scenes.

Color Science

The DJI Cinema Color System (DCCS) and CineCore 3.0's computing power give Zenmuse X9 a cinematic look, retaining authentic and accurate colors. It supports the industry-standard ACES workflow for compatibility with other cinema cameras.

Built-In 9-Stop ND Filters

X9 features 9-stop built-in ND filters (ND 2 to ND 512), quickly switchable with an internal motorized system, designed to match Ronin 4D's color science.

DL Lenses

X9’s DL mount supports three compact full-frame prime lenses, each lightweight and made of monocoque carbon fiber. Additional DJI lenses will be available in the future.

Interchangeable Mounts

X9 supports interchangeable lens mounts, including DJI’s proprietary DL mount and third-party mounts like Leica M. It provides flexible lens options, supporting ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic lenses.

Wireless Control

Whether using manual or autofocus lenses, dedicated modules mounted to X9 achieve wireless lens control and autofocus.

4-Axis Stabilization System: Steady in Every Way

DJI Ronin 4D adds a Z-axis to the traditional 3-axis gimbal, effectively reducing vertical camera shake and providing stabilization performance comparable to a dolly. The four axes, along with sensors and advanced algorithms, elevate stabilization to a new level, making complex camera movements easily attainable.

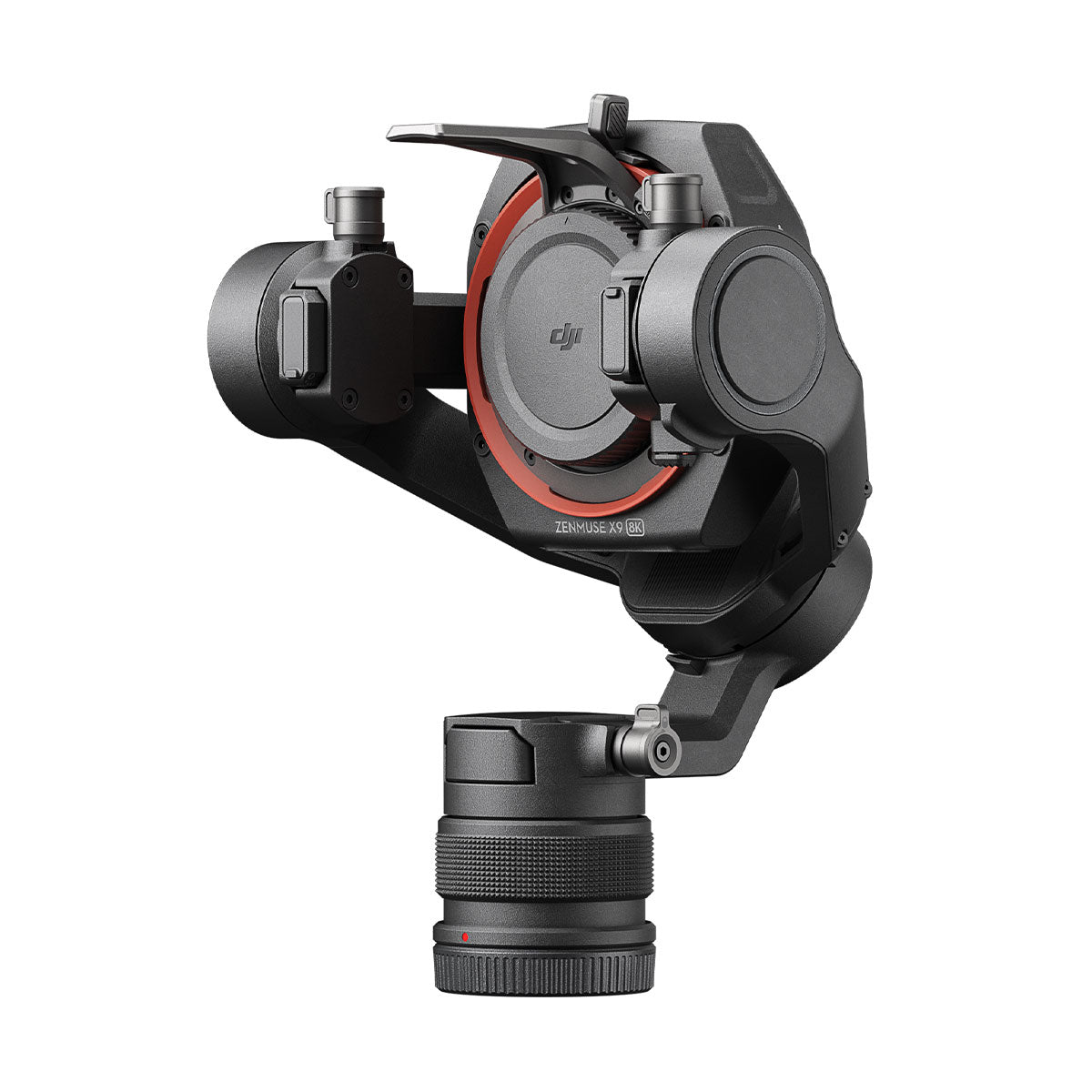

Integrated Gimbal Camera

Ronin 4D integrates imaging and stabilization systems, with only the sensor and necessary optical components in the gimbal camera. Dual symmetric motors on the tilt axis, along with additional stiffness buffers on the pan and roll axes, ensure stability and eliminate the need for tedious manual balancing. The highly integrated body offers superior stabilizing and tracking performance, even in Sport mode.

ActiveTrack Pro

DJI’s ActiveTrack Pro combines computer vision, deep learning technology, and CineCore 3.0's computing power for cinema-standard tracking shots, even in a single take. Track subjects from longer distances with continuous autofocus adjustment.

LiDAR Waveform

Ronin 4D simplifies manual focusing with visualized focus assistance technology, displaying ranging points on monitors for quick focus adjustments. The innovative LiDAR Waveform provides precise focus points, even for operators with minimal experience.

LiDAR Range Measurement

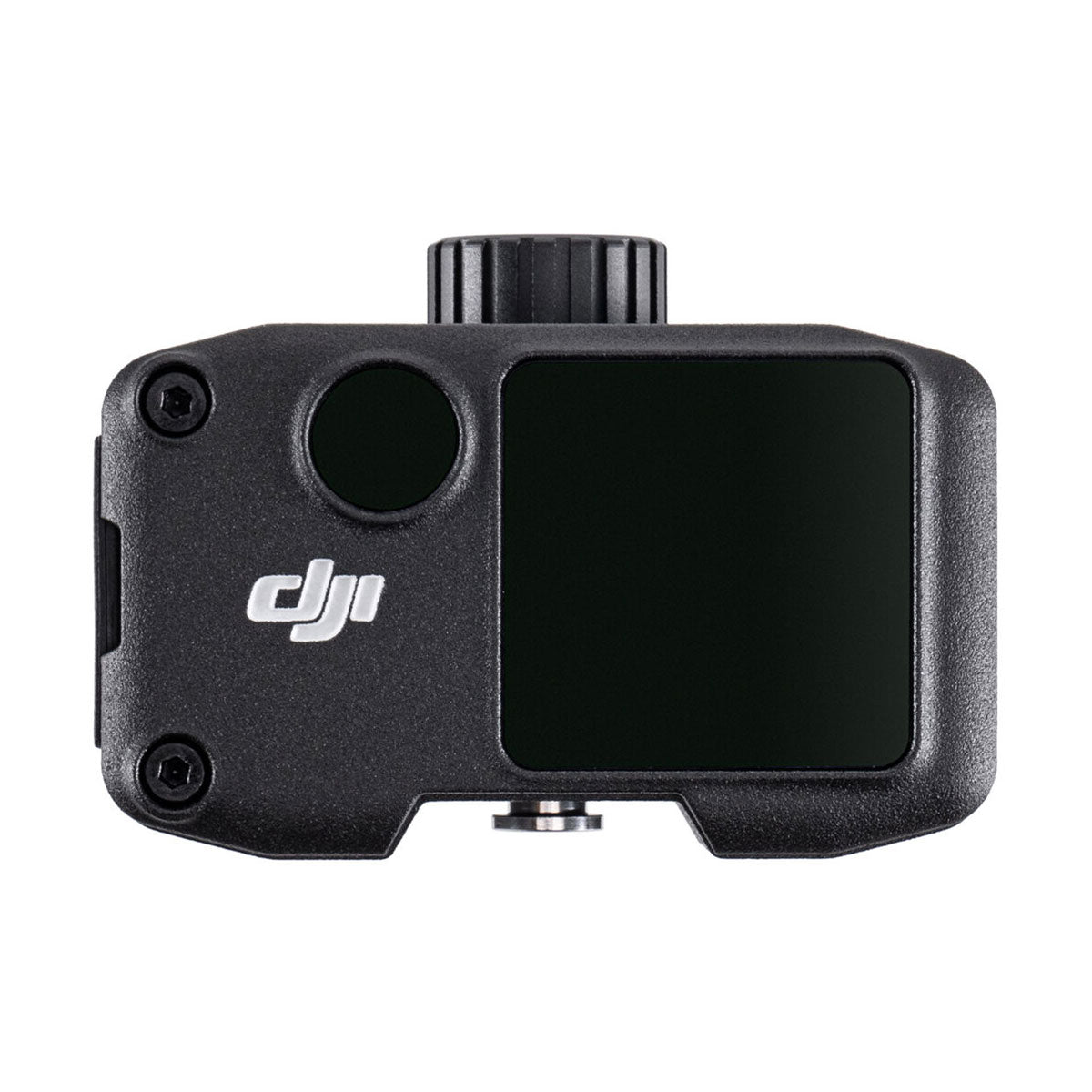

The LiDAR Range Finder offers fast and accurate focusing with up to 43,200 ranging points within a 10-meter detection range. Compared to phase detection autofocus, Ronin 4D’s LiDAR Focusing System excels in low-light environments, ensuring exceptional focusing capabilities.

Autofocus

With the LiDAR Focusing System, Ronin 4D maintains focus even with severe motion blur. Autofocus is available on manual lenses, and continuous autofocusing can be enabled with ActiveTrack Pro for convenient solo operation.

Automated Manual Focus

Automated Manual Focus (AMF) mode combines the accuracy of manual focus with the convenience of autofocus. The focus wheel synchronizes with focus point changes, and cinematographers can take manual control at any time. The dynamic damping with electromagnetic technology provides a physical sense of focus changes, offering an intuitive and modern focusing experience.

Wireless Transmission & Control System – Versatile Beyond Imagination

Ronin 4D utilizes DJI O3 Pro Video Transmission technology, offering a 20,000-foot transmission range, supporting 2.4GHz, 5.8GHz, DFS frequency band, and AES 256-bit encryption for enhanced security. The streamlined wireless transmission system, powered by DJI’s proprietary chip, ensures ultra-low transmission latency.

Integrated Design

The 4D Video Transmitter directly mounts onto Ronin 4D, powered by the main body's battery. The High-Bright Remote Monitor features a 7-inch, 1,500-nit touchscreen display, outputting HDMI and SDI signals through the expansion module. Its compact and lightweight design offers portability and efficient setup for immediate shooting.

Coordinated Shooting

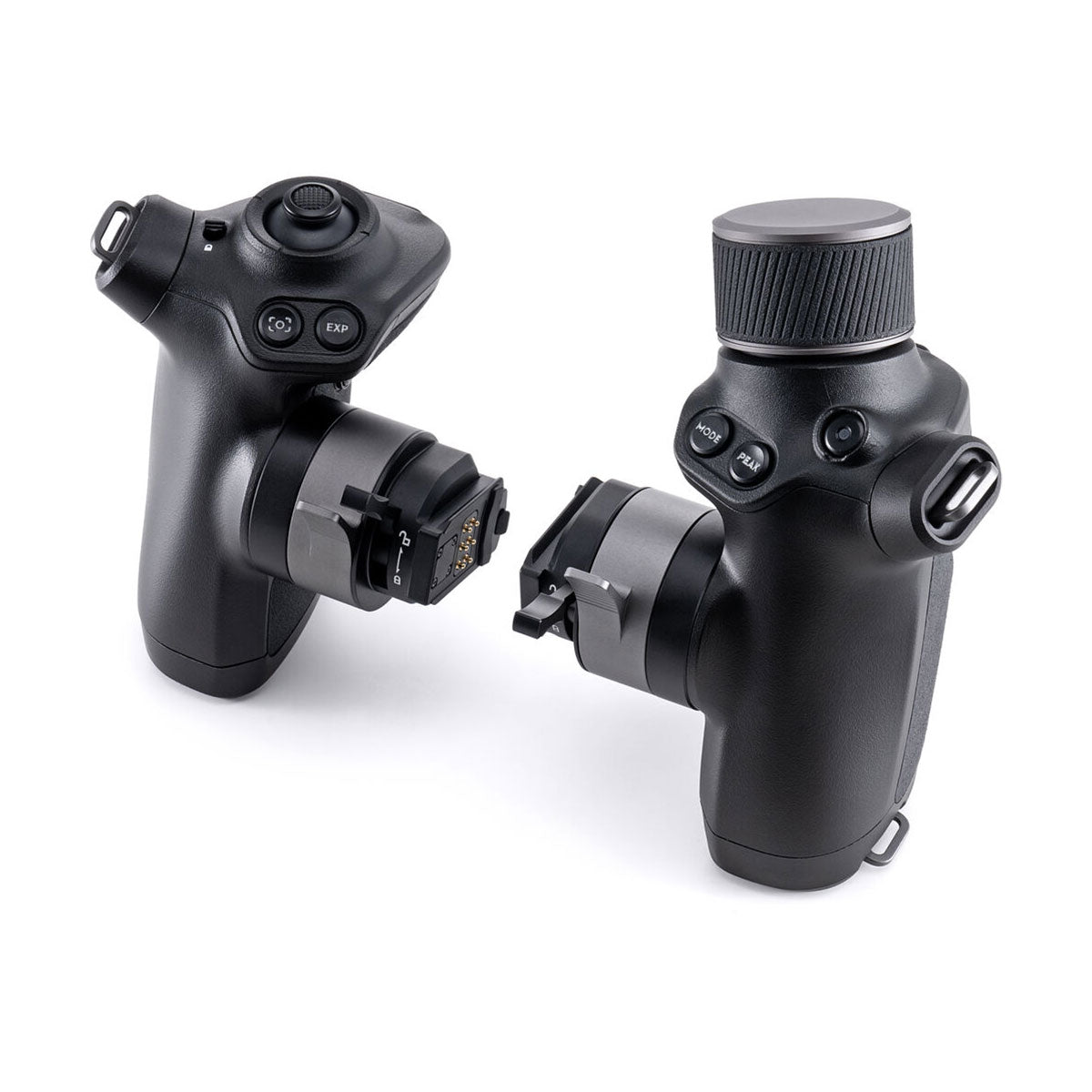

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in Broadcast mode. Control mode enables coordinated operation with two receivers, connecting to Hand Grips, DJI Master Wheels, DJI Force Pro, or DJI Three-Channel Follow Focus for precise control of focus and gimbal movements.

Mirror Control Mode

Mirror Control Mode provides an identical control interface as the main monitor, allowing remote adjustments of source material playback, video specifications, and gimbal settings. This feature is invaluable for mounted scenarios like jibs, cable cams, or vehicle mounts.

Independent Recording and Playback

The High-Bright Remote Monitor supports independent video recording at up to 1080p/60fps with a built-in microSD card slot. Multiple monitors can play back material separately without interference.

It's All in the Details: Outperforms in Every Way

Monitoring

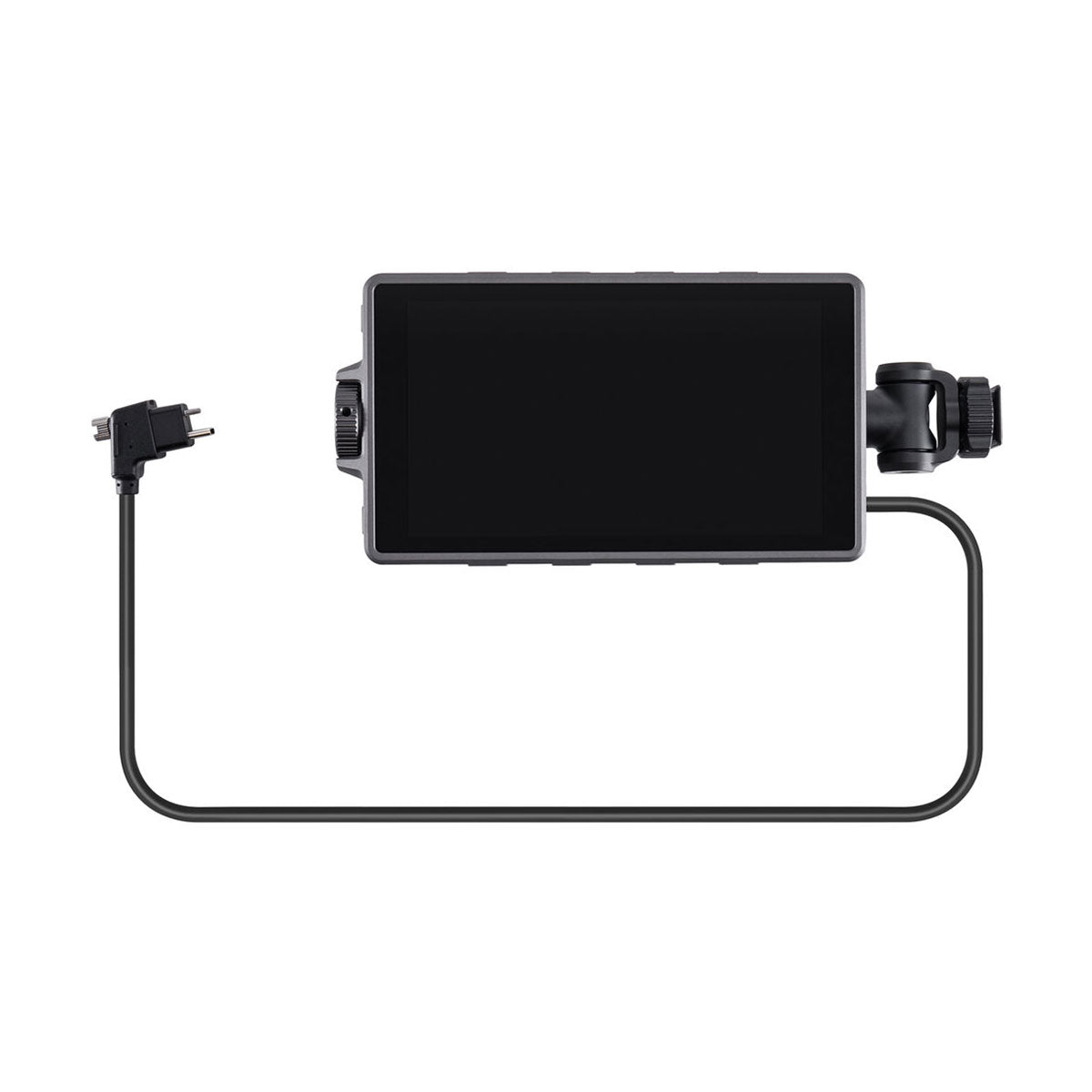

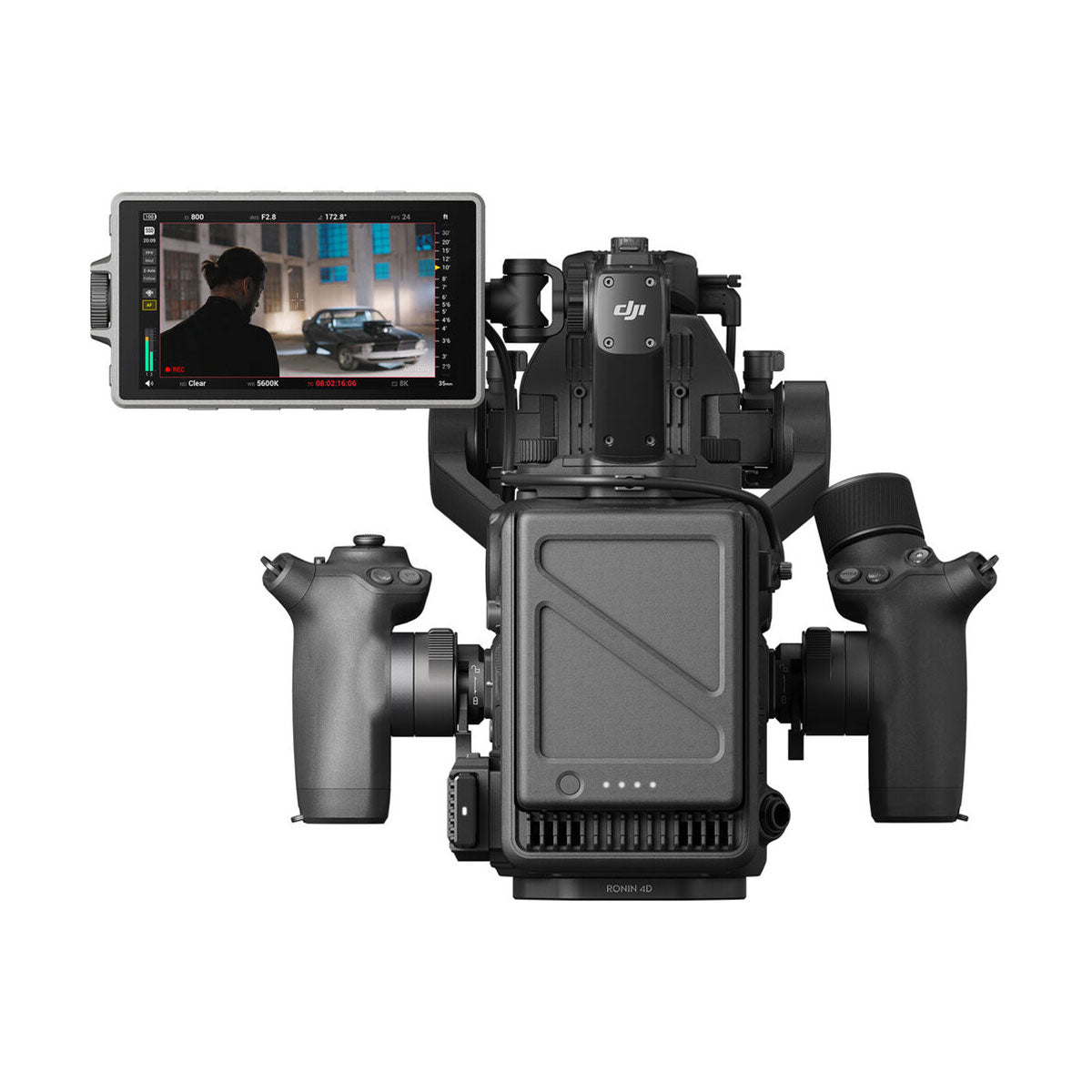

High-Bright Main Monitor: The 5.5-inch, 1000-nit adjustable screen mounts to various points on the main body for convenient monitoring.

Exposure Assistance

Exposure waveform, false color, and zebra provide assistance in achieving optimal exposure.

Focus Assistance

LiDAR waveform, peaking (aperture and color peaking), and focus magnification (2x and 4x) aid in precise focusing.

Tools Overlay

Customizable frame guides, safe zone, and center marker offer additional tools for enhanced composition.

Color Preview

Supports customizable LUT input for achieving desired color tones.

Multi-link independent monitoring

Video recording, main monitor, main body HDMI, and remote monitor feeds can load independent LUTs for varied monitoring.

Storage

Ronin 4D features a built-in CFexpress Type-B slot and a USB 3.1 Type-C expansion port for recording to an external media disk. It also supports internal recording with DJI PROSSD 1TB for high-performance stability.

Sound Recording

Built-in microphones support dual-channel 24-bit audio recording, with additional 3.5mm jacks and XLR microphone ports for versatile audio input solutions.

Battery Life

Utilizing TB50 Intelligent Batteries, Ronin 4D offers up to 2.5 hours of shooting time and can be fully charged in just 1.5 hours. Auto-heating ensures reliable functionality in severely cold conditions.
