- 1,500-nit high-bright monitor
- Output of HDMI and SDI signals
- Independent recording and playback
- Motion and Mirror Control Modes
- Customizable LUT and independent LUT for monitoring
-

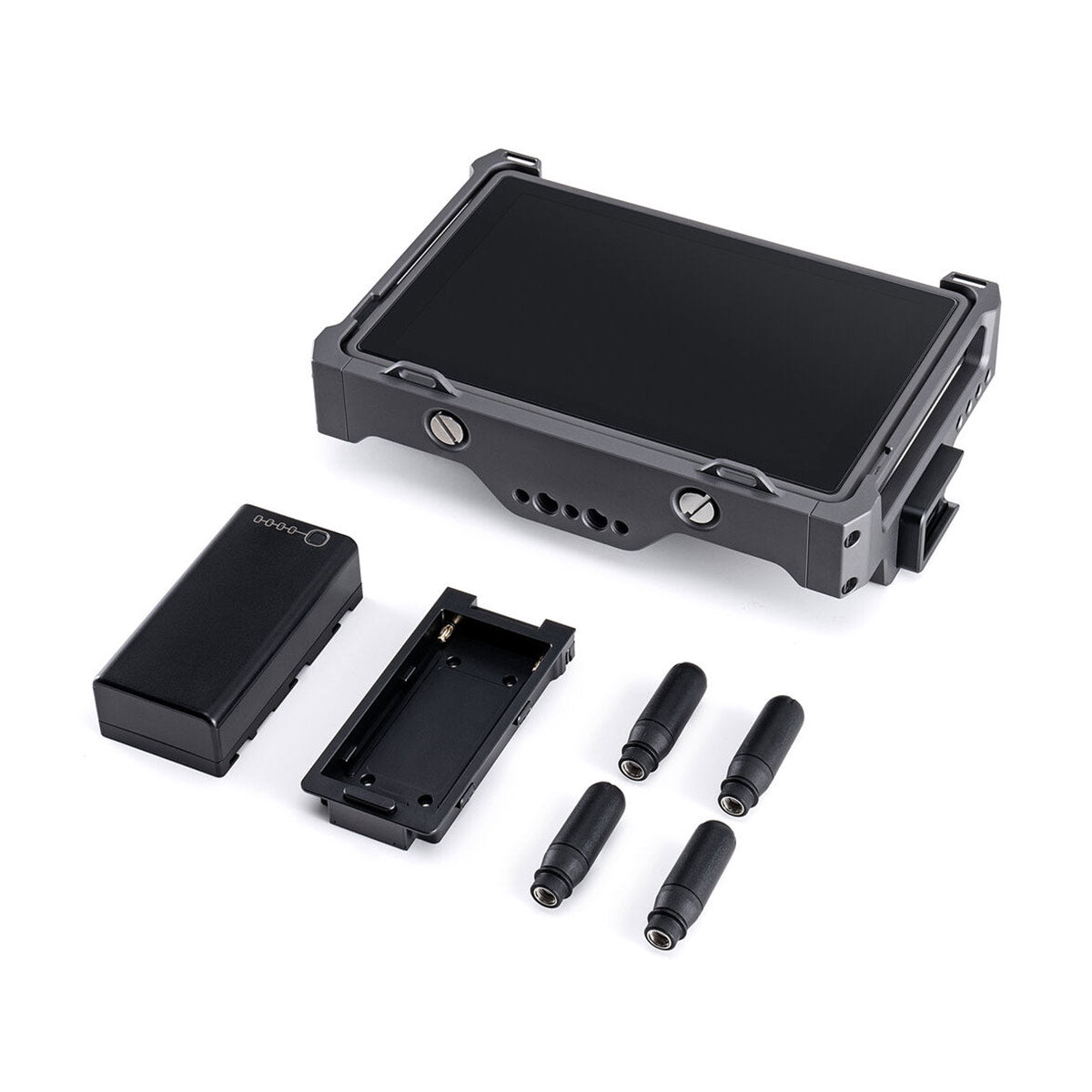

High-Bright Remote Monitor
-
Ronin Video Transmission Antenna × 4
-
Remote Monitor Tempered Glass Screen Protector × 1
-
Remote Monitor Hood × 1
-
Remote Monitor Cage × 1
-
NP-F Battery Adapter × 1
-
WB37 Intelligent Battery × 1
-
WB37 Battery Charging Hub (USB-C) × 1
-
1.5mm Ball-End Hex Key × 1
-
Limited 1-Year Warranty
Description

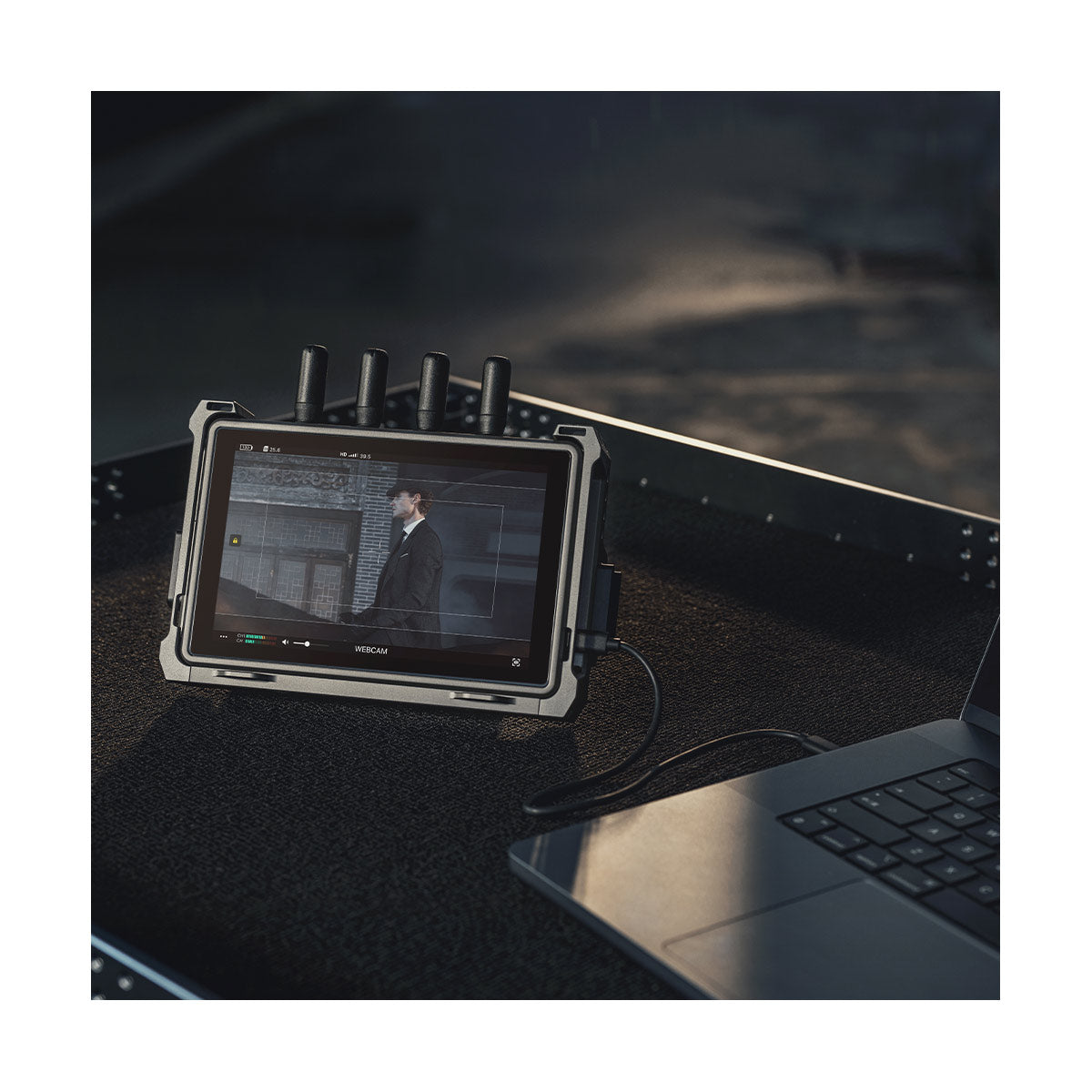

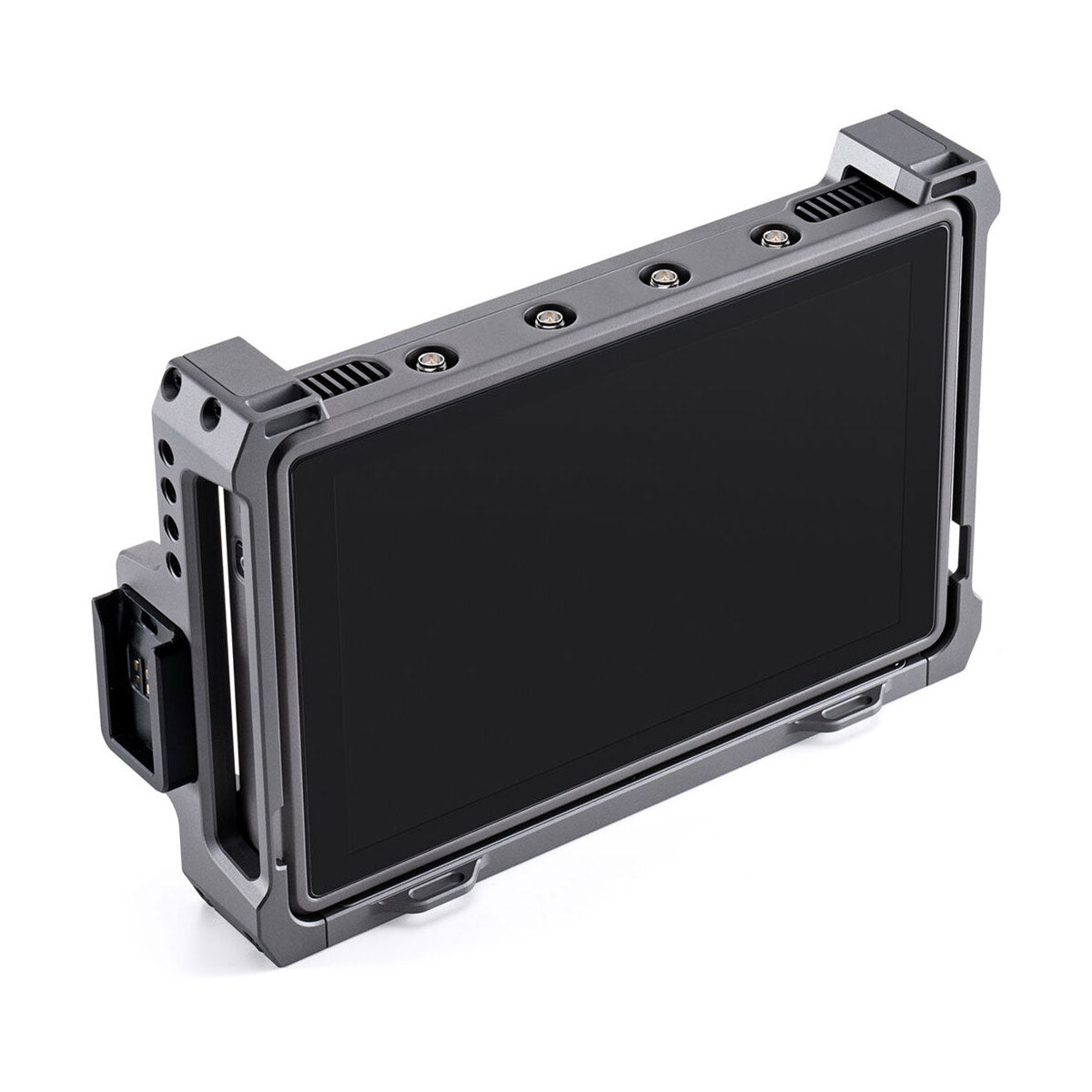

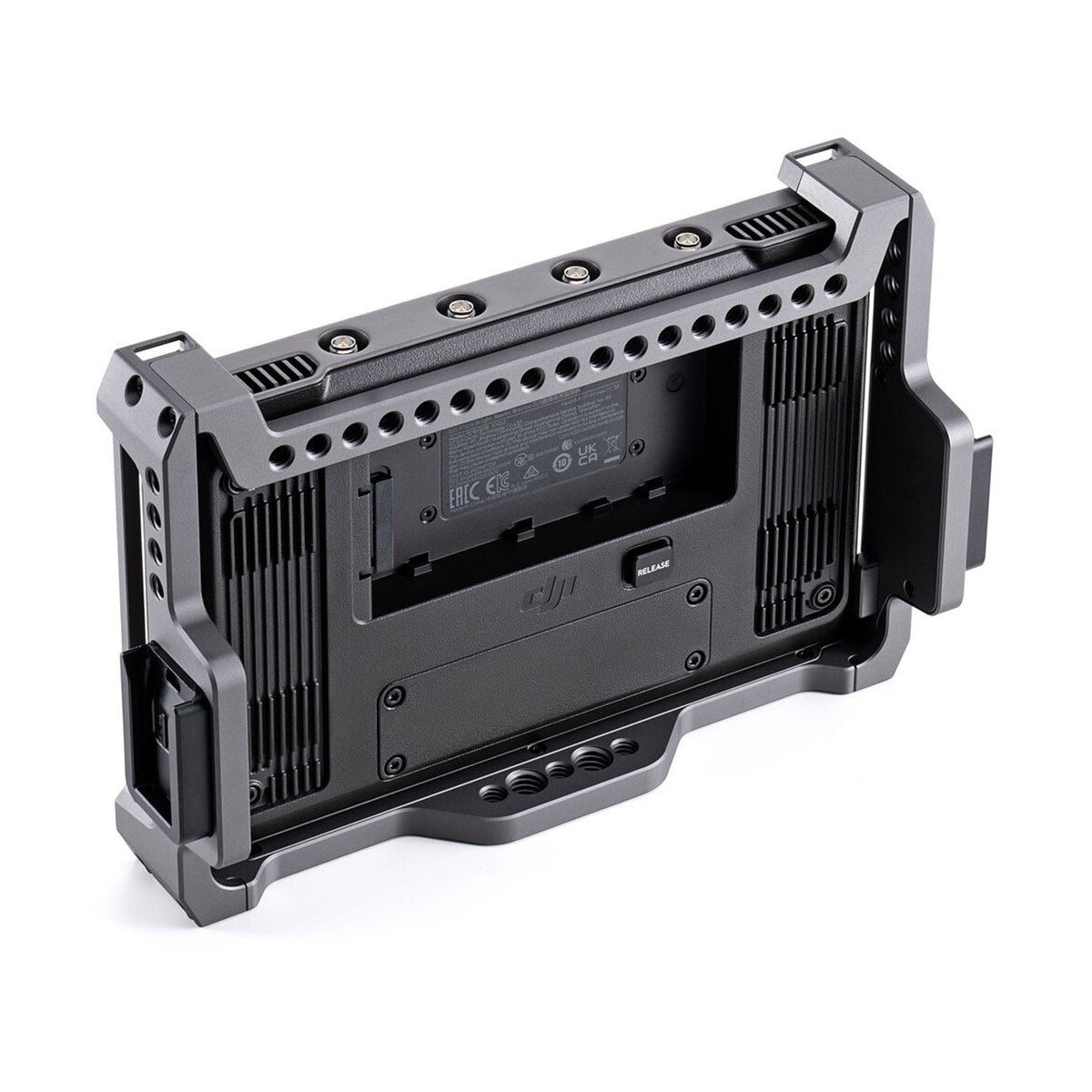

With a 7-inch wide color gamut, 1,500-nit high-bright touchscreen, and an integrated O3 Pro image transmission receiver, the DJI High-Bright Remote Monitor can be used for monitoring, recording, and playback. It also works seamlessly with the Hand Grips, DJI Master Wheels, DJI Force Pro, and the new DJI Three-Channel Follow Focus to remotely enable focus control, high-precision gimbal control, starting/stopping of recording and adjustment of camera parameters. In addition, the built-in gyro sensor turns the monitor into a remote motion controller*. DJI High-Bright Remote Monitor must be used with the DJI Ronin 4D Video Transmitter.
| General | |
|---|---|
| Compatibility | DJI Ronin 4D |
| Panel Type | LCD |
| Screen Size | 7" |
| Resolution | 1920 x 1200 |
| Maximum Brightness | 1500 cd/m2 |
| USB | 1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Integrated Male Input/Output |
| Video | 1 x HDMI Type A Input |
| Audio I/O | 1 x 1/8" / 3.5 mm Output |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
| Power Source | Battery |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Mounting | Multiple x 1/4"-20 |
| Dimensions | 8.5 x 6.5 x 2.3" / 216 x 166 x 58 mm (Includes Cage) |
