20 MP
1" CMOS Sensor
100 to 12,800
ISO Range
60p
4k Video
31 Minutes
Max Flight Time
43 mph
Max Speed
- 5.4K Video and 4K/60fps Video
- Authentic Color Tones with Dlog-M
- Up to 31 Minutes of Flight Time
- APAS 4.0 Obstacle Avoidance
- MasterShots Automated Film Features
- 12km 1080p Video Transmission
-

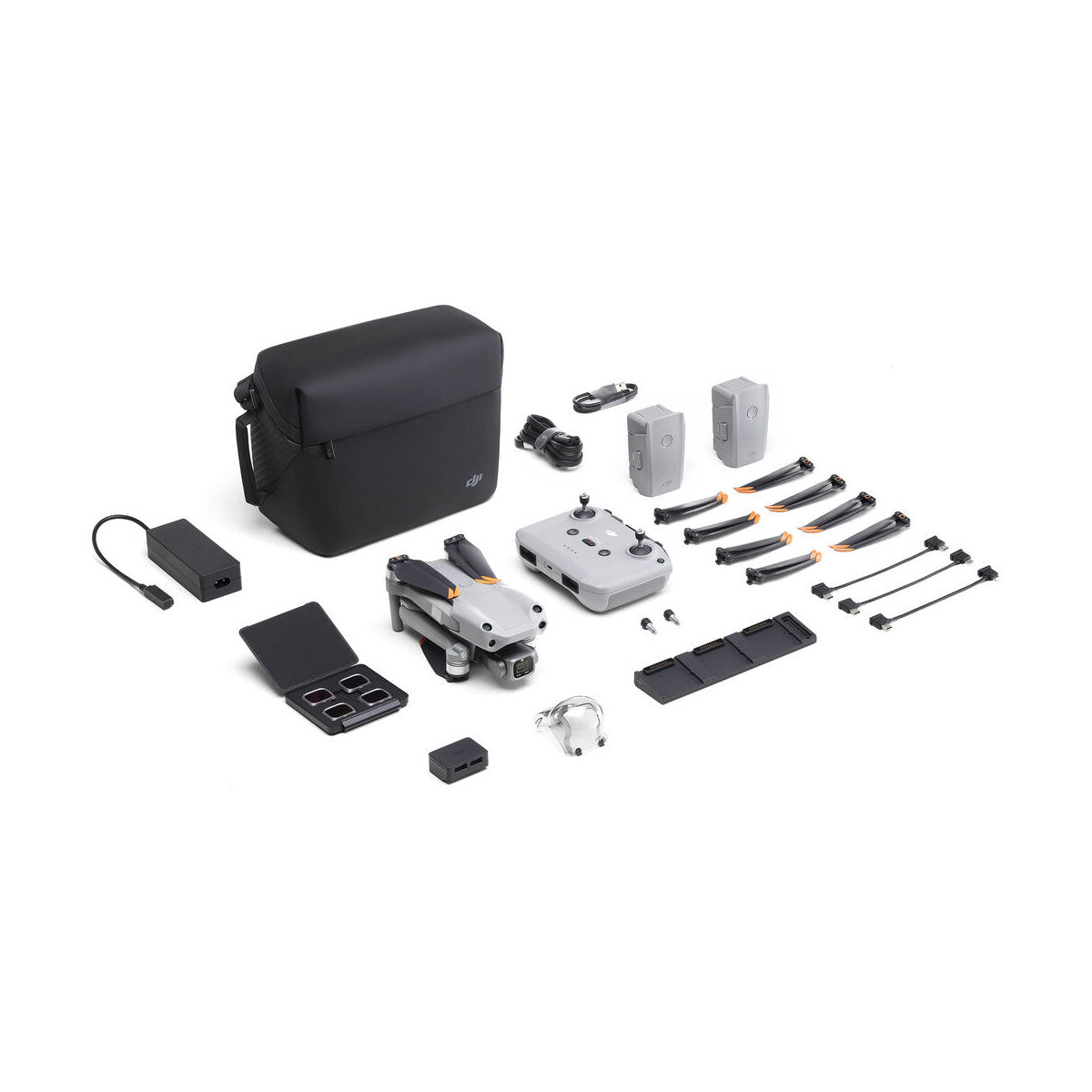

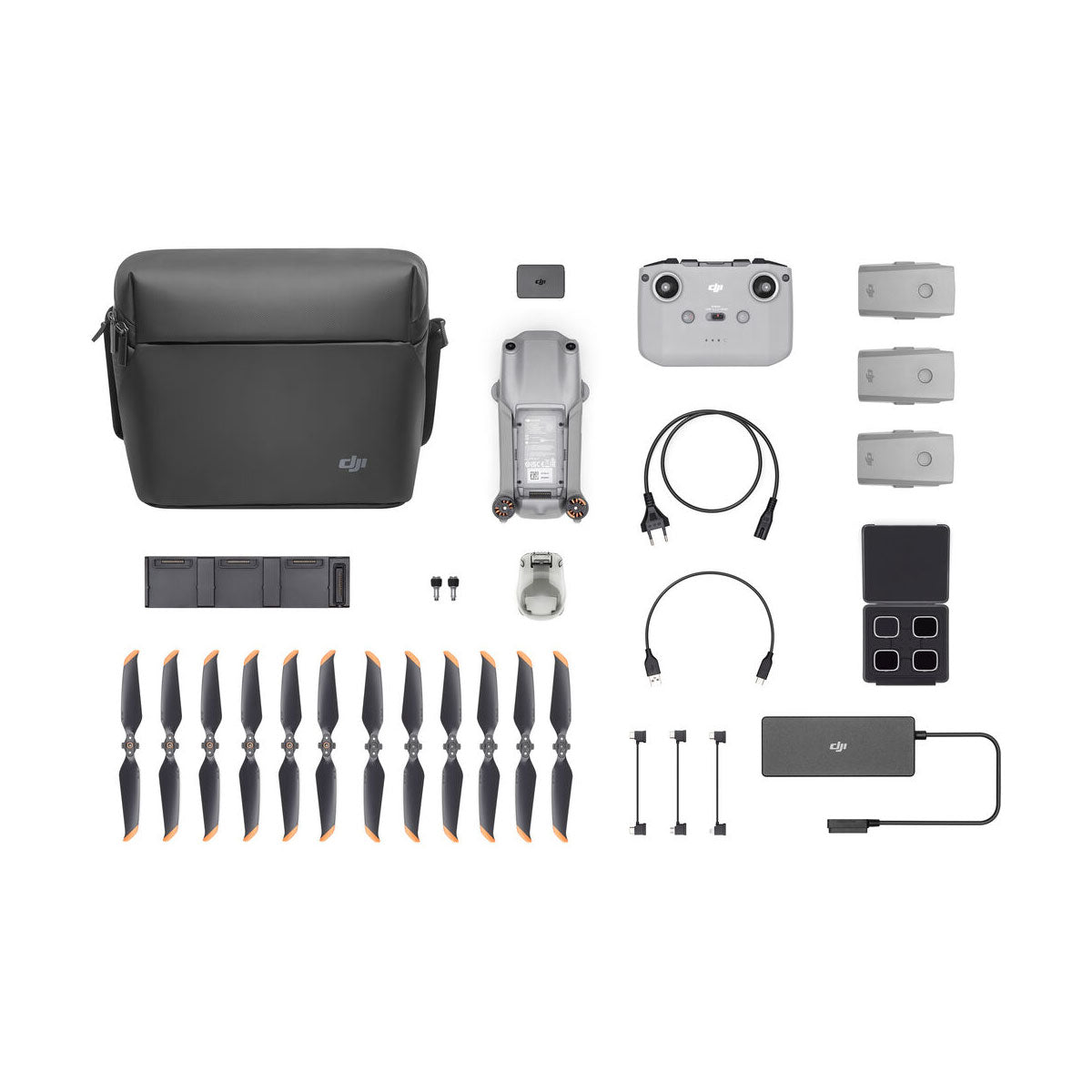

Mavic Air 2S Fly More Combo
-
RC-N1 Remote Controller
-
3 x Intelligent Flight Battery
-
Battery Charger
-
AC Power Cable
-
6 x Pair of Low-Noise Propellers
-
Gimbal Protector
-
USB Type-C Cable
-
USB Type-C RC Cable
-
Lightning RC Cable
-
Micro-USB RC Cable
-
Pair of Spare Control Sticks
-
ND Filter Set (ND4/8/16/32)
-
Battery Charging Hub
-
Battery to Power Bank Adapter
-
Shoulder Bag
-
Limited 1-Year Warranty
(Limited 6-Month Warranty on Battery)
Description
Performance | |
---|---|
Maximum Horizontal Speed | 43 mph / 19 m/s (S Mode) 33.5 mph / 15 m/s (N Mode) 11.8 mph / 5 m/s (C Mode) |
Maximum Ascent Speed | 6 m/s (S Mode) 6 m/s (N Mode) |
Maximum Descent Speed | 6 m/s (S Mode) 6 m/s (N Mode) |
Flight Ceiling | 3.11 Miles / 5000 m |
Maximum Flight Time (no wind) | 31 Minutes |
Maximum Hover Time (no wind) | 30 Minutes |
Max Flight Distance (no wind) | 11.5 mi / 18.5 km |
Maximum Tilt Angle | 35° |
Hovering Accuracy | Vertical: ± 0.1 m (with vision positioning) ± 0.5 m (with GNSS positioning) Horizontal: ± 0.1 m (with vision positioning) ± 1.5 m (with GNSS positioning) |
Maximum Angular Velocity | 250°/s (S Mode) 90°/s (N Mode) 60°/s (C Mode) |
Max Wind Speed Resistance | 24 mph / 10.7 m/s |
Internal Storage | 8 GB |
Camera | |
---|---|
Sensor | 1" CMOS |
Effective Pixels | 20 MP, 2.4μm Pixel Size |
Focal Length | 22mm (35mm Equivalent) |
Lens Field of View | 88° |
Aperture | f/2.8 |
Minimum Focusing Distance | 11.92' / 0.6m |
Photo ISO Range | 100 to 3200 (Auto) 100 to 12800 (Manual) |
Video ISO Range | 100-3200 (Auto) 100-6400 (Manual) |
Video ISO Range (10-Bit Dlog-M) | 100-800 (Auto) 100-1600 (Manual) |
Photo Resolution | 20 MP 5472×3648 (3:2) 5472×3078 (16:9) |
Photo Format | JPEG, DNG |
Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, HDR Panorama, Single Shot |
Video Format | MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC) 5.4K (5472×3078): 30/25/24 fps 4K Ultra HD (3840×2160): 60/50/48/30/25/24 fps 2.7K (2688x1512): 60/50/48/30/25/24 fps FHD (1920×1080): 120/60/50/48/30/25/24 fps |
Color Profiles | D-Cinelike, Normal |
Recording Media | SD (up to 256 GB) |
Flight Control System | |
---|---|
GNSS Support | GPS+GLONASS+GALILEO |
Sensing System | |
---|---|
Forward | Precision Measurement Range: 0.38-23.8 m Effective Sensing Speed: ≤15 m/s Field of View (FOV): 72° (horizontal), 58° (vertical) |
Backward | Precision Measurement Range: 0.37-23.4 m Effective Sensing Speed: ≤12 m/s Field of View (FOV): 57° (horizontal), 44° (vertical) |
Downward | ToF Measurement Range: 0.1-8 m Hovering Range: 0.5-30 m Vision Sensor Hovering Range: 0.5-60 m |
Left/Right | N/A |
Upward | Precision Measurement Range: 0.34-28.6 m Field of View (FOV): 63° (horizontal), 78° (vertical) |
Downward Auxiliary Light | Single LED |
Video Transmission | |
---|---|
Transmission System | O3 2.4 GHz/5.8 GHz Auto-Switching (compatible with OcuSync 2.0) 4-antenna 2T4R |
Max Transmission Distance | 12 km (FCC), 8 km (CE) 8 km (SRRC), 8 km (MIC) |
Live View Quality/Latency | Drone + Remote Controller: 1080p/30fps 12 Mbps 120 ms Drone + DJI Smart Controller: 1080p/30fps 12Mbps 130 ms |
Max Transmission Bitrate | 44 Mbps (download bitrate) 16 Mbps (live video bitrate) |
Operating Frequency | 2.4 GHz 5.8 GHz |
Remote Controller | |
---|---|
DJI Smart Controller | Supported |
Remote Controller Transmission System | OcuSync 2.0 |
Battery Life | 6 hours (4 hours when charging a mobile device) |
Supported Mobile Device Connectors | Lightning, Micro USB, USB-C |
Max Supported Mobile Device Size (LxWxH) | 7.1 x 3.4 x 0.4" / 180 × 86 × 10mm |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Transmitter Power | 2.4 GHz: FCC: ≤26 dBm CE: ≤20 dBm SRRC: ≤20 dBm MIC: ≤20 dBm 5.8 GHz: FCC: ≤26 dBm CE: ≤14 dBm SRRC: ≤26 dBm |
Gimbal | |
---|---|
Stabilization | 3-Axis (tilt, roll, pan) |
Mechanical Range | Tilt: -135 to 45° Roll: -45 to 45° Pan: -100 to 100° |
Pan Axis | Not Controllable |
Controllable Range | Tilt: -90° to 0°(default); -90° to 24° (extended) |
Max Controllable Speed (tilt) | Tilt: 100°/s |
Angular Vibration Range | ±0.01° |
Flight Battery | |
---|---|
Battery Chemistry | Lithium-Ion Polymer (LiPo) 3S |
Capacity | 3500 mAh / 40.42 Wh |
Battery Configuration | 3 S / 11.55 V |
Maximum Charging Power | 38 W |
Charging Temperature | 41 to 104°F / 5 to 40°C |
Weight | 7.0 oz / 198 g |
General | |
---|---|
Number of Rotors | 4 |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Diagonal Size | 11.9" / 302 mm |
Overall Dimensions | 7.1 x 3.0 x 3.8" / 180.0 x 77.0 x 97.0mm (Folded) 7.2 x 3.0 x 10.0" / 183.0 x 77.0 x 253.0mm (Unfolded) |
Takeoff Weight | 1.31 lb / 595 g |
