- 15 km Video Transmission
- 120 ms Ultra-Low Latency
- 5.5" 1080p High-Bright Display
- Brightness Up to 1000 nits
- 3-hour Max Operating Time
-
RC Pro Remote Controller
-
USB Type-C Cable
-
Limited 3-Month Warranty
Description

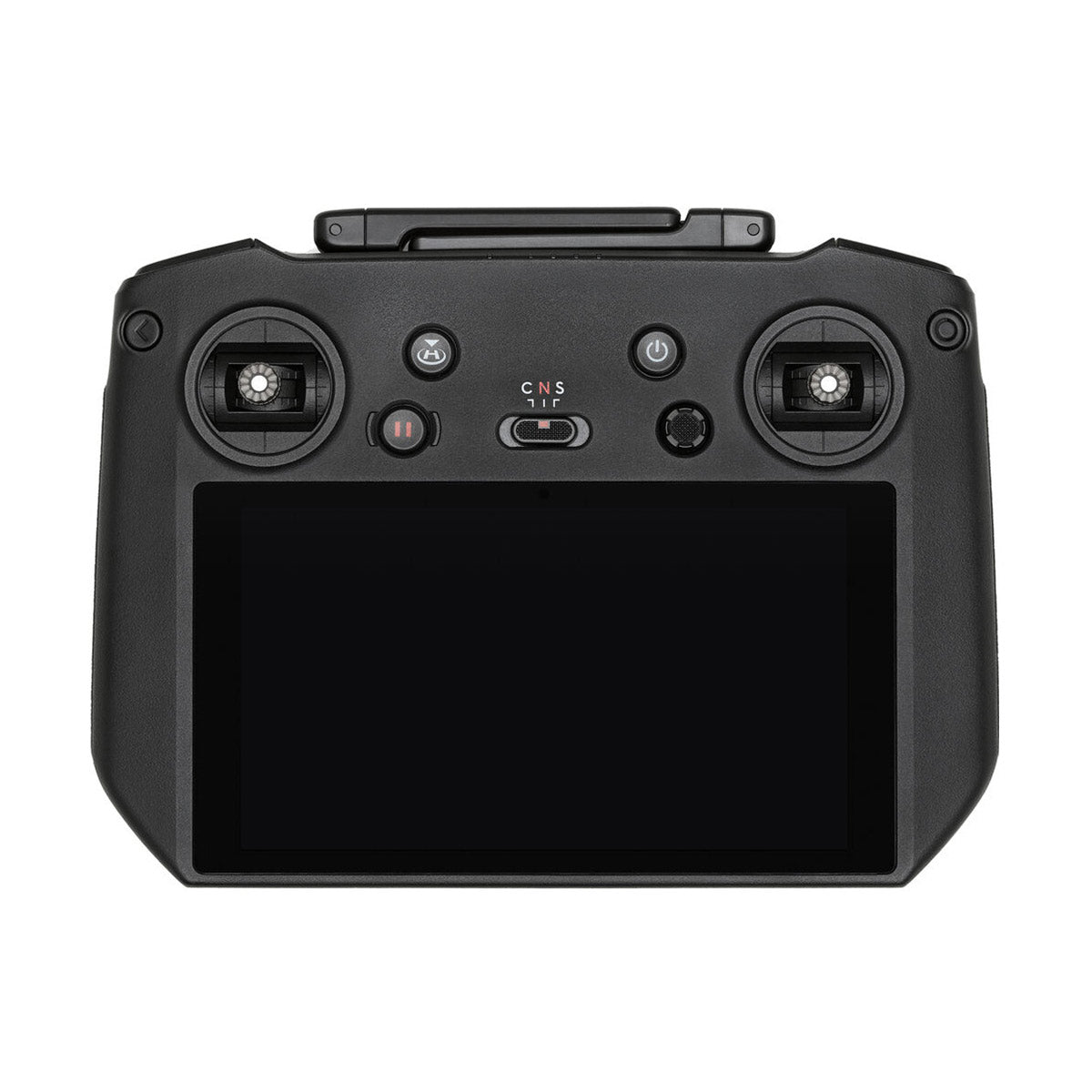

With powerful performance, DJI RC Pro was made for professional aerial photography. RC Pro runs on a stable and smooth system, thanks to its latest-generation processor and expanded storage capacity. RC Pro is built with powerful O3+ video transmission technology and adopts the same control stick design of DJI FPV for more precise maneuvering. DJI RC Pro elevates the experience of flight with unparalleled control.
O3+ Video Transmission - Incredible Signal Range and Quality
DJI RC Pro features O3+ video transmission technology, capable of maintaining a 1080p/60fps live feed from up to 15 km away with a latency as low as 120 ms. A 2T4R high-gain antenna system enhances signal coverage and keeps transmission stable and smooth.
High-Bright Screen
DJI RC Pro includes an integrated 5.5-inch 1080p screen that reaches an average brightness of 1000 nits. This long-lasting high-bright display is perfect for its Outdoor mode, where shadow details are enhanced automatically for clear display, even under direct sunlight.
Next-Level Performance - Updated Processor for Upgraded Performance
DJI RC Pro is equipped with the latest-generation processor, offering stronger performance and lower power consumption. This results in 4x improved CPU performance, 7x improved GPU performance, and 20% lower power consumption over its predecessor. DJI RC Pro brings a more durable, stable, and smooth system that simply enhances flying. Supports Wi-Fi 6 protocol and download speeds of up to 80MB/s.
Precision Control - Fine-Tuned Control Experience
DJI RC Pro uses the same control stick design as DJI FPV for precise maneuvering, fluid operation, and better shot composition. Once powered on, DJI RC Pro connects to the aircraft in seconds, ready to capture every moment.
Outstanding Audio and Video
DJI RC Pro supports videos played at 4K/120fps in H.264 and H.265 codecs. A mini-HDMI port, all-purpose USB Type-C port, and microSD card slot also support charging, storage, and video output.
More Functions - Optimized for Third-Party, Livestream, and Power
The system supports the installation of third-party apps for more diversified editing and sharing options. DJI RC Pro introduces a livestreaming function, where third-party apps can use the drone’s camera view for direct livestreaming, instant sharing of short videos, and more. Plus it only takes 1.5 hours to fully charge DJI RC Pro, with the operating time extended to 3 hours to enjoy more flight and content creation.
| General | |
|---|---|
| Compatibility | DJI Mavic 3 DJI Mavic 3 Cine DJI Air 2S More DJI aircraft will be supported in the future. |
| USB | 1 x USB Type-C Female Input |
| Video | 1 x HDMI Type C Output |
| Storage Capacity | 32GB internal + expandable storage via microSD card |
| Supported SD Cards | SanDisk Extreme 64GB V30 A2 microSDXC SanDisk Extreme 128GB V30 A2 microSDXC SanDisk Extreme 256GB V30 A2 microSDXC SanDisk Extreme 512GB V30 A2 microSDXC Lexar 667x 64GB V30 A2 microSDXC Lexar 64GB Professional 1066x UHS-I microSDXC Lexar 128GB Professional 1066x UHS-I microSDXC Lexar 256GB Professional 1066x UHS-I microSDXC Lexar 512GB V30 A2 microSDXC |
| Video Output Port | Mini-HDMI port |
| GNSS | GPS + Galileo + GLONASS |
| Battery | Li-ion (5000 mAh @ 7.2 V) |
| Charging Type | Recommended to be charged with USB charger at 12 V or 15 V |
| Rated Power | 12 W |
| Charging Time | 2 hours (with USB charger at 12 V), 1.5 hours (with USB charger at 15 V) |
| Operating Time | 3 hours |
| Operating Temperature | -10° to 40°C (14° to 104° F) |
| Storage Temperature Range | Less than one month: -30° to 60° C (-22° to 140° F) One to three months: -30° to 45° C (-22° to 113° F) Three to six months: -30° to 35° C (-22° to 95° F) More than six months: -30° to 25° C (-22° to 77° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Dimensions | 7.2 x 5.4 x 1.9" / 18.3 x 13.7 x 4.8 cm (Antennas Folded/Controllers Not Mounted) 8 x 7.2 x 2.4" / 20.3 x 18.3 x 6 cm (Antennas Unfolded/Controllers Mounted) |
| Weight | 24 oz / 680 g |
| Model | RM510 |
| Screen | |
|---|---|
| Resolution | 1920×1080 |
| Dimensions | 5.5" |
| Frame Rate | 60 fps |
| Brightness | 1000 nits |
| Touch Control | 10-point multi-touch |
| Video Transmission | |
|---|---|
| Video Transmission System | O3+ |
| Max Transmission Distance (unobstructed, free of interference) | 15 km (FCC) 8 km (CE/SRRC/MIC) |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Antennas | 4 Antennas, 2T4R |
| Transmitter Power (EIRP) | 2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC) 5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤23 dBm (SRRC) |
| Wi-Fi | |
|---|---|
| Protocol | 802.11a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi |
| Operating Frequency | 2.400GHz-2.4835 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: ≤26 dBm (FCC); ≤20 dBm (CE/SRRC/MIC) 5.8 GHz: ≤26 dBm (FCC/SRRC); ≤14 dBm (CE) |
| Bluetooth | |
|---|---|
| Protocol | Bluetooth 5.1 |
| Operating Frequency | 2.400-2.4835 GHz |
| Transmitter Power (EIRP) | ≤8 dbm |
