- Three Intuitive Flight Modes
- 4K/60fps and FHD120 Video
- Easily Replaceable Parts
- RockSteady Stabilization
- 10km 1080p Video Transmission
-
FPV Drone
- Goggles Integra
- FPV Drone Remote Controller 2
Description
Fly through the sky in ways that seem impossible. We never lost our passion for flying, and with DJI FPV, those passions have turned imagination into reality.
With this immersive and intuitive aerial platform, get ready to go into the beyond.
FPV Has Never Looked This Good

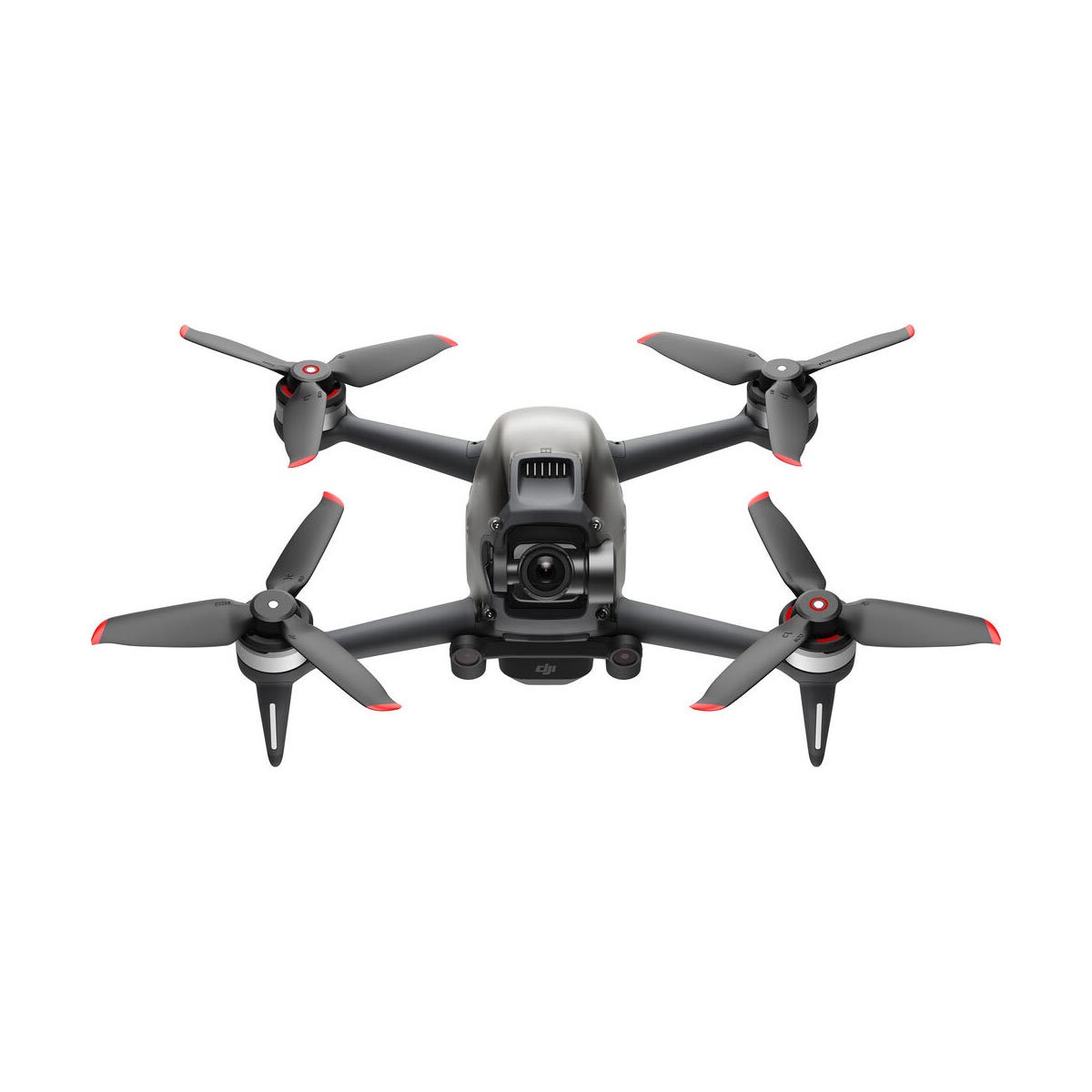

Sleek and aerodynamic, the DJI FPV aircraft delivers powerful propulsion, battery life, and wind resistance, making this system as capable as it is visually stunning.
DJI FPV stands out in more ways than one. Sporting front LEDs and aircraft arm lights with customizable-color, DJI FPV allows pilots to make their aircraft as unique as they are.
Next-Level Immersion. Unparalleled Control.
Feel the thrill of immersive flight provided by the DJI FPV Goggles V2 and DJI FPV’s super-wide 150° FOV. HD video transmission at up to 120fps gives you an ultra-smooth, real-time view of your flight.
Whether you’re a seasoned FPV pilot or a complete beginner, DJI FPV offers three intuitive flight modes that let anyone fly confidently from day one.
S Mode
Get the dynamic look of FPV footage easily in S mode. This hybrid flight mode combines the freedom of flying manually with the simplified controls of previous DJI drones.
N Mode
Ideal for new users, N mode offers immersive flight with traditional drone flight controls along with DJI safety features like obstacle sensing.
M Mode
Fly in M mode for complete, limitless control and the full FPV flight experience. Customize parameters and enjoy flight and footage unlike anything else. 0-100kph in 2 seconds.
Nothing is More Important than Safety - Emergency Brake and Hover
Even for experts, manual FPV flight can be intimidating. That’s why DJI FPV comes with an emergency brake and hover feature. Simply press this button on the remote controller while flying in any mode, at any speed, and the aircraft will stop and hover stably within a few seconds.
Advanced Safety Features
An auxiliary bottom light, Smart Return to Home (RTH), Low Battery RTH, and forward and downward obstacle sensing are all integrated into DJI FPV to help ensure a safe flight, even at high speeds.
The Imaging Power You Expect from DJI
Get results that match the intensity of your flights. Powerful propulsion capabilities combined with a 150° super-wide FOV provide an unrivaled view. 4x Slow Motion, RockSteady stabilization, and distortion correction give pilots even smoother, more dramatic results.
Unreal Footage
The DJI FPV aircraft can record 4K/60fps video at up to 120 Mbps, capturing crisp details that make footage look as exhilarating as the flight.
RockSteady Stabilization
No matter how dynamic your maneuvers get, RockSteady EIS technology ensures your footage is ultra-smooth.
Meet O3
The DJI O3 (OcuSync 3.0) Transmission System was adapted to match the unique needs of DJI FPV. Enjoy crystal-clear real-time video transmission, even at distances of up to 10 km.
- Video Transmission Latency: 28ms
- Video Transmission Range: 10 km
- Video Transmission Bitrate: 50 Mbps
Auto-Switching for Seamless Signal
DJI FPV supports auto-switching between 2.4 and 5.8GHz frequencies and provides a video transmission bitrate of up to 50 Mbps, significantly reducing stutter and compression artifacts. High-gain antennas on the aircraft include three transmitters and four receivers to enhance signal, resulting in a stable, reliable video feed.
Committed to Safe Skies
DJI FPV gives users an additional layer of safety with built-in Automatic Dependent Surveillance-Broadcast (ADS-B). This system receives flight location information from airplanes and helicopters in your area that transmit ADS-B signals, and warns you through the Goggles V2 so you have time to avoid those aircraft.
Easily Replaceable Parts
The gimbal camera, landing gear, and top shell of the DJI FPV aircraft are all modular and easily replaceable, making repairs more convenient. DJI Care Refresh is also available, offering coverage for a wide range of damage and giving you greater peace of mind as you fly.
The DJI Virtual Flight App
The DJI Virtual Flight app allows users to practice flying in lifelike, simulated scenarios before taking off in the real world. Simply connect the DJI FPV Goggles V2 and remote controller, and you’re ready to master flight in a risk-free virtual environment.
Bring Someone Along with Audience Mode
DJI FPV supports Audience Mode. Just set other DJI FPV Goggles V2 units to your aircraft channel and you’re ready to share the view from above.
| Aircraft | |
|---|---|
| Maximum Ascent Speed | M mode: No limit S mode: 33mph (15 m/s) N mode: 17.9 mph (8 m/s) |
| Maximum Descent Speed | M mode: No limit S mode: 22.37 mph (10 m/s) N mode: 11.18 mph (5 m/s) |
| Maximum Speed | 140 kph; M mode: 87.24 mph (39 m/s) S mode: 60.4 mph (27 m/s) N mode: 33.55 mph (15 m/s) |
| Max Acceleration | 0-62mph: 2 s (in ideal conditions while flying in M mode) |
| Flight Ceiling | 3.73 Miles / 6000 m |
| Maximum Flight Time | Approx. 20 mins (measured while flying at 40 kph in windless conditions) |
| Maximum Hover Time | Approx. 16 mins (measured when flying in windless conditions) |
| Max Flight Distance | 16.8 km (measured while flying in windless conditions) |
| Max Wind Speed Resistance | 39-49 kph (25-31 mph) |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS positioning) |
| Camera | |
|---|---|
| Sensor | 1/2.3" CMOS |
| Effective Pixels | 12 MP |
| Focal Length | 14.66mm (35mm Equivalent) |
| Lens Field of View | 150º |
| Aperture | f/2.8 |
| Focus Mode | Fixed Focus |
| Minimum Focusing Distance | 0.6 m to ∞ |
| ISO Range | 100-12800 |
| Photo Resolution | 3840×2160 |
| Photo Format | JPEG |
| Photo Modes | Single shot |
| Video Format | MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC |
| Video Resolution | 4K (3840×2160): 60/50fps FHD (1920×1080): 120/100/60/50fps |
| Max Video Bitrate | 120 Mbps |
| Color Profiles | D-Cinelike, Standard |
| RockSteady EIS | Available |
| Distortion Correction | Available |
| Recording Media | SD (up to 256 GB) |
| Flight Control System | |
|---|---|
| GNSS Support | GPS+GLONASS+GALILEO |
| Sensing System | |
|---|---|
| Forward | Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only |
| Forward Field of View | 56° (Horizontal) 71° (Vertical) |
| Downward (dual vision sensors + ToF) | ToF Effective Sensing Height: 10 m Hovering Range: 0.5-15 m Vision Sensor Hovering Range: 0.5-30 m |
| Downward Auxiliary Light | Single LED |
| Operating Environment | Refers to non-reflective, discernible surfaces Diffuse reflectivity >20% (e.g. walls, trees, people) Adequate lighting conditions (lux >15 in normal indoor lighting conditions) |
| Video Transmission | |
|---|---|
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Communication Bandwidth | 40 MHz (Max.) |
| Live View Mode | Low-Latency Mode: 810p/120fps ≤ 28ms High-Quality Mode: 810p/60fps ≤ 40ms |
| Max Video Bitrate | 50 Mbps |
| Transmission Range | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Audio Transmission Support | Yes |
| DJI Goggles Integra | |
|---|---|
| Weight | Approx. 410 g (battery included) |
| Dimensions (L × W × H) | With antennas folded: 170 × 104 × 75mm With antennas unfolded: 205 × 104 × 104mm |
| Screen Size (single screen) | 0.49" |
| Resolution (single screen) | 1920×1080 |
| Screen Refresh Rate | Up to 100 Hz |
| Interpupillary Distance Range | 56-72 mm |
| FOV (single screen) | 44° |
| Video Format | MOV |
| Supported Video Playback Format | MP4, MOV (codec: H.264, H.265; audio format: AAC, PCM) |
| Operating Temperature | -10° to 40°C / 14° to 104°F |
| Power Input | Built-in battery |
| Supported SD Cards | microSD (up to 512 GB) |
| Operating Frequency | 2.4000-2.4835 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4000-2.4835 GHz: <30 dBm (FCC) <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <30 dBm (FCC) <23 dBm (SRRC) <14 dBm (CE/KC) |
| Live View Mode | 1080p/100fps, with latency down to 30 ms 1080p/60fps, with latency down to 40 ms |
| Max Transmission Distance | 10 km (FCC) 6 km (CE) 6 km (SRRC) |
| Max Video Bitrate | 50 Mbps |
| DJI Integra Goggles Battery | |
|---|---|
| Capacity | 2450 mAh |
| Voltage | 5.6-8.4 V |
| Type | Li-ion, LiNiMnCoO2 |
| Energy | 17.64 Wh |
| Charging Temperature | 5° to 45°C / 41° to 113°F |
| Max Charging Power | 15 W (charging when powered off) |
| Battery Life | Approx. 2 hours |
| Weight | Approx. 185 g (headband included) |
| Dimensions (L × W × H) | 120 × 51 × 71mm |
| DJI FPV Remote Controller 2 | |
|---|---|
| Operating Frequency | 2.4 GHz (2.400 - 2.484) 5.8 GHz (5.725 - 5.850) |
| Maximum Operating Distance | 6.21 Miles / 10 km at 2.4 G 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Transmitter Power | 2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm |
| Dimensions | 190×140×51 mm |
| Weight | 346 g |
| Battery Life | Approx. 9 hours |
| Charging Time | 2.5 hours |
| Gimbal | |
|---|---|
| Mechanical Range | Tilt: -65° to 70° |
| Control Controllable Range | Tilt: -50° to 58° |
| Stabilization | Single-axis (tilt), electronic roll axis |
| Max Control Speed | 60°/s |
| Angular Vibration Range | ±0.01° (N mode) |
| Electronic Roll Axis | Available (can stabilize footage when the aircraft is tilted at angles of up to 10°) |
| Flight Battery | |
|---|---|
| Battery Chemistry | Lithium-Ion Polymer (LiPo 6S) |
| Capacity | 2000 mAh |
| Voltage | 22.2 V |
| Maximum Charging Voltage | 25.2 V |
| Energy | 44.4 Wh@0.5C |
| Discharge Rate Standard | 10C |
| Max Charging Power | 90 W |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 10.41 oz / 295 g |
| General | |
|---|---|
| Number of Rotors | 4 |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Diagonal Size | 9.65" / 245 mm |
| Overall Dimensions | 10.04 x 12.28 x 5" / 255×312×127 mm (with propellers) 7.01 x 9.13 x 5" / 178×232×127 mm (without propellers) |
| Weight | 1.75 lb / 795 g |
