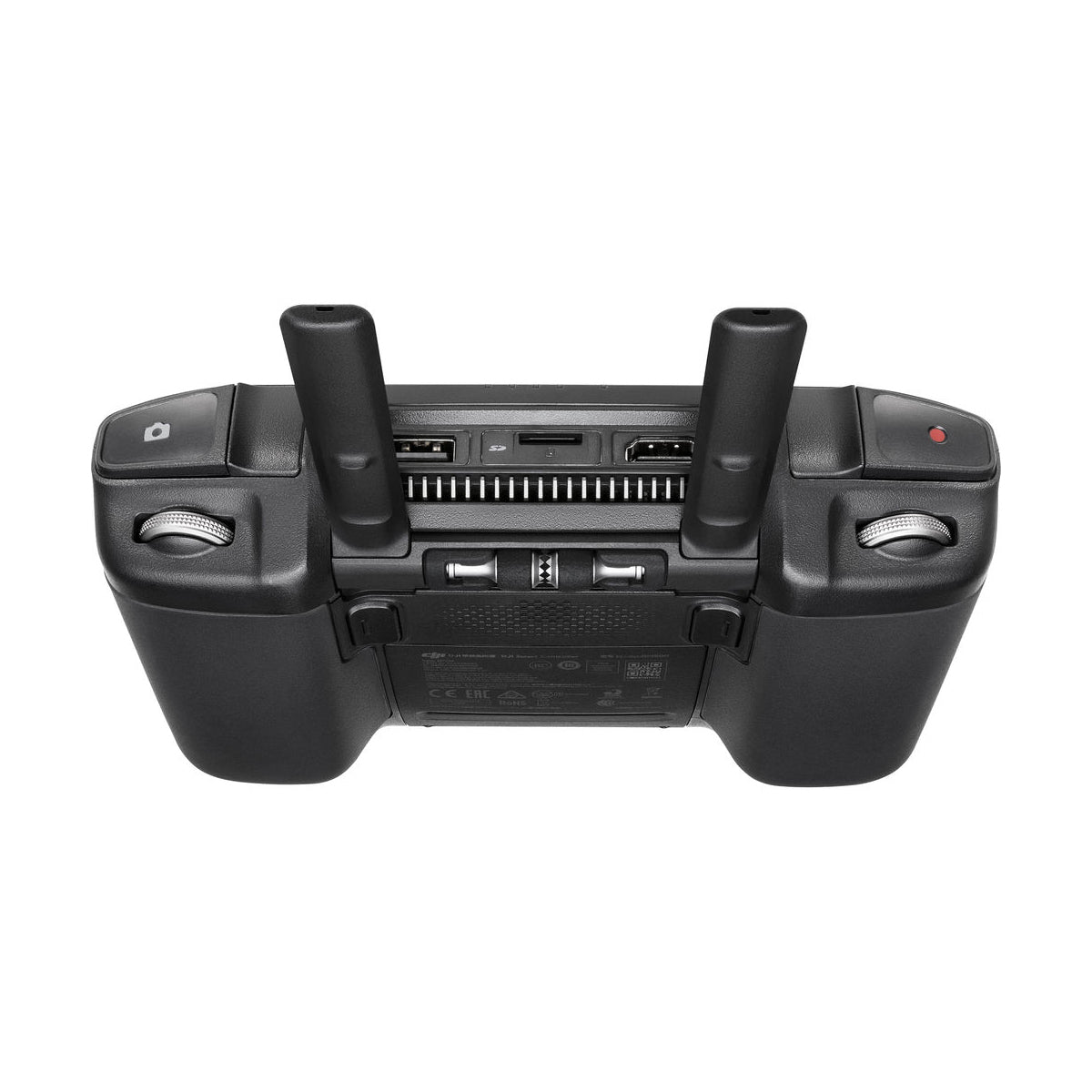

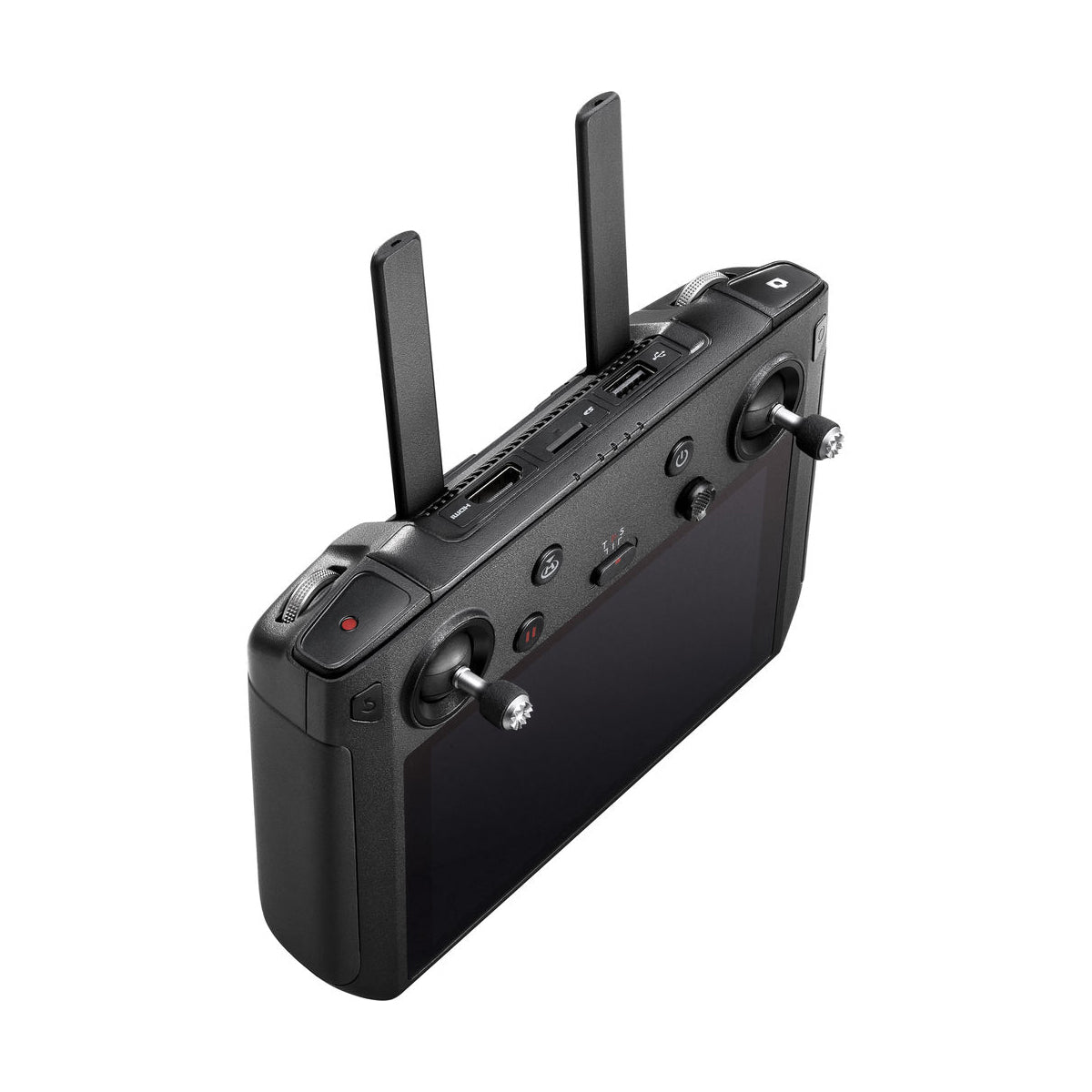

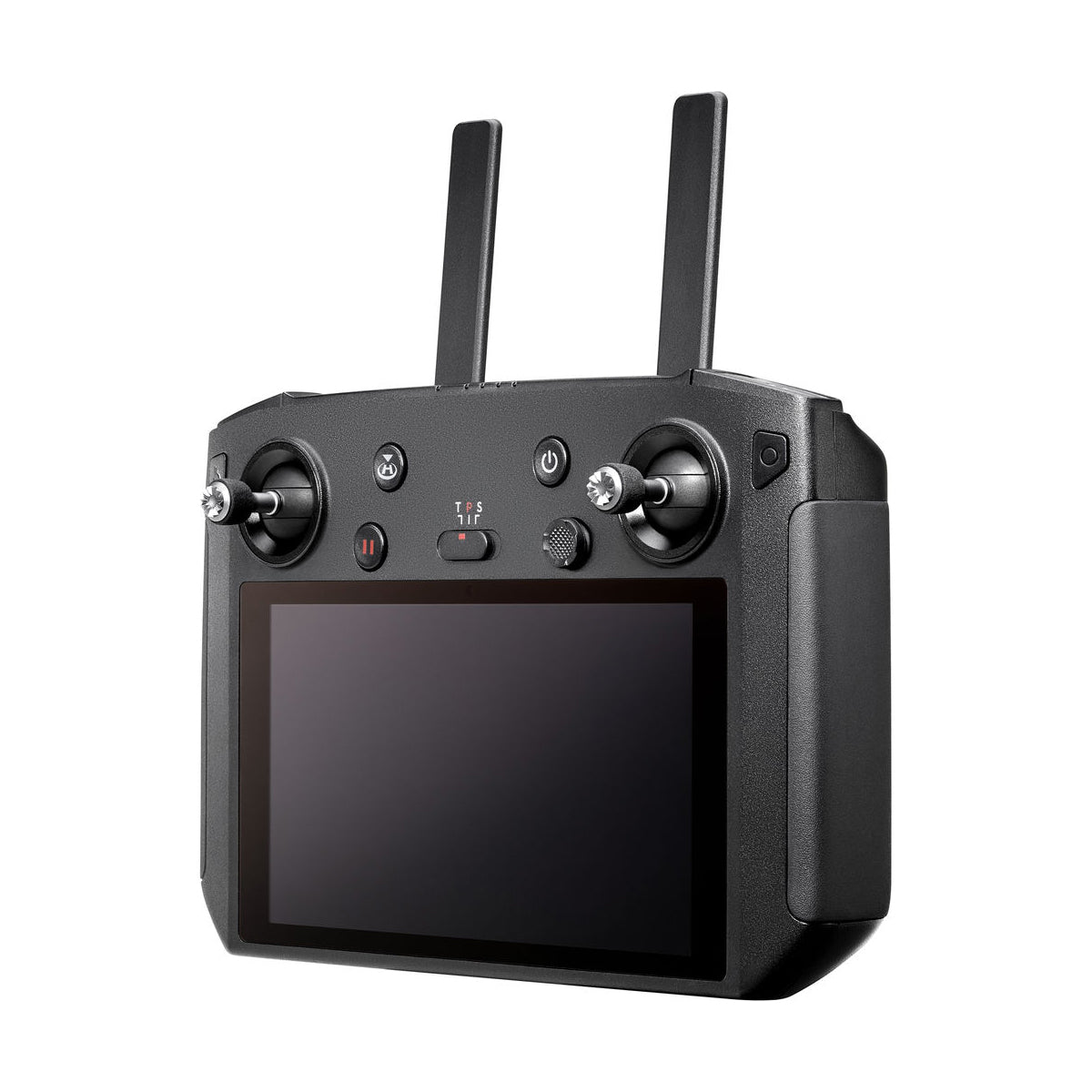

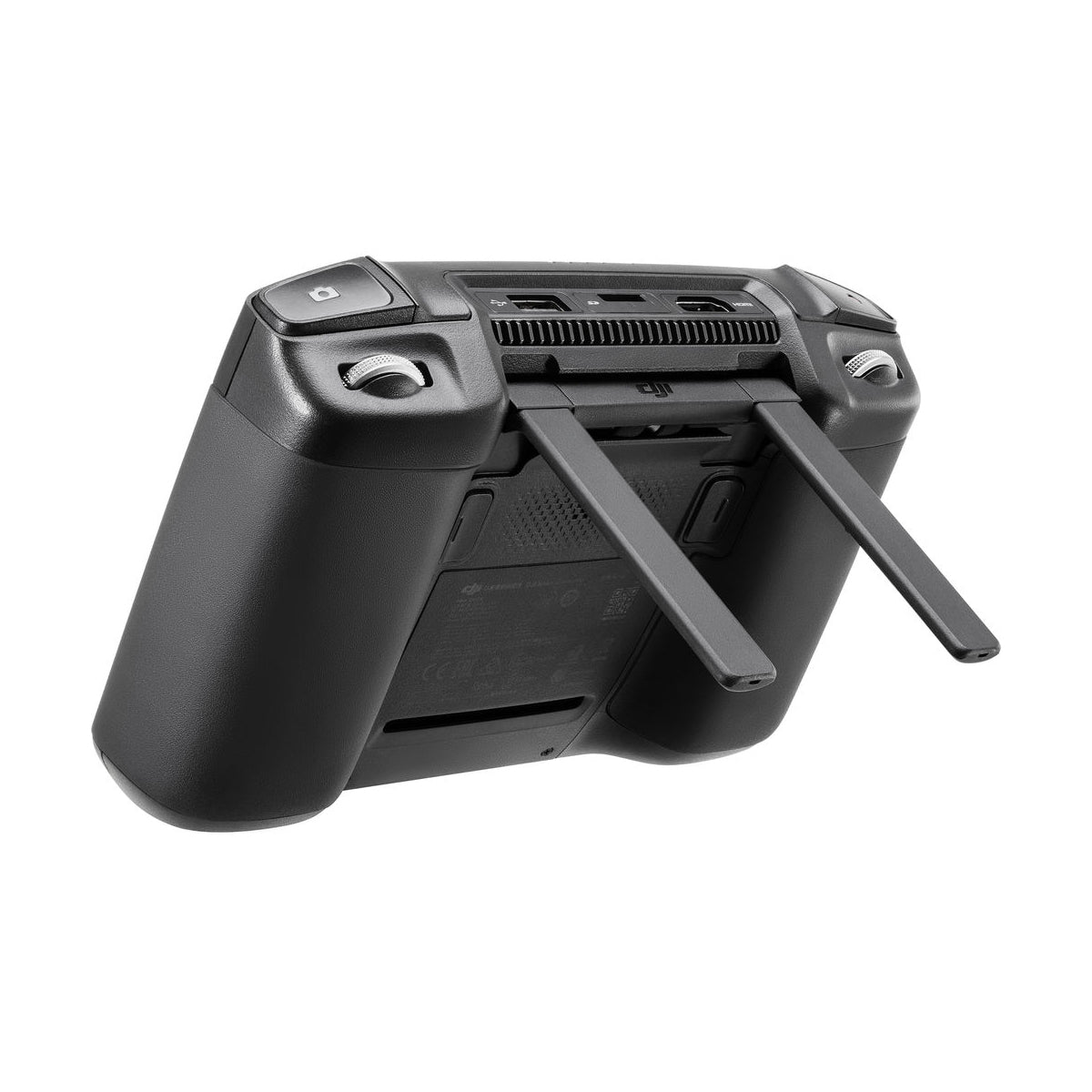

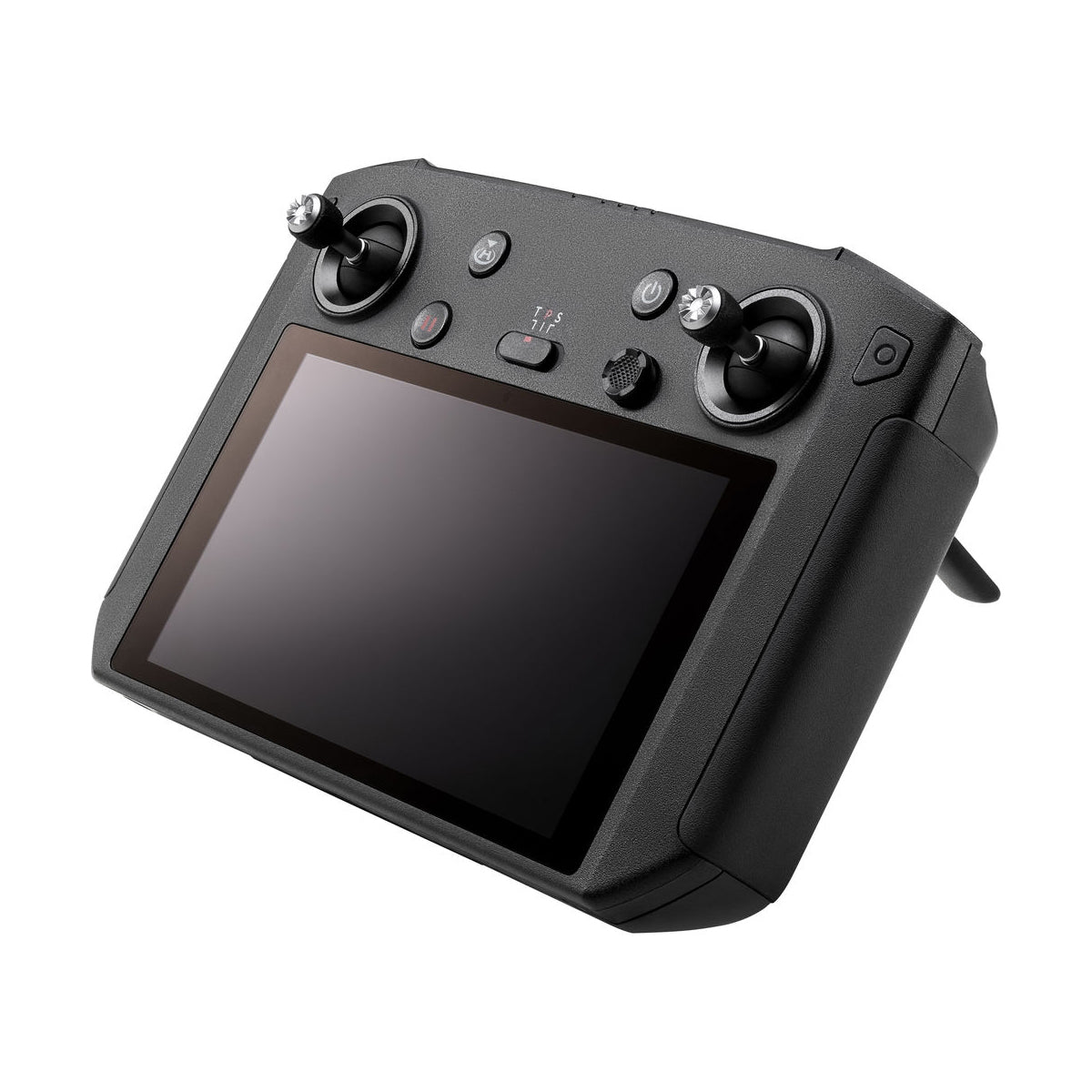

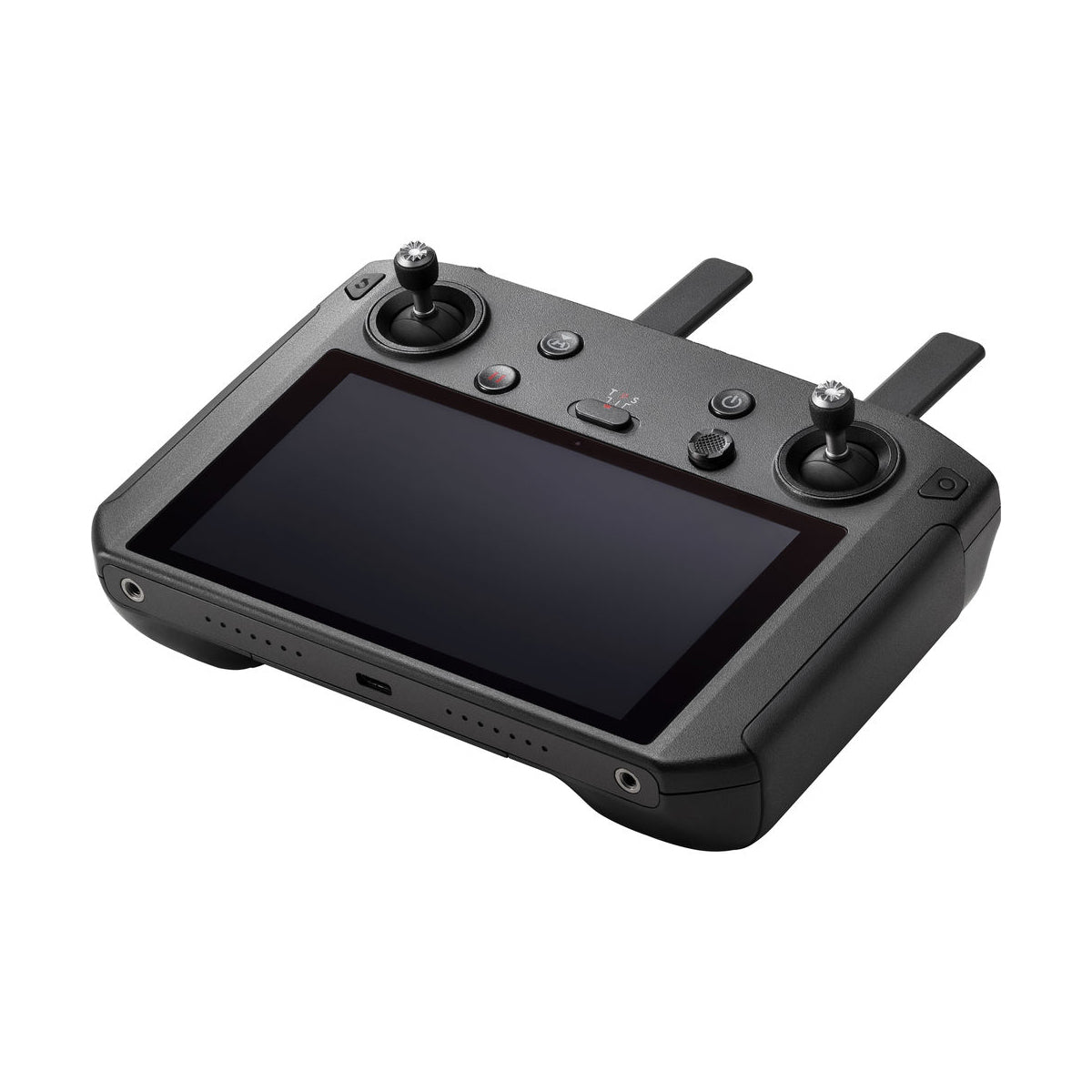

DJI Smart Controller
-
Communication Cable (USB 3.0 Type-C)
-
Spare Control Sticks (pair)
Description
| General | |
|---|---|
| Battery | 18650 Li-ion (5000 mAh @ 7.2 V) |
| Charge Type | Supports USB power adapters rated 12 V/2 A |
| Rated Power | 15 W |
| Storage Capacity | ROM 16 GB + scalable (microSD) |
| Charging Time | 2 hours (using a USB power adapter rated 12 V/2 A) |
| Working Time | 2.5 hours |
| Video Output Port | HDMI Port |
| Power Supply Current / Voltage (USB-A port) | 5 V/ 900 mA |
| Operation Temperature Range | -4° to 104° F (-20° to 40° C) |
| Storage Temperature Range | <1 month: -22° to 140° F (-30° to 60° C) 1-3 months: -22° to 113° F (-30° to 45° C) 3-6 months: -22° to 95° F (-30° to 35° C) >6 months: -22° to 77° F (-30° to 25° C) |
| Charging Temperature Range | 41° to 104° F (5° to 40° C) |
| GNSS | GPS+GLONASS |
| Dimensions | 6.99 x 4.78 x 1.57" / 177.5 x 121.3 x 40 mm (antennas folded, and the control sticks unmounted) 6.99 x 7.13 x2.36" / 177.5 x 181 x 60 mm (antennas unfolded, and the control sticks mounted) |
| Weight Approx. | 1.39lbs / 630 g |
| Model | RM500 |
| Supported SD Cards | Supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3 |
| OcuSync 2.0 | |
|---|---|
| Operation Frequency Range | 2.400-2.4835 GHz, 5.725-5.850 GHz[1] |
| Max Transmission Distance (unobstructed, free of interference) | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: 25.5 dBm (FCC), 18.5 dBm (CE), 19 dBm (SRRC), 18.5 dBm (MIC) 5.725-5.850 GHz: 25.5 dBm (FCC), 12.5 dBm (CE), 18.5 dBm (SRRC) |
| Wi-Fi | |
|---|---|
| Protocol | Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2×2 MIMO is supported |
| Operation Frequency Range | 2.400-2.4835 GHz, 5.150-5.250 GHz 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: 21.5 dBm (FCC), 18.5 dBm (CE) 18.5 dBm (SRRC), 20.5 dBm (MIC) 5.150-5.250 GHz: 19 dBm (FCC), 19 dBm (CE) 19 dBm (SRRC), 19 dBm (MIC) 5.725-5.850 GHz: 21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC) |
| Bluetooth | |
|---|---|
| Protocol | Bluetooth 4.2 |
| Operation Frequency Range | 2.400-2.4835 GHz |
| Transmitter Power (EIRP) | 4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC) |
