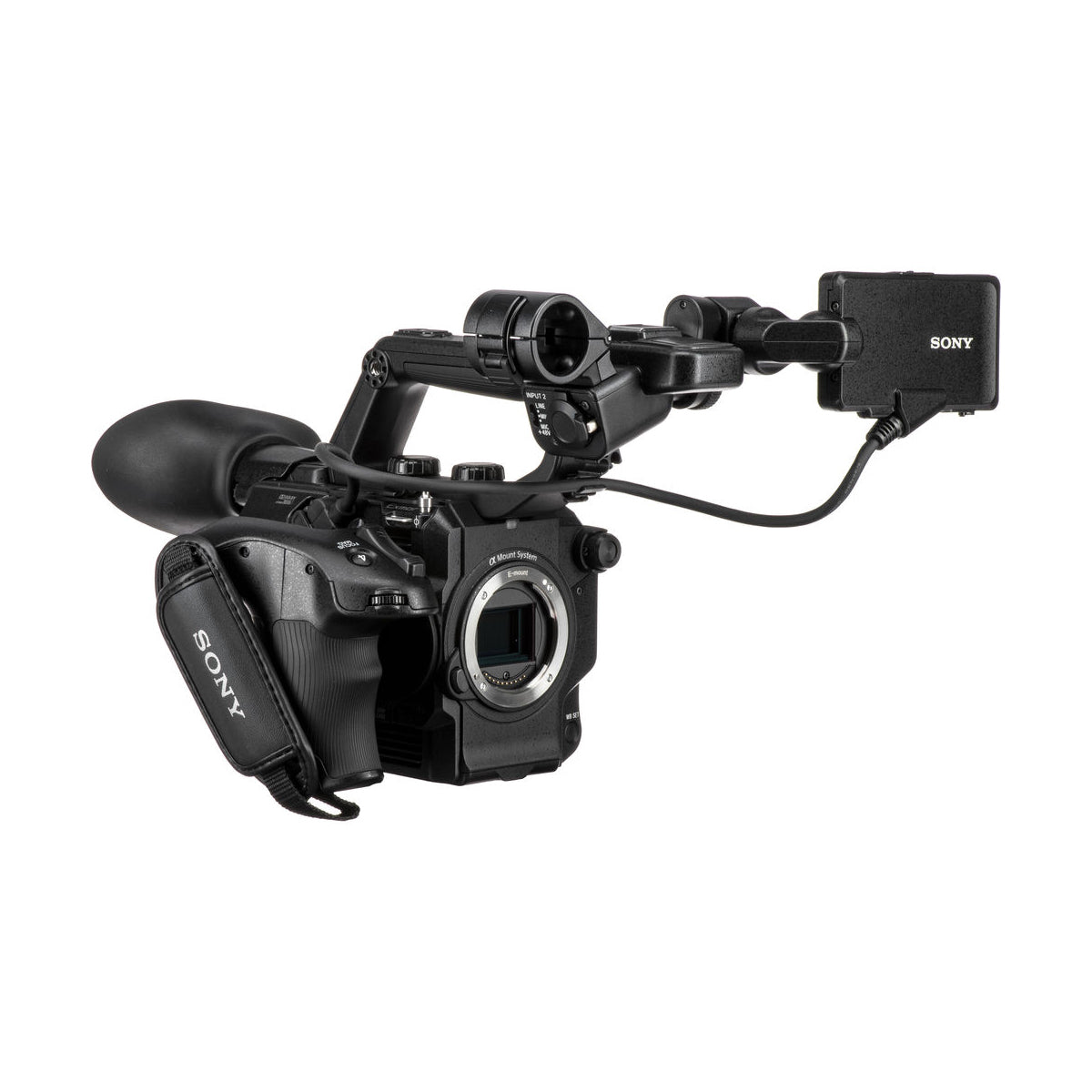

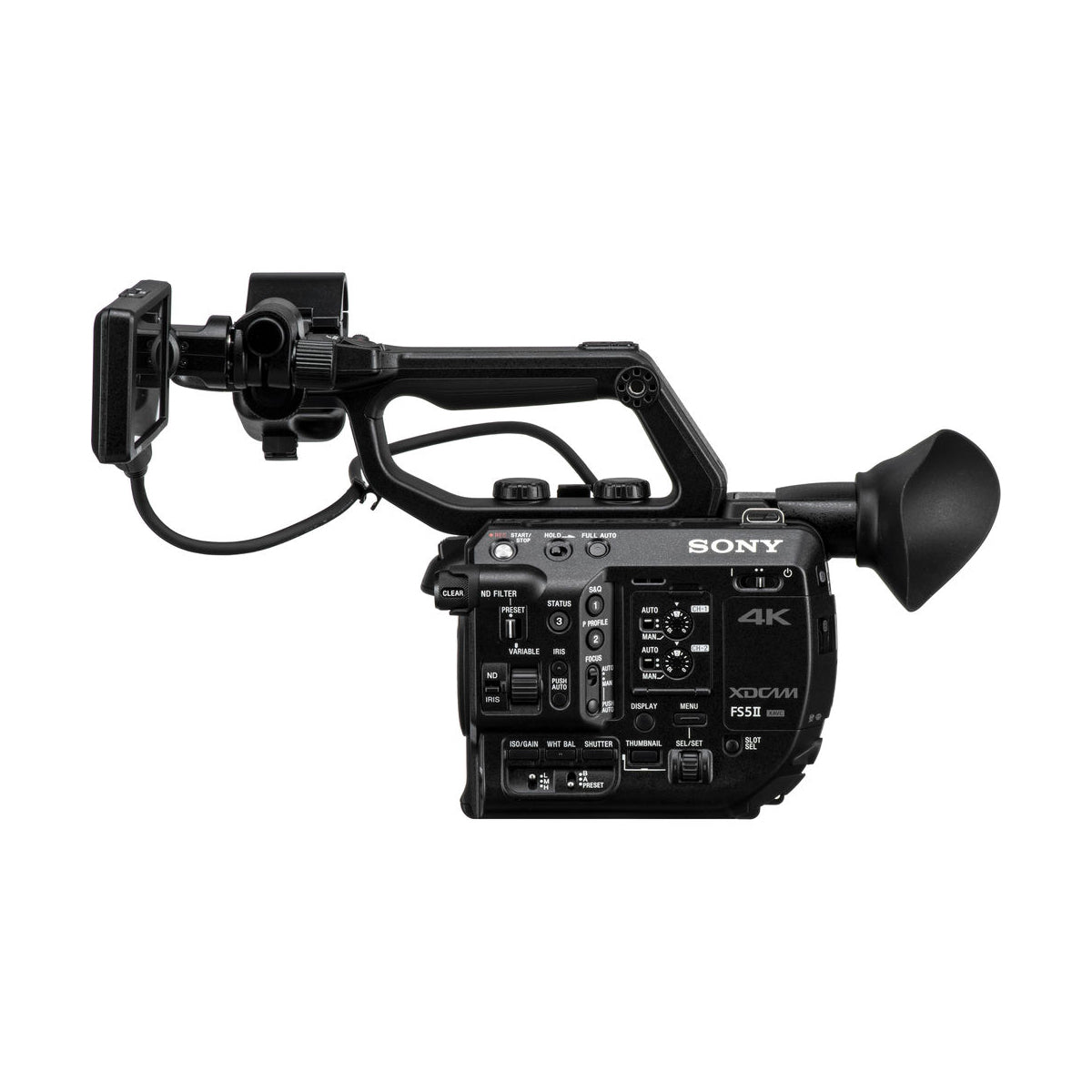

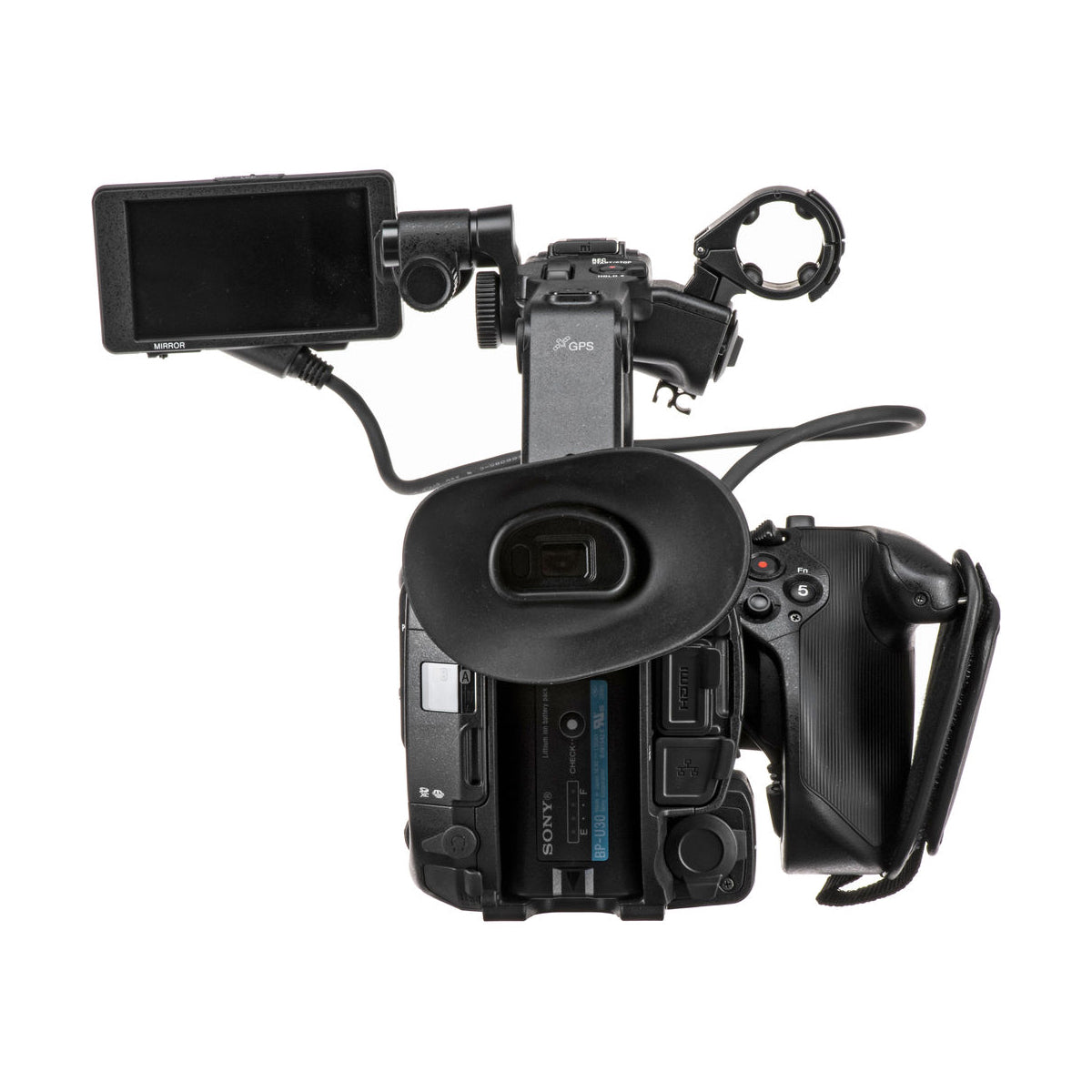

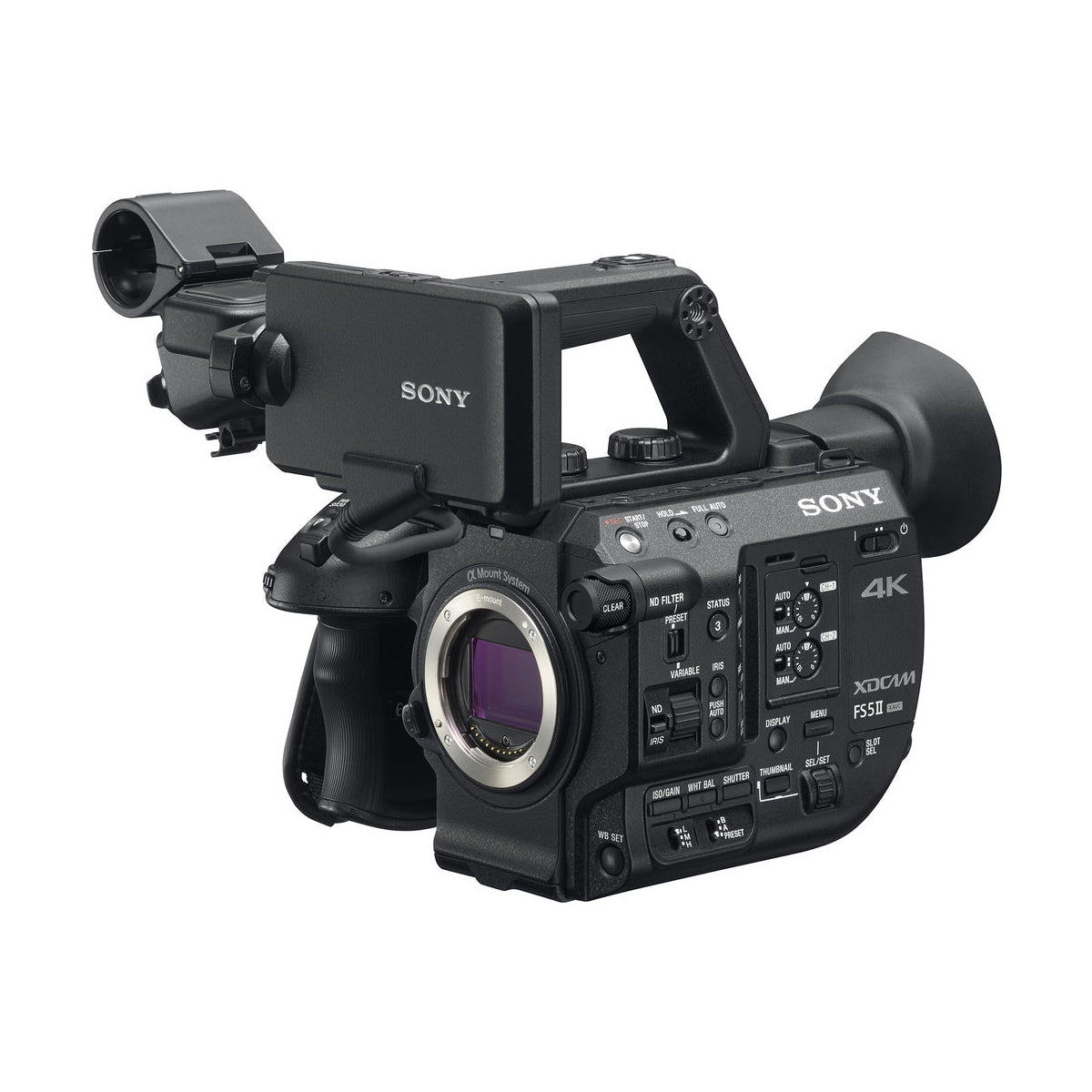

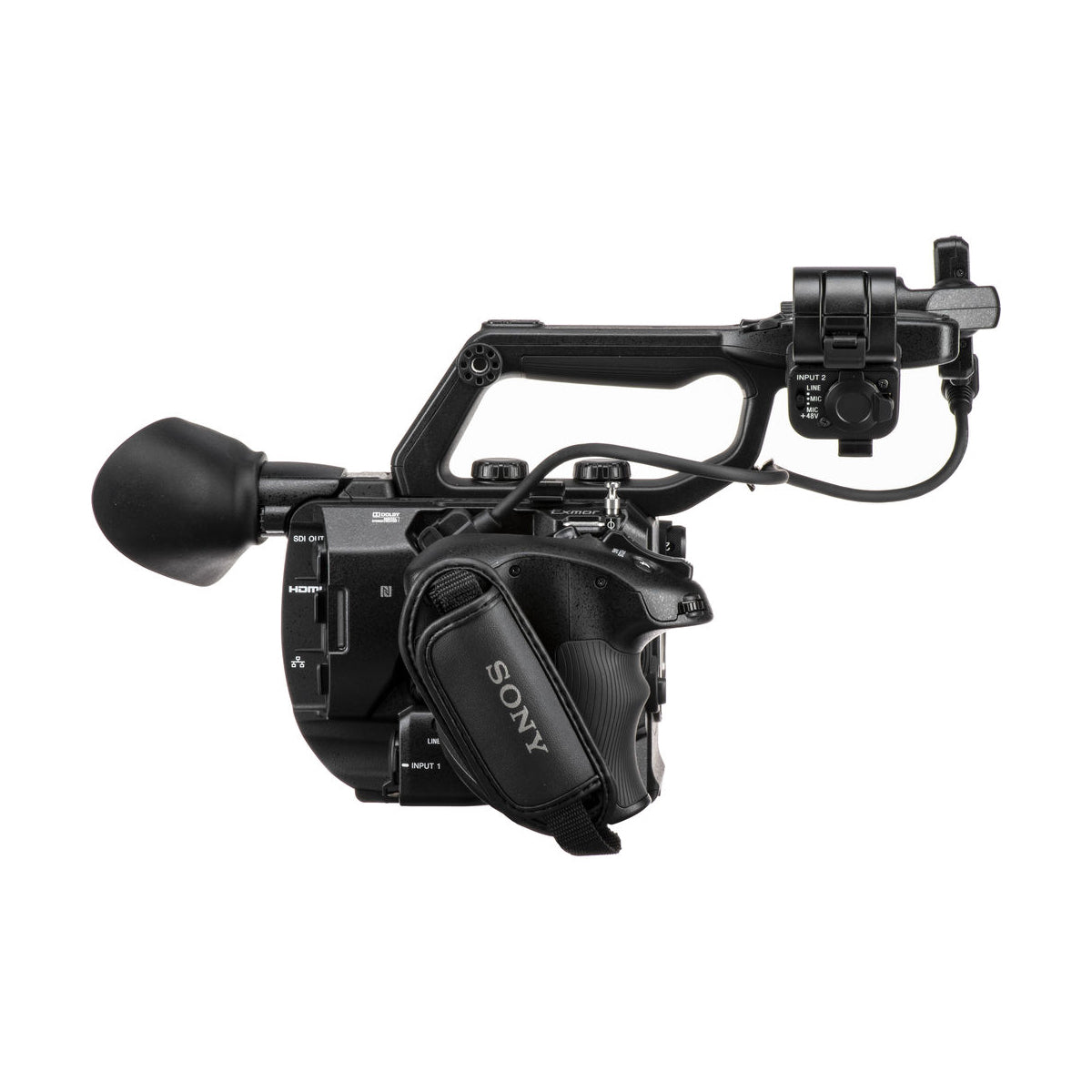

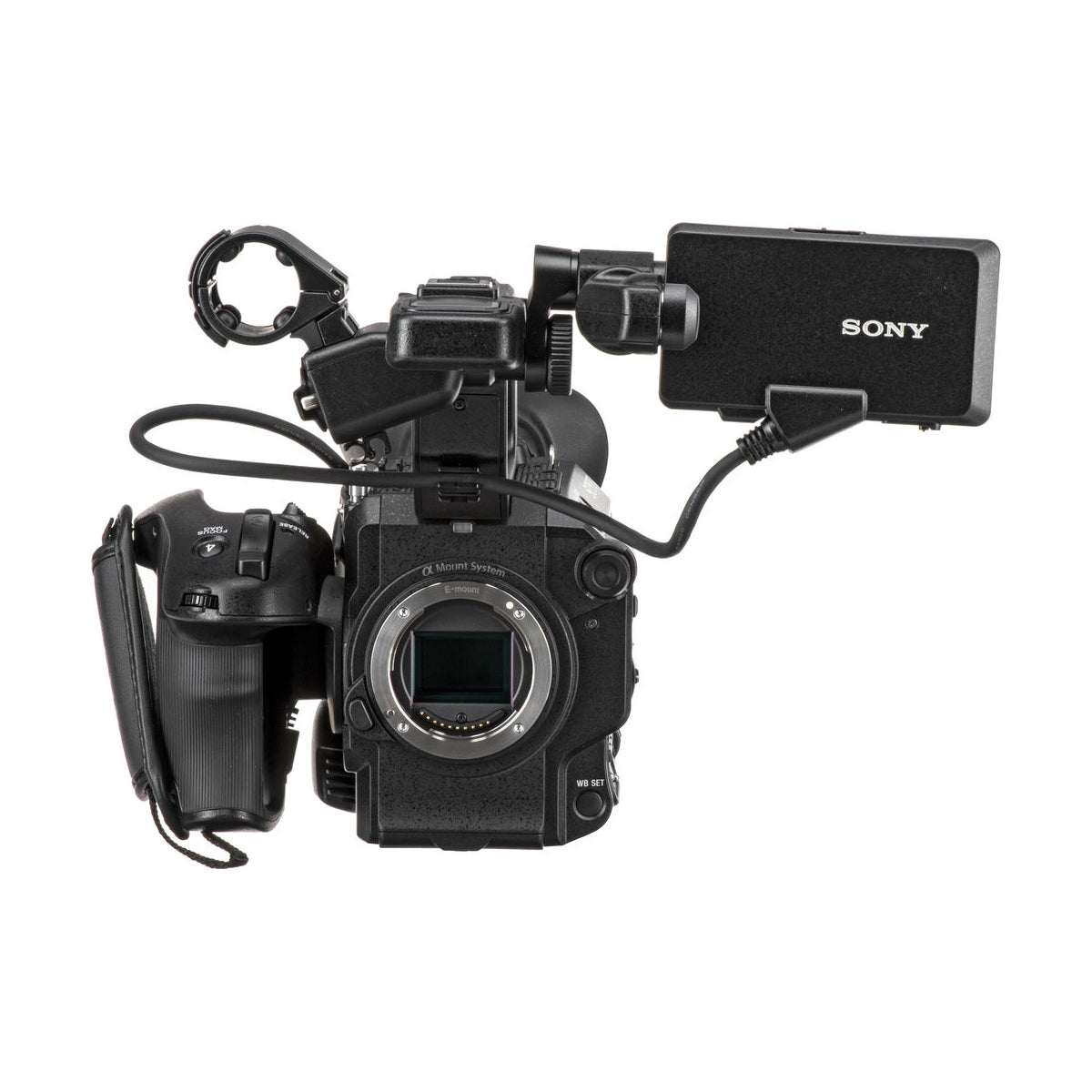

Sony XDCAM PXW-FS5M2 Camcorder Body Only

SonySKU: PXWFS5M2

Price:
Sale price$4,749.99
  • 4K/2K Raw Output with External Recorder
  • Super 35-Sized CMOS Sensor
  • Full HD up to 120 fps, 240 fps Burst
  • Electronic Variable ND Filter
  • PXW-FS5M2 4K XDCAM Super 35mm Compact Camcorder

  • Handle

  • Grip Remote

  • Wireless Remote (RMT-845)

  • LCD Panel

  • LCD Protector

  • Large Eyecup

  • Accessory Shoe Kit

  • AC Adapter/Charger

  • Sony BP-U30 Lithium-Ion Battery

  • USB Cable

  • Power Cord

  • Limited 1-Year Warranty

Related Products

Description

Introduced in 2018, the Sony PXW-FS5M2 XDCAM 4K Super 35 Camera Body is the latest iteration of the compact and more portable FS5 series of interchangeable lens video cameras from Sony. Incorporating technology from the PXW-FS5 and Venice Cameras, the FS5 Mark II provides a lightweight, modular, and robust platform with some of the latest 4K and slow motion technology on the market, making it the ultimate “grab and shoot” Super 35 handheld camcorder available.

4K CMOS Super 35 Sensor

The PXW-FS5 Mark II uses the popular Super 35 format sensor size, making it easy to shoot with most other cinema cameras in the industry. This sensor, which uses Sony's Exmor technology, provides better sensitivity and noise reduction when in low light, and allows for high-speed full-pixel readout capabilities to minimize moiré. The 11.6 MP resolution of the sensor means that even if outputting to Full-HD, the resulting video will capture detail and texture and standard HD sensors just can’t pick up.

More Dynamic Range

The PXW-FS5 Mark II has an amazing 14 stops of dynamic range. This wide range allows for exposure of the darkest and brightest areas of the frame in a single shot. Combining this range with the 4K 4:2:2 10-bit internal recording helps ensure that the color and exposure is being captured fully, allowing for ultimate creative control and flexibility in post-production editing.

Built-in ND Filter

For shooting situations where changing the f-stop is not possible or ideal, Sony has built in an electronic variable ND filter. This can be set manually for 1/4 to 1/128 during shooting to maintain depth of field as lighting conditions change, or to use for creative effect.

High Frame Rate Recording

The FS5 Mark II is capable of some of the most stunning slow motion capture available. Standard slow motion of 60fps is available in the full 4K resolution, a 4-second burst of 120fps, or continuous recording up to 240fps at 2K resolution when used with an external recorder. For those using the internal storage options, 120fps at Full HD, or an 8-second burst at 240fps remain available options.

Lightweight and Modular for Ultimate Flexibility

The PXW-FS5 Mark II weighs in at a stunning 1.76lbs, amazing for a camera with such capabilities. With a light magnesium chassis, the FS5 Mark II is up to any rigorous shooting application, and is equally at home when used with the handle, or when mounted to a drone, gimbal, or in an underwater housing. The included and detachable smart grip allows for access to many of the key functions of the camera easily, and the monitor can be mounted in one of several positions, ensuring the perfect operation for virtually any shooting situation.

Sony E-Mount Lenses

The PXW-FS5 II uses the standard Sony E-mount, providing access to a wide variety of crop and full frame lens offerings from Sony. Experience smooth, responsive autofocus combined with premium optical performance when using Sony lenses, or adapt a favorite lens from another manufacturer for a unique look with a third-party adapter.

Camera
Lens Mount Sony E-Mount
Internal Filter Holder No
Shutter Speed 1/6 to 1/10,000 sec
Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters and a 1/4 to 1/128 Stop Electronic ND Filter
Built-In Microphone Type Stereo
Image Sensor
Image Sensor Type CMOS
Image Sensor Size Super35
Sensor Resolution Actual: 4096 x 2160
Effective: 3840 x 2160
ISO Sensitivity 2000
Color Filter Bayer
Gain 0 to 30 dB (Native)
Media
Card Slots 2
Types 1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot
Internal Recording
Recording Format XAVC 4:2:0
XAVC 4:2:2
AVCHD
Recording Frame Rate XAVC 4:2:0:
3840 x 2160p at 23.98/25/29.97 fps
XAVC 4:2:2:
1920 x 1080p at 120/100 fps (Continuous, or burst sixteen seconds)
1920 x 1080p at 240/200 fps (burst eight seconds)
1920 x 1080p at 50/59.94 fps (50 Mb/s)
1920 x 1080i at 50/59.94 fps (50 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 50/59.94 fps (28 Mb/s)
1920 x 1080i at 50/59.94 fps (24 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (24 Mb/s)
1920 x 1080i at 50/59.94 fps (17 Mb/s)
1920 x 1080p at 23.98/25/29.97 fps (17 Mb/s)
1280 x 720p at 50/59.94 fps (24 Mb/s)
Gamma Curve Sony S-Log 2, Sony S-Log 3
External Recording
Recording Frame Rate FS RAW:
4K (4096 x 2160) 60/50fps (Continuous)
4K (4096 x 2160) 120/100fps (Burst four seconds)
2K (2048 x 1080) 240/200/120/100fps (Continuous)
Raw Output SDI/BNC:
4096 x 2160 10-Bit at 60 fps
Connectivity - Interfaces
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x Multi/Micro-USB A/V Output
Audio Connectors 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
Other I/O 1 x RJ45 LAN
1 x 2.5 mm Control
Wireless 2.4 GHz Wi-Fi, NFC
Monitor and EVF
Display Type Touchscreen LCD
Monitor Size 3.5"
Monitor Resolution 1,560,000 Dots
EVF Attached
EVF Display Type OLED
Screen Size .39"
EVF Resolution 1,440,000 Dots
Power
Battery Type Sony BP-U Series
Power Consumption ≥12.6 W
Power Connectors 1 x Barrel Input
Physical - General
Accessory Mount 1 x Multi-Interface Shoe
Tripod Mounting Thread 1/4"-20 Female
Dimensions (W x H x D) 4.38 x 5.07 x 6.79" / 111.3 x 128.7 x 172.4 mm (With Protrusions)
Weight 1.83 lb / 830 g
Operating Environment 32 to 140°F / 0 to 60°C
