- Form-fitting Cage for Canon EOS R
- Provides Protection and Accessory Mounts
- Built-in Arca Swiss Plate and Flat Screwdriver
- Locks Camera via 1/4"-20 & Two Anti-Twist Pins
-

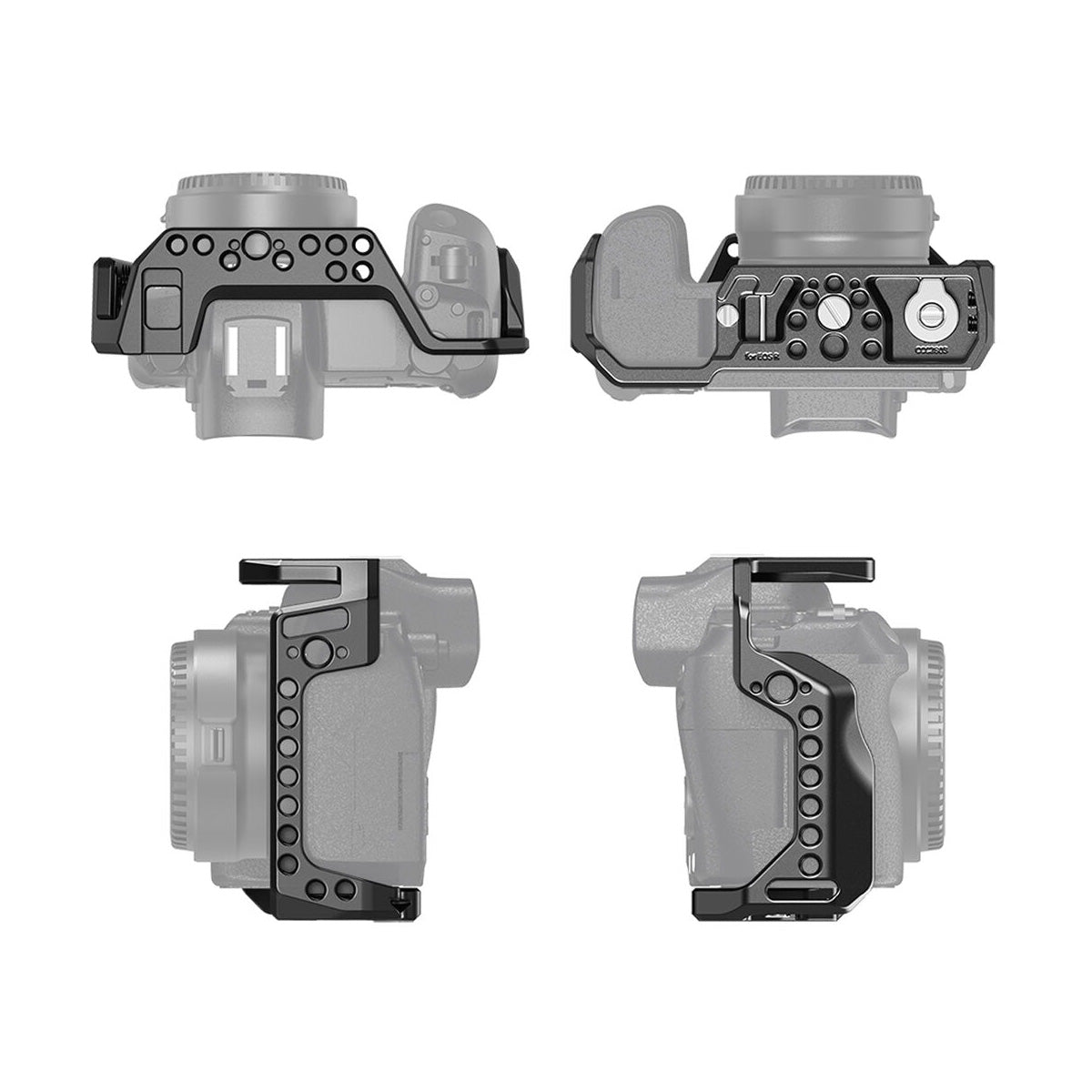

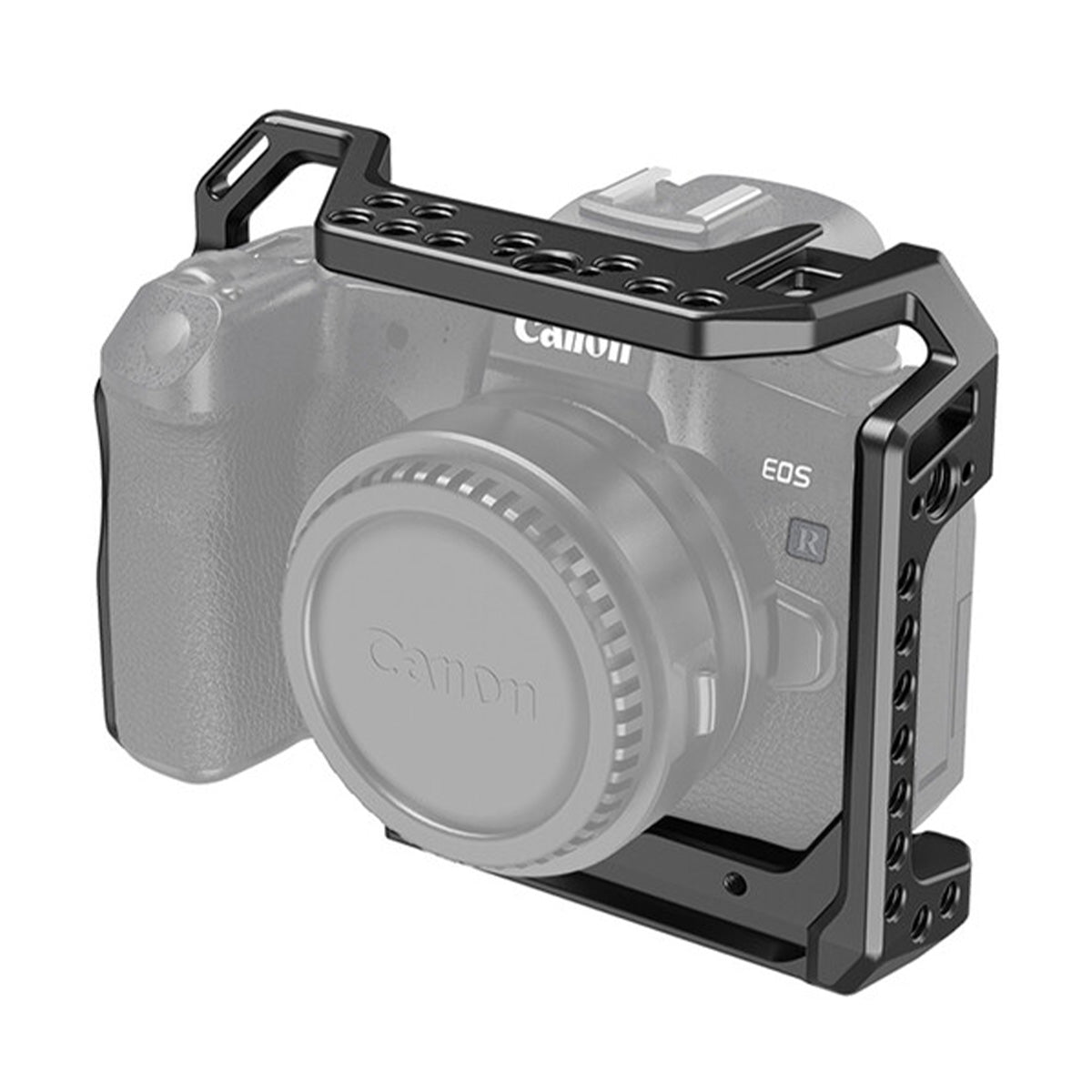

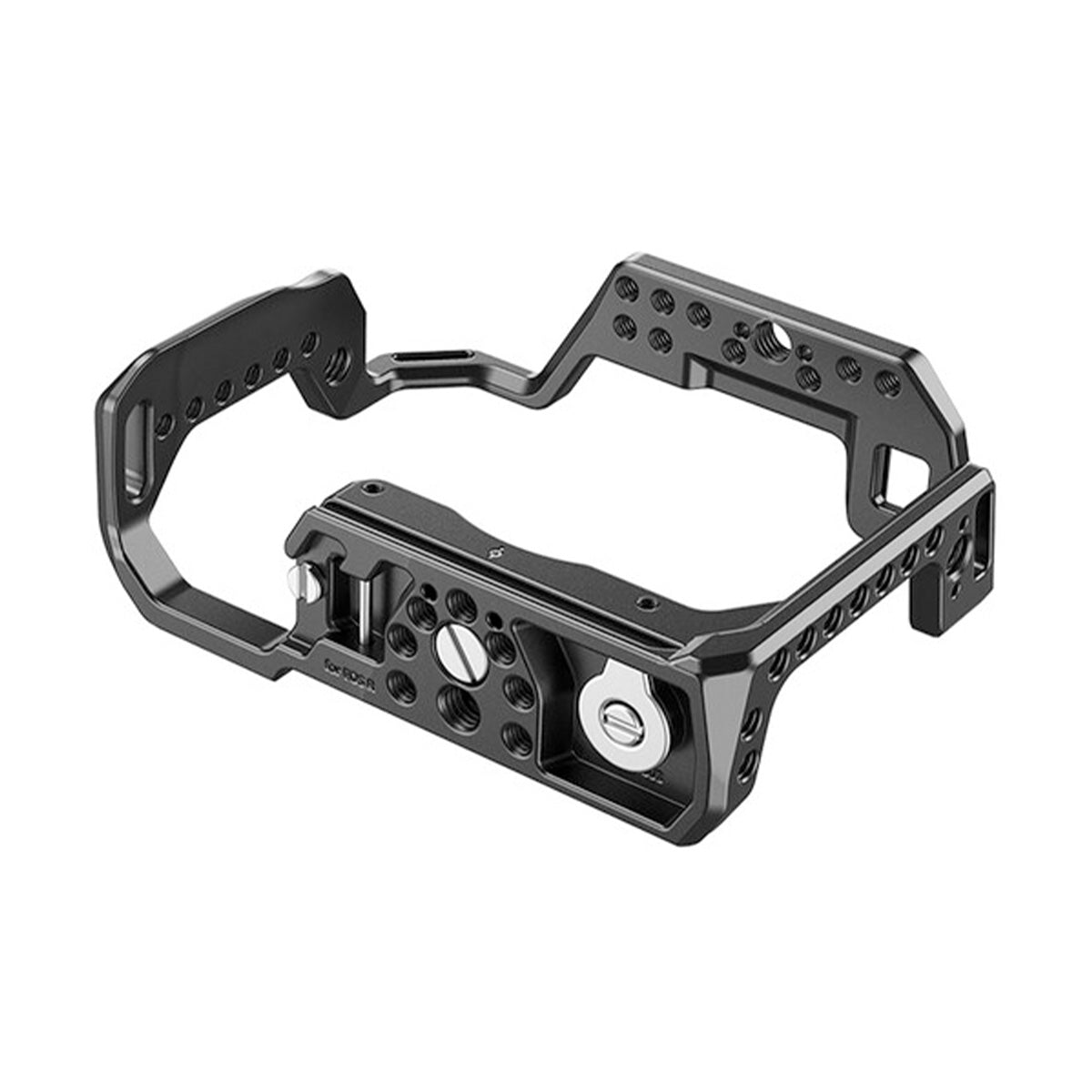

Cage for Canon EOS R
-
Magnetic Flat Screwdriver
-
Captive 1/4"-20 Tie-Down Screw
-
2 x Anti-Twist Pin
-
Limited 2-Year Warranty
Description

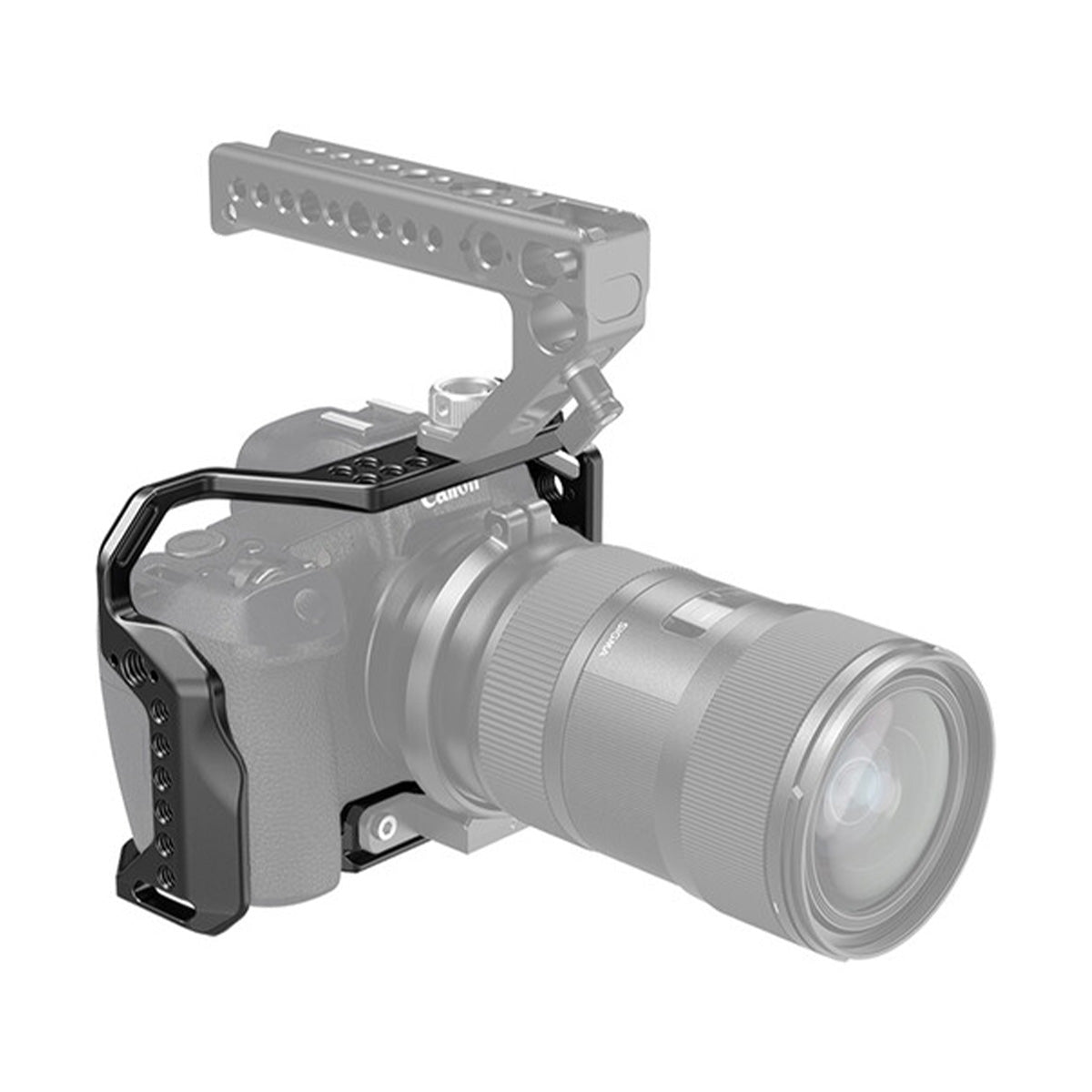

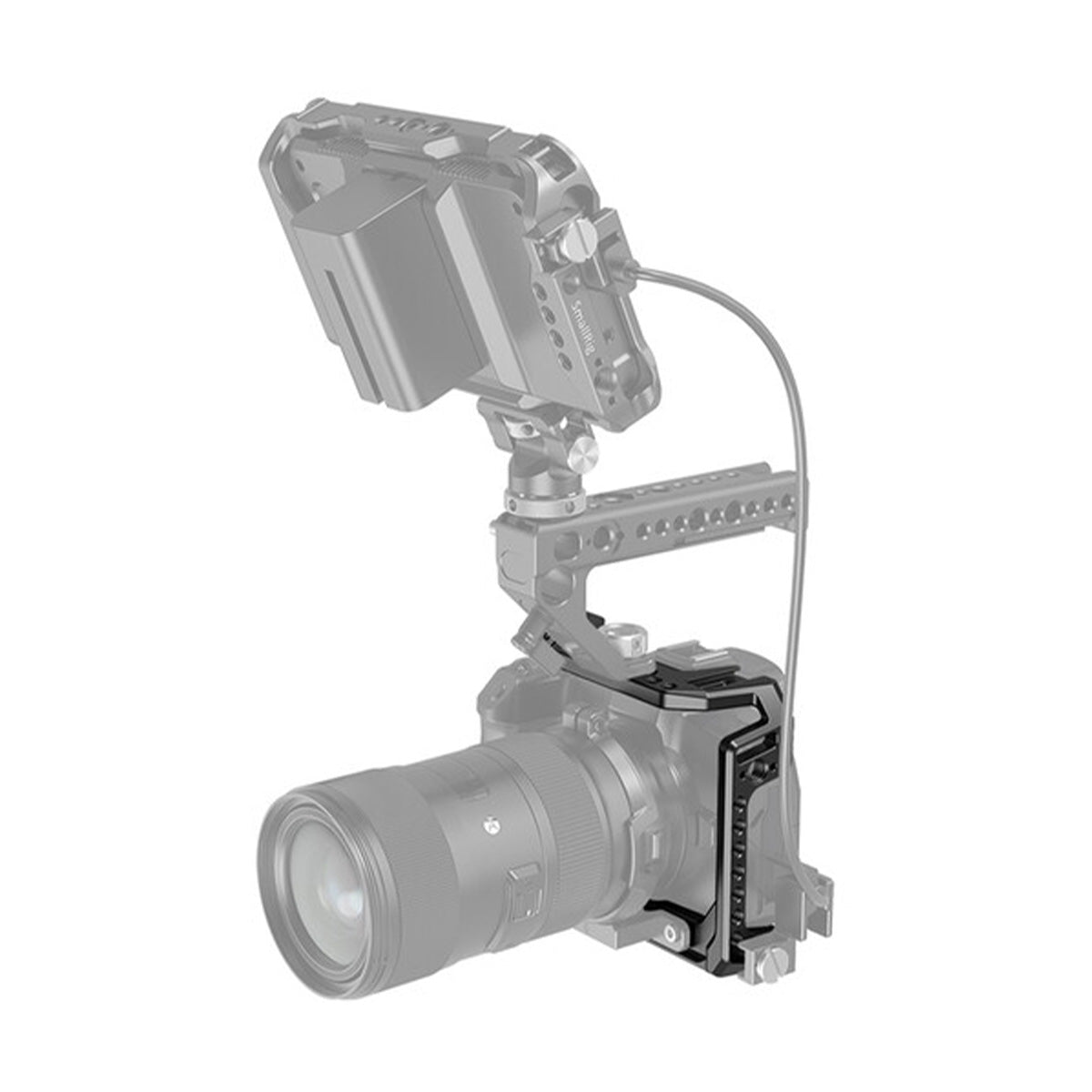

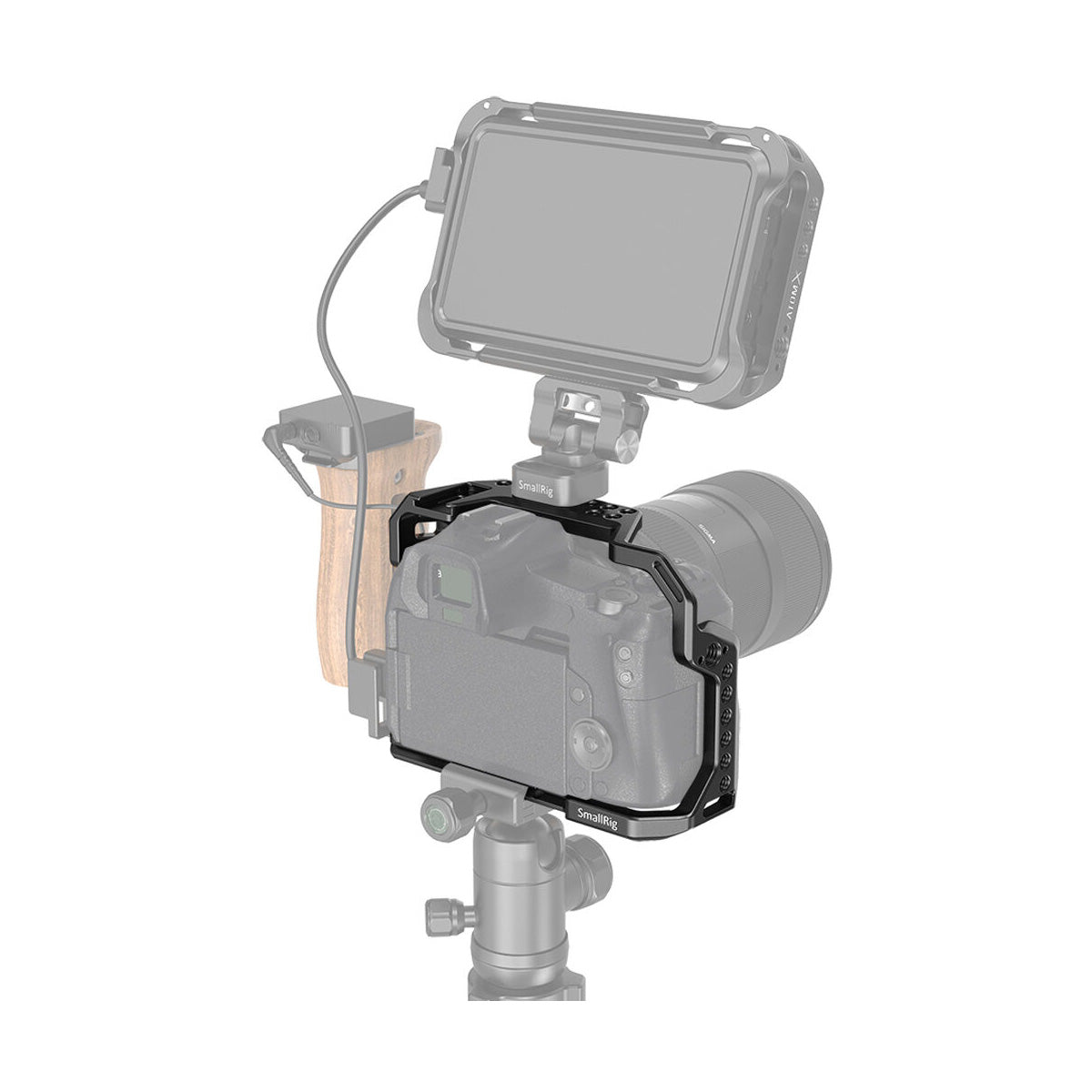

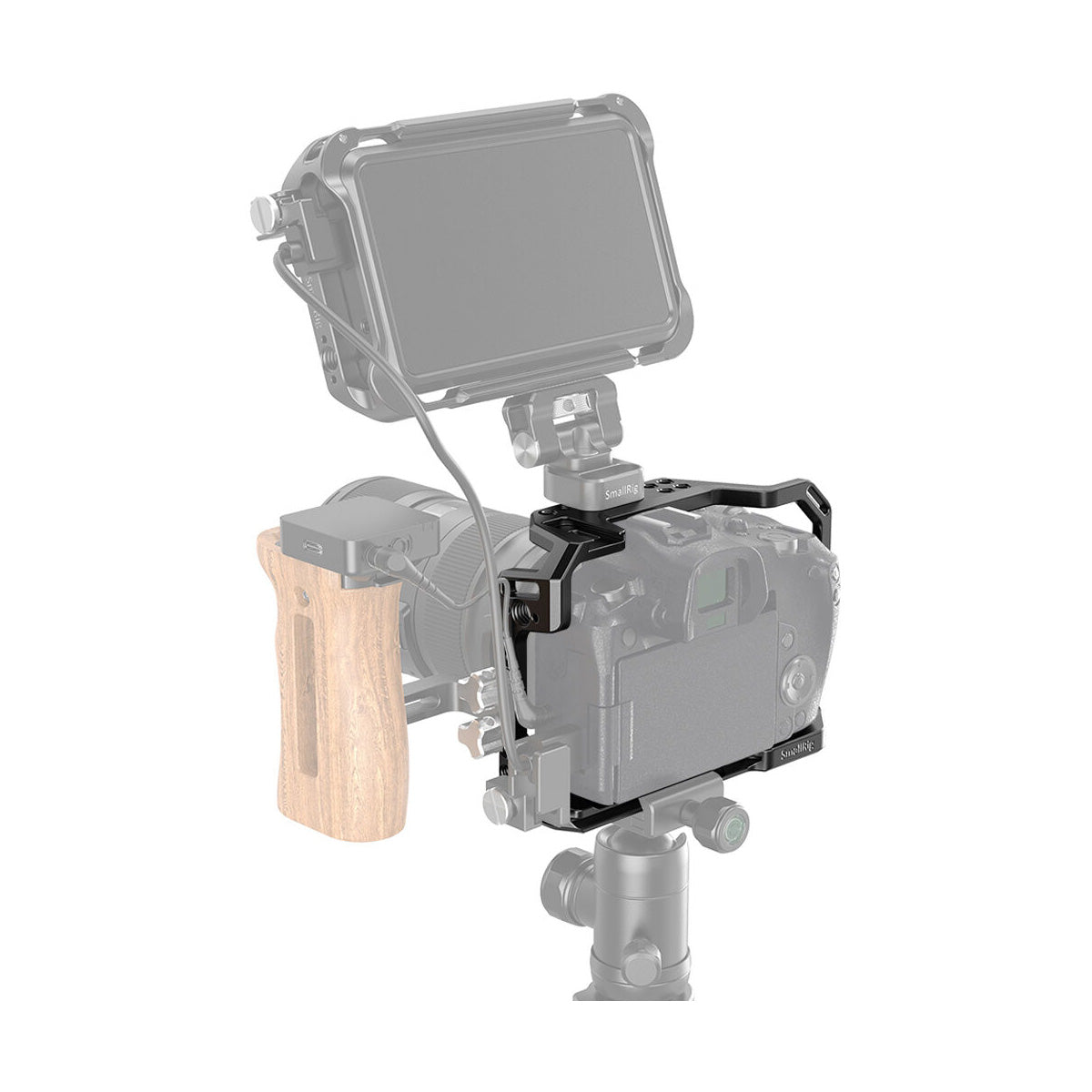

SmallRig Cage for Canon EOS R is a formfitting full cage designed to provide protection and accessory mounts for your camera. The cage secures to the bottom of the camera via a 1/4”-20 screw and features two pins for anti-twisting. It comes with multiple 1/4”-20 and 3/8”-16 threaded holes, ARRI accessory threads, and a cold shoe, allowing mount of accessories. For example, you can mount SmallRig Cold Shoe Handle for hand-held shooting; mount SmallRig Ball Head Magic Arms or attach a monitor. It works with SmallRig Cable Clamp to protect the HDMI cable and port. Additionally, The cage features a built-in Arca Swiss QR plate and a flat screwdriver on the bottom.
Installation Steps:
- 1. Please remove two anti-twist pins from the cage first
- 2. Put the camera into the cage and tighten the 1/4”-20 screw on the bottom
- 3. Tighten the anti-twist pins on the bottom.
| Specs | |
|---|---|
| Camera Compatibility | Canon EOS R |
| Accessory Mounting | Cage Sides: 15 x 1/4"-20 Thread, 2 x Anti-Twist 3/8"-16 Thread Cage Top: 9 x 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread |
| Camera Mounting | 1/4"-20 Screw |
| Tripod Mounting | Cage: 1/4"-20 Thread, 3/8"-16 Thread, Built-In Arca-Type Plate |
| Shoe Mounting | Cage Top: 1 x Cold Shoe |
| Rosettes | None |
| Rail Mounting | Cage Side: 1 x NATO Rail |

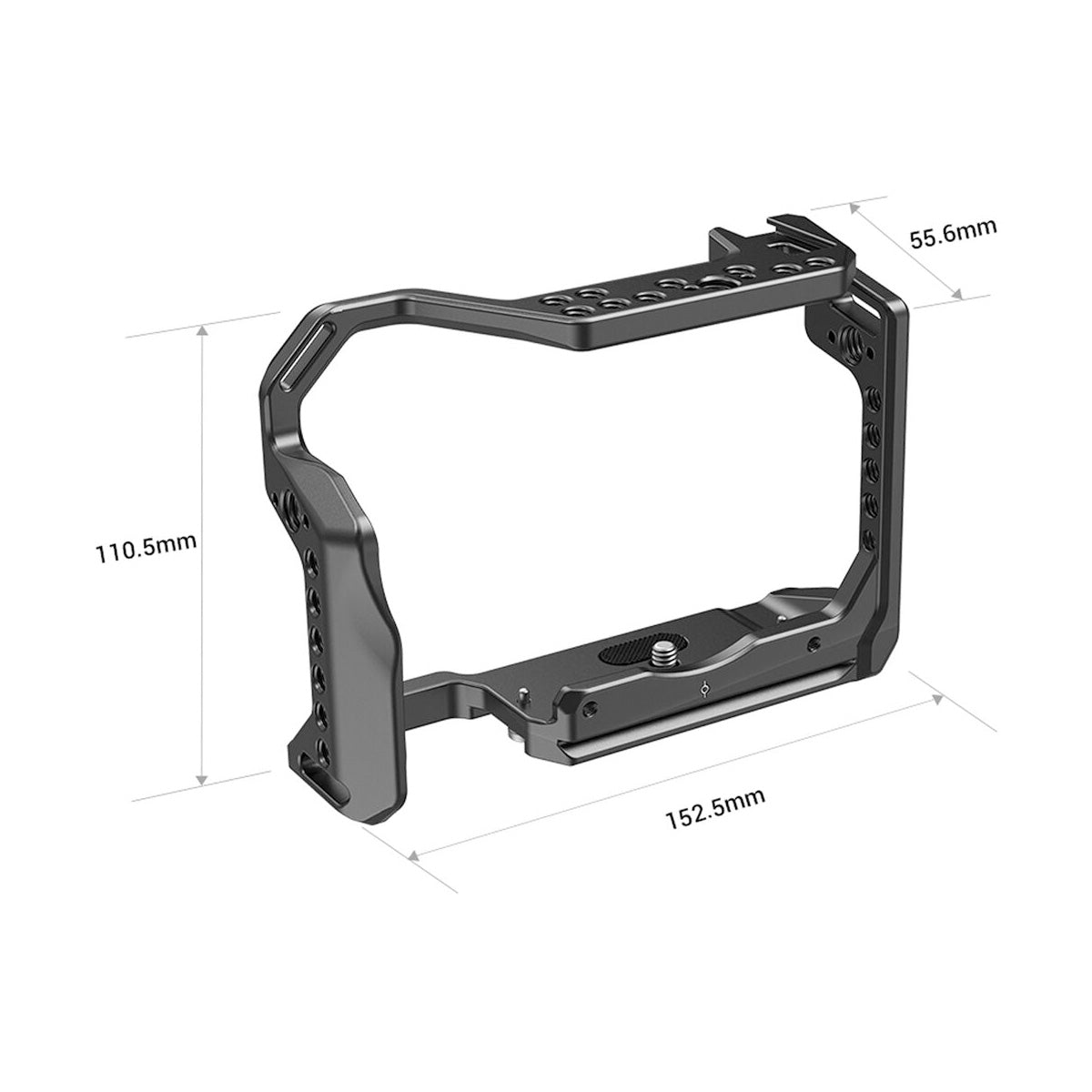

| Dimensions | 6 x 4.4 x 2.2" / 152.5 x 110.5 x 55.6 mm |
| Weight | 6.9 oz / 195 g |
