Configurations
- 19.9MP Super35 Global Shutter CMOS

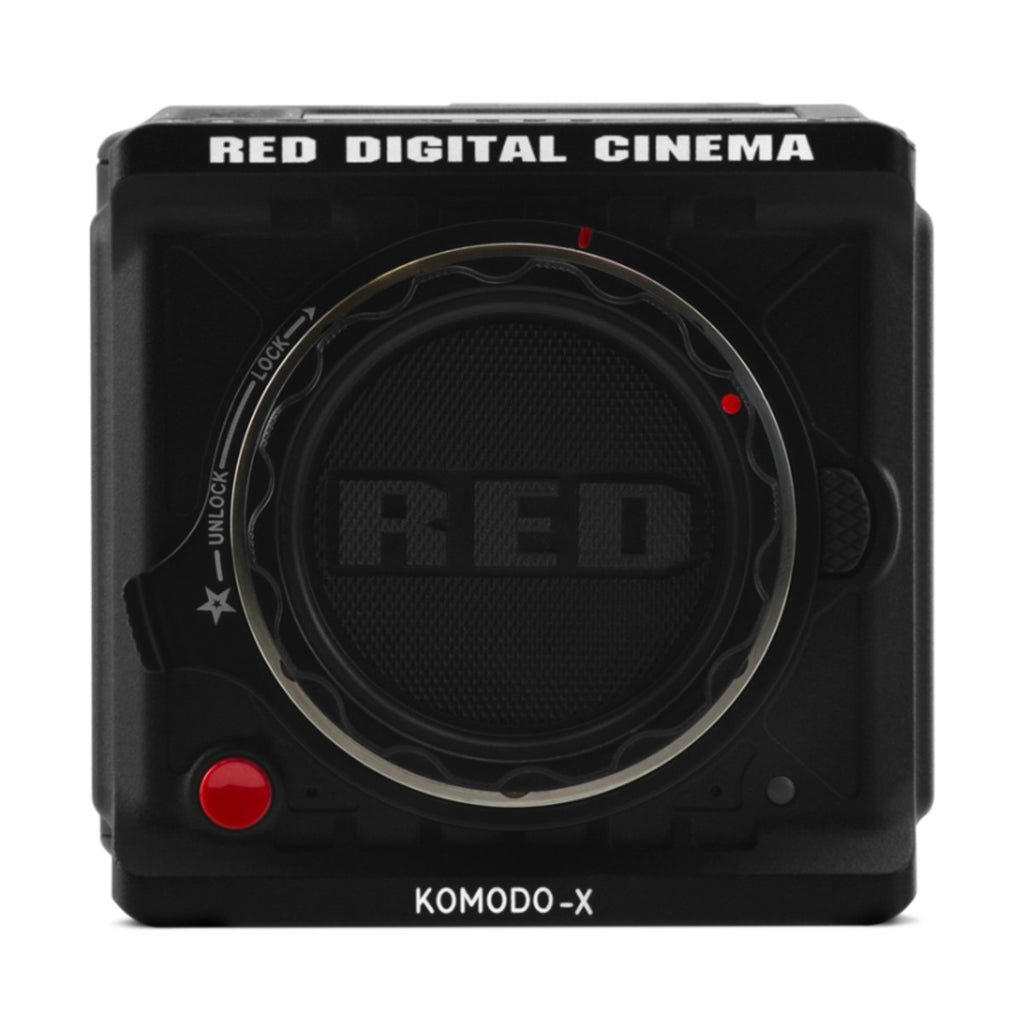

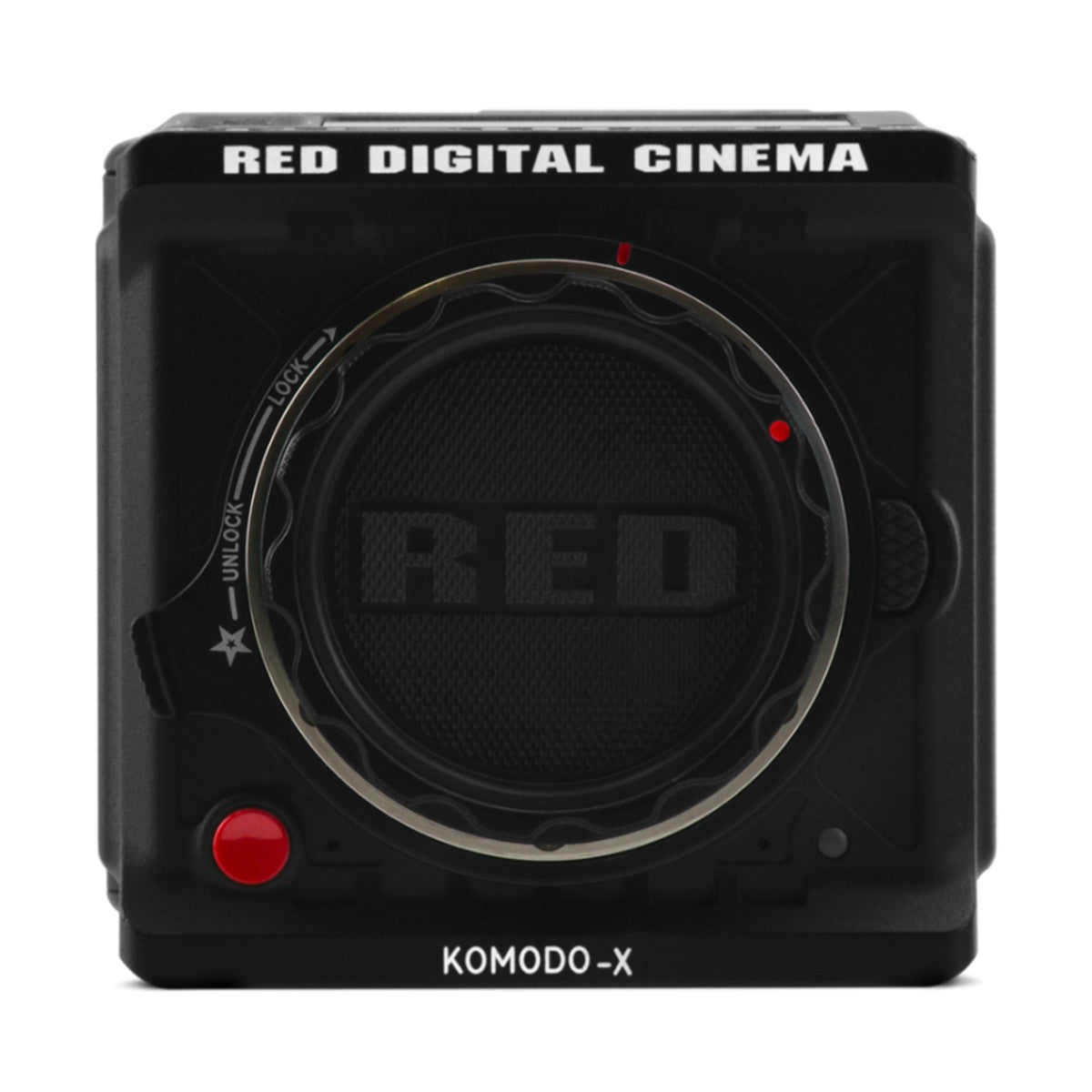

- Locking Canon RF Lens Mount

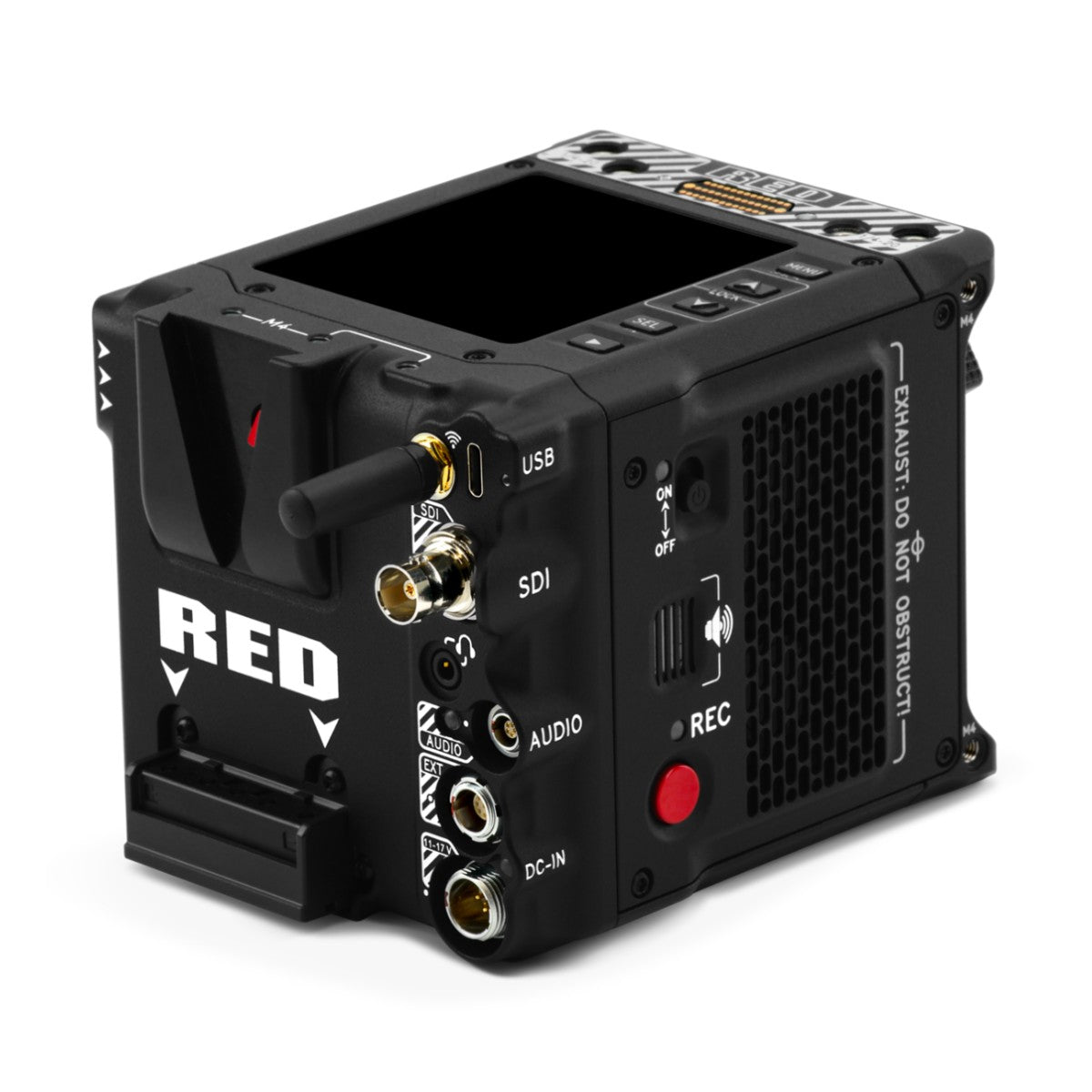

- Compact KOMODO Line Design
- Up to 6K80p & 4K120p Video
- 12G-SDI, USB-C, 5-Pin Audio Ports
- 6K Streaming via RED Connect License
Description
Camera | |
---|---|
Lens Mount | Canon RF |
Image Sensor | |
---|---|
Image Sensor Type | CMOS |
Image Sensor Size | 27.03 x 14.26 mm (Super35) |
Effective Pixels | 19.9 Megapixel |
In-Body Image Stabilization | No |
Media | |
---|---|

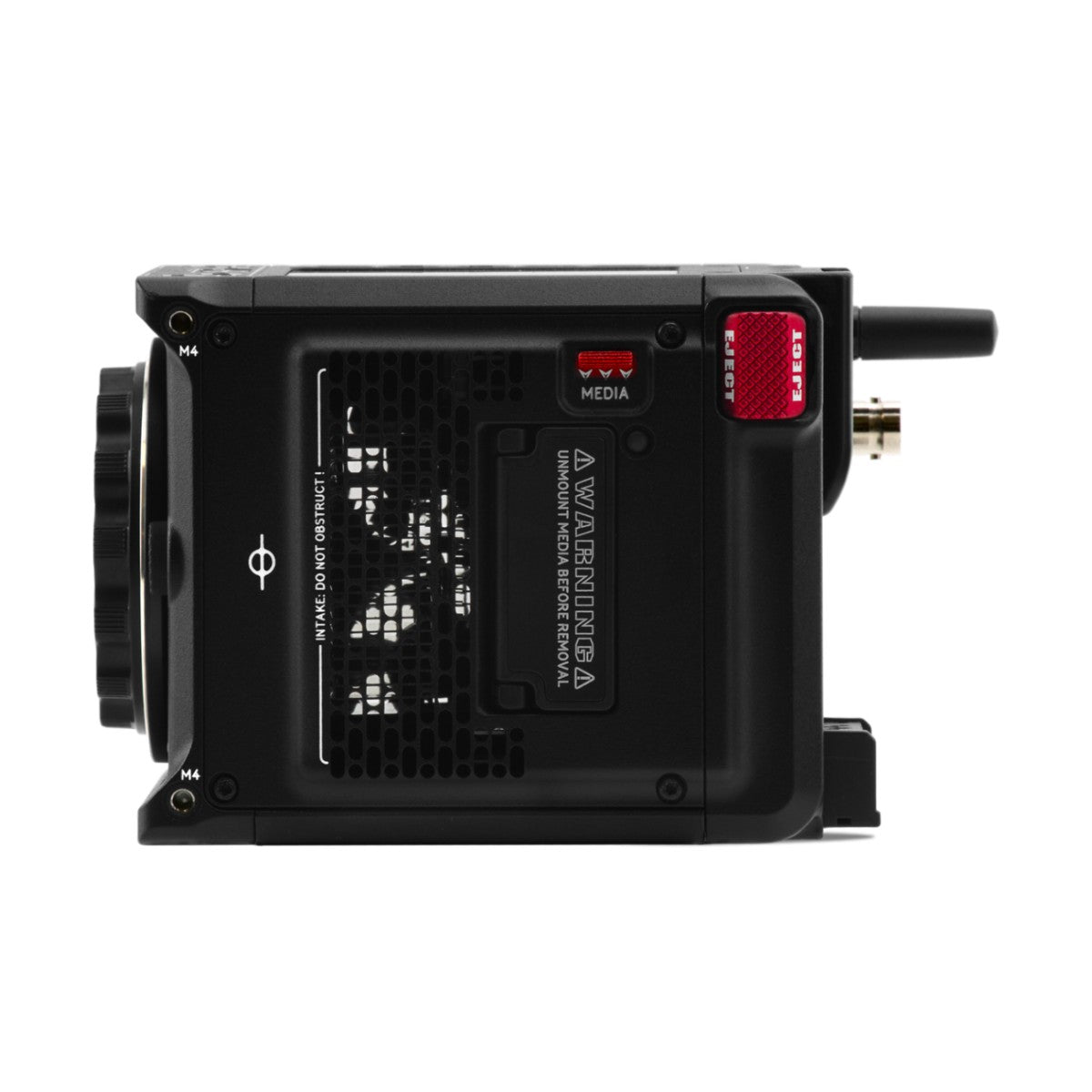

Card Slots | Single Slot: CFexpress Type B (CFexpress 2.0) |
Autofocus | |
---|---|
Focus Type | Auto and Manual |
Focus Modes | Automatic, Manual |
Shutter | |
---|---|
Shutter Type | Electronic Global Shutter |
Video | |
---|---|
File Format | ProRes 4444XQ 4:4:4 4096 x 2160 up to 60.00 fps [560 MB/s] ProRes 4444 4:4:4 4096 x 2160 up to 80 fps [560 MB/s] ProRes 422/ProRes 422 HQ/ProRes 422LT 4096 x 2160 up to 120 fps [560 MB/s] REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ 6144 x 3240 up to 80 fps [560 Mb/s] 5120 x 2700 up to 96 fps [560 Mb/s] 4096 x 2160 up to 120 fps [560 Mb/s] 2048 x 1080 up to 240 fps [560 Mb/s] |
External Recording Quality and Frame Rates | 4:2:2 via SDI/BNC DCI 4K (4096 x 2160) up to 60.00 fps DCI 2K (2048 x 1080p) up to 60.00 fps |
Monitor and Viewfinder | |
---|---|
Monitor Type | Fixed Touchscreen LCD |
Monitor Size | 2.9" |
Monitor Resolution | 1440 x 1440 |
Viewfinder Type | Optional, Not Included |
Connectivity | |
---|---|

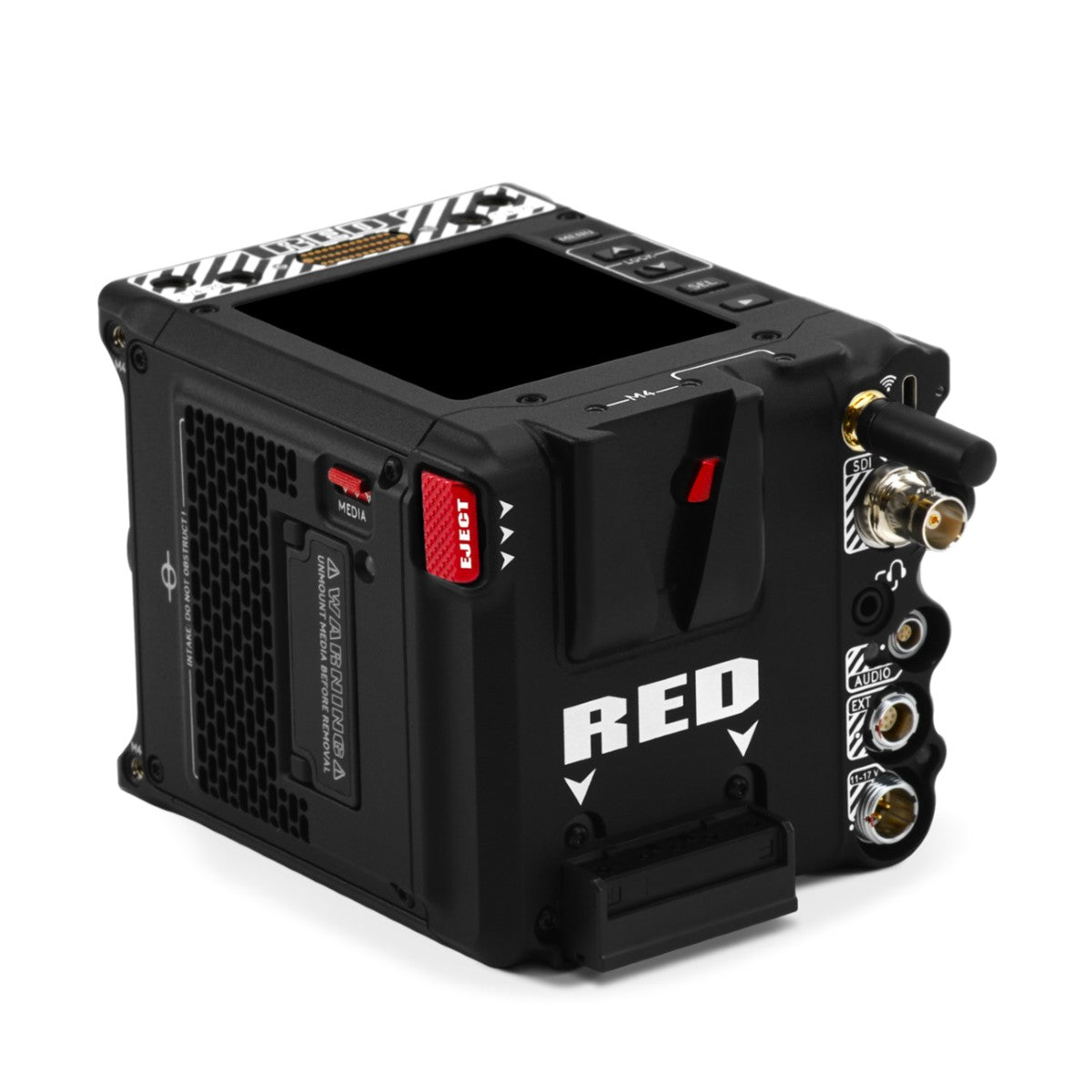

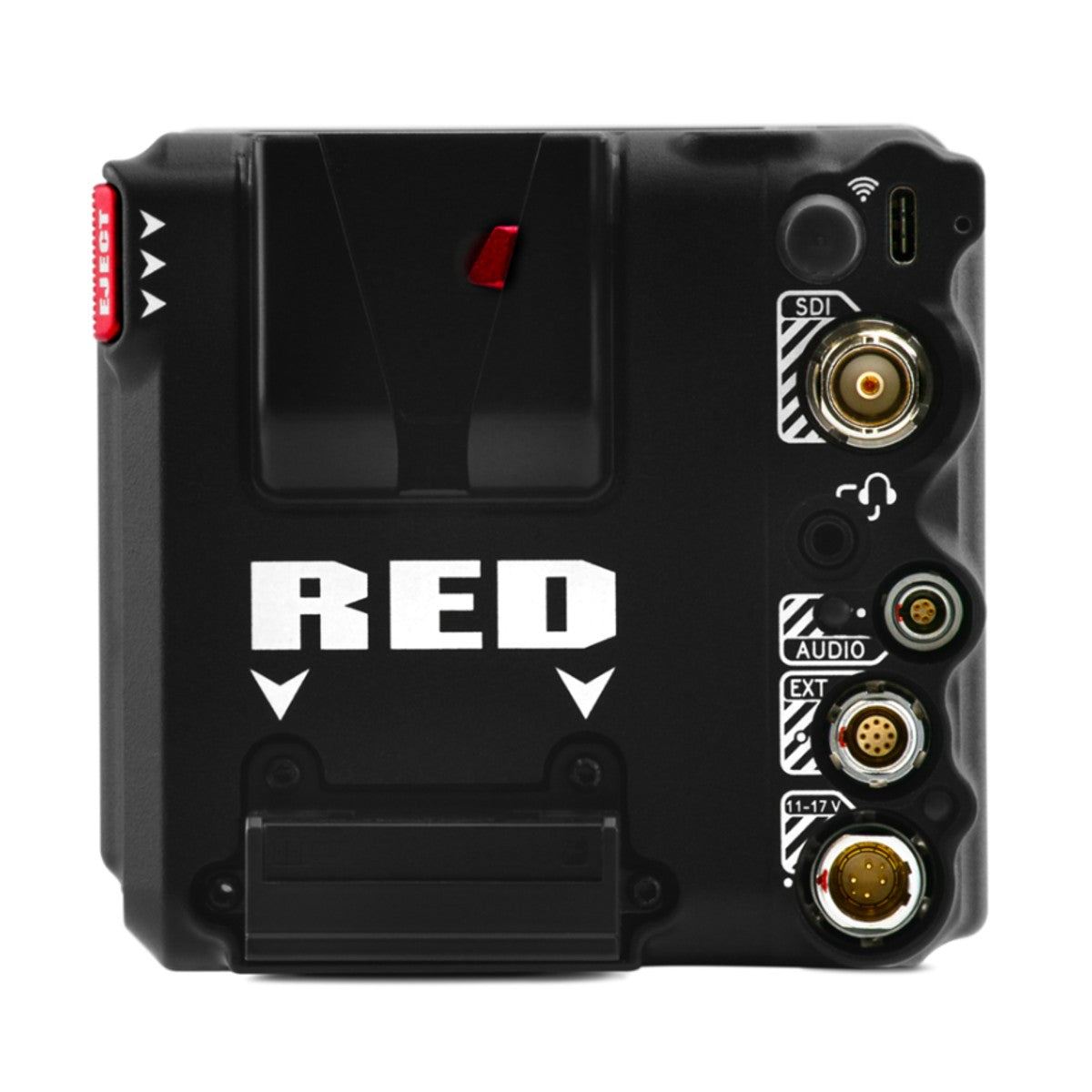

Interface | Video: 1 x BNC (12G-SDI) Output Audio: 1 x LEMO 5-Pin Line Input on Camera Body Power: 1 x LEMO 6-Pin (11 to 17VDC) Input Other:1 x 9-Pin (Genlock, GPI, Timecode) 1 x USB-C (Camera Interface) Control/Data/Video Input/Output 1 x RED Cable-Free Monitor Connection Output |
Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
GPS | None |
Power | |
---|---|
Battery | V-Mount |
Physical | |
---|---|
Dimensions (W x H x D) | 5.09 x 3.99 x 3.75" |
Weight (Body Only) | 2.62 lb |
