- 75mm bowl base
- Synchronized twist locks
- Head supports up to 26.46 pounds
- Flat base with 3/8”-16 mounting thread
- Nitrogen piston counterbalance
- 635 Fast Single Tube Carbon Fiber Tripod Legs
-
MVH612AHUS Nitrotech 612 Fluid Video Head
-
Tripod Bag
-
Limited 3-Year/6-Month Warranty
Description

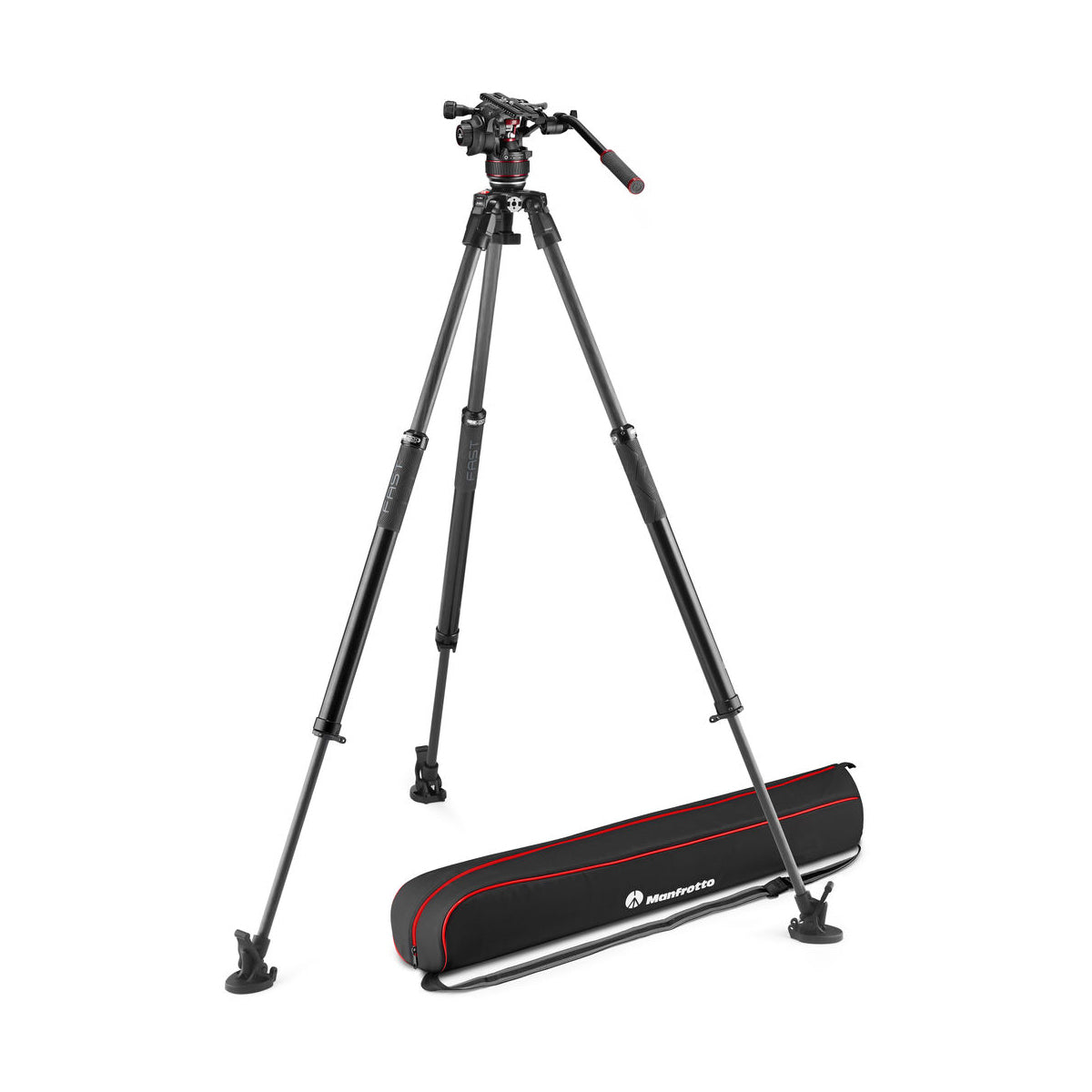

This complete video system includes the Manfrotto NITROTECH 612 Fluid Head with 635 Fast Single Carbon Fiber Tripod.

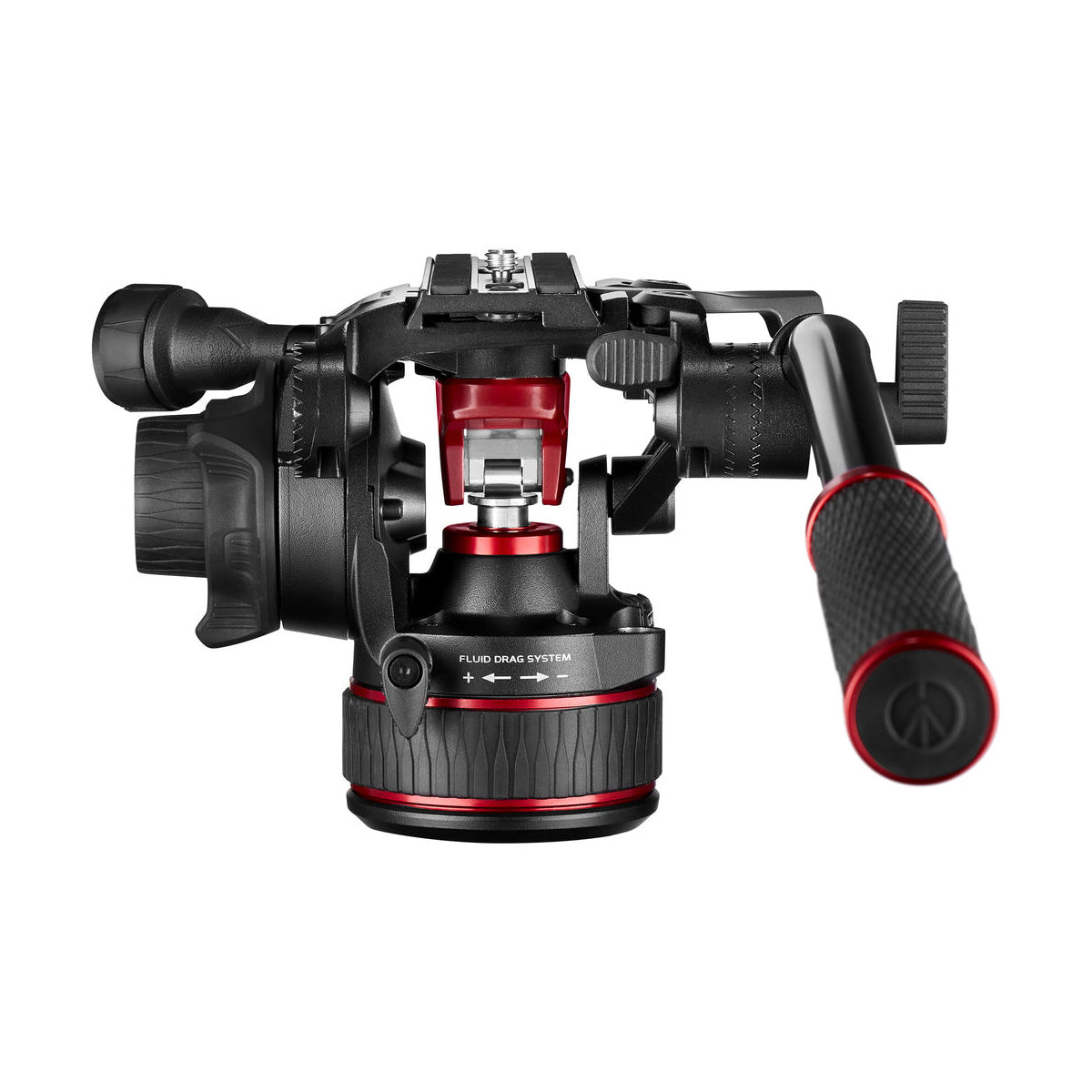

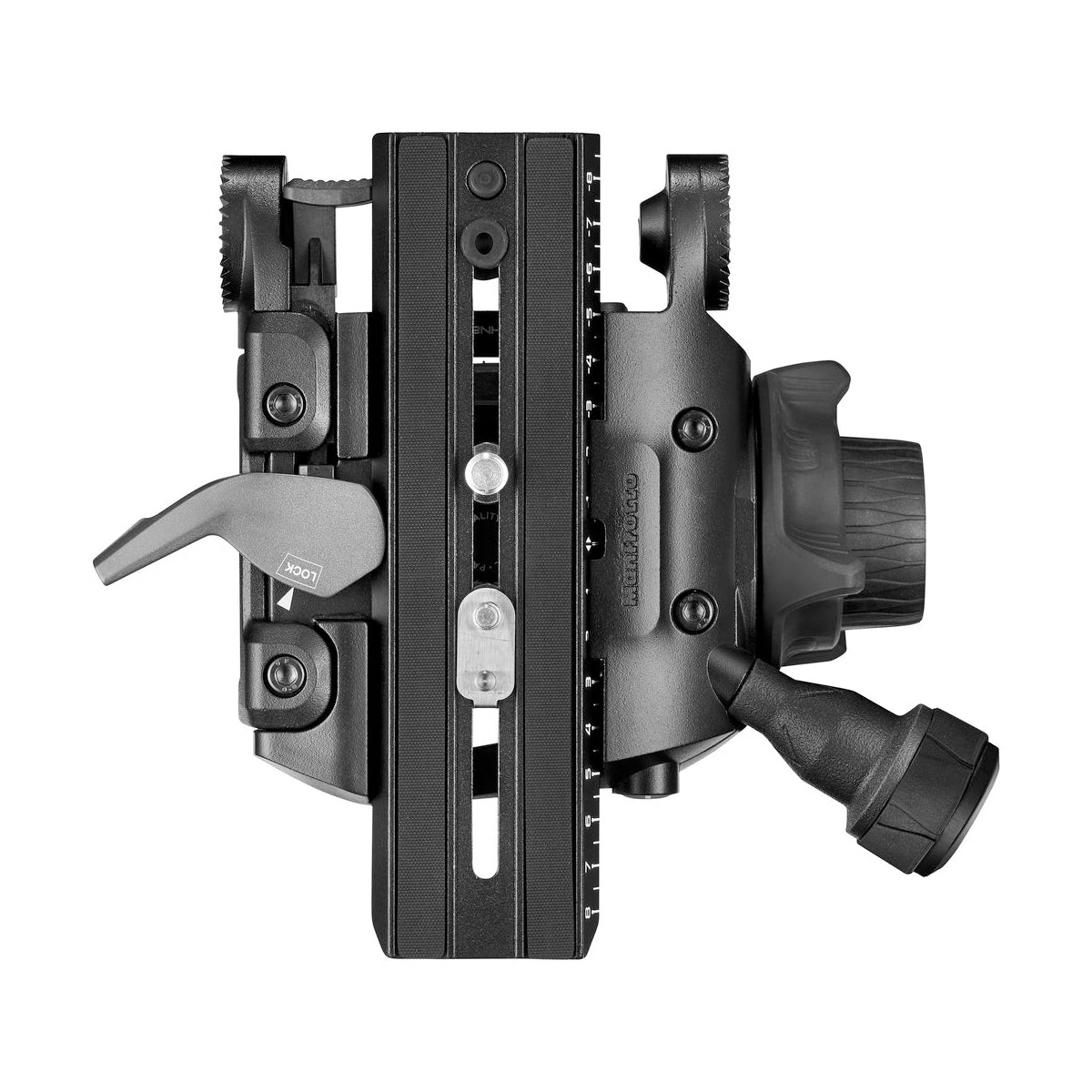

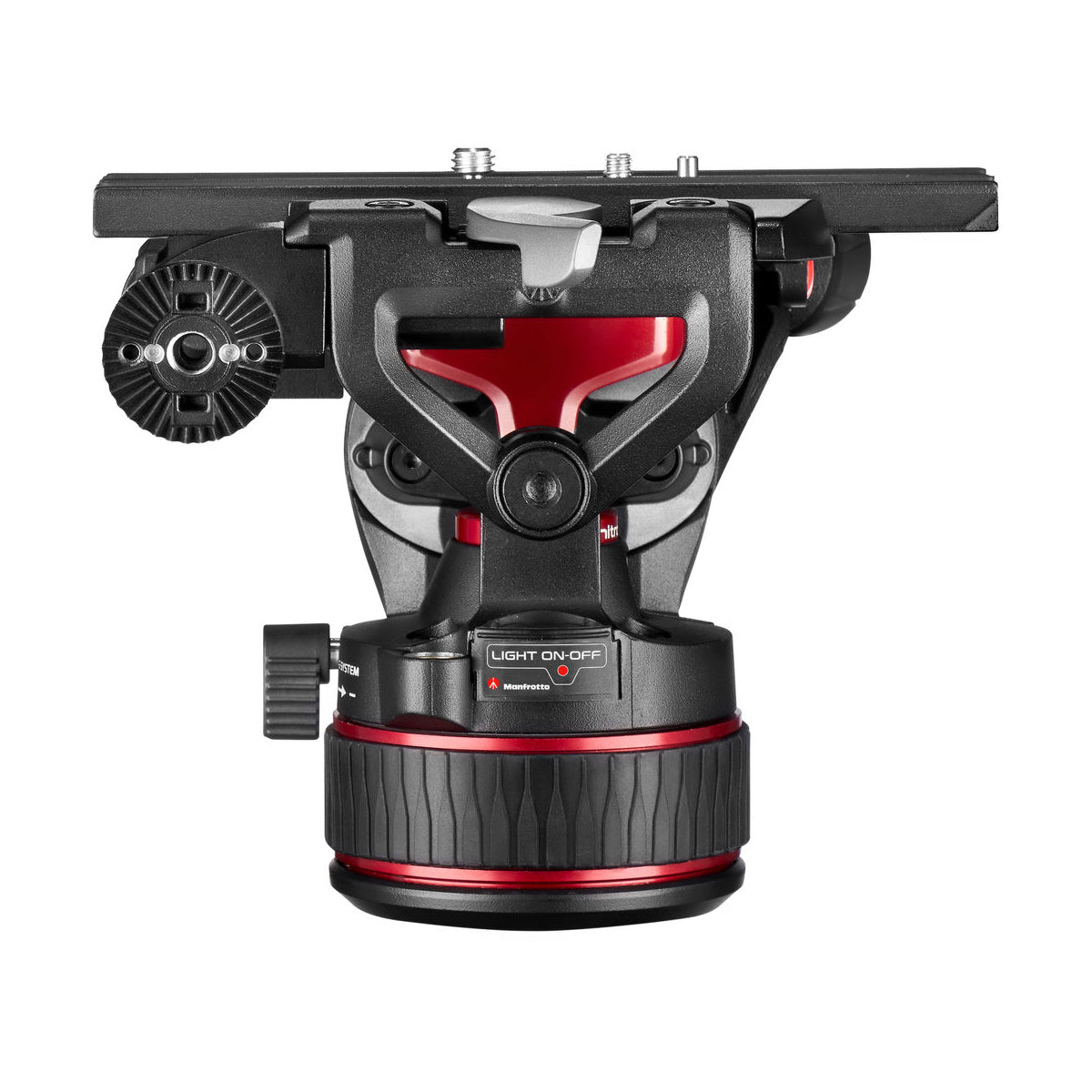

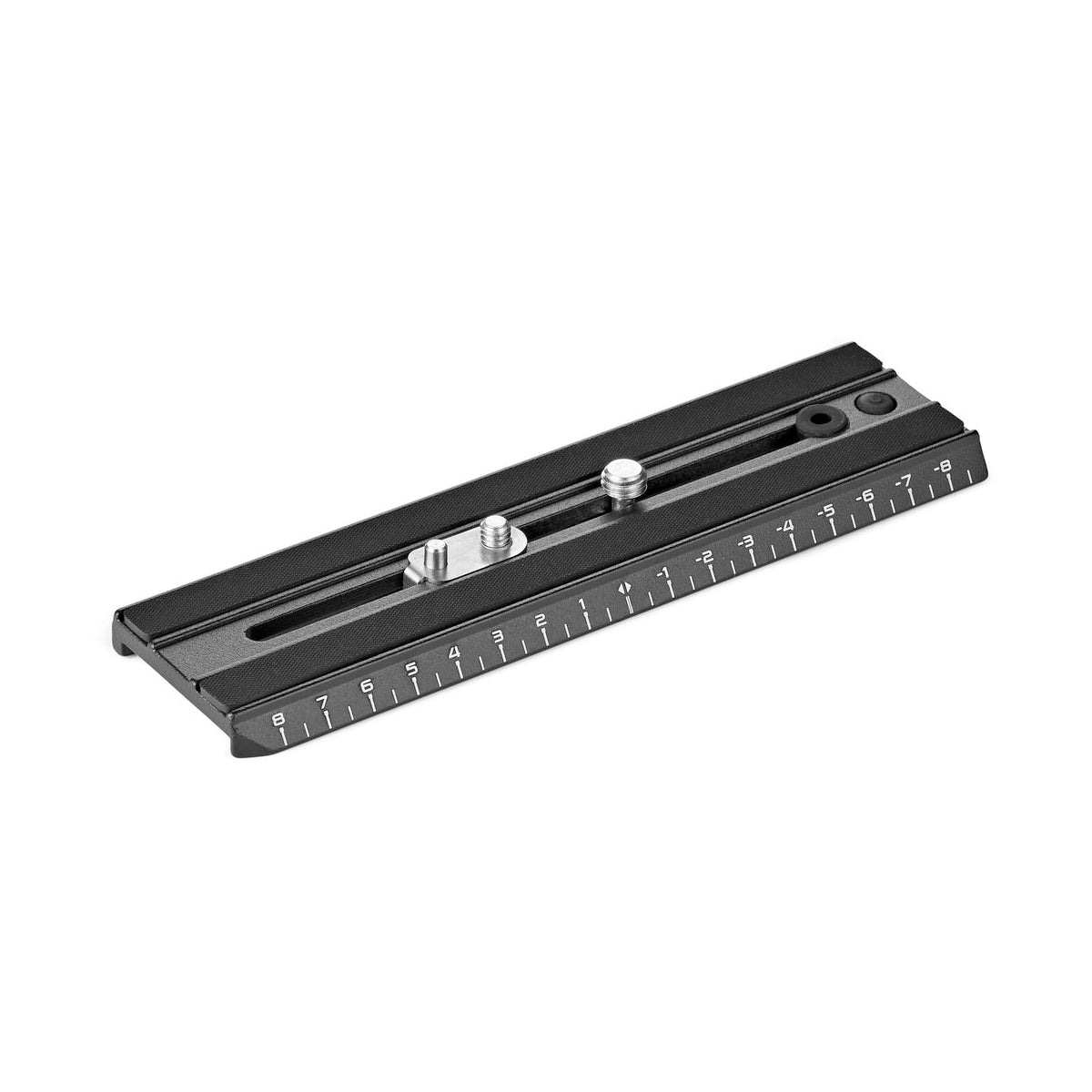

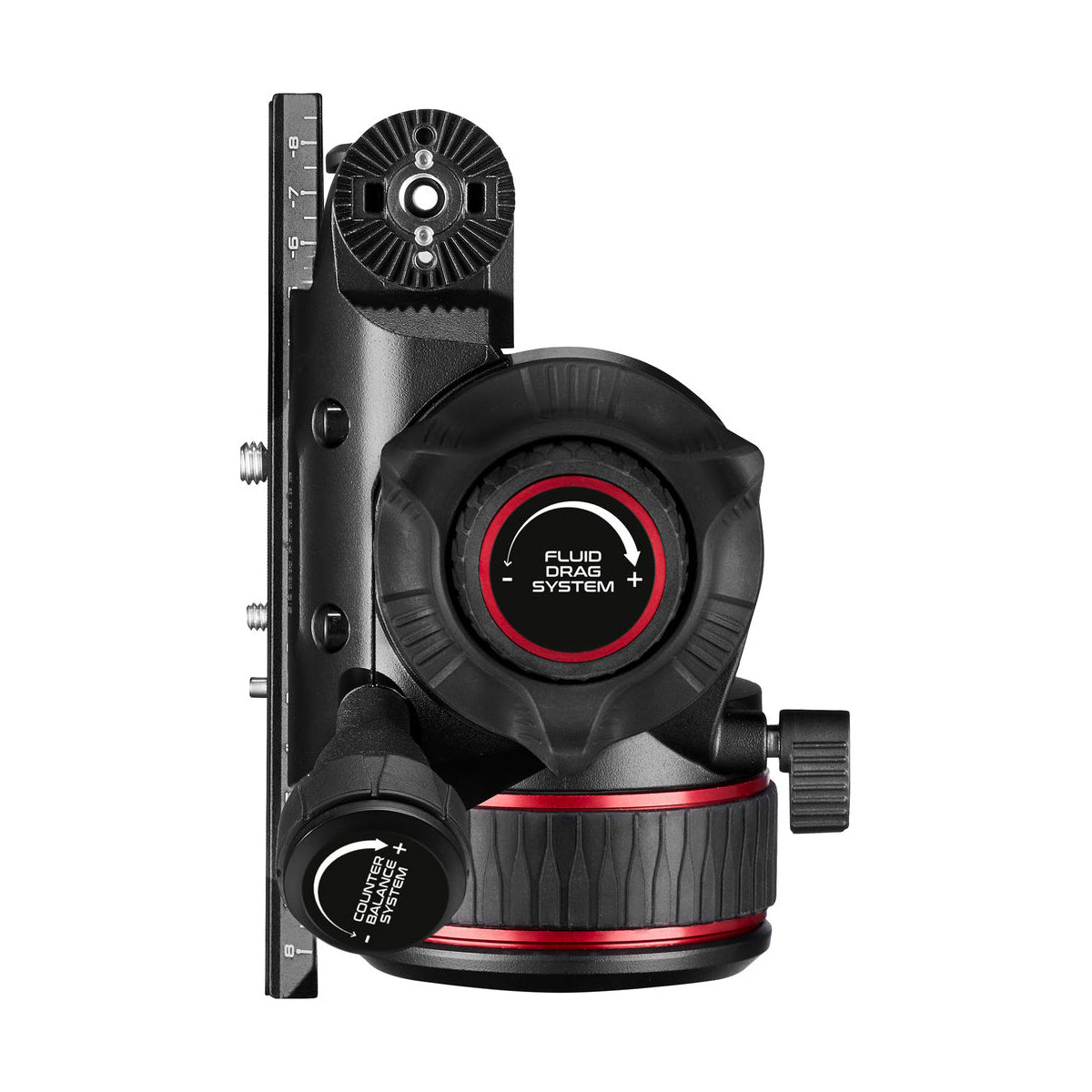

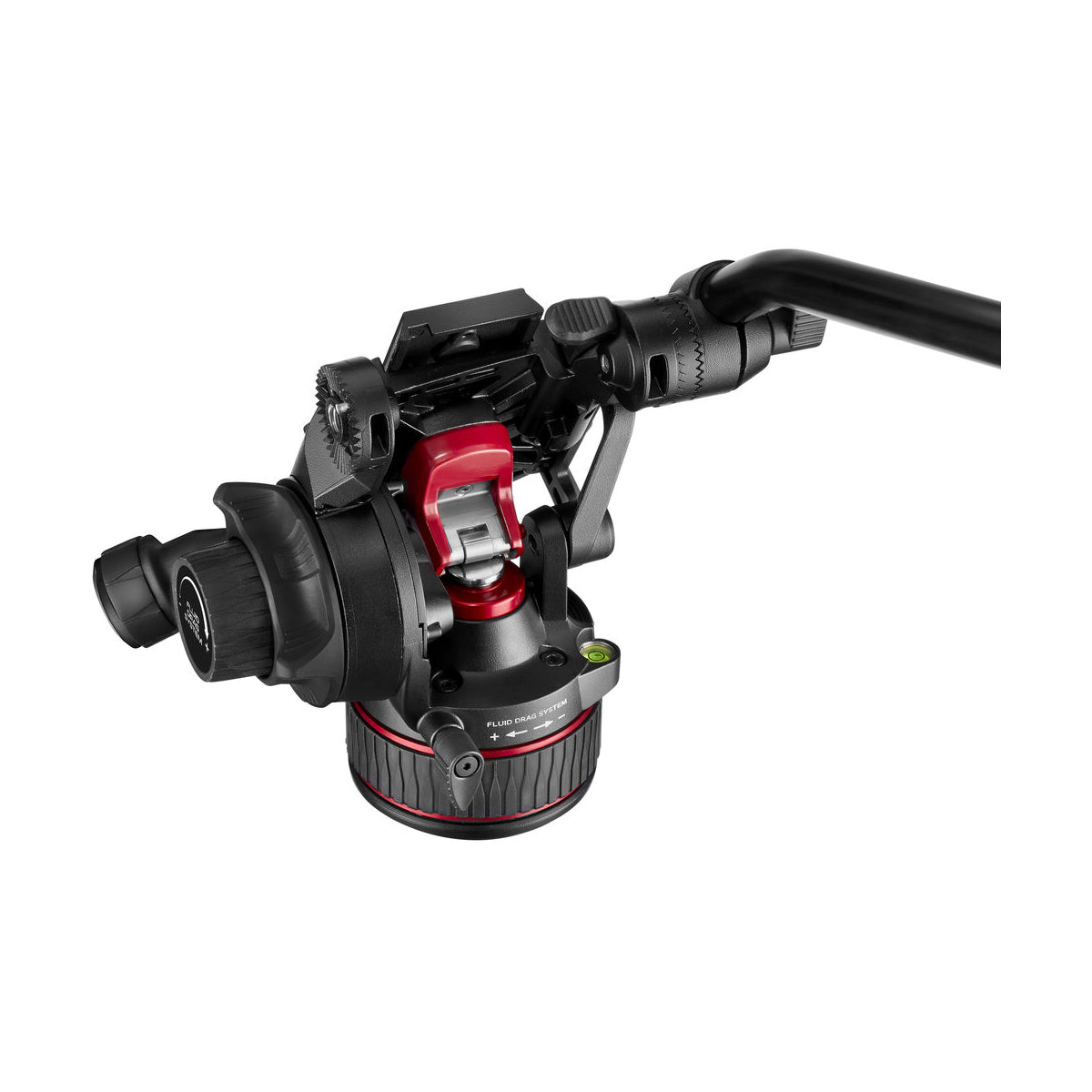

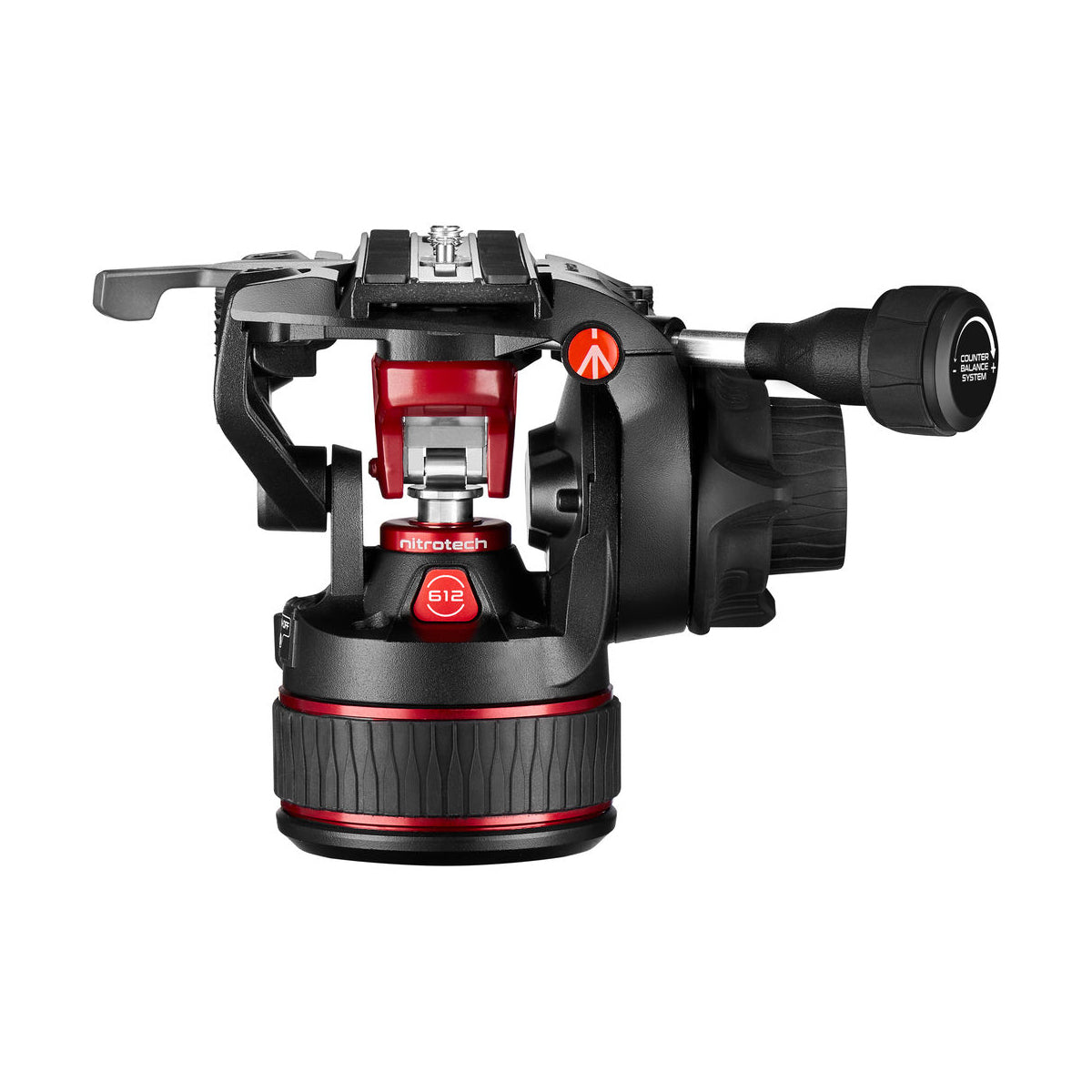

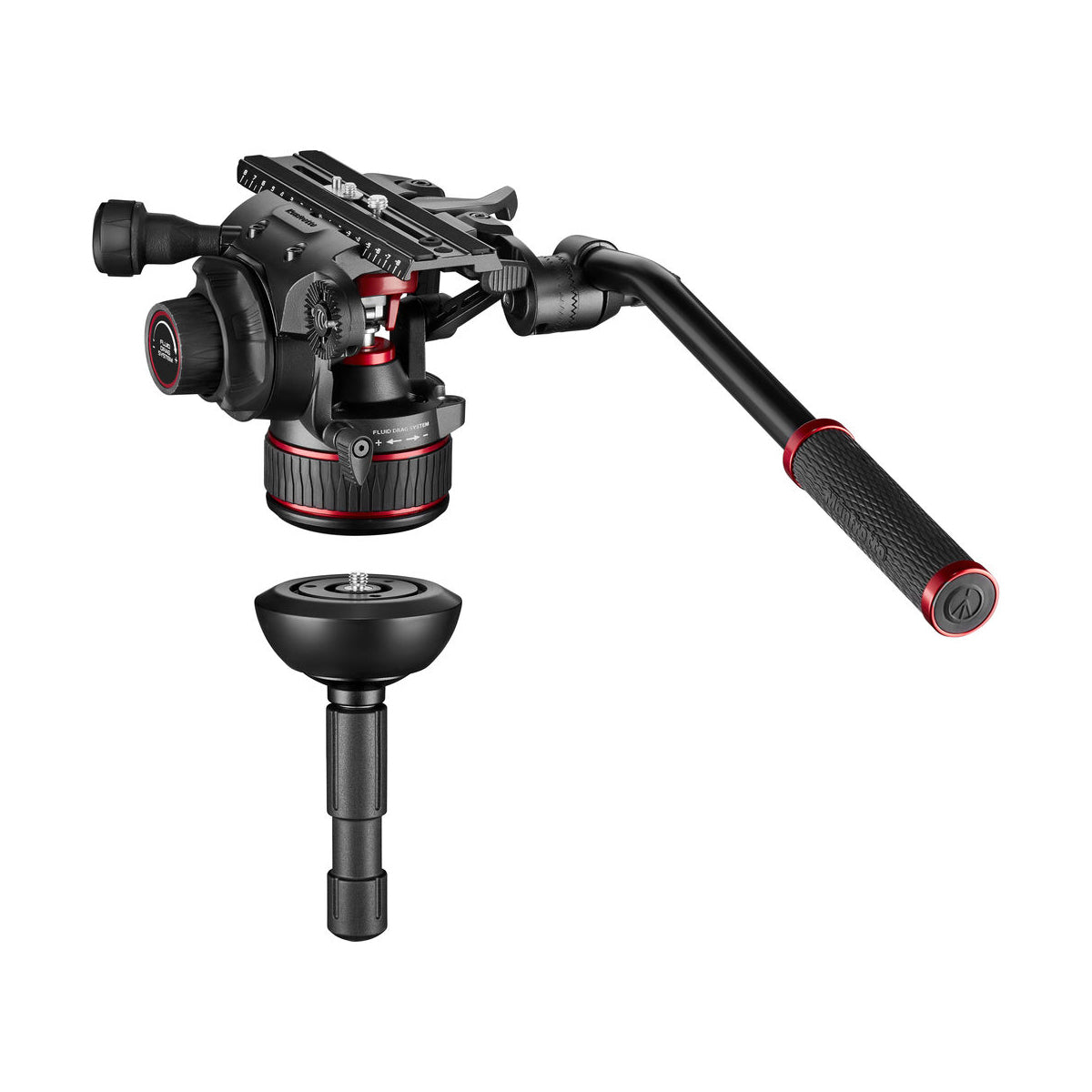

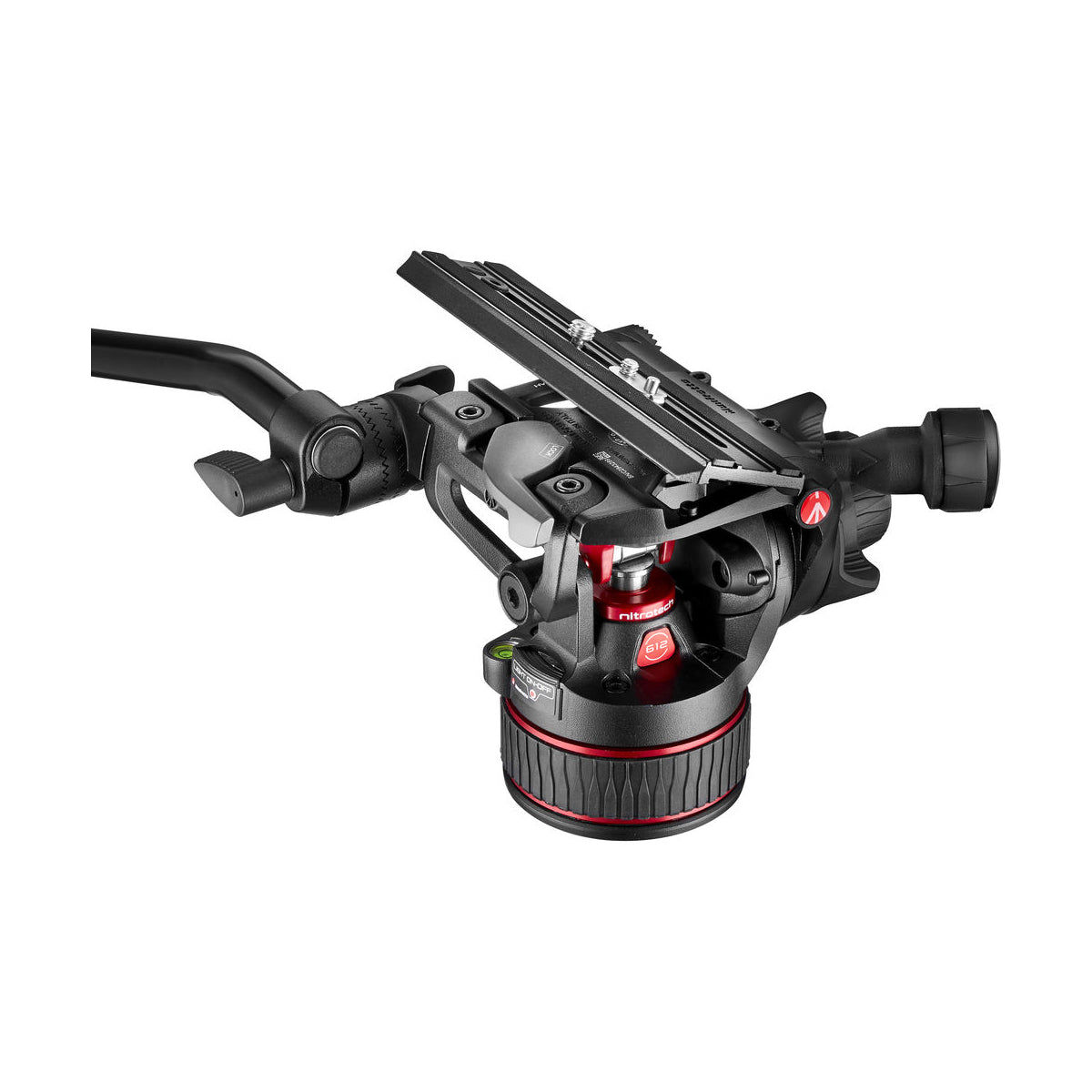

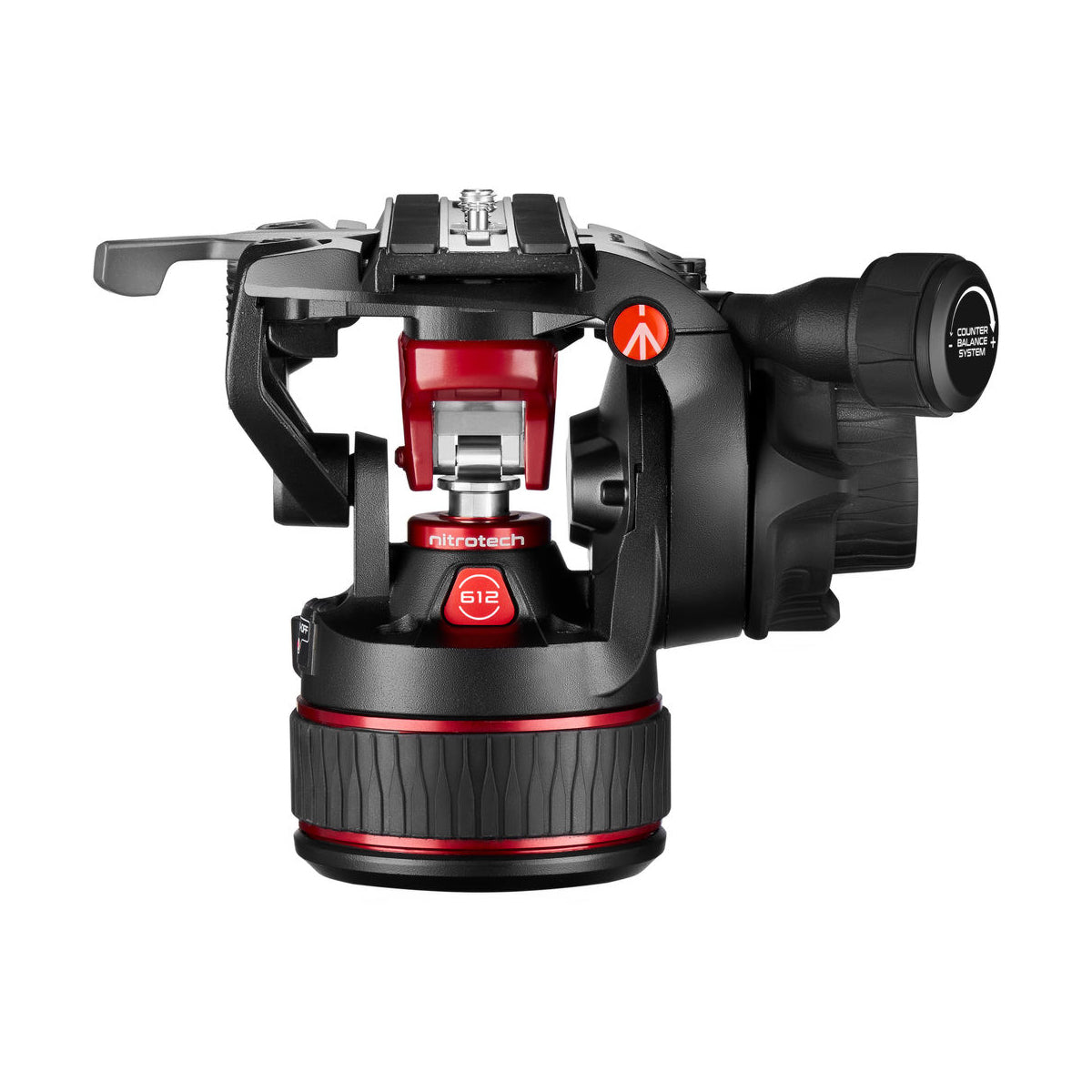

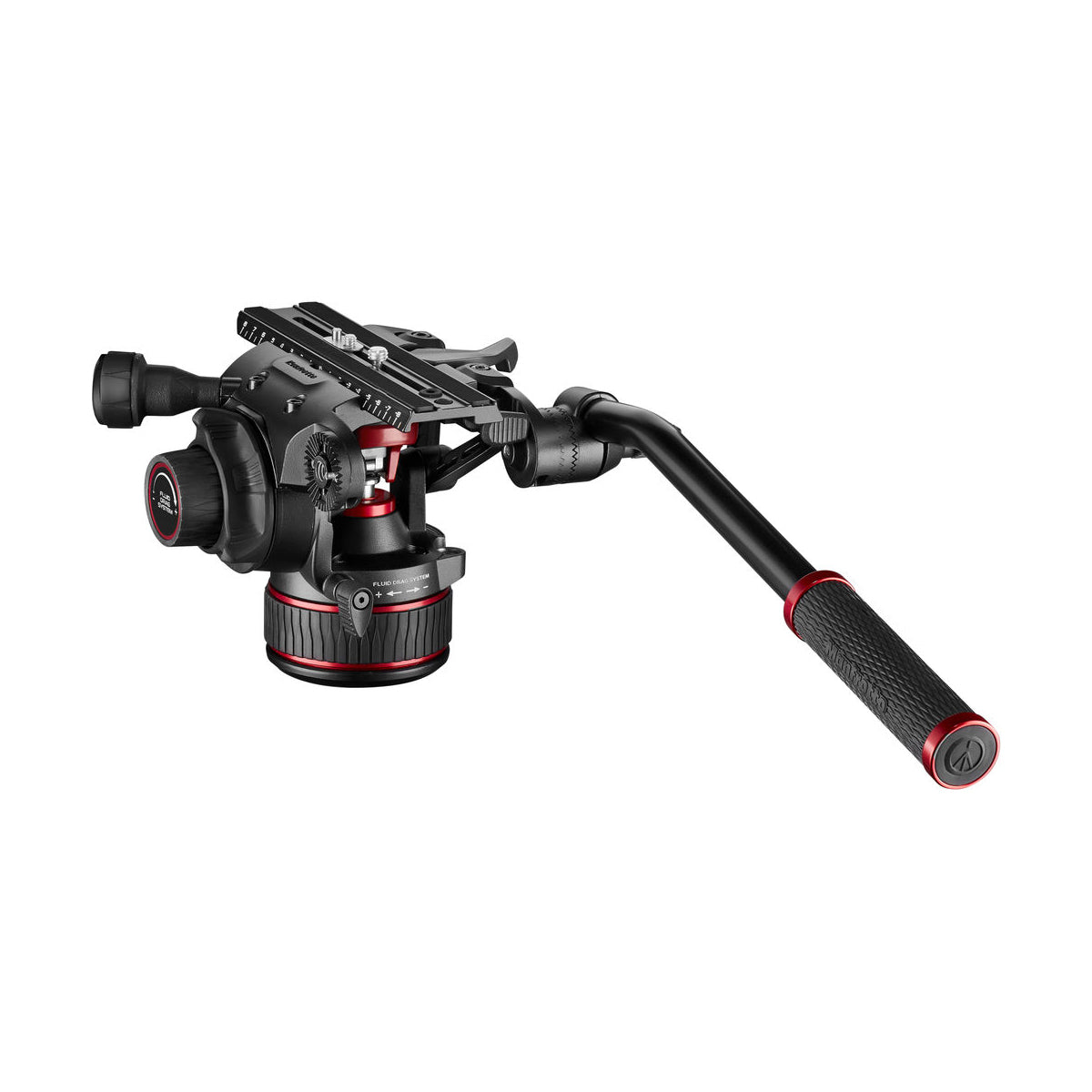

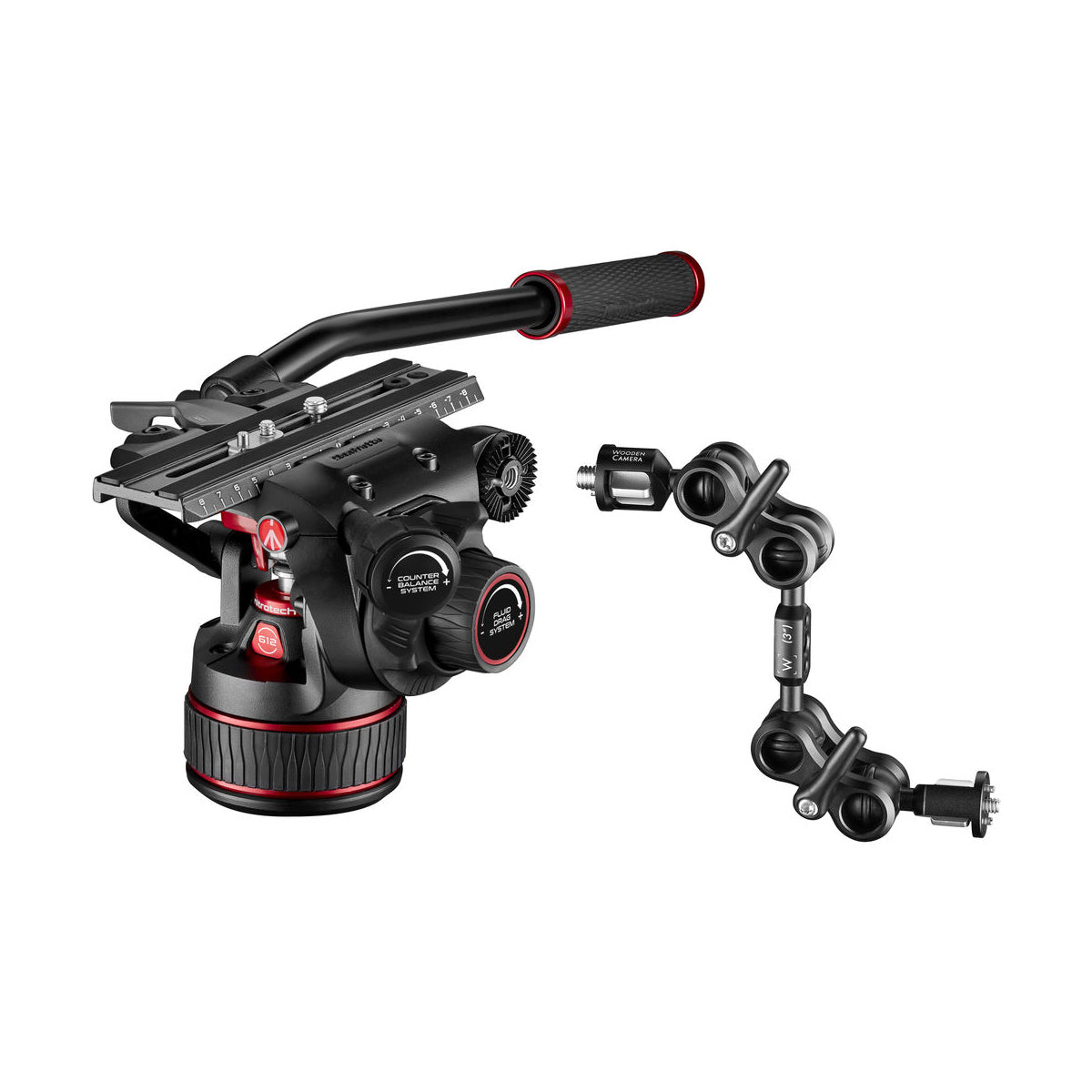

Manfrotto’s NITROTECH 612 fluid video head is provided with the innovative Nitrogen piston mechanism which allows continuous counterbalance. NITROTECH 612 ensures precise camera control with accessories from 4 to 12kg (8.8-26.4 lbs). The fluidity function on both pan and tilt guarantee extremely smooth movement. The camera can be attached easily, safely and quickly to the 180mm sliding plate and secured to the head with a side-lock mechanism. External monitors and accessories can be securely mounted on the head thanks to a 3/8” Easy Link equipped with an anti-rotation mechanism. The NITROTECH 612 has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).

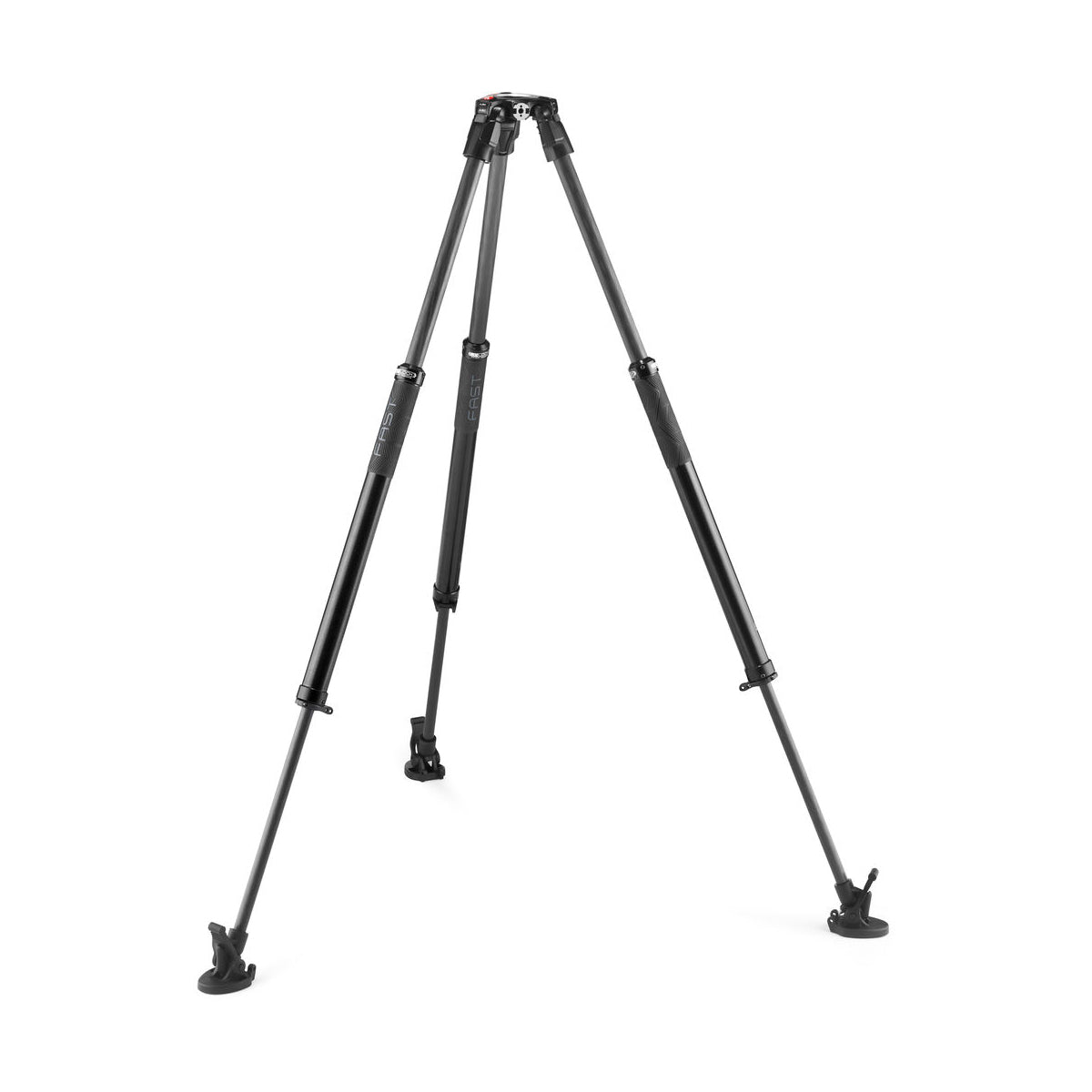

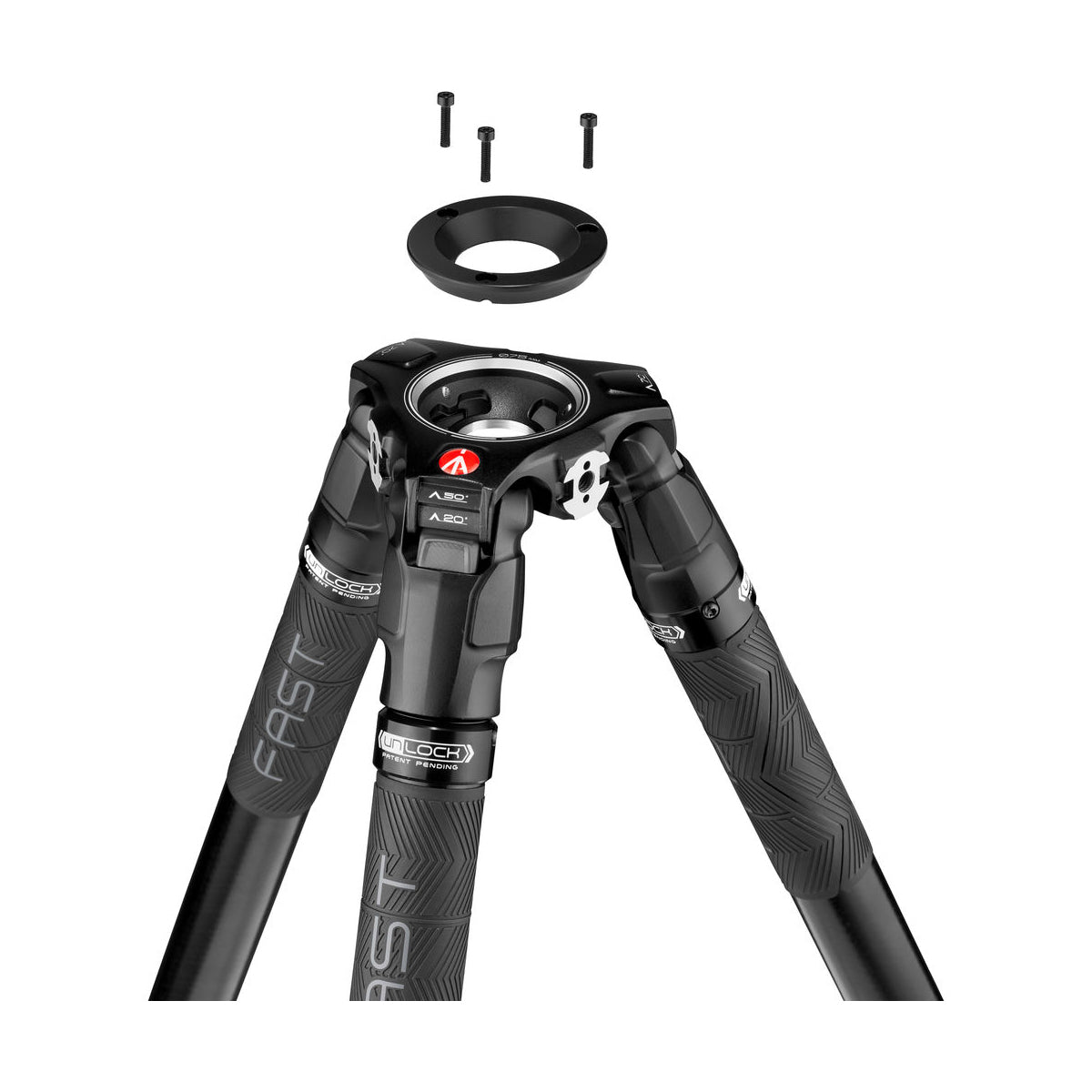

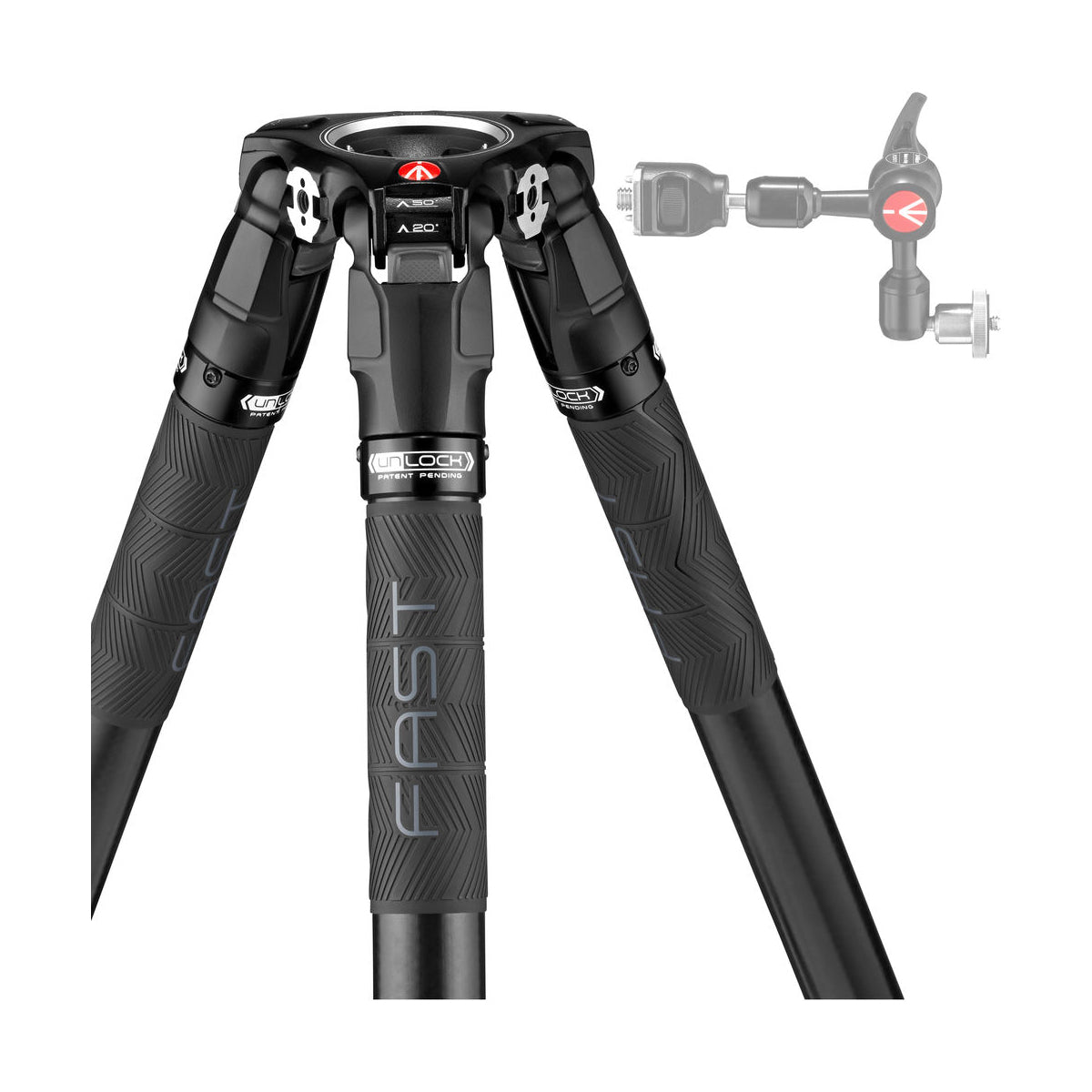

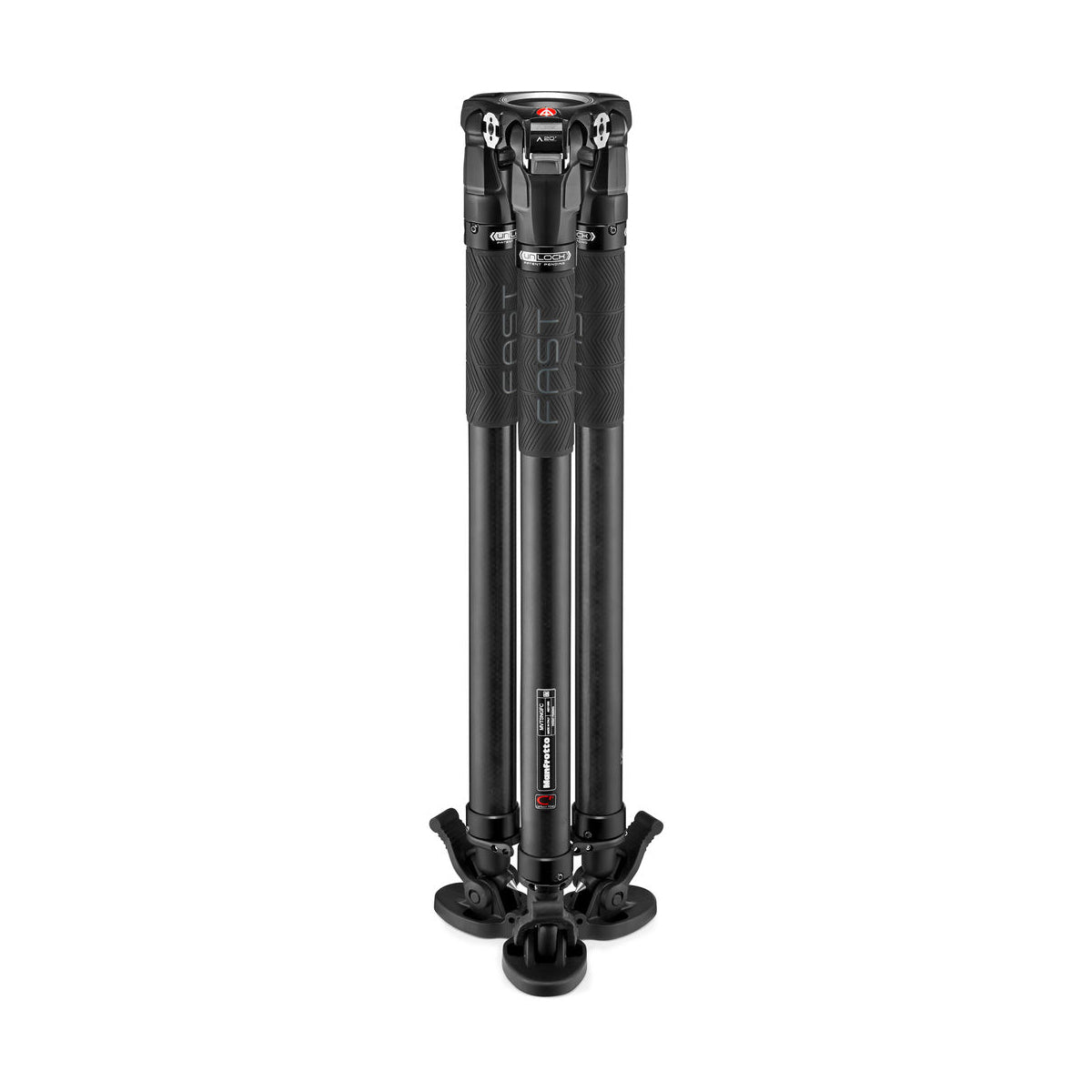

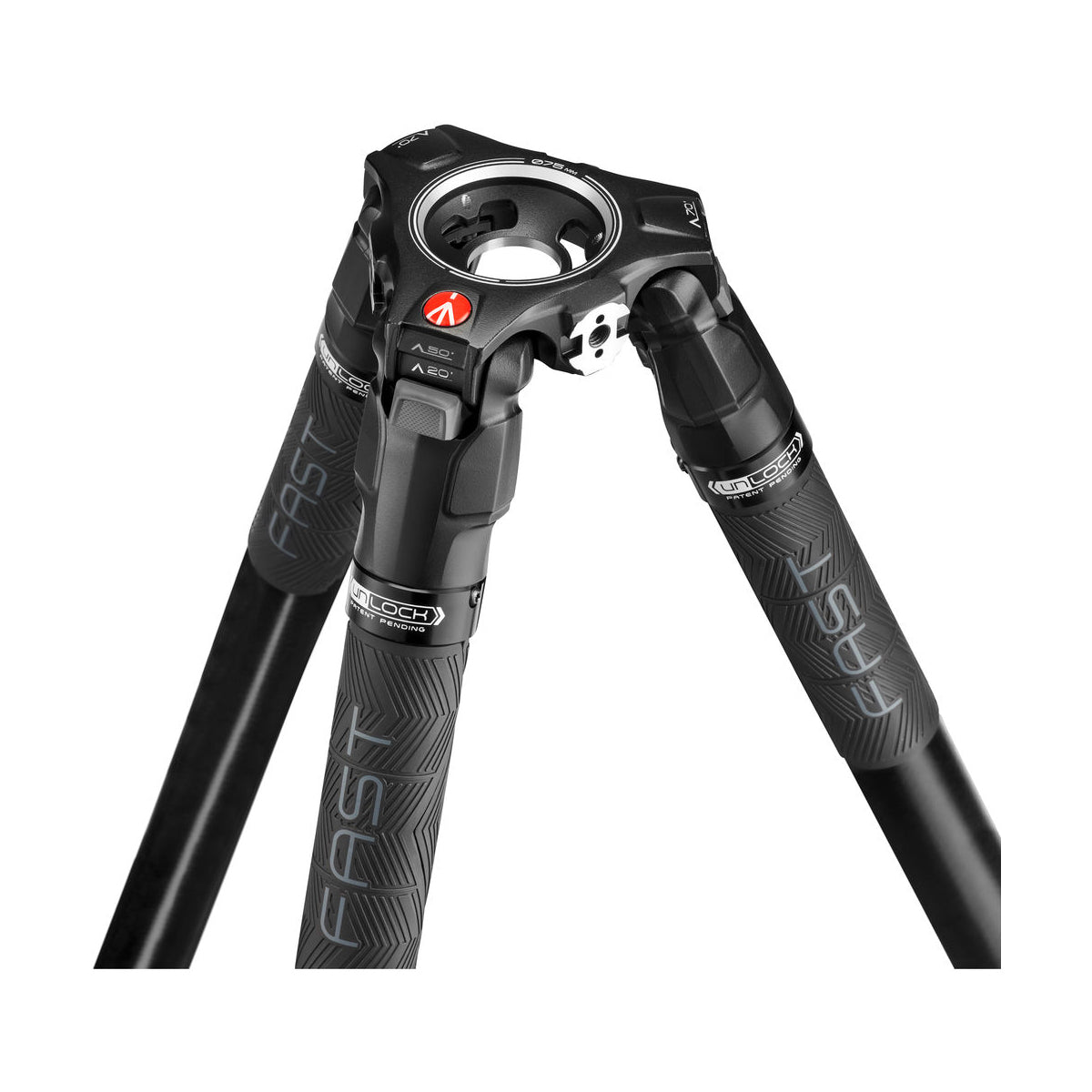

Manfrotto 635 Fast Single Tripod Carbon Fiber with Synchronized closure mechanisms between the upper and lower locks, has single tubing and features the Twist-Lock Twist-Lock, for secure locking with a single, easy gesture. The 635 FST tripod features a 75mm half ball and is compatible with a 60-mm half ball adapter (sold separately). In addition, it features Easy Link friction arm attachments compatible with Manfrotto anti rotation and Arri anti-twist pins. This enables users to attach an external monitor or any other accessory they may require without the risk of the arm rotating while in use.
The 635 Fast Single Carbon Tripod was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The synchronized closure mechanisms between the upper and lower locks, enable videographers to control the entire leg with a single lock and get to work in record time. The new tripod provide maximum versatility, supporting the use of a broad choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

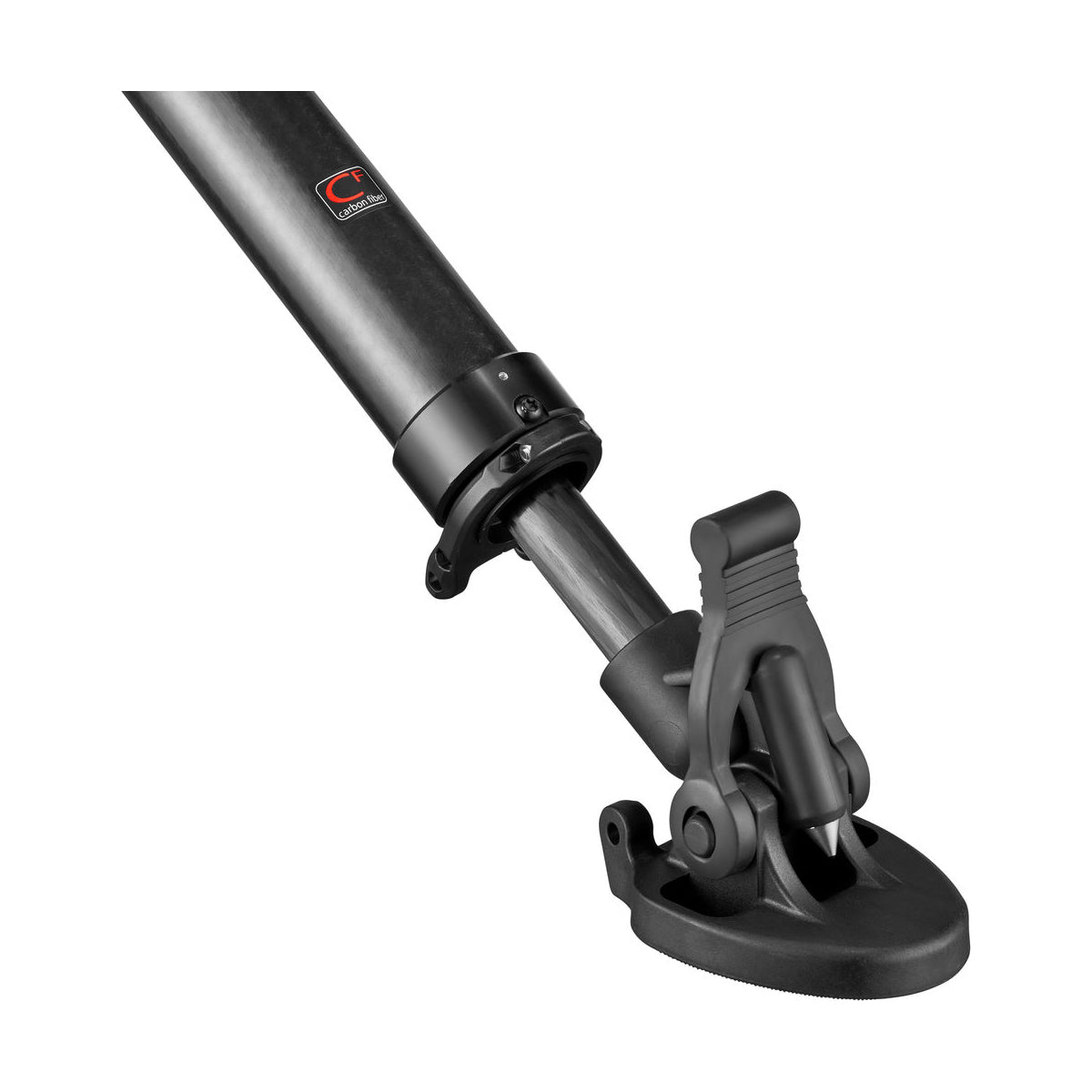

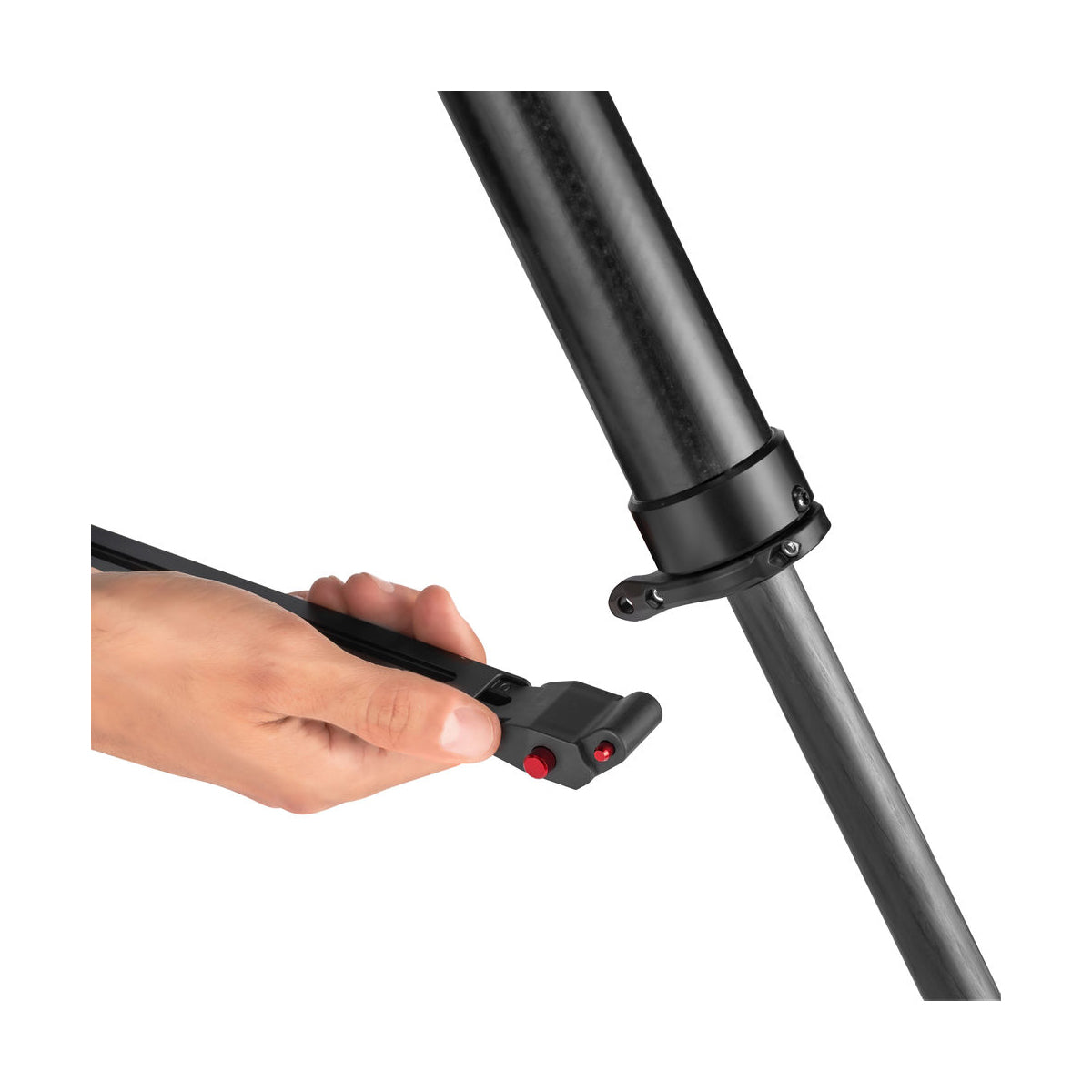

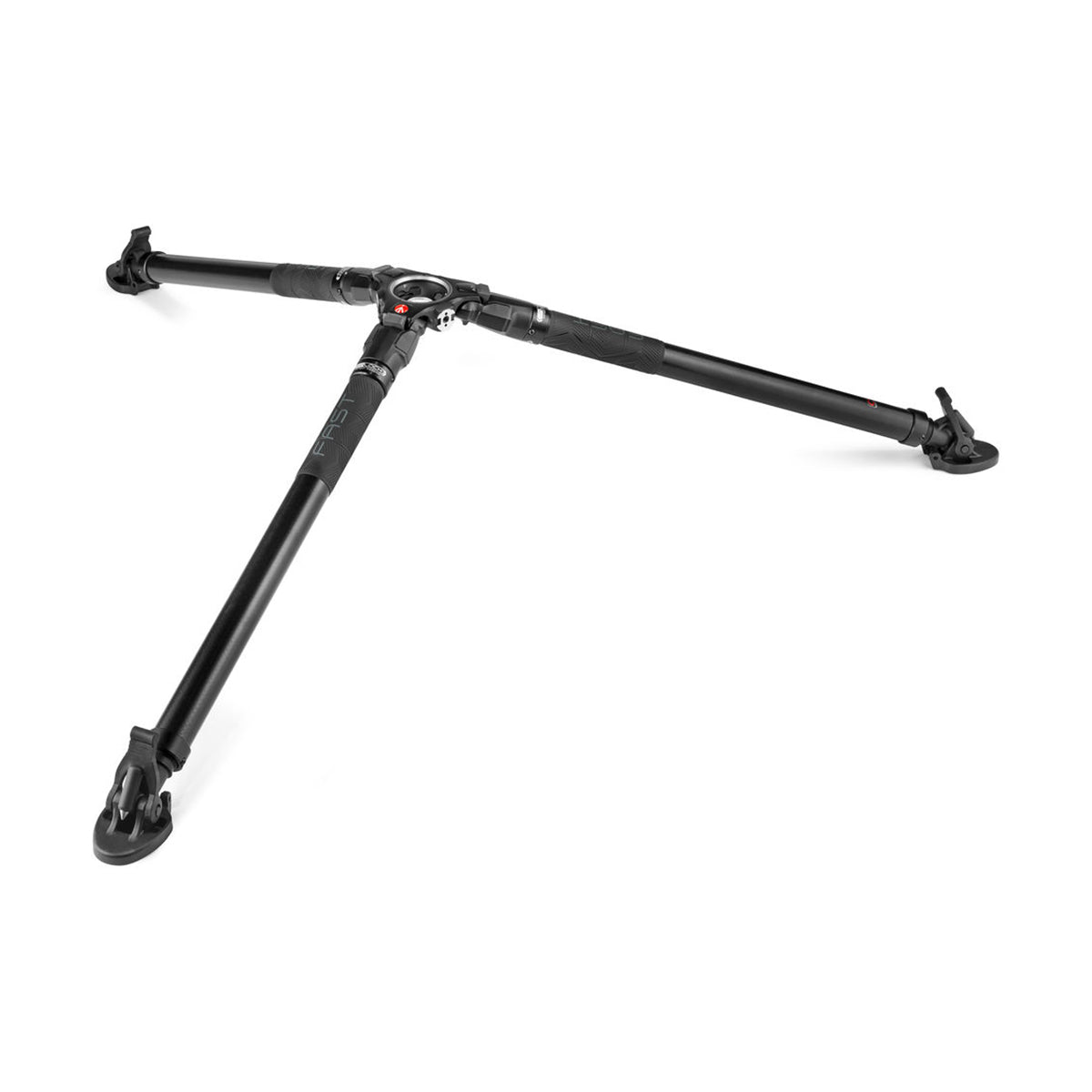

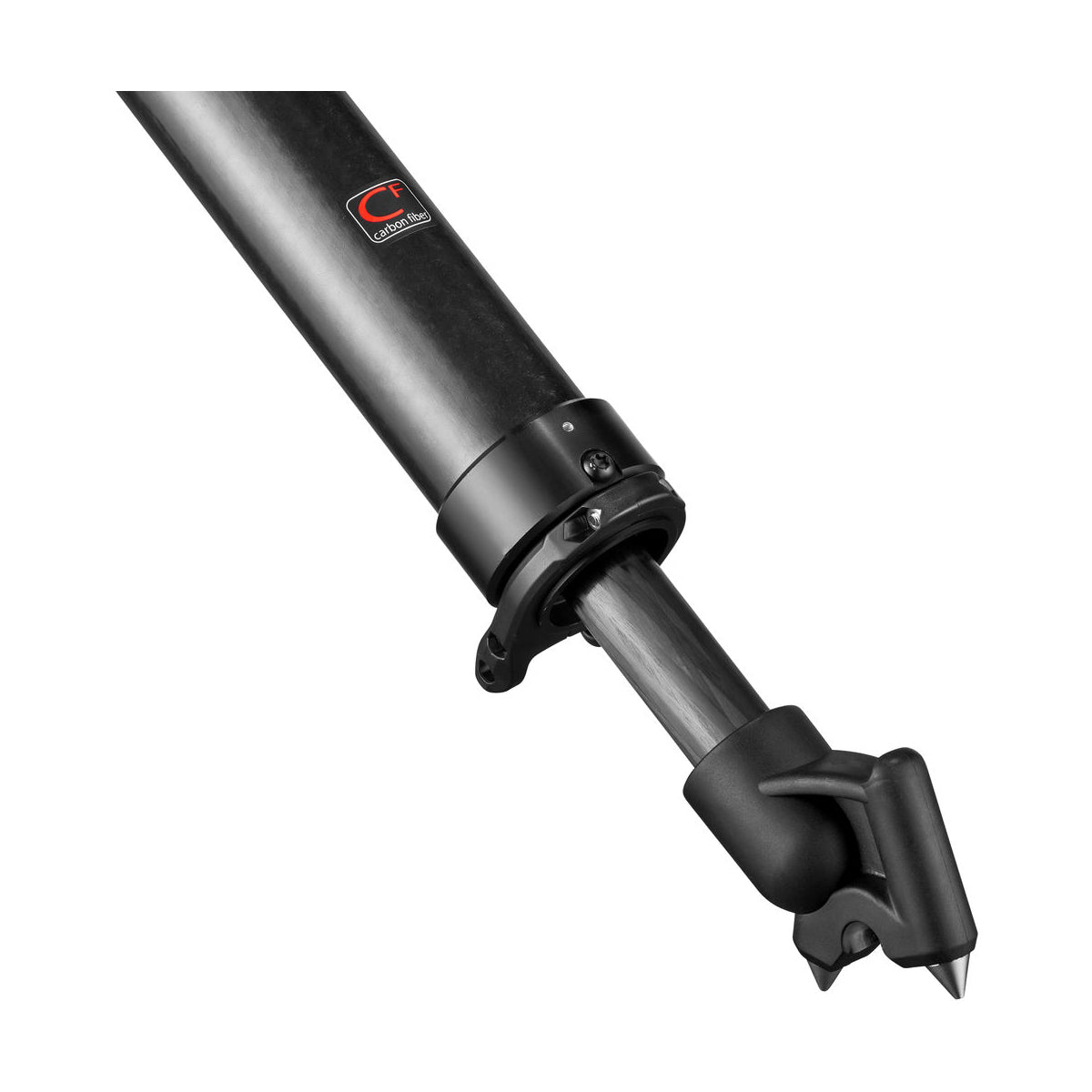

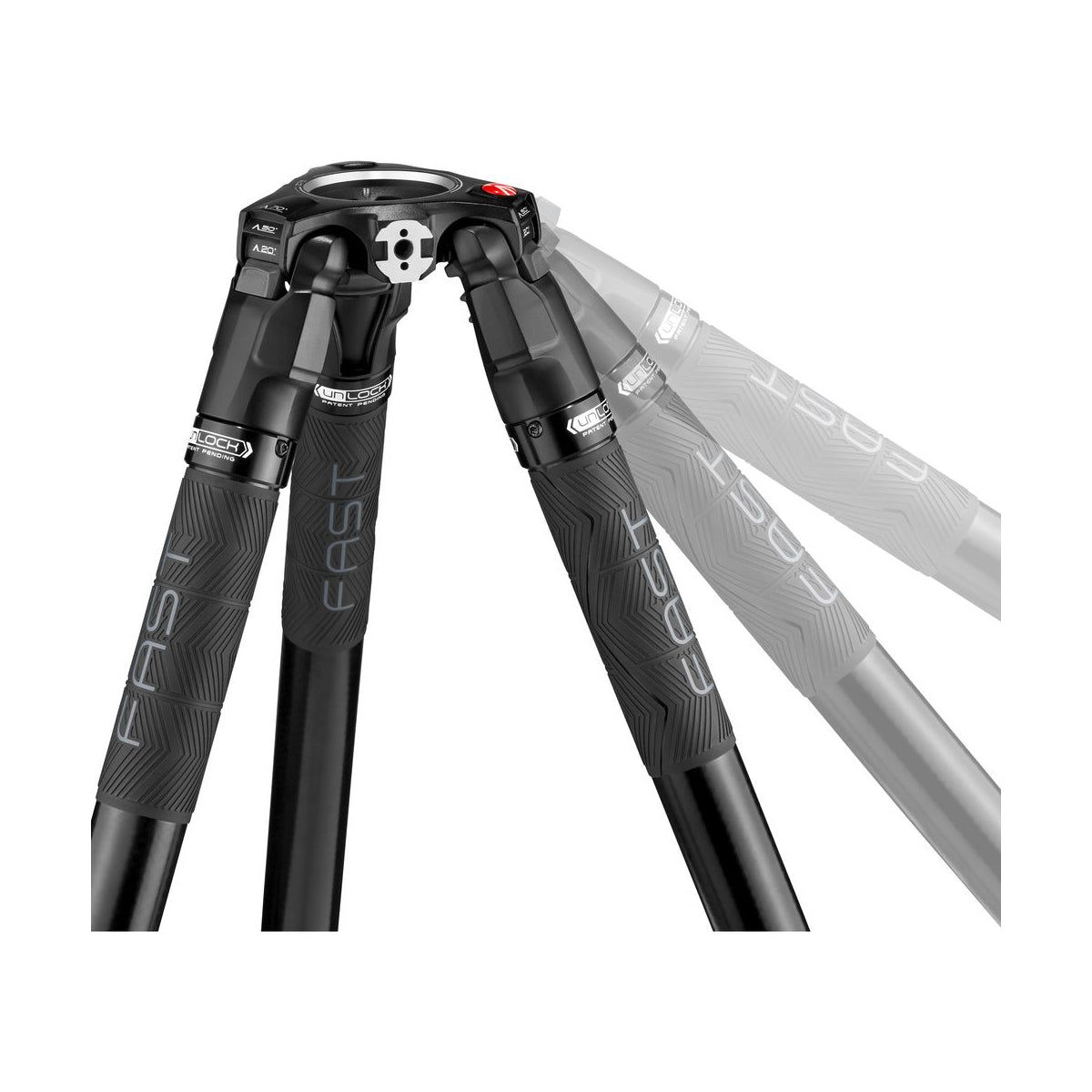

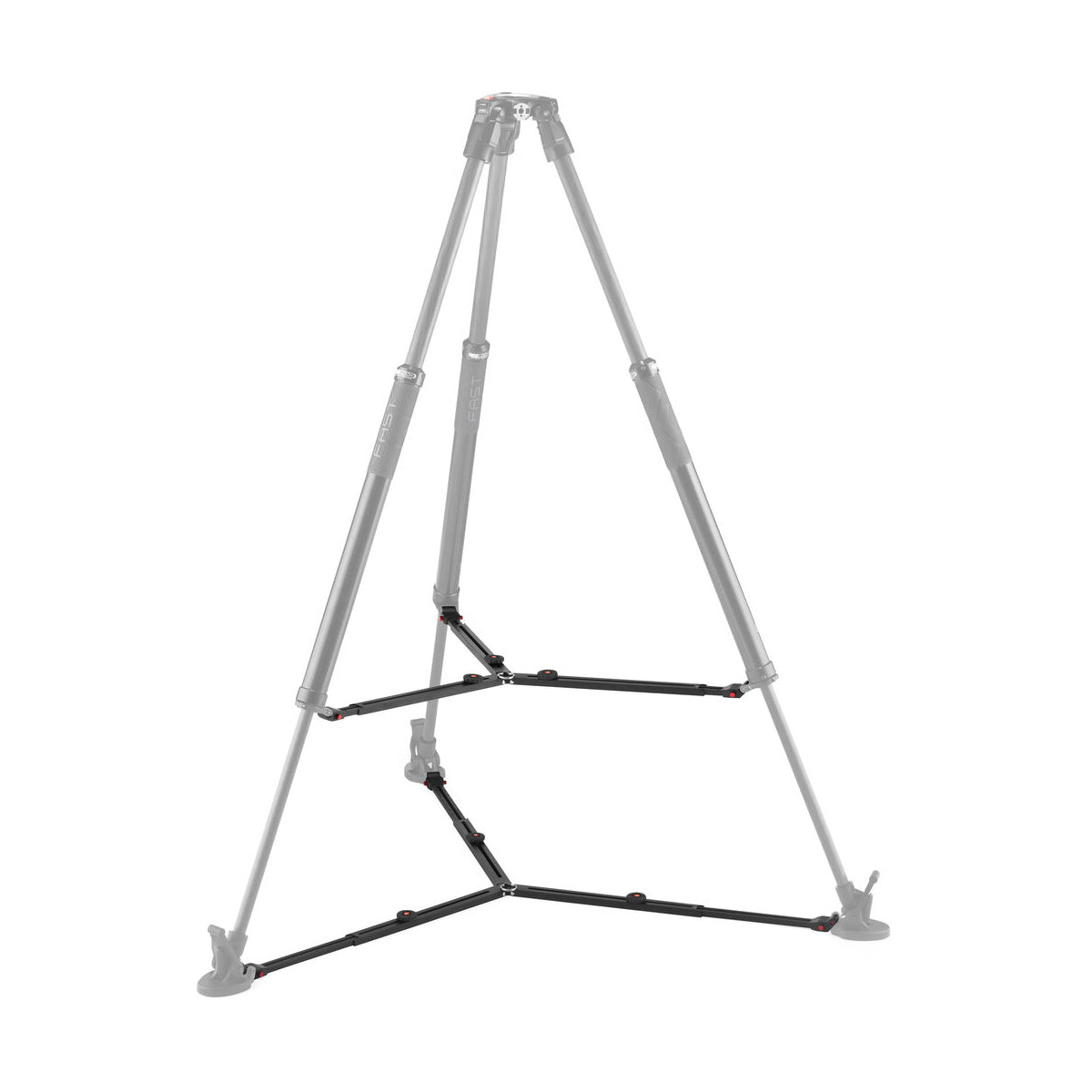

Moreover, it is compatible with the 2 in 1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.
| Tripod - General | |
|---|---|
| Load Capacity | 26.46 lbs / 12 kg |
| Maximum Working Height | 67.32 in / 171 cm |
| Minimum Working Height | 17.52 in / 44.5 cm |
| Folded Length | 35.24 in / 89.5 cm |
| Head Mount Type | 75 mm Bowl |
| Weight | 12.35 lbs / 5.6 kg |
| Materials | Carbon Fiber |
| Legs | |
|---|---|
| Load Capacity | 44.09 lb / 20 kg |
| Maximum Working Height | 61.02 in / 154.99 cm |
| Minimum Working Height | 11.22 in / 28.50 cm |
| Folded Length | 28.94 in / 73.51 cm |
| Leg Lock Type | Twist Lock |
| Leg Positions | 3 Positions |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Leg Diameter | 0.8" / 20.32 mm 0.98" / 24.89 mm 1.15" / 29.21 mm |
| Feet Features | Rubber |
| Head - General | |
|---|---|
| Head Type | Fluid Video Head |
| Base Mount | 3/8"-16 Female |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Plate Type | Quick Release |
| Load Capacity | 8.82 to 26.45 lb / 4 to 12 kg at CoG 2.17" / 55 mm |

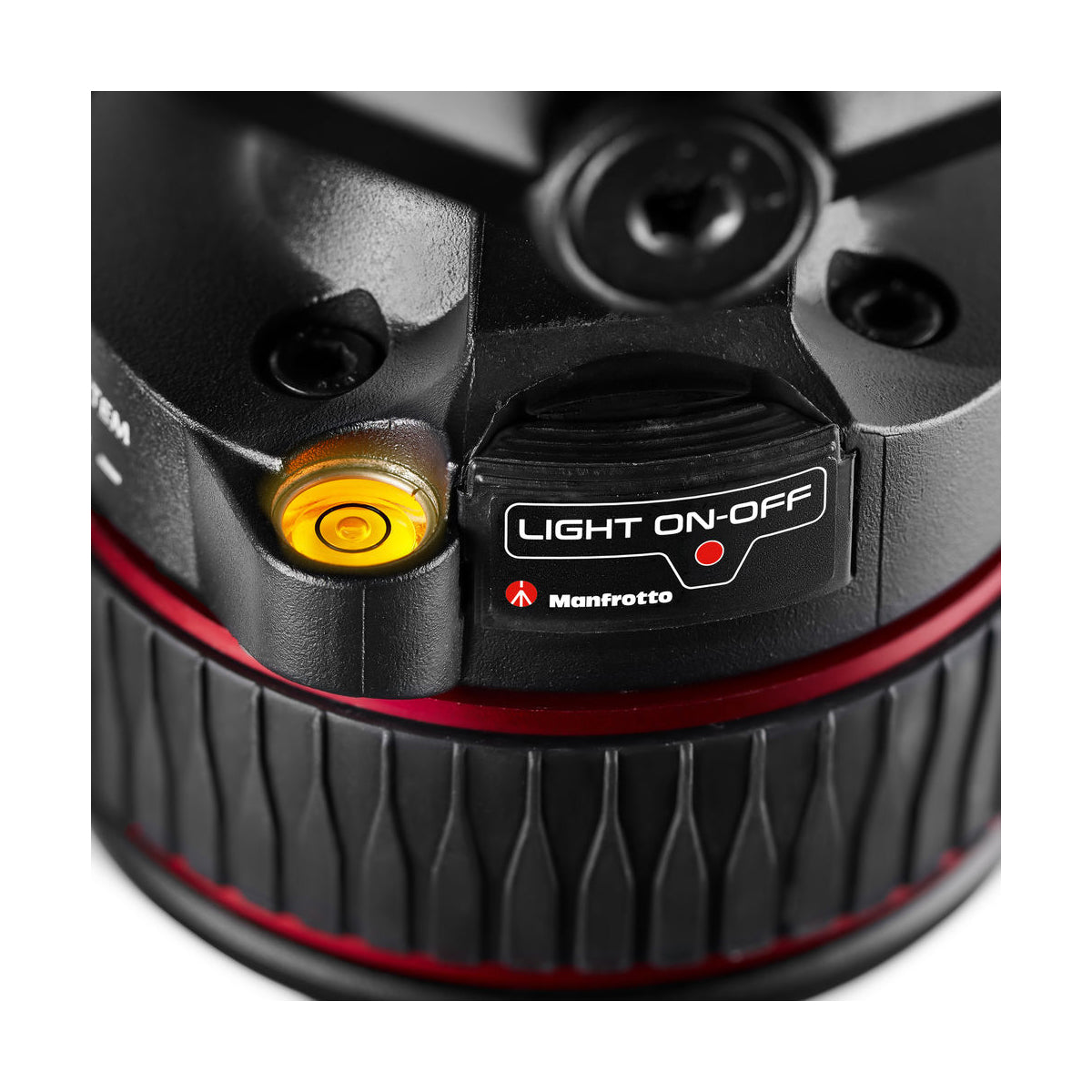

| Number of Bubble Levels | 1 x Illuminated |
| Independent Pan Lock | Yes |
| Accessory Mounting | 2 x 3/8"-16 Female Thread |
| Weight | 5 lb / 2.27 kg |
| Pan & Tilt | |
|---|---|
| Drag Control | Pan: Continuous Tilt: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360º |
