- Solid Brass Top Plate Enhanced with Abrasion Resistant Black Lacquer
- Original M6 Style Packaging with Red Leitz Logo
- New Light Meter Indicator with Battery Warning
- New Leica M6 Style ISO Dial, Newly Developed with Modern Electronic Components Inside
-

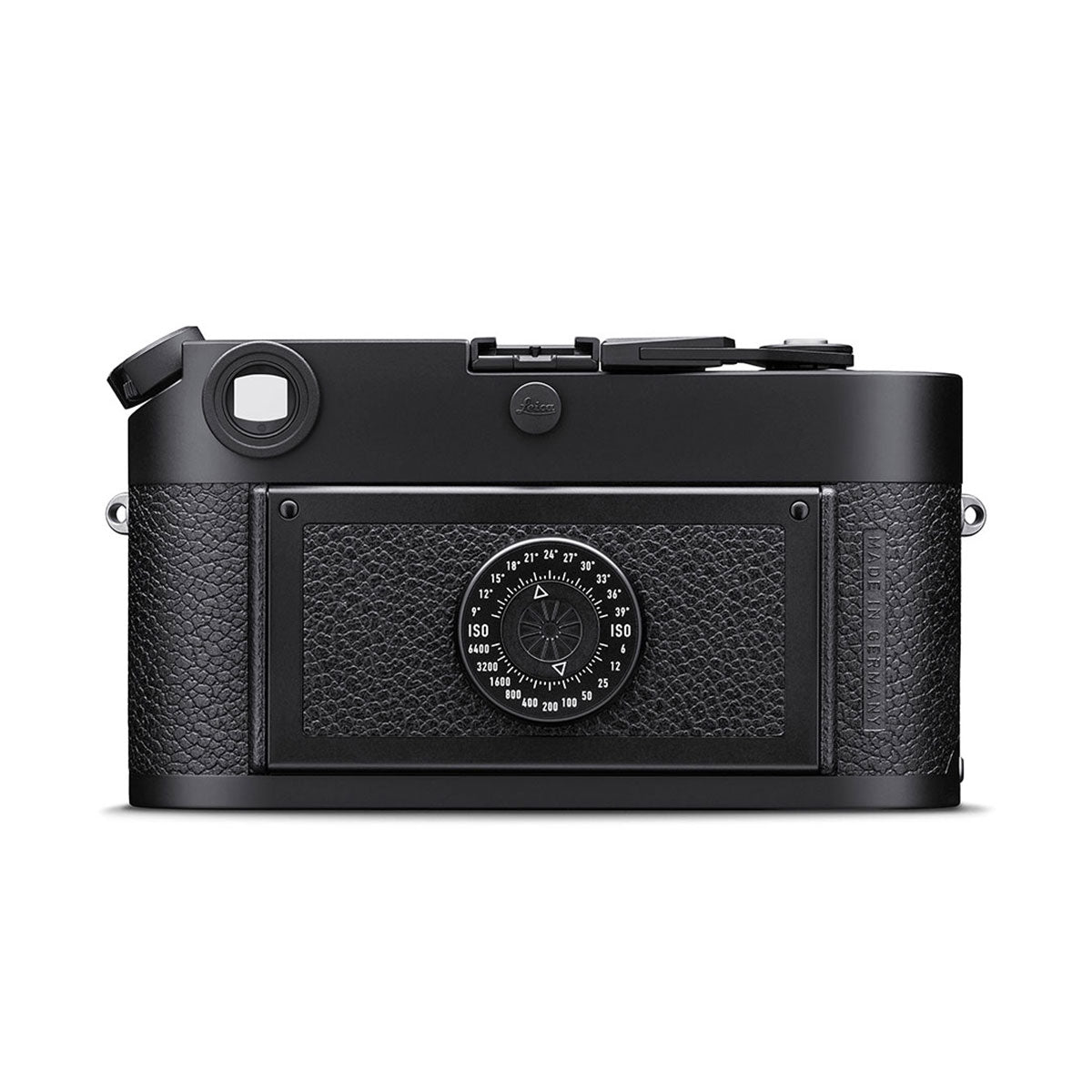

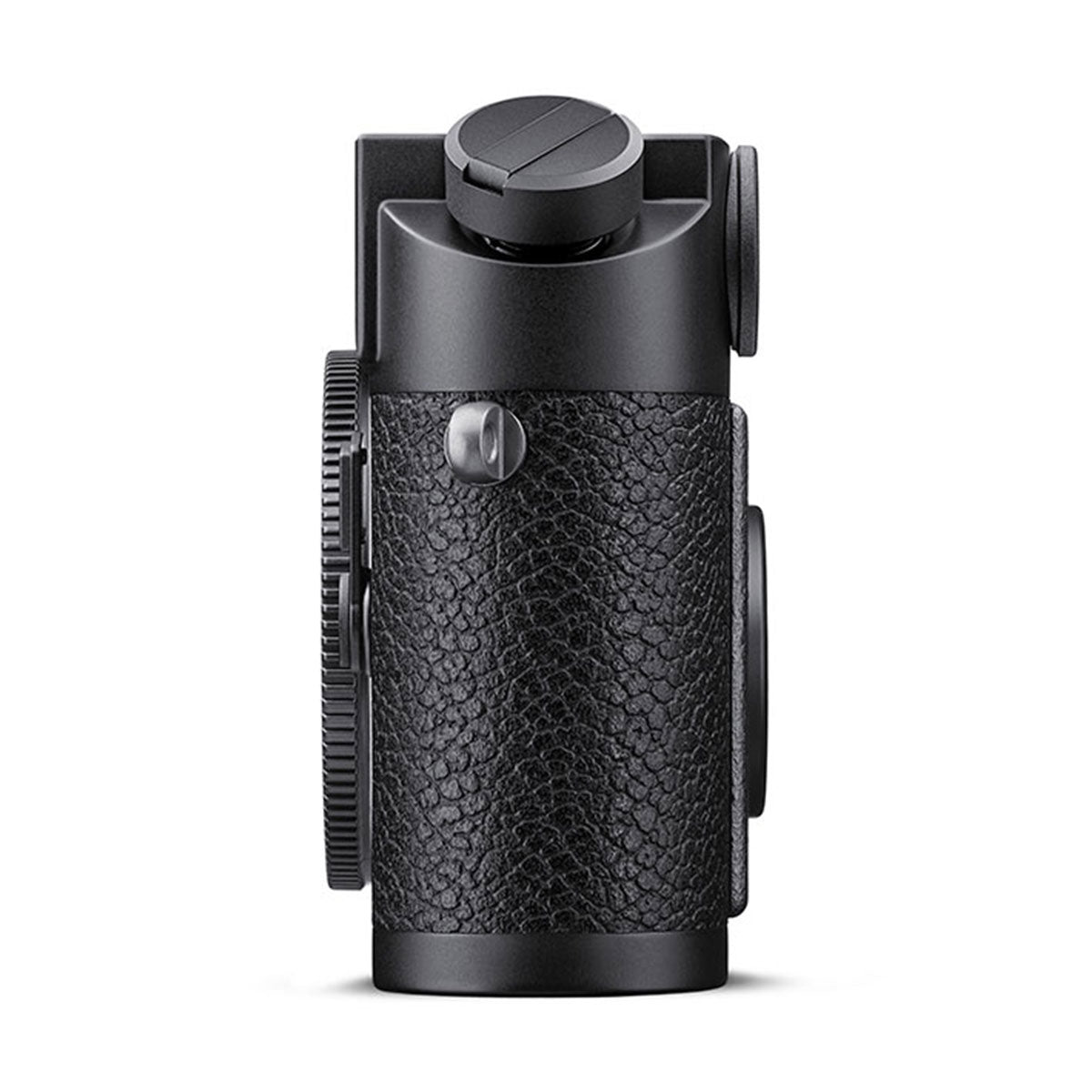

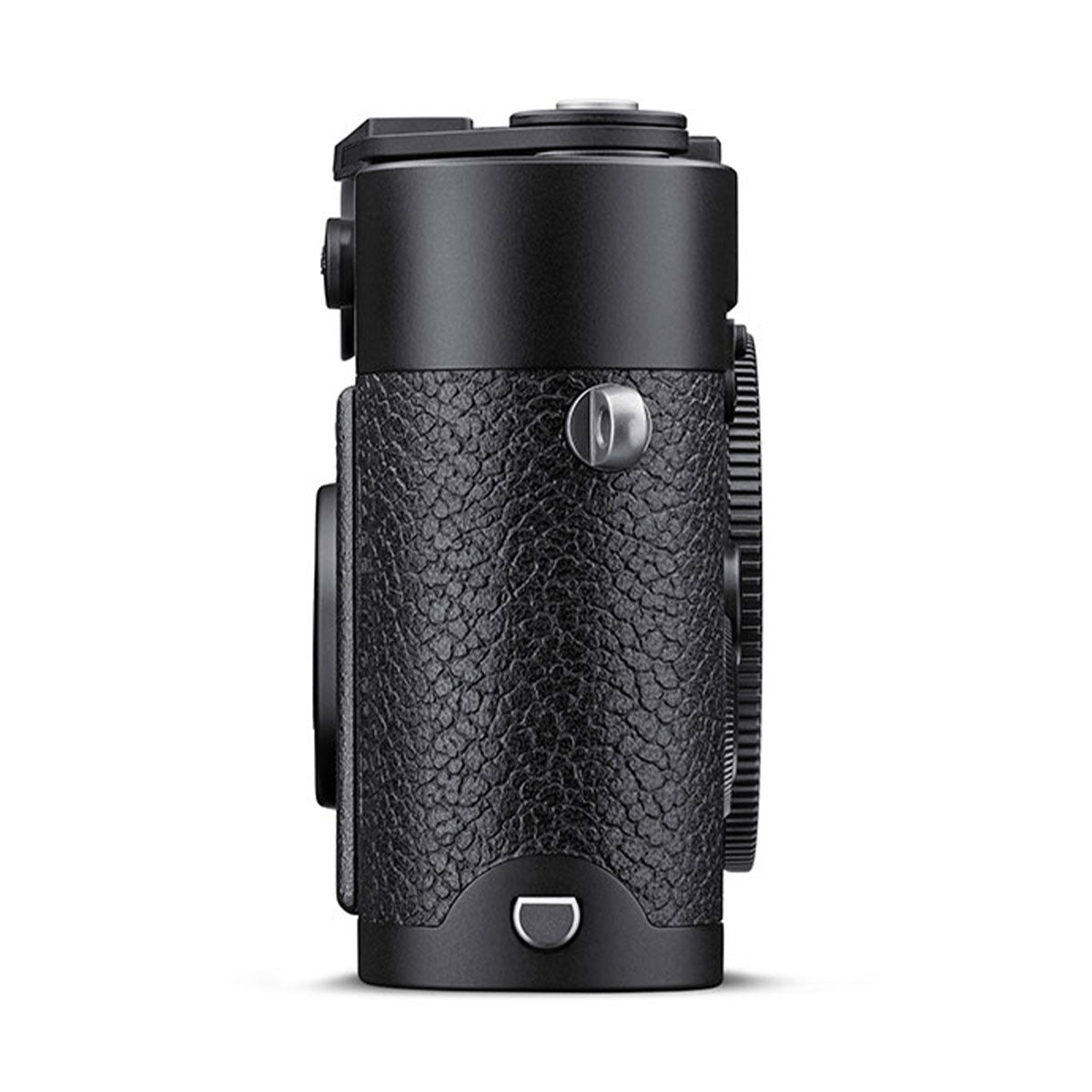

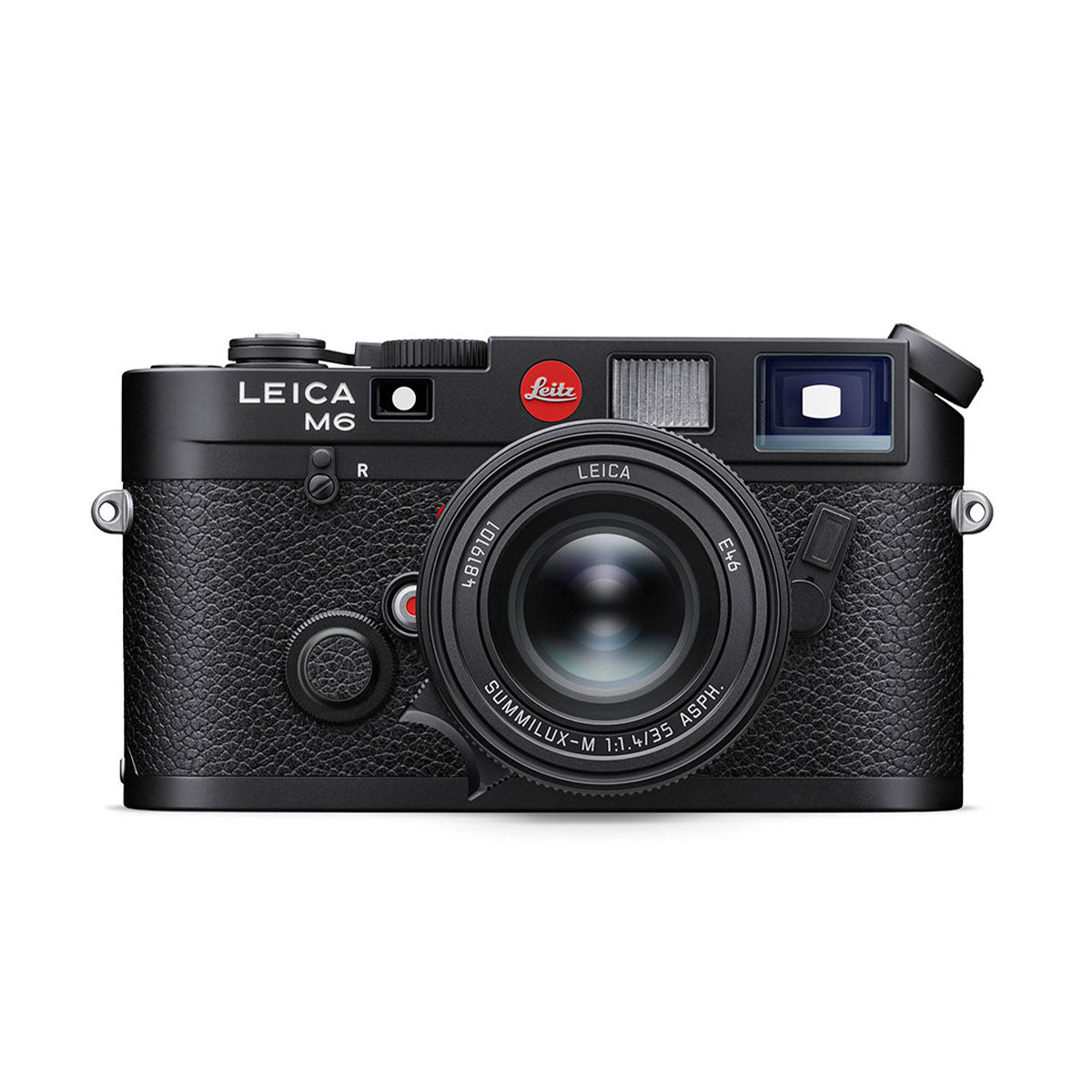

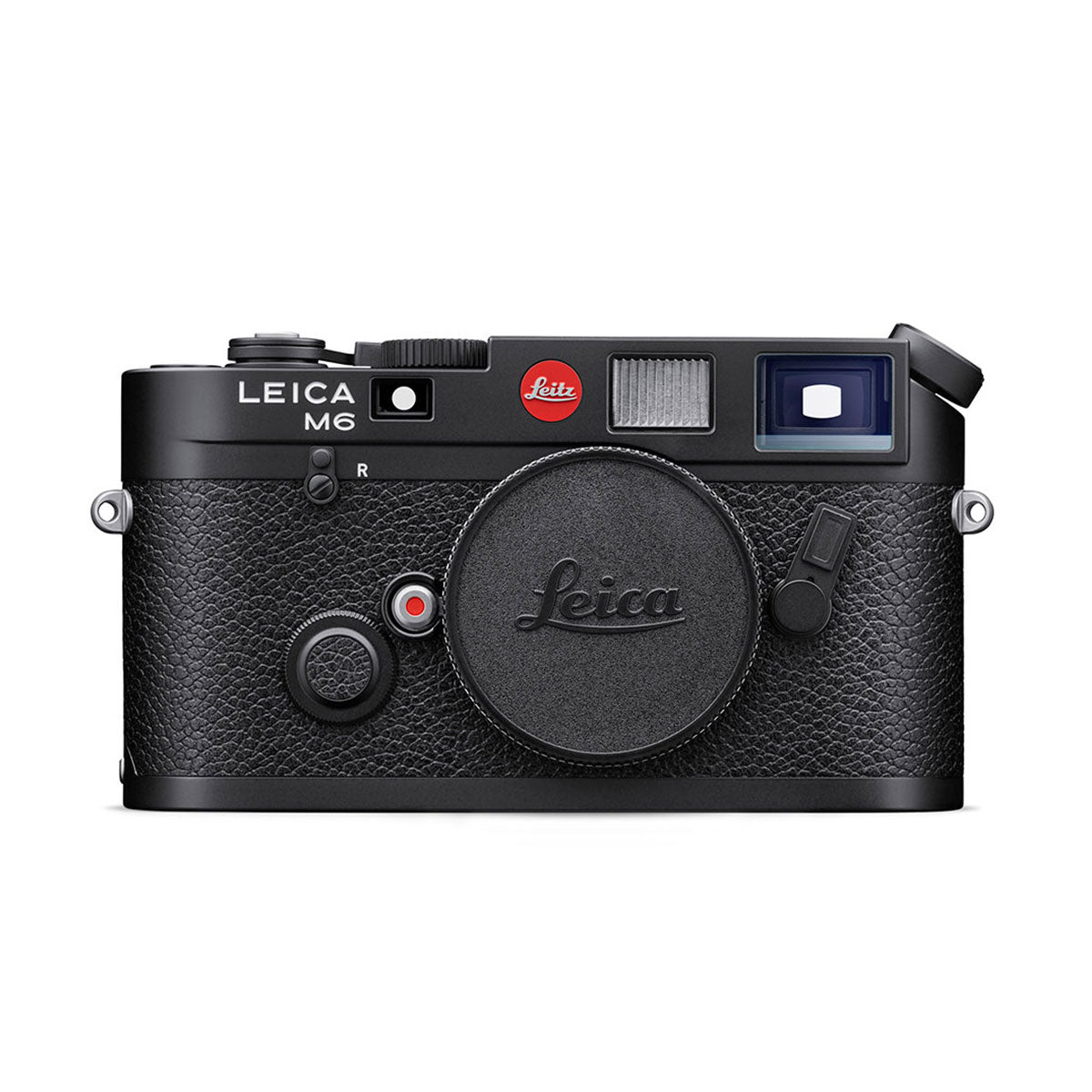

M6 Rangefinder Film Camera Body
-
Leather Carrying Strap
-
Body Cap
-
Battery
-
Limited 3-Year Warranty
Description
Camera | |
---|---|
Camera type | Analogue rangefinder system camera (35 mm) |
Material | Closed full metal housing, Top cover and bottom cover: brass, black finish |
Lens mount | Leica M bayonet |
Interfaces | ISO accessory shoe |
Tripod thread | A 1⁄4 DIN 4503 (1⁄4”) with stainless steel in the base |
Viewfinder | Large, bright-line rangefinder with automatic parallax compensationViewfinder: Large, bright-line rangefinder with automatic parallax compensation |
Parallax compensation | The horizontal and vertical difference between viewfinder and lens is compensated automatically in line with the relevant focus setting. Congruence of viewfinder and actual image. The size of the bright-line frame matches the distance: – at 2 m: the exact sensor size of approx. 23.9 x 35.8 mm – at infinity: (depending on focal length) approx. 7.3% (28 mm) to 18% (135 mm) – less than 2 m: less than sensor size |
Viewfinder magnification | x0.73 (all lenses) |
Wide-base rangefinder | Split or superimposed image rangefinder shown as a bright field at the center of the viewfinder image |
Shutter type | Focal plane shutter with rubber liner, mechanically controlled |
Shutter speeds | Mech. shutter: 1 s - 1⁄1000 s |
Shutter release | Two-stage: Power up (activation of exposure meter) – Release. Integrated standard cable release thread. |
Loading | Manual with quick wind lever or LEICAVIT M, motorized with LEICA MOTOR-M, LEICA WINDER-M, LEICA WINDERLoading Manual with quick wind lever or LEICAVIT M, motorized with LEICA MOTOR-M, LEICA WINDER-M, LEICA WINDER |
Rewinding | Manual with telescopic rewind knob |
Frame counter | On top of camera. Automatic reset after removal of bottom cover. |
Focus range | 70 cm to ∞ |
Focus mode | Manual |
Exposure metering | TTL (exposure metering through the lens), with working aperture |
Metering principle | Exposure metering is done by the image sensor for all exposure metering methods (in Live View mode and in rangefinder mode). Metering Principle: The light reflected by a metering spot in the center of the 1st shutter curtain is metered. The metering spot has a diameter of 12mm and therefore corresponds to approx. 13% of the full negative format or around 2/3 of the short side of the corresponding frame in the viewfinder. |
Metering cell | Silicon photo diode with convex lens to the top left behind the camera bayonet. |
Film speed range | Manual setting from ISO 6/9° to ISO 6400/39° |
Exposure control mode | Manual shutter speed and aperture setting, adjustment using LED light balance. |
Flash unit connection | Via accessory shoe |
Synchronization | On the 1st shutter curtain |
Flash synch speed | up to 1⁄50 s, slower shutter speeds possible. |
Flash exposure control | Via computer control of flash unit or via guide number calculation and manual setting for the required aperture. Power Supply |
Power Supply | 2 Silver oxide button cells (PX76/SR44) or 1 Lithium battery (DL1/3N) |
Physical | |
---|---|
Weight | 575g (without battery) |
Operating conditions | +0 to +40°C |
