Configurations
12 MP
1/2.3” CMOS Sensor
100-3200
ISO Range
2.7k 30p
Video
30 mins
Max Flight Time
29 mph
Max Speed
- Full HD 1080 60p Video
- Automatic QuickShot flight modes
- Creator Templates for instant viral content
- Smooth Motion for Cinematic Footage
-

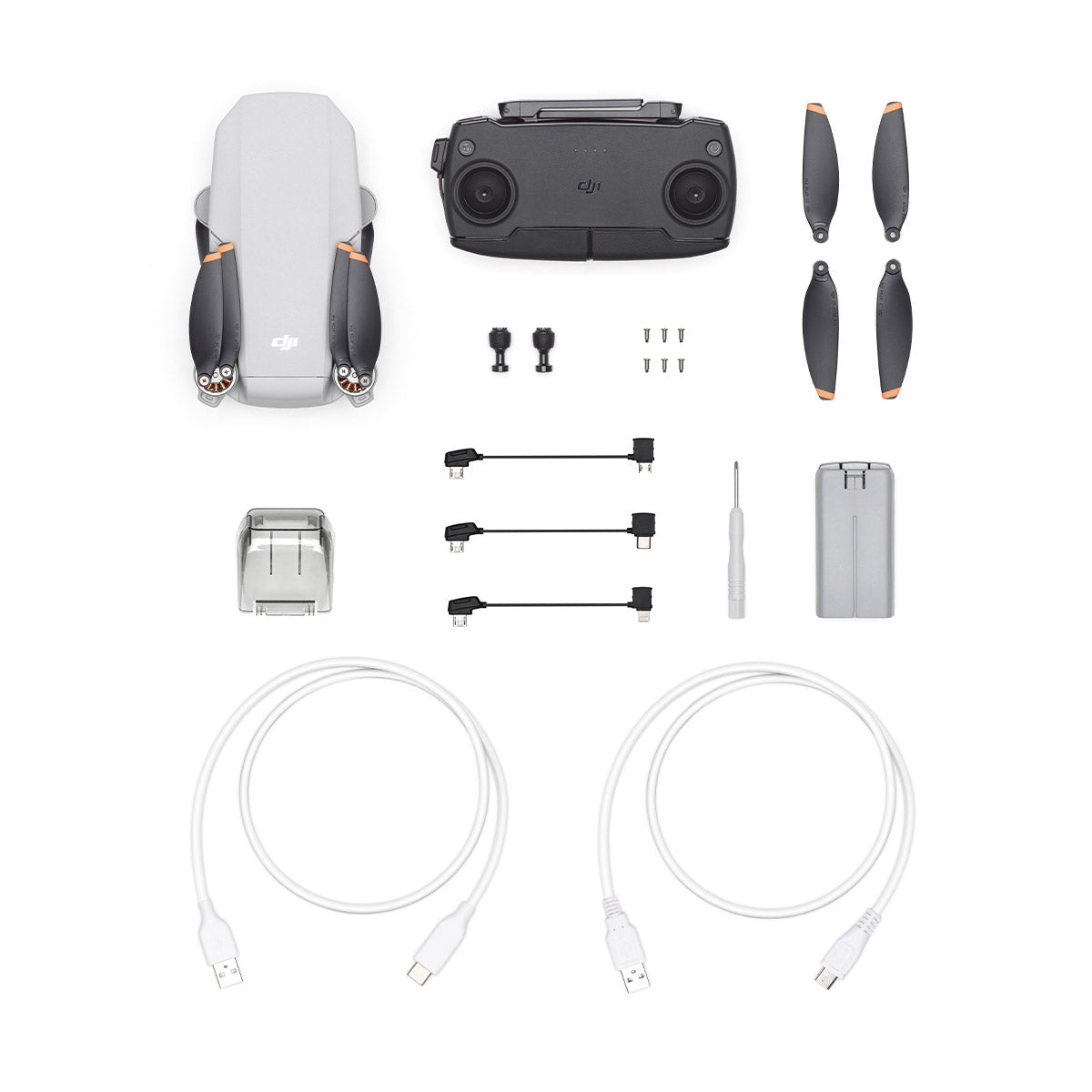

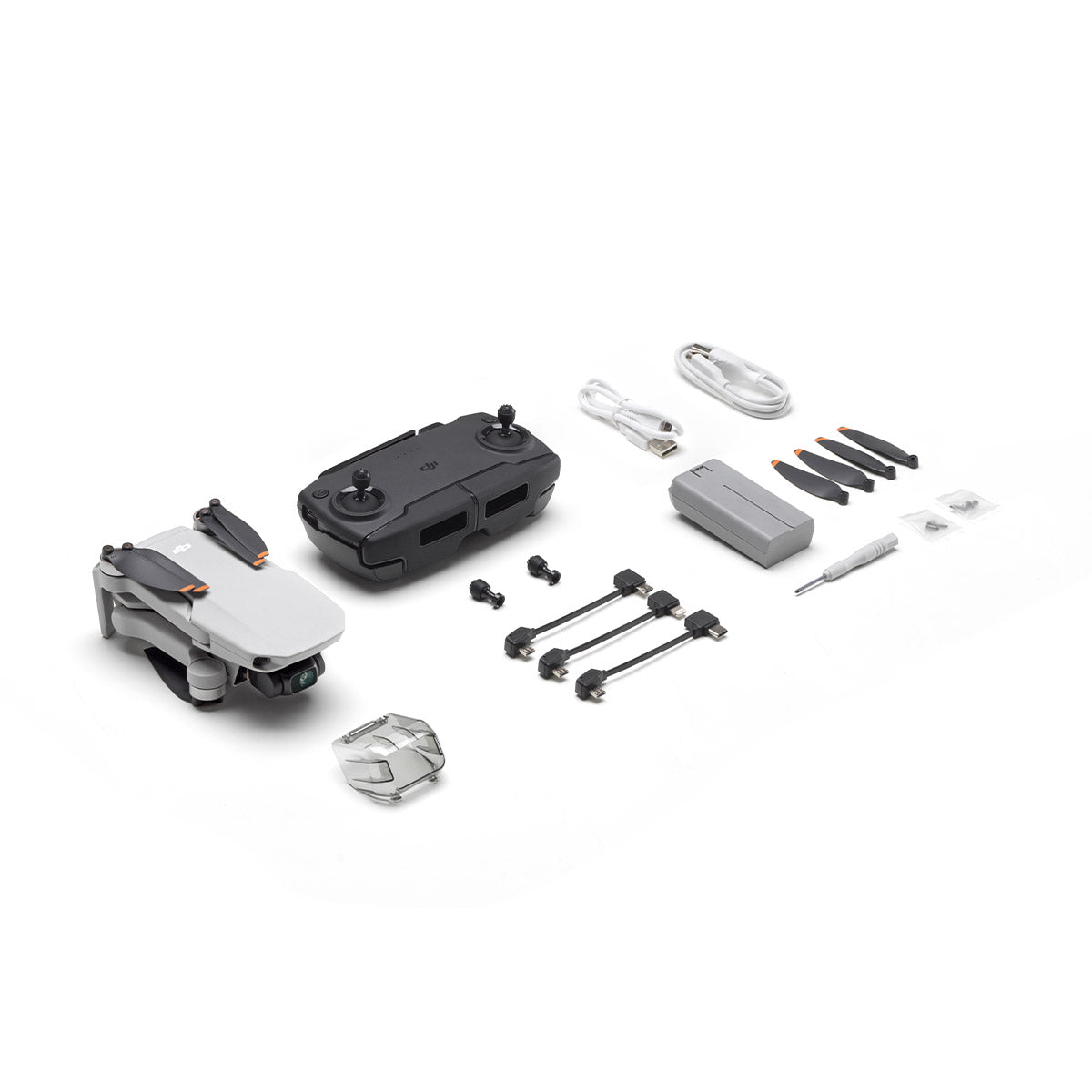

Mini SE Drone
-

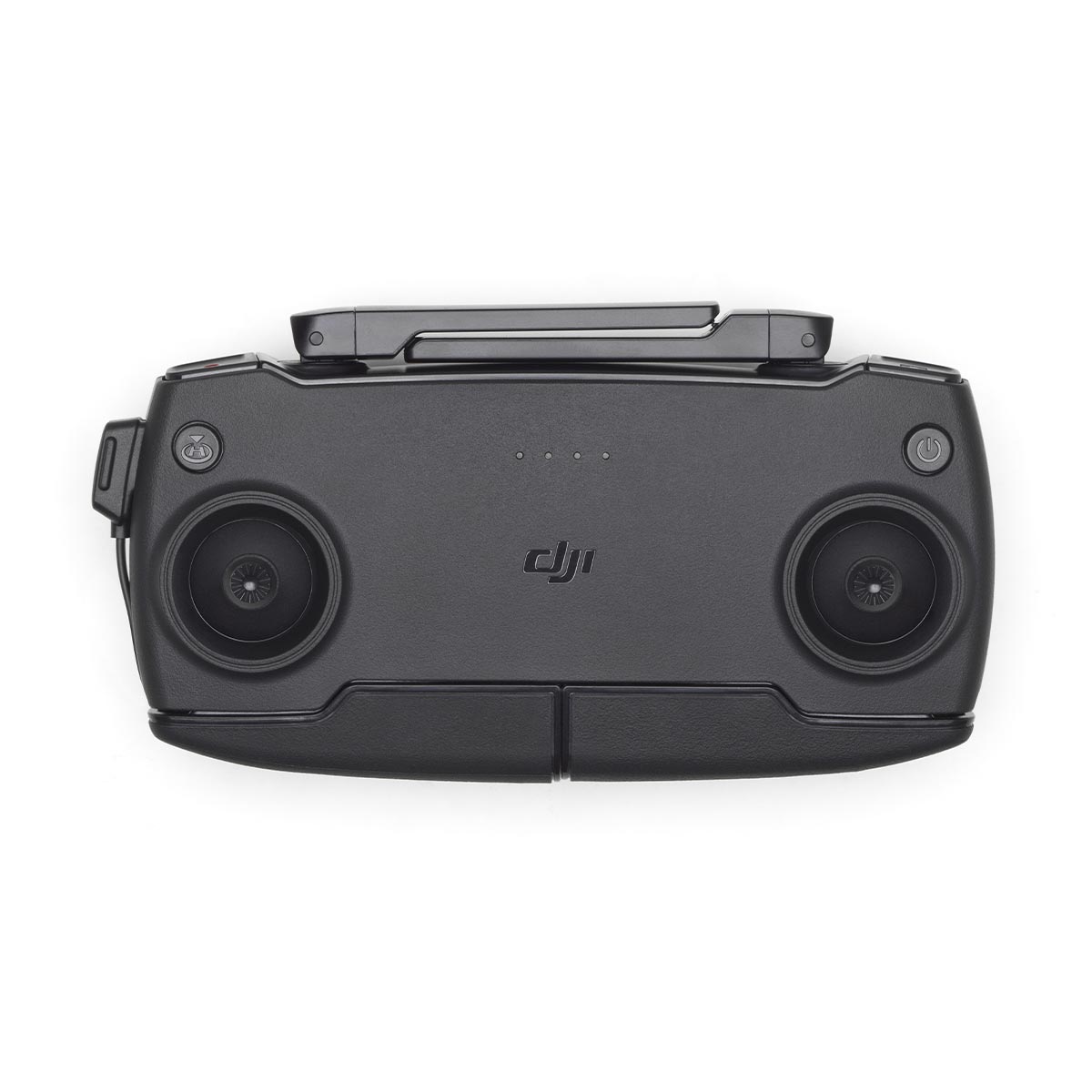

Remote Controller
-
Intelligent Flight Battery
-
Pair of Spare Propellers
-
Micro USB Cable
-
Communication Cable-USB-C
-
Gimbal Protector
-
RC Cable (Micro USB connector)
-
RC Cable (USB-C connector)
-
RC Cable (Lightning connector)
-
Pair of Spare Control Sticks
-
Spare Screw x 6
-
Screwdriver
Description
Performance | |
---|---|
Maximum Horizontal Speed | 13 m/s (29.08 mph) (S Mode) 8 m/s (17.9 mph) (P Mode) 4 m/s (8.95 mph) (C Mode) |
Maximum Ascent Speed | 4 m/s (8.95 mph) (S Mode) 2 m/s (4.47 mph) (P Mode) 1.5 m/s (3.36 mph) (C Mode) |
Maximum Descent Speed | 3 m/s (6.71 mph) (S Mode) 1.8 m/s (4.03 mph) (P Mode) 1 m/s (2.24) (C Mode) |
Maximum Takeoff Altitude | 3000 m / 9842’ 6” |
Maximum Flight Time | 30 minutes (measured while flying at 17 kph in windless conditions) |
Maximum Tilt Angle | 30° (S Mode) 20° (P Mode) 20° (C Mode) |
Hovering Accuracy | Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning) |
Maximum Angular Velocity | 150°/s (S Mode) 130°/s (P Mode) 30°/s (C Mode) |
Max Wind Speed Resistance | 8.5 m/s to 10.5m/s (Scale 5) |
Flight Control System | |
---|---|
GNSS Support | GPS+GLONASS |
Sensing System | |
---|---|
Downward | Operating Range: 0.5-10 m |
Operating Environment | Non-reflective, discernable surfaces Diffuse reflectivity (>20%) Adequate lighting (lux>15) |
Remote Controller / Transmitter | |
---|---|
Operating Frequency | Model MR1SS5: 5.725-5.850 GHz Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz |
Maximum Operating Distance | Model MR1SS5 5.8 GHz: 4000 m (FCC); 2500 m (SRRC) Model MR1SD25 2.4 GHz: 2000 m (MIC/CE) 5.8 GHz: 500 m (CE) |
Transmitter Power | Model MR1SS5 5.8 GHz: <30 dBm (FCC); <28 dBm (SRRC) Model MR1SD25 2.4 GHz: <19 dBm (MIC/CE) 5.8 GHz: <14 dBm (CE) |
Connectivity | Lightning, Micro USB (Type-B), USB Type-C |
Battery Capacity | 2600 mAh |
USB Output Power | 1200 mA 3.6 V (Android) 450 mA 3.6 V (iOS) |
Live View Quality | 720p/30fps |
Latency (depending on environmental conditions and mobile device) | 170-240 ms |
Required Operating System | iOS v10.0 or later Android v6.0 or later |
Camera | |
---|---|
Sensor | 1/2.3” CMOS |
Effective Pixels | 12 MP |
Focal Length | 35 mm Format Equivalent: 24 mm |
Lens Field of View | 83º |
Aperture | f/2.8 |
Minimum Focusing Distance | 1 m to ∞ |
Photo ISO Range | 100-1600 (Auto) 100-3200 (Manual) |
Video ISO Range | 100-3200 (Auto) 100-3200 (Manual) |
Photo Resolution | 4:3: 4000×3000 16:9: 4000×2250 |
Video Resolution | 2.7K (2720×1530): 24/25/30p FHD (1920×1080): 24/25/30/48/50/60p |
Photo Format | JPEG |
Video Format | MP4 (H.264/MPEG-4 AVC) |
Recording Media | UHS-I Speed Class 3 or above is required |
Gimbal | |
---|---|
Number of Axes | 3-axis (tilt, roll, pan) |
Control Range | Tilt: -90° to 0° (default setting) -90° to +20° (extended) |
Max Control Speed (tilt) | 120°/s |
Angular Speed | ±0.01° |
Flight Battery | |
---|---|
Battery Chemistry | LiPo 2S |
Capacity | 2250 mAh |
Output | 12V 1.5 A / 9V 2A / 5V 3A |
Maximum Charging Power | 8.8 V |
Charging Temperature | 5° to 40°C (41° to 104°F) |
Weight | 82.5 g |
General | |
---|---|
Number of Rotors | 4 |
Operating Temperature | 0° to 40°C (32° to 104°F) |
Diagonal Size | 213 mm |
Overall Dimensions | Folded: 138×81×58 mm (L×W×H) Unfolded: 159×203×56 mm (L×W×H) Unfolded (with propellers): 245×289×56 mm (L×W×H) |
Takeoff Weight | < 249 g |
