- Saves DaVinci Resolve project file for 1 click editing
- 5 stream recording engine
- Direct Live streaming via Ethernet
- Multi-view allows monitoring of all cameras
- Includes free ATEM Software Control
-

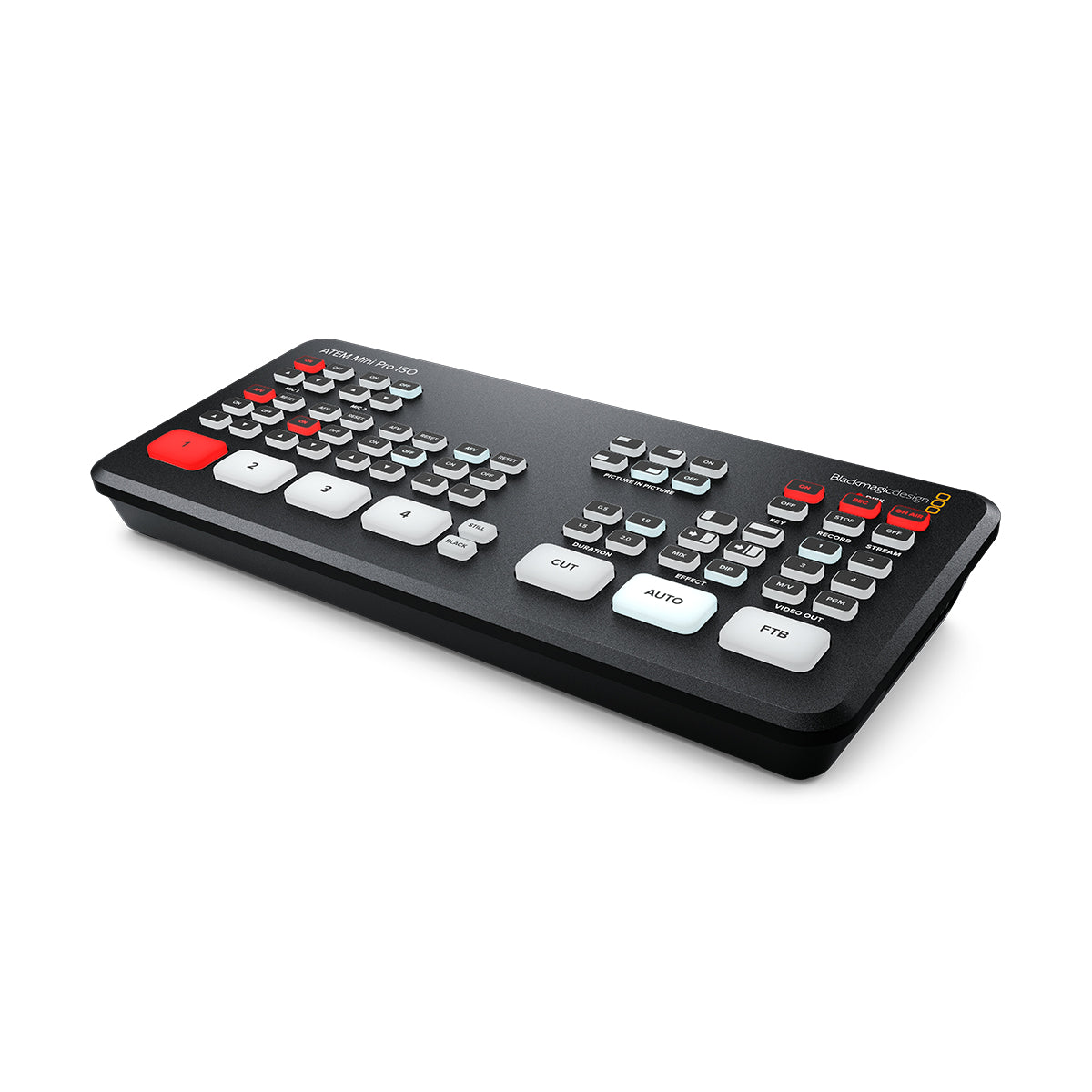

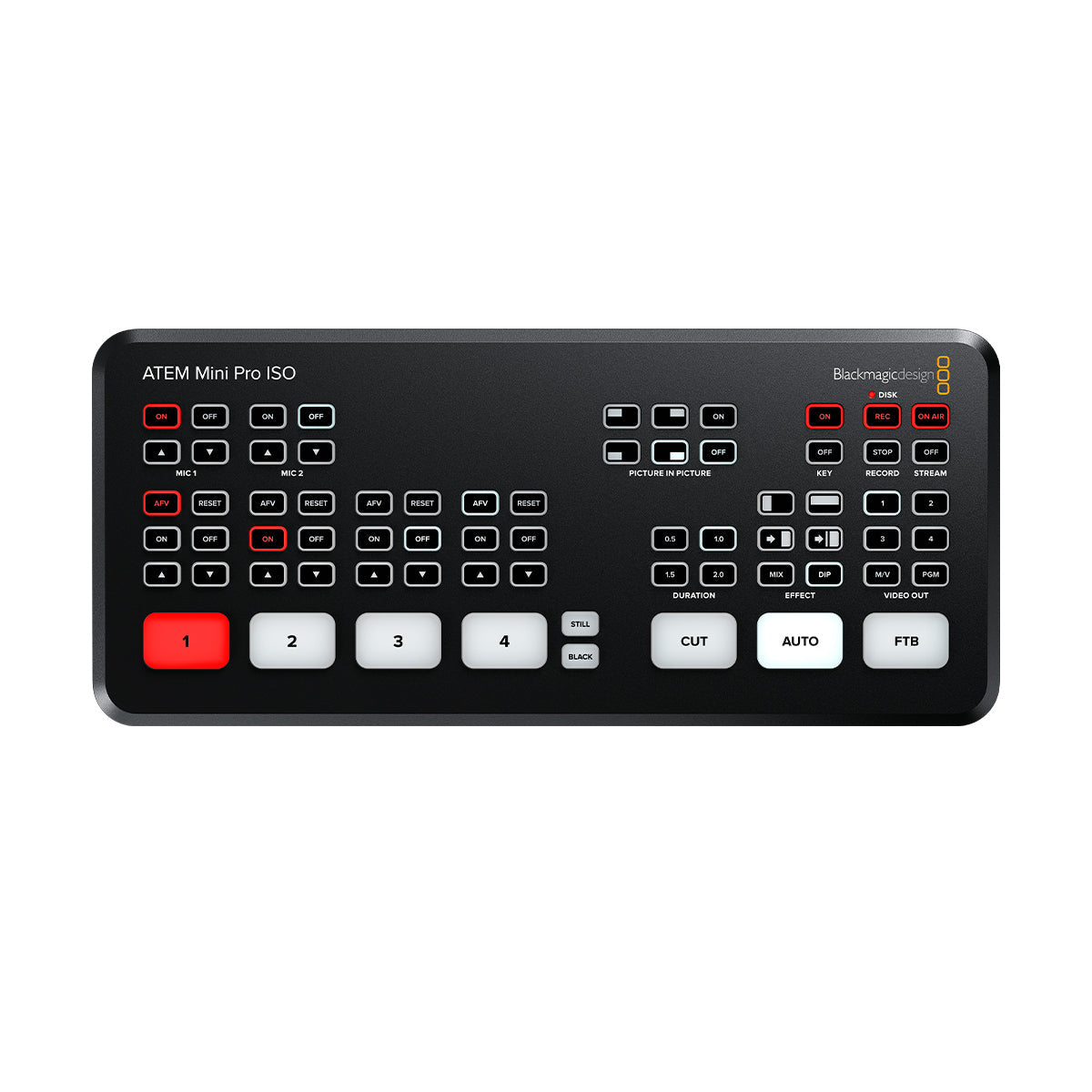

ATEM Mini Pro ISO Live Stream Switcher *Open Box*
-
12-Volt power supply
-
Control Panel Software
-
Limited 1-Year Warranty
Description
Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chromakey, 20 stills for titles and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.

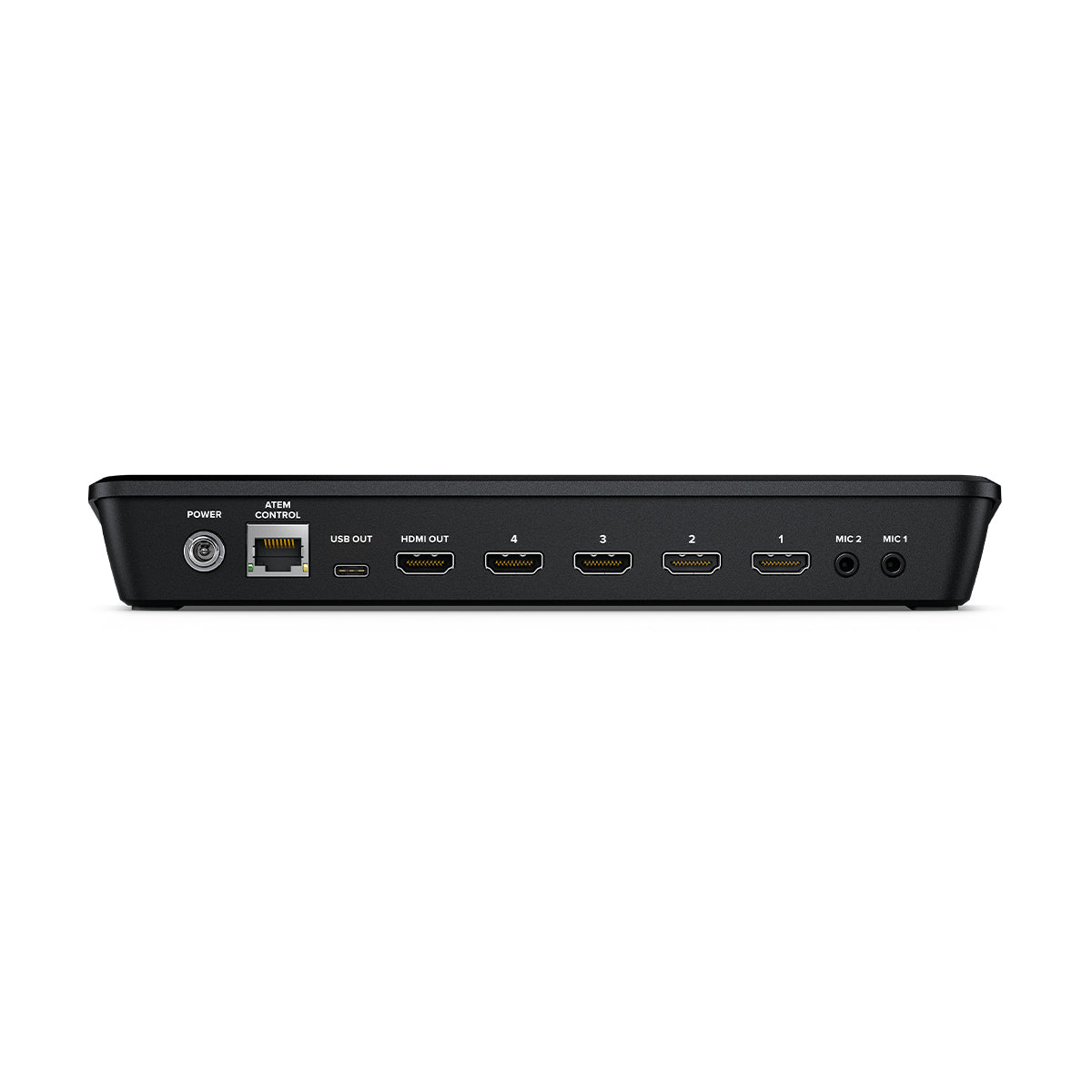

| Connections | |
|---|---|
| Total Video Inputs | 4 |
| Total Outputs | 2 |
| Total Aux Outputs | 1 |
| Total Audio Inputs | 2 x 3.5mm stereo mini jack |
| Total Audio Outputs | None, embedded audio only |
| Timecode Connection | None |
| HDMI Video Inputs | 4 x HDMI type A, 10-bit HD switchable 2 channel embedded audio |
| Video Input Re-Sync | On all 4 HDMI inputs |
| Frame Rate and Format Converters | On all 4 HDMI inputs |
| HDMI Program Outputs | 1 |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection |
| Video Standards | |
|---|---|
| HD Video Input Standards | 720p: 50p, 59.94p, 60p 1080p: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p 1080i: 50p, 59.94p, 60p |
| HD Video Output Standards | 1080p: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| Video Streaming Standards | 1080p: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| Ultra HD Video Standards | None |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec 709 |
| HDMI Input Resolutions from Computers | 280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz 1920 x1080i 50 and 59.94Hz 60Hz |
| Colorspace Conversion | Hardware based real time |
| Streaming | |
|---|---|
| Direct Streaming | ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) |
| Recording | |
|---|---|
| Direct Recording Video and Audio | USB-C 3.1 Gen 1 expansion port can record directly to external media |
| Video Recording | 4 x HDMI ISO inputs as H.264 .mp4 files 1 x Program out as H.264 .mp4 file |
| Audio Recording | 6 x 2 channel audio inputs recorded as separate 24‐bit 48KHz .wav files |
| Switching | Program switching recorded as a DaVinci Resolve project .drp file |
| OS Compatibility | |
|---|---|
| Mac | Mac 10.14 Mojave, Mac 10.15 Catalina or later |
| Windows | Windows 10, 64-bit |
| Power | |
|---|---|
| Power Supply | 1 x External 12V power supply |
| Power Usage | 36W |
| Physical | |
|---|---|
| Size (W x L x H) | 9.35 x 4.07 x 1.38 in / 23.75 x 10.34 x 3.51 cm |
| Weight | 19.4 oz / 0.55 kgs |
| Operating Temperature | 41 - 104° F / 5 - 40° C |
| Storage Temperature | 14 - 140° F / -10 - 60° C |
| Relative Humidity | 0% to 90% non-condensing |
